Summary of Contents for VersaTables UTMM-R1

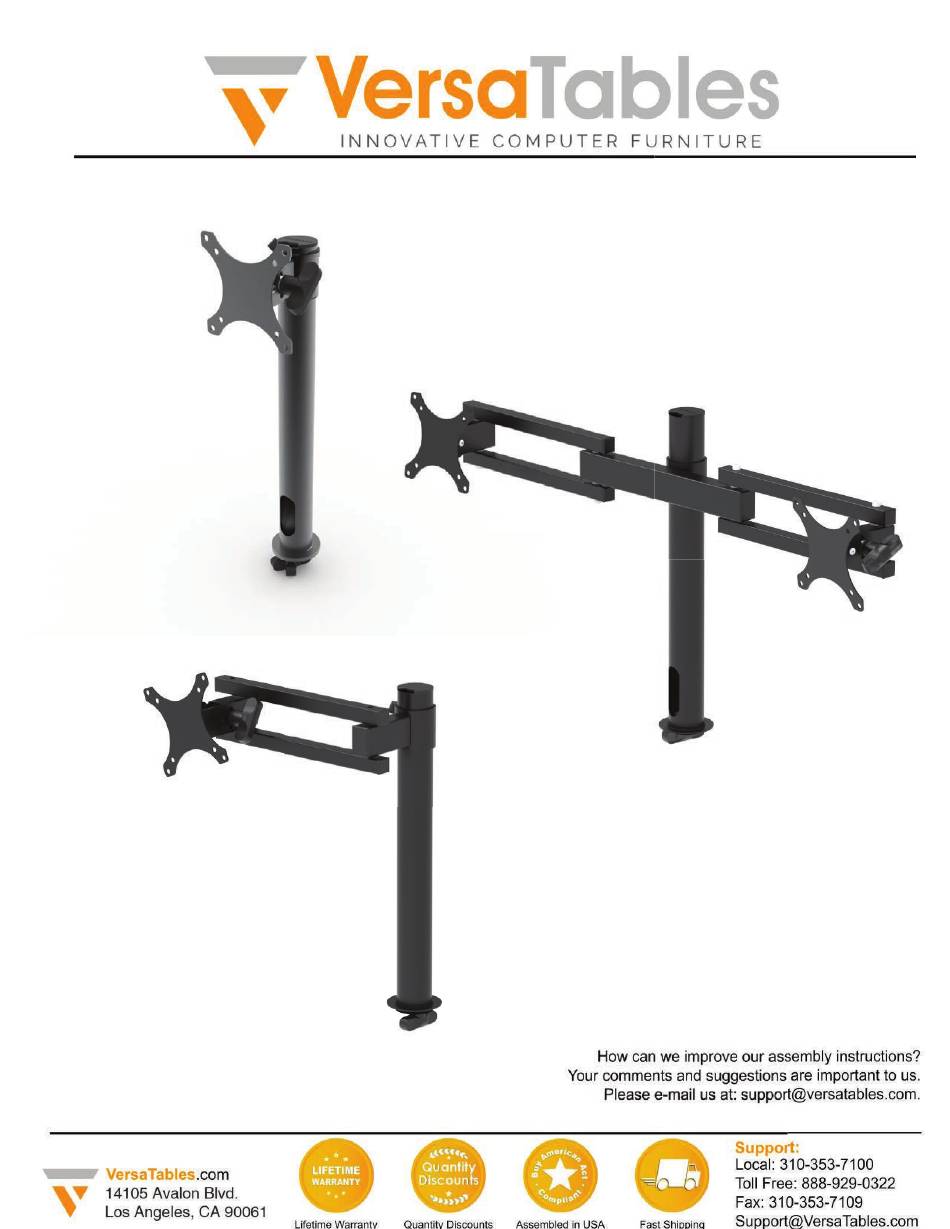

- Page 1 Monitor Pole Assembly Instruc�ons REV. 09092022 UTMM - R1 UTMM - S2 UTMM - S1...
- Page 2 Hardware and Parts List Washer Screw Knob OR Mount pole 50mm Furniture Bolt Qty: 1 Qty: 1 Qty 1 Grommet cap 4mm bolt 4mm Allen Wrench UTMM - R1 & UTMM - S1 Qty: 1 Qty: 4 ( Qty: 1 UTMM - S2 Qty: 8 ( UTMM - R1...
- Page 3 Step 1 Place your monitor on a flat surface with the monitor screen facing down. Step 2 Insert the mount pole into the PMMA(single) or PMDSMA(dual) and position it at a desired height. UTMM - R1 UTMM - S1 UTMM - S2 Secure the PMMA or PMDSMA to the monitor mount pole by turning the screw knob to the right.
- Page 4 Step 3 Place the grommet cap on the pole, as shown in the image. Step 4 Using the bolts provided, attach the monitor to the support, as shown in the image. UTMM - R1 UTMM - S1 UTMM - S2 4 bolts 4 bolts 8 bolts...
- Page 5 Step 5 Place the Monitor mount pole over the grommet hole on your table. UTMM - R1 UTMM - S1 UTMM - S2 Step 4 Align the pole and washer holes. The washer goes underneath the table and the pole goes on top of the table.
- Page 6 Step 6 Before you completely tighten the screw knob, make sure the monitor is in the desired orientation. Finish tightening to secure the pole in place on your table. You have completed the assembly. UTMM - R1 UTMM - S1 UTMM - S2...
