Summary of Contents for SmartSystem SM7 PRO 3G

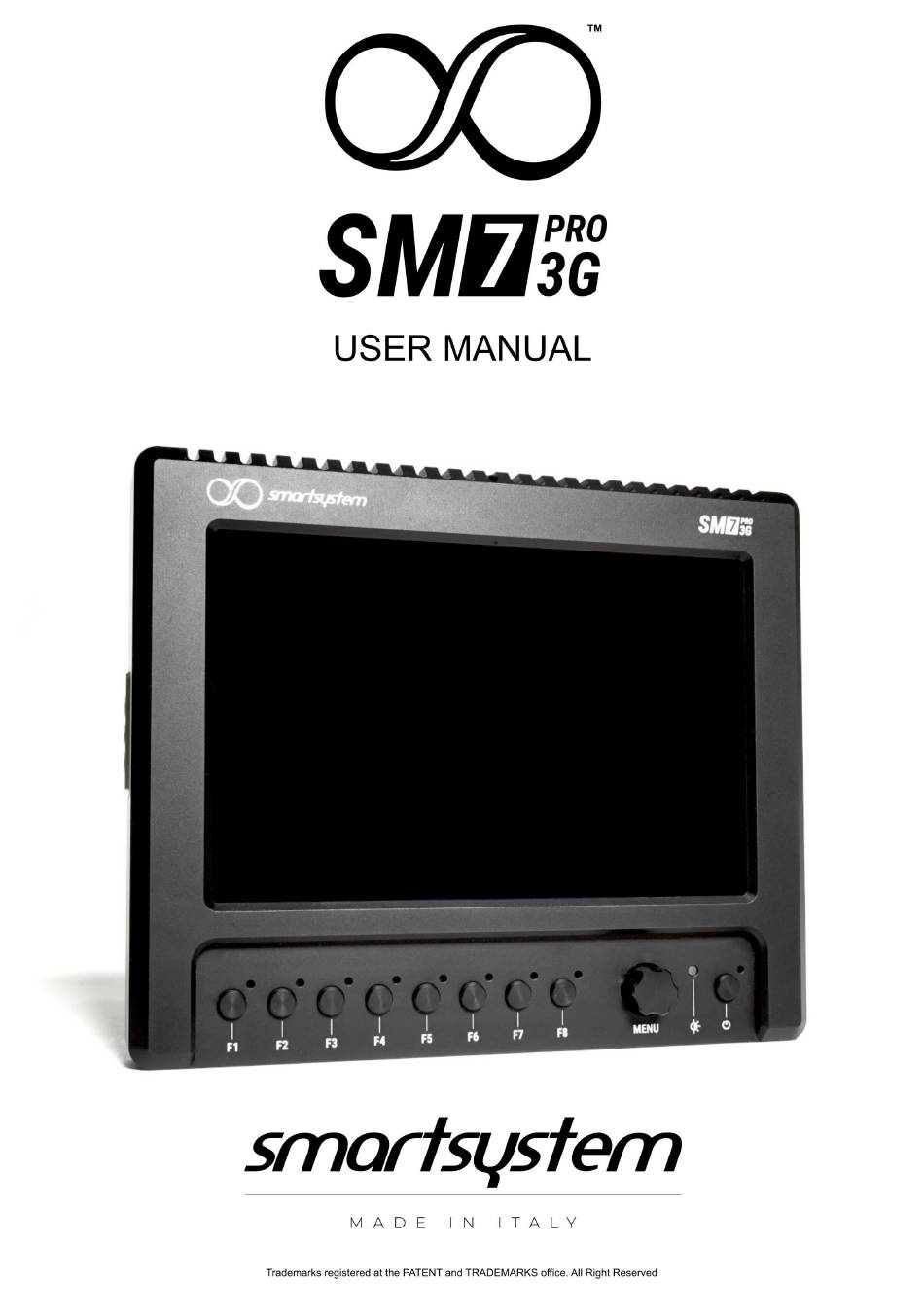

- Page 1 v.1.0...
-
Page 2: Table Of Contents
General Index Safety................................. 4 Packing List............................... 5 Specs................................. 5 SmartCAM SM7-PRO-3G Overview......................6 Registering the product on Care Platform....................8 Electronic modular Design......................... 8 Powering the monitor..........................8 Daisy chain output..........................9 Turning on the monitor..........................9 Understanding Main Status LED......................9 Booting process............................ - Page 3 12.4 Marker............................16 12.4.1 Cinema Guides......................... 16 12.4.2 Safe Areas..........................16 12.4.3 Cross Hatch..........................17 12.4.4 Cross Hair..........................17 12.5 Assist............................. 17 12.5.1 Focus Assist..........................17 12.5.2 Sharpness..........................18 12.5.3 Zebra............................18 12.5.4 CheckField..........................18 12.5.5 False Color..........................19 12.6 Waves............................
-
Page 4: Safety
Do not remove any part or disassembly the SmartCAM SM7-PRO-3G. There are no reusable parts in the SmartCAM SM7-PRO-3G • Due to the costant effort of product improving, SmartSystem reserve the right to make changes and improvement to the product described in this manual WARNING... -
Page 5: Packing List
• Working Temperature : -20°C ~ +40°C • Working Environmental Humidity: 10% ~ 80% • Weight : 1.25kgs / 2.75lbs IN THE CASE OF MALFUNCTION OF THE SM7-PRO-3G, CONTACT AN AUTHORIZED SMARTSYSTEM TECHNICIAN. DO NOT OPEN YOUR SM7-PRO-3G IN ORDER TO MAKE QUICK AND MAKESHIFT REPAIR. -

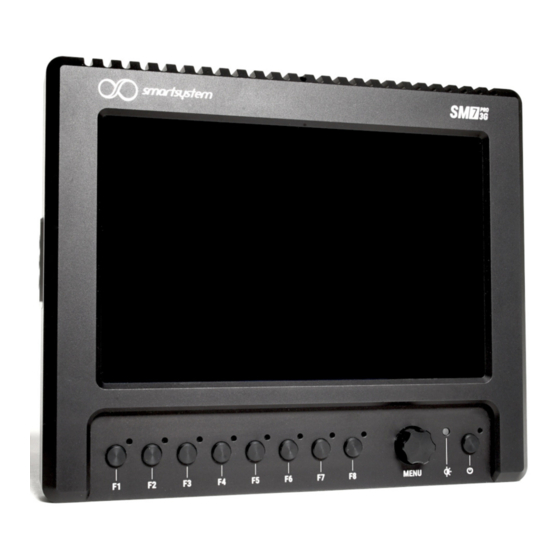

Page 6: Smartcam Sm7-Pro-3G Overview
SmartCAM SM7-PRO-3G Overview Reference Description Function Buttons F1 -F2 – F2 -F3 – F4 – F5 – F6 – F7 – F8 Function LEDs (RGB) Main Knob + Push Button Adaptive Backlight Sensor Power Button Main Status LED (RGB) Lateral attachment 1/4-20 UNC Heat Spreader 3G-SDI Video Input 3G-SDI Video Output... -
Page 8: Registering The Product On Care Platform
Register the product on SmartSystem Care Platform It is highly suggested, if not mandatory, to register the product on the SmartSystem Customer Care portal reachable at the following LINK : https:care.smartsystem.com After the registration, the portal will automatically inform you via email, once new firmware updates will be available offering an improved experience with your new SM7-PRO-3G. -
Page 9: Daisy Chain Output
In case of trouble, it is possible to operate a forced shutdown, holding the power button for more than 3 seconds. In case the user is forced to operate the shutdown via this way, it is suggested to contact SmartSystem technical offices in order to troubleshoot the eventual problem. -
Page 10: Interacting With The Monitor
Interacting with the Monitor SM7-PRO-3G offers to the user two possibilities of interaction for maximum flexibility: • via Main Knob • via Touch screen We designed this double opportunity since we know how hard could be working with a touch monitor in harsh environment (under rain that can be interpreted by the system as a volountary touch command or in very cold environment where gloves can be tricky to use). -
Page 11: Function Buttons
MAIN MENU SHOWN ON SCREEN Operation Result Single Tap Activate the selected option Slide over a control Increase or decrease the corresponding control Double Tap outside Main Menu Exit from the Main Menu Function buttons Function buttons (Par.4 Ref.A) are programmable shortcut to the preferred feature offered by SM7-PRO-3G. -
Page 12: Navigating The Menu
In this example, the user enabled the function “ANAMORPHIC” with the value 1.33x associating it to Function Button F2. Please note that during the association process, the corresponding Function Button associated will the function will not be responsive since the graphic menu takes the precedence. -
Page 13: Video Alignment
In case of BOXED option, a solid stroke on the perimeter will be shown on screen while the CORNER option will emphasize a solid stroke only on the corner. The color of the stroke could be RED or GREEN based on which input are electronically closed on the tally input 12.1.4 Video Alignment... -
Page 14: Auto Brightness
12.2.4 Auto Brightness Auto Brightness is the exclusive feature of SM7-PRO-3G. The integrated light sensor (Par.4 Ref.D) automatically inform the system about the environmental light amount. Once defined a preferred value of backlight, the user can define the amount of intervention of the Auto Brightness depending by the amount of environmental light detected. -
Page 15: Aspect Ratio
12.3.2 Aspect Ratio This menu handle the aspect ratio of the input signal associating it a direct shortcut to Function buttons Options Function Buttons Auto / 16:9 / 16:10 / 4:3 / 5:4 / 2:1 / 1.85:1 /2.35:1 / User defined F1 / F2 / …... -
Page 16: Freeze
12.3.7 Freeze Straightforward option to freeze the image on screen associating it a direct shortcut to Function buttons Options Function Buttons ON / OFF F1 / F2 / … / F8 12.4 Marker In the Marker menu, the user can add to the images some markers to visually help him understanding better what to focus to. -
Page 17: Cross Hatch
12.4.3 Cross Hatch Show on screen a convenient pattern of horizontal and vertical lines. This feature can be linked to a specific Function Button. Values 3x3 / 4x4 / 5x 3 / 5x5 / 6x4 / 6x6 / 7x7 / 8x8 / 9x9 Color Function Buttons ███... -
Page 18: Sharpness
12.5.2 Sharpness It refers to the clarity and distinctness of details in an image. Adjusting sharpness enhances the crispness of edges and fine elements, contributing to a clearer and more refined visual presentation. This feature can be linked to a specific Function Button. Slider Value 1 ~ 20 Color... -
Page 19: Waves
12.6 Waves The "Waves" menu on SM7-PRO-3G provides a suite of tools designed for in-depth video analysis and monitoring. These tools contribute to achieving optimal exposure, color accuracy, and overall image quality in your visual content. 12.6.1 Waveform A waveform monitor is a tool used for analyzing and monitoring the luminance levels of a video signal. -
Page 20: Firmware Upgrade
Firmware Upgrade SM7-PRO-3G can be upgraded directly by the user using the software BURNER freely downloadable from SmartSystem website following link https://www.smartsystem.com/software/. Burner software is compatible with XTDevices only from release 3.x onwards. Since SM7-PRO-3G is an XTBus device, is it possible to connect it to a standard PC or Mac via the XTDongle in bundle with the product. -
Page 21: Warranty
Warranty SmartSystem Unipersonale Srl headquarter is located in Via del Commercio, 22F, 61032 FANO(PU), ITALY. Smartsystem main brand and all the other brands associated with it are property of Smart-System Srl Unipersonale. Your SmartSystem equipment is guaranteed against any manufacturing or material defects for 12 months from the date of delivery to the customer.
