Table of Contents
1. Packaged content ......................................................................................................................... 1
2. Warnings ..................................................................................................................................... 2
3. Technical features ........................................................................................................................ 2
4. Description .................................................................................................................................. 3
5. Installation ................................................................................................................................... 3
5.1. Wall mounting .................................................................................................................. 3
5.2. Electrical connection ......................................................................................................... 4
6. Operation ..................................................................................................................................... 7
A. Technical support ..................................................................................................................... 8
B. Declaration of conformity ......................................................................................................... 8
Read these instructions carefully before installing, commissioning and using this
product.
1. Packaged content
• 1x 12/13/14VAC power supply
• 1x bag including
- 5 rapid connectors
- 3 screws and 3 dowels for wall mounting
MPNT0334 v1.3EN (13/01/2017)

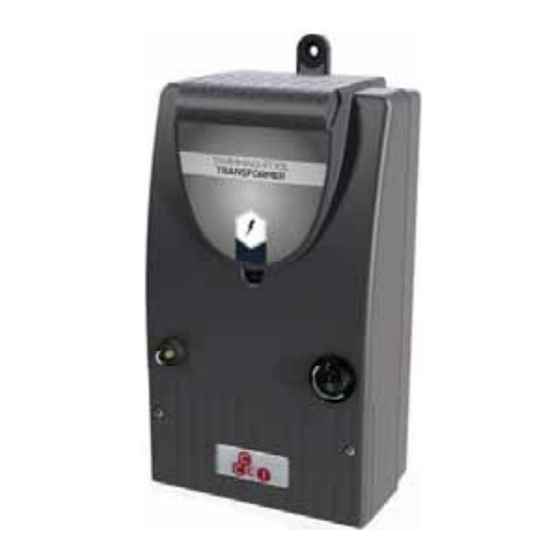

Technical manual
12/13/14VAC
Power supply
Réf : PF10V200 - PF10V201
Advertisement
Table of Contents
Related Manuals for ccei PF10V200
Summary of Contents for ccei PF10V200
-
Page 1: Table Of Contents
Technical manual 12/13/14VAC Power supply Réf : PF10V200 - PF10V201 Table of Contents 1. Packaged content ......................... 1 2. Warnings ............................. 2 3. Technical features ........................2 4. Description ..........................3 5. Installation ........................... 3 5.1. Wall mounting ........................3 5.2. -
Page 2: Warnings
Overall dimensions 310 x 150 x 100mm (12,2 x 5,9 x 3,9po) Installation Wall attachment (3 screws/pegs provided) PF10V200 : 2,3 kg (5,07lbs) Weight PF10V201 : 3,0 kg (6,62lbs) Circuit breaker, in front of the power supply: Integrated supplementary protection 7A (PF10V200) / 13A (PF10V201) ccei.ca... -
Page 3: Description
4. Description This power supply is designed to safely powering your pool lights. Maximal output power is, depending model, 75VA (PF10V200), or 150VA (PF10V201). 5. Installation 5.1. Wall mounting For reasons of safety and in accordance with local directives and NEC, the supply box must be installed •... -
Page 4: Electrical Connection
(ground fault circuit interrupter (GFCI)), capable of providing a sufficient intensity (2A min). The cable section used for the supply must be suitable and functional over its entire length. Green wire, on primary, has to be connected on earth conductor. ccei.ca... - Page 5 Lenght AWG18 AWG16 AWG14 AWG12 AWG10 10m (33ft) #2(13V) #2(13V) #1(12V) #1(12V) #1(12V) 25m (83ft) #3(14V) #2(13V) #2(13V) #2(13V) #1(12V) 50m (165ft) #3(14V) #2(13V) #2(13V) 75m (247ft) #3(14V) #2(13V) 100m (329ft) #3(14V) #3(14V) 125m (411ft) #3(14V) 150m (493ft) #3(14V) ccei.ca...
- Page 6 Technical manual 12/13/14VAC Power supply v1.3EN Green wire, on primary, has to be connected on earth conductor. ccei.ca...
-
Page 7: Operation
(on the front of the box). In case On the supply box, a switch powers on the socket. of surcharge, it disconnects the power output. To re-arm the breaker, just push on it, a few minutes after breaking. ccei.ca... -
Page 8: Technical Support
Website : www.ccei.ca Phone : +1.514.963.4226 B. Declaration of conformity CCEI Inc. (Québec 1170122155) declares that product Power supply12/13/14VAC is compliant with the safety and electromagnetic compatibility requirements of European directives 2006/95/CE and 2004/108/CE and is listed UL under the number E478762.
