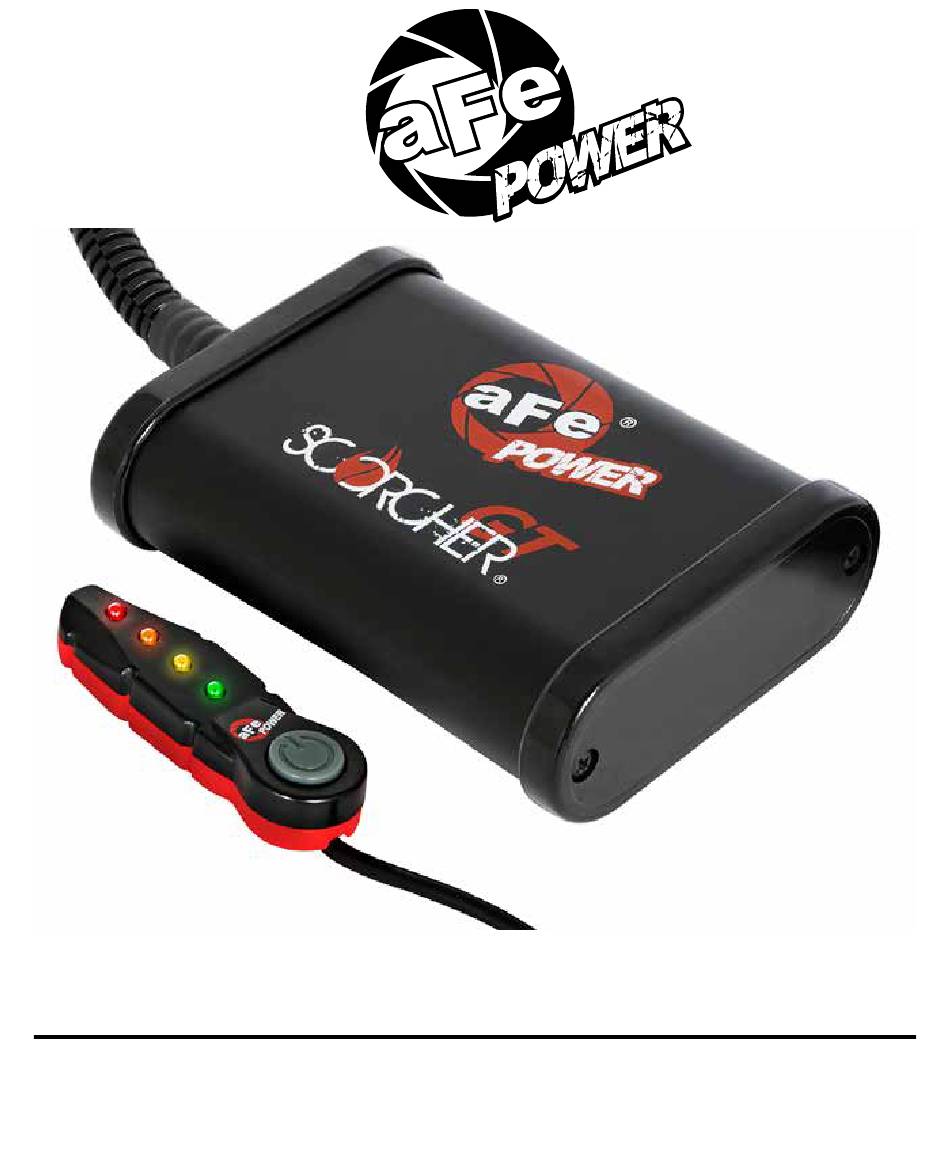

® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. •...
Page 4
® REMOVAL Figure A Refer to Figure A for Step 1. Step 1: Before installing your aFe module, you will have to place your vehicles ECU in sleep mode. In order to do this you will need to do the following: - If the engine is cold, open the hood, close the doors lock the car and wait 30 seconds.
Page 5
REMOVAL Figure B Refer to Figure B for Steps 2-3. Step 2: Remove engine cover and foam insulation to gain access to the sensors. Step 3: Locate the MAP sensor 1 and the fuel pressure sensor 2 . The Map sensor is located on top of the intake manifold.
Page 6
® INSTALL Figure C Refer to Figures C for Steps 4-5. Step 4: Disconnect the MAP sensor. Step 5: Locate the MAP sensor jumper harness on the aFe module. This is the shortest harness. Plug the female connector of the module into the stock MAP sensor, then the male connector of the module into the female connector of the engine harness.
Page 7
INSTALL Figure D Refer to Figure D for Steps 6-7. Step 6: Disconnect the fuel pressure sensor. Step 7: Locate the fuel pressure sensor jumper harness on the aFe module. This is the longer harness. Plug the female connector of the module into the stock fuel pressure sensor, then take the male connector of the module and connect to the female connector of the engine harness.
Page 8
® REMOVAL Figure E Refer to Figure E for Steps 8-9. Step 8: Carefully route the switch cable behind steering wheel cover. Step 9: Mount the Switch on an open, flat surface. Page 8...
Page 9
INSTALL Figure F Refer to Figure F for Steps 10-11. Step 10: Remove the push clip on the driver side windshield cover. Step 11: Unlock the three 10mm nuts retaining the windshield cover and remove aFepower.com Page 9...
Page 10
® INSTALL Figure G Refer to Figure G for Steps 12-14. Step 12: Remove the two 10mm nuts holding the foot trim panel. Step 13: Route the switch cable through firewall and into the engine bay. Follow the main harness through the grommet into the firewall.
Page 11
INSTALL Figure H Refer to Figure H for Steps 15-17. Step 15: Mount the module in a safe location, using the supplied Velcro strip. Then, secure the wires and module away from any extreme heat and moving parts, with the provided cable ties. Make sure all connections are secured and fully engaged.
Page 12
• Green LED: Stock • Yellow LED: Sport • Orange LED: Sport+ • Red LED: Race Use the grey button to select the desired setting. Power adjustments can be done at any moment. Thank you for choosing aFe POWER! Page 12...
Page 13
Page left blank intentionally aFepower.com Page 13...
Page 14
® OE Replacement Air Filter Air Intake System Dynamic Air Scoop Intercooler P/N: 30-10225 (P5R) P/N: 54-76307 (P5R) P/N: 54-12218 (Black) P/N: 46-20301 31-10225 (PDS) 51-76307 (PDS) 54-12218-C (C/F) 54-12218-R (Red) 54-12218-L (Blue) To purchase any of the items above, view airflow charts, dyno graphs, photos, and video please go to aFepower.com. Page 14...
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •...
Page 16
® advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 TECH: 951.493-7134 E-Mail:Tech@aFepower.com P/N: 06-80941...
