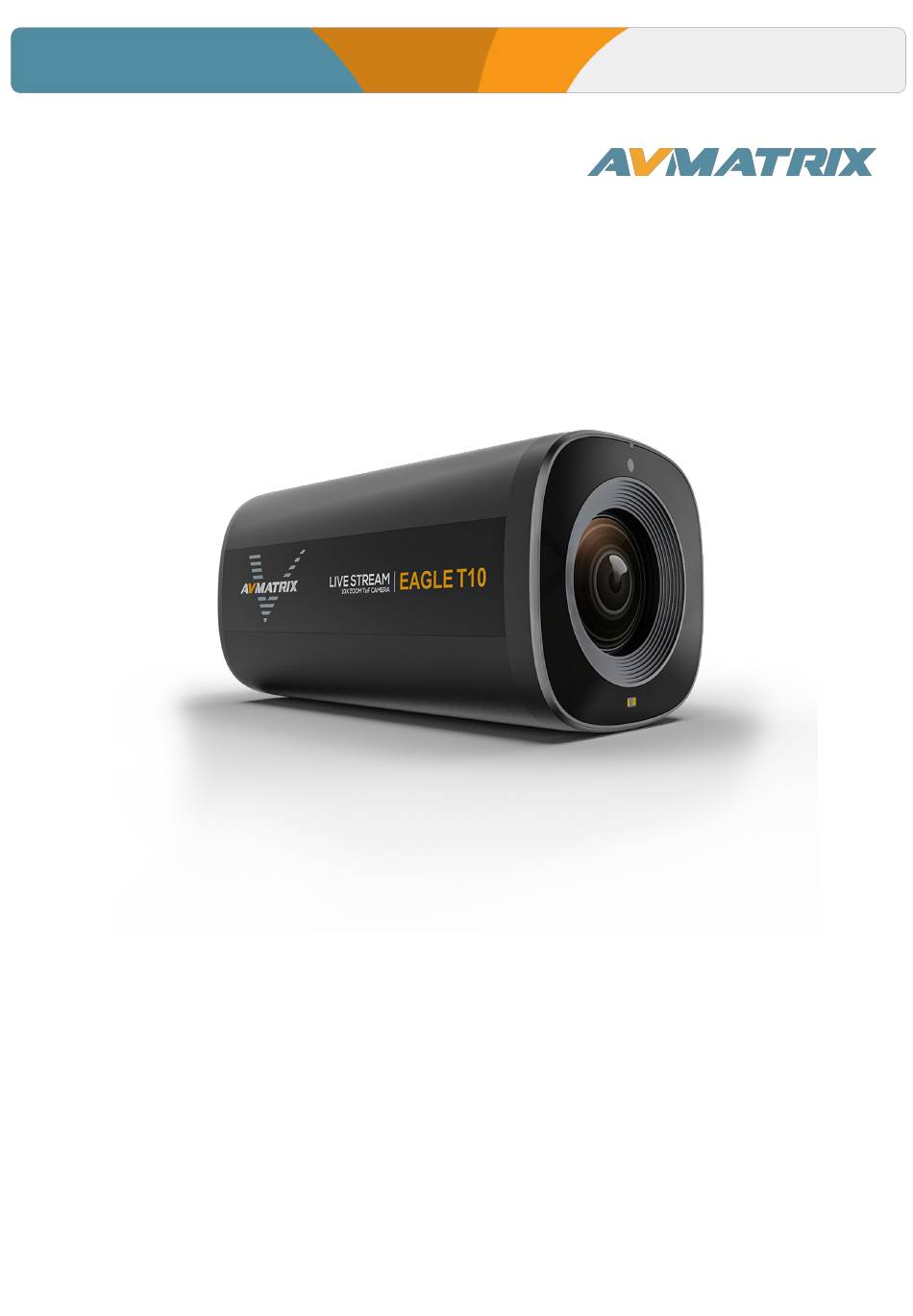

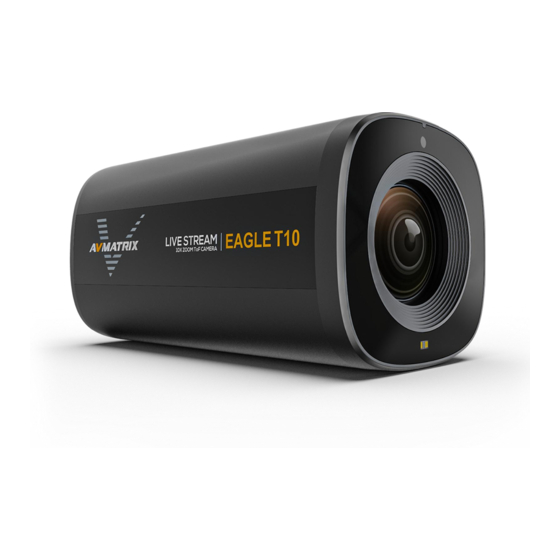

  • Page 1 Eagle T10 Live Streaming Camera · Eagle T10 10X Zoom TOF Autofocus Live Streaming Camera...
  • Page 2 Live Streaming Camera Eagle T10 USING THE UNIT SAFELY Before using this unit, please read below warning and precautions which provide important information concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of every feature of your new unit, read below manual.

  • Page 3: Table Of Contents

    Live Streaming Camera Eagle T10 CONTENT 1. BRIEF INTRODUCTION ................. 1 1.1. Overview ....................1 1.2. Main Features ..................1 2. INTERFACES ....................2 2.1. Interfaces ....................2 2.2. Specification ....................2 2.3. Remote Controller ...................4 2.4. Menu Buttons ..................4 3. MEMU SETTINGS ..................5 3.1.

  • Page 4: Brief Introduction

    Live Streaming Camera Eagle T10 1. BRIEF INTRODUCTION 1.1. Overview This camera uses TOF autofocus technology to achieve fast and accurate focus, even in low-light conditions or when shooting moving objects. It also features a high-quality 500-megapixel CMOS sensor and a 1/2.8" 10x optical zoom lens to capture clear, high-resolution images. The powerful and professional camera that is ideal for a wide range of live streaming applications.

  • Page 5: Interfaces

    Live Streaming Camera Eagle T10 2. INTERFACES 2.1. Interfaces DC 12V In HDMI Out USB Capture Out Rear IR Receiver Menu Combination Buttons 10x Optical Zoom Lens Front IR Receiver ToF Module 2.2. Specification Sensor 5M CMOS Sensor Optical Format 1/2.8"...
  • Page 6 Live Streaming Camera Eagle T10 Field of View 75.4°(Max) Video Output HDMI, USB MJPG 60P: INTERFACES USB Capture Format 1920×1080/ 1280×960/ 1280*720/ 1024×768/ 800×600/ 640×480/ 320×240 HDMI Format 1080P 25/30/50/60, 720P 25/30/50/60 Exposure Mode AE/ AE Lock/ Custom White Balance Mode...

  • Page 7: Remote Controller

    Live Streaming Camera Eagle T10 2.3. Remote Controller Configure the camera ID via menu, and then press the button to select the desired CAM1 or CAM2 directly. Press the button to enter/exit the camera menu. Zoom in/ Zoom out. In menu mode, press the button to select the parameter to be set.

  • Page 8: Memu Settings

    Live Streaming Camera Eagle T10 3. MEMU SETTINGS 3.1. Exposure In the exposure settings, users can set exposure mode, shutter speed, iris, gain, gain limit, DRC, anti-flicker, and BLC. Users can adjust these settings using either the camera's buttons or the IR remote controller.

  • Page 9: Color

    Live Streaming Camera Eagle T10 3.2. Color The color settings allow users to fine-tune the camera's color rendition and image processing to achieve their desired look. These settings include white balance mode, red and blue gain, color temperature, hue, and black and white mode. Users can adjust these settings using either the camera's buttons or the IR remote controller.

  • Page 10: Image

    Live Streaming Camera Eagle T10 3.2.5. B&W Mode Black and white mode converts the image to grayscale, removing all color information. Users can adjust the contrast and sharpness of the black and white image. 3.3. Image The image settings allow users to fine-tune the appearance of the live stream to match their desired visual style.
  • Page 11 Live Streaming Camera Eagle T10 Sharpness: Controls the clarity and crispness of the image. Increasing sharpness can make details  appear more defined, while decreasing sharpness can create a softer, more diffused look. Contrast: Controls the difference between the brightest and darkest parts of the image. Adjusting ...

  • Page 12: Focus

    Live Streaming Camera Eagle T10 3.4. Focus The focus settings enable users to refine the camera's focus behavior and enhance the sharpness of the live stream. These settings include focus mode selection, zoom speed adjustment, TOF focus activation, and magnification display control. To access the focus settings, navigate to the FOCUS option in the Main Menu.
  • Page 13 Live Streaming Camera Eagle T10 3.5.1. Language Users can select the language of English or Chinese for camera's menus and on-screen displays. 3.5.2. Video Format Users can choose the video output format, including 1080p and 720p 25/30/50/60Hz. The appropriate video format ensures compatibility with the intended broadcasting or recording equipment.

  • Page 14: Video Outputs

    4.2. USB-C Output Eagle T10 is based on UVC (USB video class). No additional drivers need to be installed. Connecting the USB Type-C output to a PC, user can use software like OBS, PotPlayer, vMIX, etc. to play or store the captured USB Out video on live streaming platforms like YouTube, Facebook, Zoom, Teams, etc.
  • Page 15 Live Streaming Camera Eagle T10 Step2. Right-click "Video Capture Device" and select properties, enter the properties interface, and select the signal source as your device. Users can set other parameter setting in the properties pages and then click OK.
