ADQ-HATs
Rev. 1.1
EN
ALLDAQ control and measuring unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADQ-HATs and is the answer not in the manual?

Questions and answers

Summary of Contents for Alldaq ADQ-HATs

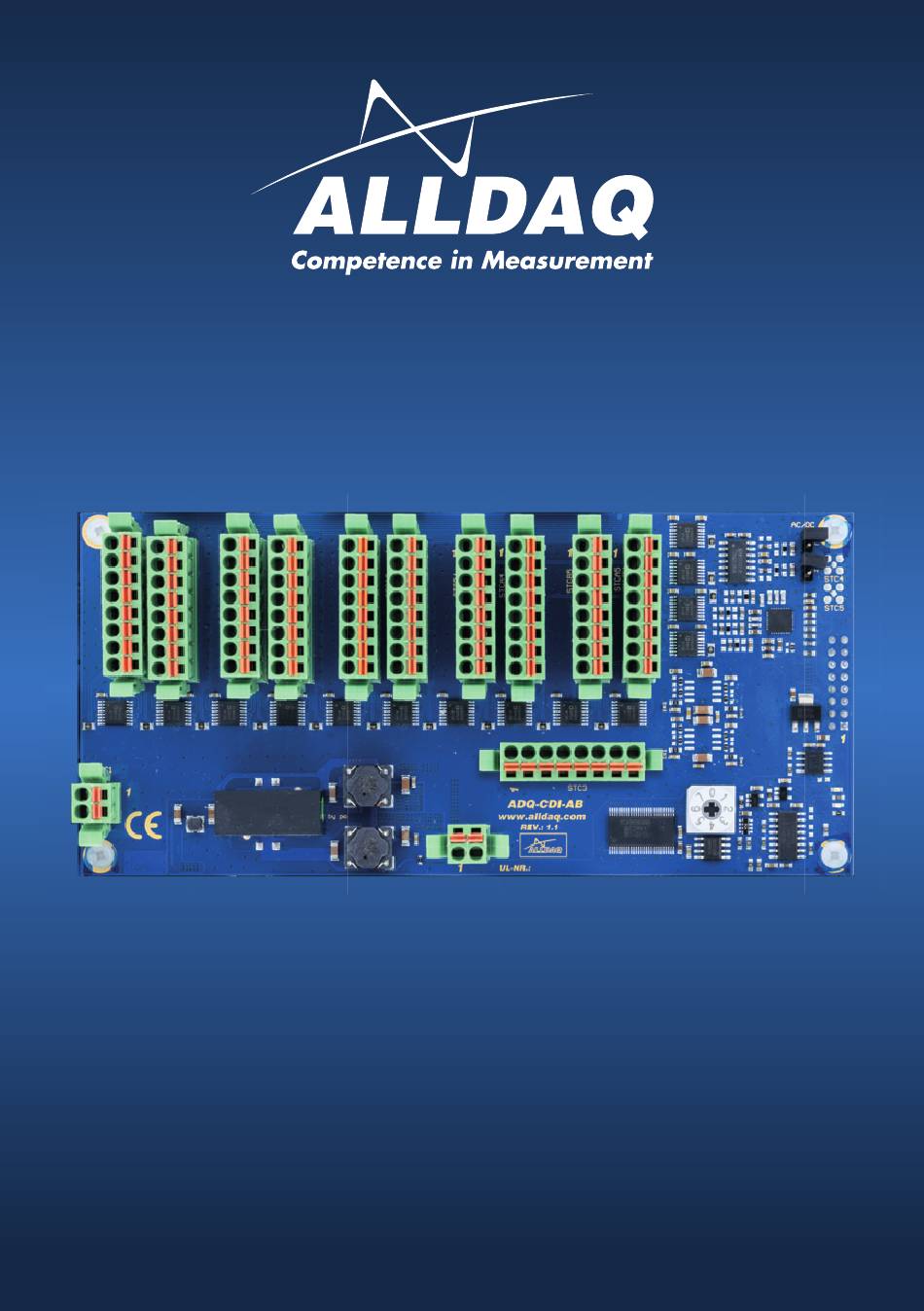

  • Page 1 ADQ-HATs Rev. 1.1 ALLDAQ control and measuring unit...
  • Page 2 ADQ-HATs Rev. 1.1...
  • Page 3 Imprint Manual ADQ-HATs Rev. 1.1 EN Date: 13.10.2023 Manufacturer and support ALLNET® and ALLDAQ® are registered trademarks of ALLNET® GmbH Computersysteme. In case of questions, problems and for product information please contact the manufacturer directly: ® ALLNET GmbH Computersysteme Division ALLDAQ...

  • Page 4: Table Of Contents

    ADQ-HATs Rev. 1.1 Contents 1. Introduction ________________________________________________________ 7 1.1 Scope of delivery _______________________________________________________ 7 1.2 Safety instructions ______________________________________________________ 7 1.3 Installation and assembly location _________________________________________ 8 1.4 Plug-on boards (HATs) ___________________________________________________ 8 1.4.1 HAT1/HAT3 ________________________________________________________ 8 1.4.2 HAT2 _____________________________________________________________ 8 2.
  • Page 5 ADQ-HATs Rev. 1.1...
  • Page 6 ADQ-HATs Rev. 1.1...

  • Page 7: Introduction

    • ALLDAQ HATs Safety instructions Be sure to observe the following instructions: • The ADQ-HATs may only be operated in conjunction with the ADQ-CDI-BB • Avoid touching cables and connectors • Never expose the device to direct sunlight during operation.

  • Page 8: Installation And Assembly Location

    Introduction ADQ-HATs Rev. 1.1 Installation and mounting location The module is intended for installation in measuring and test systems by qualifi ed personnel. Relevant installation regulations and standards must be observed. The module may only be used in dry rooms. Ensure suffi cient heat dissipation. Ensure that the connection cables are securely seated.

  • Page 9: Brief Description Adq-Cdi-Ab-Hat

    ADQ-HATs Rev. 1.1 Short description ADQ-CDI-AB-HAT Short description ADQ-CDI-AB-HAT The ADQ-CDI-AB-HAT (AB-Audio Board) extends the function or measuring tasks of the ADQ- CDI-BB. With this plug-on board (HAT) and a SBC (Single Board Computer) on the ADQ-CDI-BB, the analog inputs and outputs can be switched or measured via the I2S.

  • Page 10: The Adq-Cdi-Ab-Hat System At A Glance

    Short description ADQ-CDI-AB-HAT ADQ-HATs Rev. 1.1 Overview of the ADQ-CDI-AB-HAT system Analog/digital inputs and outputs Analog Input Matrix Audio-Codec Attenuator AO_K0 G = 0 dB AI_0..7± Attenuator ±7,07 AO_K1 G = 0 dB Input Coupling Attenuator L / IN AI_8..15±...

  • Page 11: Analog Inputs/Outputs

    ADQ-HATs Rev. 1.1 Short description ADQ-CDI-AB-HAT Analog inputs/outputs There are 40 analog differential voltage inputs available, as well as 4 analog single-ended inputs/out- puts. For more technical information about the inputs and outputs, please refer to the specifications. Analog Input Matrix AI_0..7±...

  • Page 12: Voltage Supply

    Short description ADQ-CDI-AB-HAT ADQ-HATs Rev. 1.1 Audio-Codec Attenuator AO_K0 G = 0 dB Attenuator AO_K1 G = 0 dB Attenuator AO_K2 G = 0 dB Attenuator AO_K3 G = 0 dB Attenuator AI_K0 G = -23,92 dB Attenuator AI_K1 G = -23,92 dB...

  • Page 13: Control Unit

    For full control of the ADQ-CDI-AB-HAT, the single board computer is always used (default). In addition, the HAT can be controlled via the ADQ-CDI-BB using the STB18 ADQ-Link connector (service mode) and the I2C board control center (ALLDAQ driver). In this case, the full range of functions of the ADQ-CDI-AB-HAT is not available.

  • Page 14: Pin Assignments

    Pin assignments ADQ-HATs Rev. 1.1 Pin assignments Position of the connectors/jumpers STCA1 STCA2 STCA3 STCA4 STCA5 Jumper 1 Jumper 2 STCB1 STCB2 STCB3 STCB4 STCB5 STC1 STC2 STC3 Figure 6: ADQ-CDI-AB-HAT with connector position Pin assignments...

  • Page 15: Overview Of Connector Types

    ADQ-HATs Rev. 1.1 Pin assignments Connector types at a glance 4.2.1 Type Würth Connectors from the Therma/Würth 69130513..series with different numbers of poles are used. 8-pin 2-pin (691305130008) (691305130002) Figure 7: Würth base strip type WR-TBL 3051 (top view) 4.2.2 Type pin connector...

  • Page 16: Pin Assignment

    Pin assignments ADQ-HATs Rev. 1.1 Pin assignment STC1/STC2 Figure 9: Würth 691305130002 Assignment Description AGND Analoger GND AGND Analoger GND Tabelle 1: Pin assignment STC1/STC2 Pin assignments...
  • Page 17 ADQ-HATs Rev. 1.1 Pin assignments STCA1 INPUT K0 - K7 Figure 10: Würth 691305130008 Designation Description pos. diff. Input pos. diff. Input pos. diff. Input pos. diff. Input pos. diff. Input pos. diff. Input pos. diff. Input pos. diff. Input...
  • Page 18 Pin assignments ADQ-HATs Rev. 1.1 STCA2 INPUT K8 - K15 Figure 12: Würth 691305130008 Designation Description +K15 pos. diff. Input +K14 pos. diff. Input +K13 pos. diff. Input +K12 pos. diff. Input +K11 pos. diff. Input +K10 pos. diff. Input pos.
  • Page 19 ADQ-HATs Rev. 1.1 Pin assignments STCA3 INPUT K16 - K23 Figure 14: Würth 691305130008 Designation Description +K23 pos. diff. Input +K22 pos. diff. Input +K21 pos. diff. Input +K20 pos. diff. Input +K19 pos. diff. Input +K18 pos. diff. Input +K17 pos.
  • Page 20 Pin assignments ADQ-HATs Rev. 1.1 STCA4 INPUT K24 - K31 Figure 16: Würth 691305130008 Designation Description +K31 pos. diff. Input +K30 pos. diff. Input +K29 pos. diff. Input +K28 pos. diff. Input +K27 pos. diff. Input +K26 pos. diff. Input +K25 pos.
  • Page 21 ADQ-HATs Rev. 1.1 Pin assignments STCA5 INPUT K32 - K39 Figure 18: Würth 691305130008 Designation Description +K39 pos. diff. Input +K38 pos. diff. Input +K37 pos. diff. Input +K36 pos. diff. Input +K35 pos. diff. Input +K34 pos. diff. Input +K33 pos.
  • Page 22 Pin assignments ADQ-HATs Rev. 1.1 STC3 analog INPUT/OUTPUT Figure 20: Würth 691305130008 Designation Description IN2_L analog INPUT (Single-Ended) IN2_R analog INPUT (Single-Ended) IN3_L analog INPUT (Single-Ended) IN3_R analog INPUT (Single-Ended) analog OUTPUT (Single-Ended) analog OUTPUT (Single-Ended) analog OUTPUT (Single-Ended) analog OUTPUT (Single-Ended)

  • Page 23: Specifications Adq-Cdi-Ab-Hat

    ADQ-HATs Rev. 1.1 Specifications ADQ-CDI-AB-HAT Specifications ADQ-CDI-AB-HAT Conditions: TA = 25°C unless otherwise specified; Warm-up time: 30 minutes. General Element Condition Specification Control and signal recommended ADQ-CDI-AB-HAT for analog input/output, processing and control via I2C and I2S bus/Beagle Bone Black...
  • Page 24 Specifications ADQ-CDI-AB-HAT ADQ-HATs Rev. 1.1 Diff. analog inputs ADQ-CDI-AB-HAT Element Condition Specification Channels 40 AC differential inputs 10V peak Bandwidth CODEC 50 Hz to 20 KHz (see TLV320AIC3204 data sheet) Sampling rate CODEC 48 KHz/96 KHz/192 KHz (see TLV320AIC3204 data sheet)
  • Page 25 Anschlussbelegung ADQ-CDI-BB 1.0 Rev. 1.0 Specifications ADQ-CDI-AB-HAT Single-ended analog inputs ADQ-CDI-AB-HAT (upon request) Element Condition Specification Channels 4 single-ended analog inputs (10V peak) Bandwidth CODEC 50 Hz to 20 KHz (see TLV320AIC3204 data sheet) Sampling rate CODEC 48 KHz/96 KHz/192 KHz (see TLV320AIC3204 data sheet) Resolution CODEC 16 bit (see TLV320AIC3204 data sheet)
  • Page 26 Specifications ADQ-CDI-AB-HAT ADQ-HATs Rev. 1.1 Single-ended analog outputs ADQ-CDI-AB-HAT Element Condition Specification Channels 4 single-ended analog outputs (0,6Vpeak output range) Bandwidth CODEC 50 Hz to 20 KHz (see TLV320AIC3204 data sheet) Output rate CODEC 48 KHz/96 KHz/192 KHz (see TLV320AIC3204 data sheet)

  • Page 27: Appendix

    ADQ-HATs Rev. 1.1 Appendix Appendix Manufacturer and support ALLNET® is a registered trademark of ALLNET® GmbH Computersysteme. In case of questions, problems and for product information of any kind, please contact the manufacturer directly: ® ALLNET GmbH Computersysteme Division ALLDAQ...

  • Page 28: Recycling Notice And Rohs Compliance

    Appendix ADQ-HATs Rev. 1.1 6.2.2 Recycling notice and RoHS compliance Please note that parts of ALLNET® GmbH products should be disposed of at recycling centers or may not be disposed of with household waste (printed circuit boards, power supply units, etc.).
  • Page 29 ADQ-HATs Rev. 1.1 Appendix Appendix...
  • Page 30 ® ALLNET GmbH Computersysteme Division ALLDAQ Maistrasse 2 D-82110 Germering E-Mail: support@alldaq.com Phone: +49 (0)89 894 222 – 474 Fax: +49 (0)89 894 222 – 33 Internet: www.alldaq.com...
