Summary of Contents for ICON LinkPro

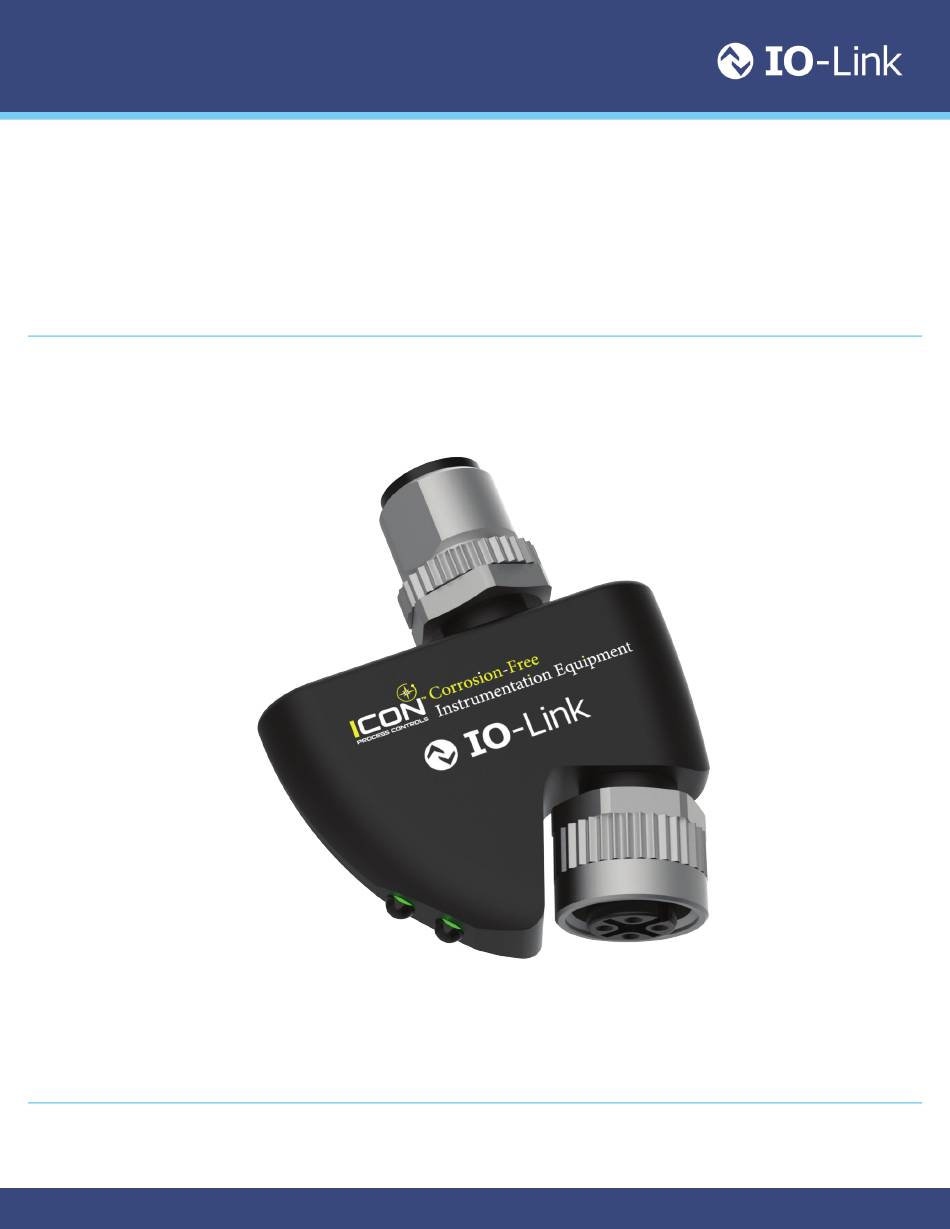

- Page 1 LinkPro ® IO Adapter LinkPro IO Adapter ® User Manual Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. 23-0149...
- Page 2 LinkPro ® IO Adapter Symbol Explanation This symbol denotes especially important guidelines concerning the installation and operation of the device. Not complying with the guidelines denoted by this symbol may cause an accident, damage or equipment destruction. Basic Requirements | User Safety ■...
- Page 3 LinkPro ® IO Adapter Product Overview IO-Link Interface Analog Input Port Status LED Supply | Communication Pin Assignment ■ IO-Link (M12, Female) ■ Analog Input Port(M12, Male) Signal Signal +24VDC +24VDC 4-20mA IO-Link Data Transmission Channel ■ Connect the IO-Link adapter either to an IO-Link Master directly or to an Analog Sensor.
- Page 4 LinkPro ® IO Adapter LED Indicators Signal Function LED 1 Green | Green Flashing Communication Error | Communication OK LED 2 Green | Green Flashing Supply Sensor & Module OK | Undervoltage LED 2 : Supply LED 1 : Communication...
- Page 5 LinkPro ® IO Adapter Parameter Data | Request Data SPDU Object name Length Range Default value Sub- Index Index Index 0x07 Vendor ID 2 Byte 0x0454 0x08 0x09 0x099BE2 0x0A Device ID 3 Byte 0x099BE1 0x0B 0x10 Vendor name 18 Byte...
- Page 6 Returns Products cannot be returned to Icon Process Controls Ltd without prior authorization. To return a product that is thought to be defective, go to www.iconprocon.com, and submit a customer return (MRA) request form and follow the instructions therein. All warranty and non-warranty product returns to Icon Process Controls Ltd must be shipped prepaid and insured.
