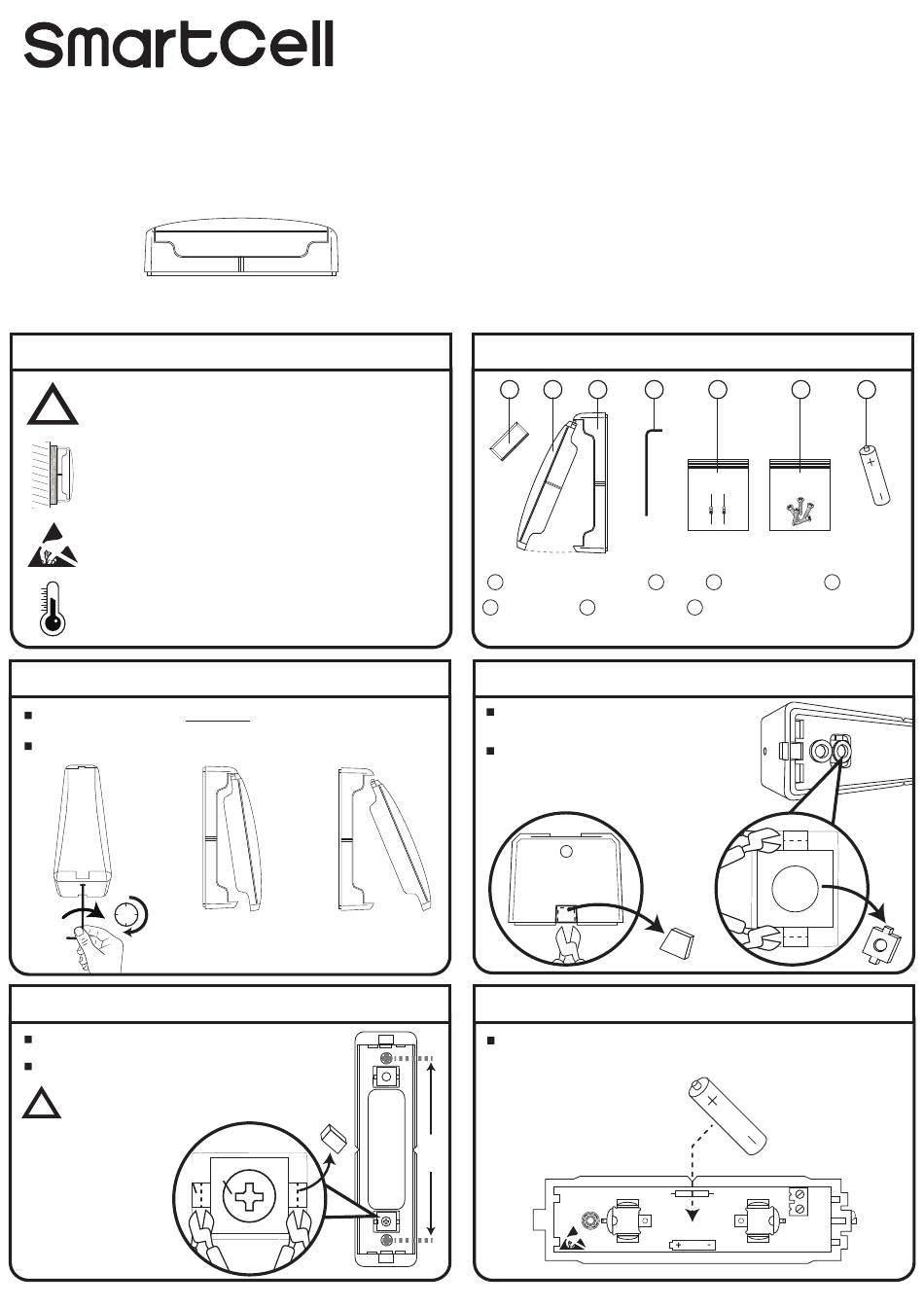

SmartCell SC-43-0200-0001-99 Installation Manual

Contact Transmitter and Input Device
for Information Zones*
Installation Guide

1 Pre installation

Installation must conform to applicable local installation codes and
!
should only be installed by a fully trained competent person.
The use of a non-metallic spacer should be considered if mounting
the device on to a metal surface.
This device contains PCBs that are susceptible to damage from
Electrostatic Discharge (ESD). The PCBs contain no serviceable
parts and therefore must not be removed.
To ensure correct operation, products must be used within the
specified environmental operating conditions.

3 Unlocking the device

If locked, turn the Allen key CLOCKWISE to release the locking mechanism.
Once unlocked, carefully unclip the two sections from one another.
1. 2.

5 Fix back box

Both fixing positions must be used to ensure a firm fixing.
Use the supplied fixing screws.
If the device is at risk of being forceably removed from
!
the wall, additional tamper monitoring is available:
A) Screw the tamper
segment to the wall, using
(B)
a supplied fixing screw.
B) Remove the two thin
sections of plastic, as
shown.
©2020 EMS Ltd. All rights reserved.
*NOT FOR FIRE OR SECURITY APPLICATIONS
3.
(A)
Part number
SC-43-0200-0001-99

2 Components

1 2 3
1 Magnet holder assembly
6
5 Resistor pack
*When batteries are not supplied, only fit specified batteries.

4 Prepare the back box

There are two available cable entry
points shown below.
Remove the thin sections of plastic as
required.
Entry point 1

6 Fit battery

When fitting / replacing batteries, observe correct polarity, using only
specified batteries.
86
mm
Page 1 of 2
Product description
Contact Transmitter and Input Device for
Information Zones
4 5
2 Lid 3 Device back box
7
5x fixing screws Battery (not included in some regions*)
Entry point 2
LITHIUM 3.6V
ER14505M AA
TSD123-0001-99 (Issue 1) 07/07/2020 AJM
6 7
4 Allen key
IN A
IN B
