Page 1
Quick Start Guide PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY...
Page 2

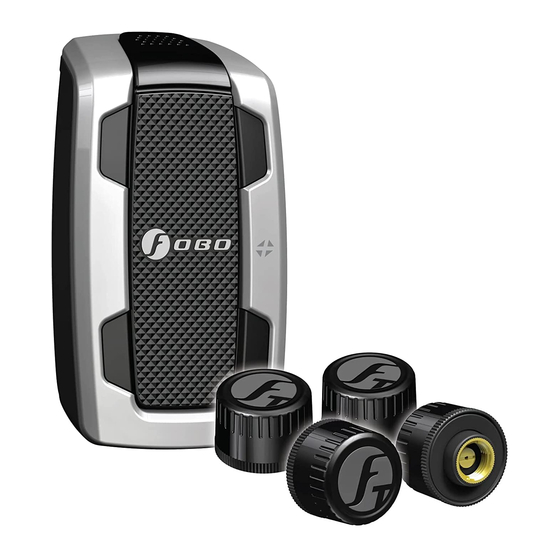

FOBO Tire 2 system comprises: 1) FOBO Tire 2 App to display the pressure & temperature readings on your smartphone.
Page 3
LED and alert sounds. Front Left Front Right Rear Left Rear Right 3) 4 x FOBO Tire 2 sensors to measure pressure and temperature in real time. Wirelessly transfer data to in-car unit and smart device.
Page 4
Download FOBO Tire 2 App onto your smartphone from Google Play Store (Android) or App Store (iOS).
Page 5
Ensure the Bluetooth, Location service and Internet connection on your smartphone is turned on. Open FOBO Tire 2 App and sign in using your preferred email address or sign in using your Facebook or Google account.
Page 6
Allow all the permissions prompted by the App. Press Add button on the FOBO Tire 2 App home page to start installation.
Page 7
Open in-car unit battery cover and remove the battery tab, press side button on the in-car unit until hear a beep sound and LED flashing at top centre of the in-car unit. Follow on screen instructions to set up the vehicle profile and click save.
Page 8
At your vehicle, install one sensor at a time. Unscrew sensor cover FR, remove battery tab, screw back the sensor cover and screw sensor on the tire valve FR. Contnue with sensor RR, RL and finally FL. Unscrew sensor cover Tire position indicator Remove battery...
Page 9
FOBO Tire 2 sensor. 4. Hold on to the FOBO Tire 2 sensor and use the provided wrench to further tighten the FOBO Lock-Nut against the FOBO sensor. This is to avoid the twisting of the rubber valve.
Page 10
Please download the complete user manual from www.my-fobo.com...
Page 11
FOBO Tire 2 system comprises: 1) FOBO Tire 2 App to display the pressure & temperature readings on your smartphone.
