BOERPLAY BBIE500.KP Installation Instructions Manual

Fire brigade ladder truck
Hide thumbs

Advertisement

Quick Links

Download this manual
Fire brigade ladder truck
BBIE500.KP

Advertisement

loading
Need help?

Need help?

Do you have a question about the BBIE500.KP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY BBIE500.KP

Summary of Contents for BOERPLAY BBIE500.KP

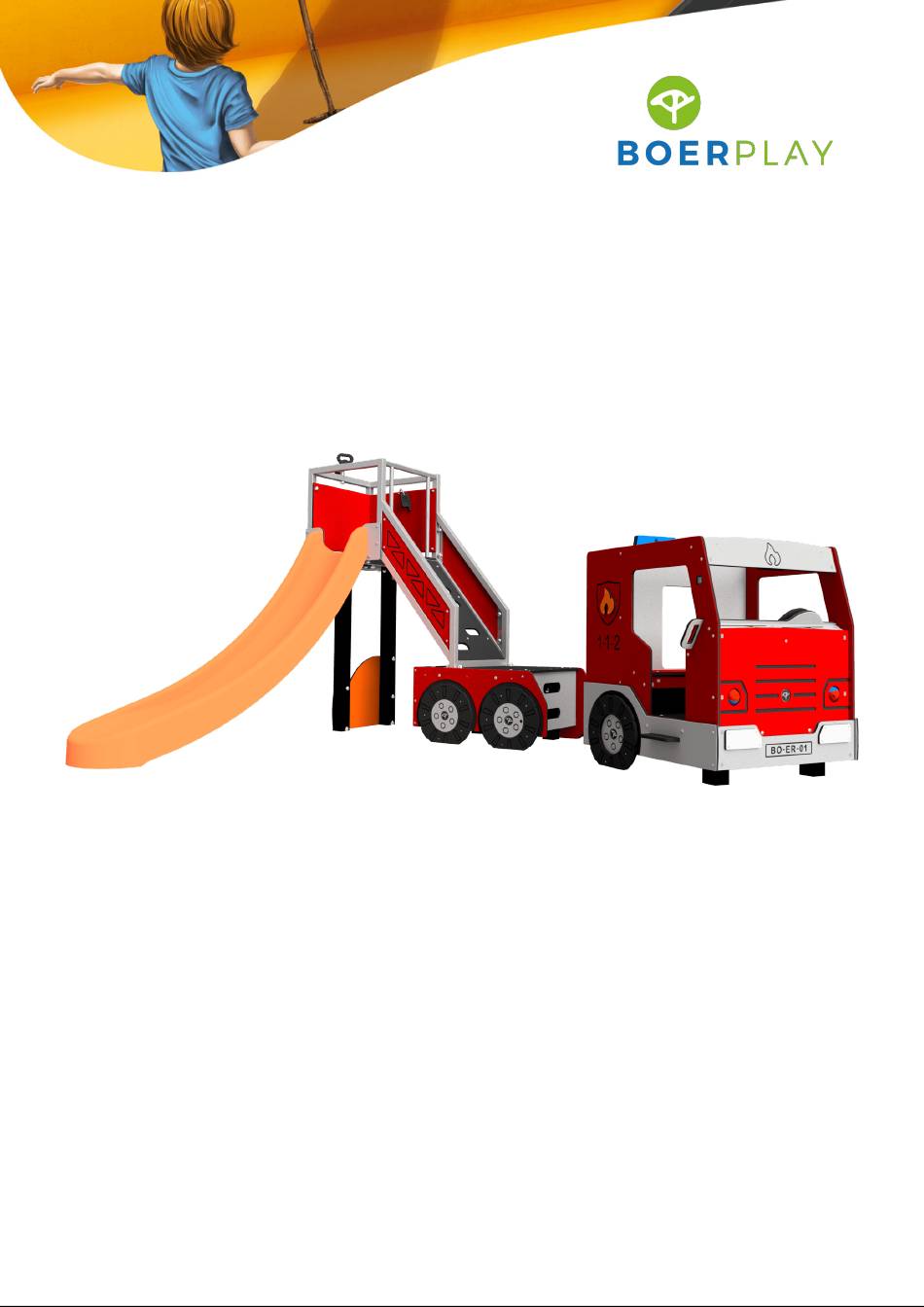

  • Page 1 Fire brigade ladder truck BBIE500.KP...

  • Page 2: Installation Instructions

    Il est conseillé de ne pas orienter de FR - Important ! l’équipement avec toboggans vers le sud. Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...
  • Page 3 0,12 m 0,72 m 0,91 m 1,05 m 1,65 m 3,16 m 2,36 m 2,18 m 1,42 m 1,45 m 1,34 m 0,55 m 0,34 m 0,00 m 0,00 m ≤ 0,35 m BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacle 7,28 m 4,53 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacle BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...
  • Page 5 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...

  • Page 6: Assembly Manual

    Plastic Roestvrij staal Kunststof Blauw aluminium Zwart aluminium Hout Edelstahl Kunststoff Blaues Aluminium Schwarzes Aluminium Holz Acero inoxidable Plastico Aluminio azul Aluminio negro Madera Acier inoxydable Plastique Aluminium bleu Aluminium noir Bois BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...
  • Page 7 Ø3 mm Ø5 mm Ø11 mm Ø12 mm Ø4.8 mm Only for metal posts Alleen voor metalen staanders Nur für Pfosten aus Metall Solo para postes de metal Seulement pour poteaux en métal BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...
  • Page 8 1 / 6 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.300 2 / 6 assembly manual module MOD.BBI.301 BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...
  • Page 9 3 / 6 assembly manual module MOD.BBI.302 4 / 6 assembly manual module MOD.BBI.303.x BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...
  • Page 10 5 / 6 assembly manual module MOD.BBI.135 6 / 6 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBI 500 xP © Copyright BOERplay 22-12-2021 Revision:...
  • Page 11 LOGBOOK Type indication Figura Play Article number BBIE500.KP Product Name Fire brigade ladder truck Maximum fall height 1,5 m Construction year 2023 Certificate 065612 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 12 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 13: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 14 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 16 Modul manual de instalación del módulo instructions d'installation du module MOD BBI 135 © Copyright BOERplay 10-2-2020 Revision: A...
  • Page 17 1 / 3 POL.BBI.003.203 12 mm 12 mm POL.BBI.003.203 MOD BBI 135 © Copyright BOERplay 10-2-2020 Revision: A...
  • Page 18 2 / 3 Detail A (4x) BSR.023.010.040 KST.ROR.010.000 BSR.017.010.005 BSR.017.010.005 BSR.023.010.040 KST.ROR.010.000 POL.BBI.003.203 MOD BBI 135 © Copyright BOERplay 10-2-2020 Revision: A...
  • Page 19 3 / 3 Detail B (4x) BSR.030.010.002 BSR.011.010.020 BSR.011.010.020 BSR.030.010.002 MOD BBI 135 © Copyright BOERplay 10-2-2020 Revision: A...
  • Page 20 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 21 1 / 15 OPE.BBI.379.072 OPE.BBI.385.022 Detail A (2x) KST.DON.010.050 BSR.030.010.002 BSR.023.010.060 KST.DOP.010.050 KST.DOP.010.050 BSR.010.010.010 BSR.030.010.002 OPE.BBI.382.052 KST.DON.010.050 Detail B (5x) BSR.010.010.010 35 mm BSR.023.010.060 BSR.030.010.002 BSR.053.005.035 KST.DON.010.050 KST.DOP.010.050 OPE.BBI.379.072 OPE.BBI.382.052 BSR.053.005.035 OPE.BBI.385.022 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 22 0 mm OPE.BBI.388.090 OPE.BBI.362.072 Detail D (1x) Detail E (1x) QRC.BBI.001 OME.BBI.158 Detail B (8x) Detail C (2x) 35 mm 50 mm BSR.002.005.050 BSR.053.005.035 OME.BBI.158 QRC.BBI.001 OPE.BBI.225.022 OPE.BBI.361.032 BSR.002.005.050 BSR.053.005.035 OPE.BBI.362.072 OPE.BBI.388.090 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 23 3 / 15 OPE.BBI.408.032 OPE.BBI.225.022 ✔ 0 mm OPE.BBI.388.090 OPE.BBI.371.072 Detail D (1x) OME.BBI.158 Detail B (8x) Detail C (2x) 35 mm 50 mm BSR.002.005.050 BSR.053.005.035 OME.BBI.158 OPE.BBI.225.022 OPE.BBI.371.072 BSR.002.005.050 BSR.053.005.035 OPE.BBI.388.090 OPE.BBI.408.032 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 24 Detail D (1x) 35 mm BSR.053.005.035 Detail E (2x) OME.BBI.158 BSR.005.004.019 KST.BOL.036.030 OPE.BBI.370.090 BSR.005.004.019 KST.BBI.035 BSR.053.005.035 KST.ROR.006.000 BSR.070.012.120 BSR.070.012.120 BSR.053.005.035 KST.BBI.035 KST.BOL.036.030 KST.BOL.036.050 KST.ROR.006.000 KST.BOL.036.050 OME.BBI.158 OPE.BBI.364.072 OPE.BBI.365.006 OPE.BBI.368.032 OPE.BBI.370.090 BSR.005.004.019 OPE.BBI.405.006 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 25 BSR.030.010.002 OPE.BBI.383.090 BSR.053.005.030 KST.DOP.010.060 BSR.021.010.100 KST.BUS.012.020 KST.DON.010.010 KST.DON.010.020 KST.DON.010.030 KST.BUS.012.020 BSR.030.010.002 KST.DON.010.050 KST.DON.010.060 KST.DON.010.060 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.010 KST.DOP.010.020 OPE.BBI.446.090 KST.DOP.010.030 KST.DOP.010.050 BSR.010.010.010 KST.DOP.010.060 KST.DOP.010.060 KST.ROR.006.000 OPE.BBI.038.090 OPE.BBI.373.072 OPE.BBI.383.090 OPE.BBI.384.032 OPE.BBI.386.090 OPE.BBI.446.090 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 26 412,5 mm 412,5 mm 175 mm Detail J (1x) KST.ROR.006.000 BSR.053.005.035 OME.BBI.136.304 OPE.BBI.402.090 KST.ROR.006.000 BSR.053.005.035 Detail K (3x) ✔ BSR.010.008.008 BSR.010.008.008 BSR.052.008.060 BSR.053.005.035 KST.ROR.006.000 OME.BBI.021 OME.BBI.021 BSR.052.008.060 OME.BBI.136.304 OPE.BBI.376.072 OPE.BBI.377.032 OPE.BBI.402.090 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 27 7 / 15 SMD.BBI.045 Detail L (2x) BSR.026.010.140 OPE.BBI.401.090 BSR.030.010.002 BSR.010.010.010 KST.DON.010.060 BSR.026.010.140 KST.DON.010.060 KST.DOP.010.060 KST.DOP.010.060 OPE.BBI.401.090 SMD.BBI.045 BSR.030.010.002 BSR.010.010.010 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 28 8 / 15 Detail K (11x) Detail M (2x) KST.DON.010.060 ✔ BSR.010.008.008 BSR.026.010.140 BSR.010.010.010 BSR.026.010.140 BSR.010.008.008 BSR.030.010.002 BSR.030.010.002 BSR.052.008.060 OME.BBI.021 BSR.010.010.010 KST.DON.010.060 BSR.052.008.060 KST.DOP.010.060 KST.DOP.010.060 OME.BBI.021 OPE.BBI.380.032 OPE.BBI.381.032 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 29 Detail N (2x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 BSR.026.010.120 Detail O (2x) Detail K (4x) BSR.002.006.120 BSR.002.005.050 ✔ BSR.002.006.120 BSR.002.005.050 BSR.010.008.008 BSR.010.008.008 BSR.010.010.010 BSR.026.010.120 BSR.030.010.002 OME.BBI.021 ORE.BBI.013 BSR.052.008.060 BSR.052.008.060 KST.DON.010.060 KST.DOP.010.060 OME.BBI.021 ORE.BBI.013 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 30 10 / 15 OPE.BBI.374.072 OPE.BBI.375.072 Detail K (5x) ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 BSR.052.008.060 OME.BBI.021 OPE.BBI.374.072 OPE.BBI.375.072 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 31 11 / 15 Detail K (3x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 32 12 / 15 Detail K (11x) Detail M (2x) ✔ KST.DON.010.060 BSR.026.010.140 BSR.010.008.008 BSR.010.008.008 BSR.010.010.010 BSR.026.010.140 BSR.030.010.002 BSR.030.010.002 OME.BBI.021 BSR.010.010.010 BSR.052.008.060 BSR.052.008.060 KST.DON.010.060 KST.DOP.010.060 KST.DOP.010.060 OME.BBI.021 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 33 13 / 15 Detail K (4x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 34 KST.DOP.010.030 BSR.010.008.008 BSR.010.010.010 BSR.021.010.100 KST.DOP.010.060 BSR.023.010.060 BSR.030.010.002 KST.DON.010.060 BSR.031.005.000 BSR.052.008.060 BSR.030.010.002 BSR.010.010.010 BSR.070.010.050 BSR.030.010.002 KET.005.002.011 KST.DON.010.060 KST.DON.010.030 BSR.021.010.100 KST.DON.010.060 BSR.070.010.050 KST.DOP.010.030 KST.DOP.010.060 KST.DOP.010.060 OME.BBI.021 50 mm OPE.BBI.372.072 OPE.BBI.372.072 OPE.BBI.372.072 OPE.BBI.378.090 OPE.BBI.414.032 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 35 15 / 15 Detail K (7x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OPE.BBI.409.090 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail R (8x) BSR.002.006.100 100 mm BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.409.090 MOD BBI 300 © Copyright BOERplay 9-12-2020 Revision: A...
  • Page 36 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 301 © Copyright BOERplay 11-1-2021 Revision: A...
  • Page 37 1 / 7 OPE.BBI.387.032 A (5x) A (5x) A (5x) ✔ A (5x) OPE.BBI.394.072 OPE.BBI.395.072 OPE.BBI.388.090 OPE.BBI.388.090 Detail A (20x) Detail B (2x) 35 mm BSR.053.005.035 BSR.053.005.035 OME.BBI.158 OPE.BBI.387.032 OPE.BBI.388.090 OME.BBI.158 OPE.BBI.394.072 OPE.BBI.395.072 MOD BBI 301 © Copyright BOERplay 11-1-2021 Revision: A...
  • Page 38 BSR.030.010.002 BSR.023.010.060 OPE.BBI.451.032 BSR.031.005.000 KST.DON.010.030 BSR.030.010.002 BSR.030.010.002 OPE.BBI.363.090 BSR.010.010.010 KST.DOP.010.030 KET.005.002.022 KST.BUS.012.020 KST.DON.010.060 BSR.031.005.000 BSR.030.010.002 BSR.010.010.010 OPE.BBI.390.072 KST.DOP.010.060 BSR.010.010.010 BSR.023.010.060 BSR.030.010.002 BSR.031.005.000 KET.005.002.022 KST.BUS.012.020 KST.DON.010.030 KST.DON.010.060 KST.DOP.010.030 KST.DOP.010.060 OPE.BBI.363.090 OPE.BBI.390.072 OPE.BBI.451.032 MOD BBI 301 © Copyright BOERplay 11-1-2021 Revision: A...
  • Page 39 3 / 7 A (5x) A (5x) OPE.BBI.393.032 A (5x) A (5x) ✔ OPE.BBI.412.072 OPE.BBI.394.072 OPE.BBI.388.090 OPE.BBI.388.090 Detail B (2x) Detail A (20x) 35 mm BSR.053.005.035 OME.BBI.158 BSR.053.005.035 OPE.BBI.388.090 OPE.BBI.393.032 OME.BBI.158 OPE.BBI.394.072 OPE.BBI.412.072 MOD BBI 301 © Copyright BOERplay 11-1-2021 Revision: A...
  • Page 40 4 / 7 OPE.BBI.391.022 OPE.BBI.389.072 OPE.BBI.391.022 OPE.BBI.366.032 A (4x) A (4x) OPE.BBI.406.032 Detail A (14x) 35 mm BSR.053.005.035 BSR.053.005.035 OPE.BBI.366.032 OPE.BBI.389.072 OPE.BBI.391.022 OPE.BBI.406.032 MOD BBI 301 © Copyright BOERplay 11-1-2021 Revision: A...
  • Page 41 KST.DON.010.060 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.BUS.012.020 BSR.030.010.002 KST.DOP.010.060 OPE.BBI.392.032 Detail F (1x) KST.DOP.010.060 Detail A (4x) BSR.010.010.010 BSR.030.010.002 35 mm KST.DON.010.060 BSR.010.010.010 BSR.023.010.065 BSR.030.010.002 BSR.053.005.035 KST.BUS.012.020 KST.DON.010.060 BSR.053.005.035 KST.DOP.010.060 OPE.BBI.392.032 OPE.BBI.410.032 SNT.BBI.016 MOD BBI 301 © Copyright BOERplay 11-1-2021 Revision: A...
  • Page 42 6 / 7 OPE.BBI.403.072 SMD.BBI.055 Detail G (13x) Detail H (6x) KST.DOP.010.060 BSR.010.010.010 ✔ BSR.030.010.002 BSR.010.008.008 KST.DON.010.060 BSR.010.010.010 BSR.026.010.120 BSR.010.008.008 BSR.026.010.120 BSR.030.010.002 BSR.052.008.060 OME.BBI.021 KST.DON.010.060 BSR.052.008.060 KST.DOP.010.060 OME.BBI.021 OPE.BBI.403.072 SMD.BBI.055 MOD BBI 301 © Copyright BOERplay 11-1-2021 Revision: A...
  • Page 43 7 / 7 Detail J (10x) 70 mm BSR.002.005.070 BSR.002.005.070 MOD BBI 301 © Copyright BOERplay 11-1-2021 Revision: A...
  • Page 44 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 45 1 / 10 SME.BBI.041.320 A (10x) KST.BBI.038.LPE Detail A (10x) BSR.024.010.080 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.024.010.080 BSR.030.010.002 KST.BBI.038.LPE KST.DON.010.060 KST.DOP.010.060 SME.BBI.041.320 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 46 2 / 10 Detail B (5x) BSR.023.010.090 BSR.030.010.002 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 B (5x) OPE.BBI.427.090 BSR.010.010.010 BSR.023.010.090 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OPE.BBI.427.090 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 47 3 / 10 Detail C (9x) BSR.023.010.040 BSR.030.010.002 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 OPE.BBI.404.090 BSR.010.010.010 BSR.023.010.040 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OPE.BBI.404.090 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 48 4 / 10 OPE.BBI.369.072 OPE.BBI.413.072 Detail B (6x) BSR.023.010.090 BSR.030.010.002 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.023.010.090 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OPE.BBI.369.072 OPE.BBI.413.072 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 49 5 / 10 OPE.BBI.398.032 OPE.BBI.225.022 Detail D (3x) 35 mm BSR.053.005.035 D (3x) KET.005.002.011 BSR.031.005.000 BSR.031.005.000 OPE.BBI.378.090 BSR.031.005.000 KET.005.002.011 OPE.BBI.225.022 OPE.BBI.378.090 OPE.BBI.398.032 BSR.053.005.035 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 50 OPE.BBI.399.032 Detail B (5x) 90 mm BSR.023.010.090 BSR.030.010.002 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 Detail E (2x) KST.DOP.006.030 80 mm BSR.023.010.080 BSR.030.010.002 BSR.030.010.002 BSR.011.010.020 BSR.010.010.010 BSR.011.010.020 BSR.023.010.080 BSR.023.010.090 BSR.030.010.002 KST.DON.010.060 KST.DOP.006.030 KST.DOP.010.060 OPE.BBI.399.032 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 51 7 / 10 OPE.BBI.411.072 Detail B (6x) BSR.023.010.090 BSR.030.010.002 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.023.010.090 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OPE.BBI.411.072 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 52 8 / 10 OPE.BBI.396.032 Detail E (8x) BSR.023.010.040 OPE.BBI.397.032 BSR.030.010.002 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.023.010.040 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OPE.BBI.396.032 OPE.BBI.397.032 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 53 9 / 10 Detail F (1x) SMD.BBI.061 KST.ROR.010.000 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 KST.DOP.010.060 KST.ROR.010.000 SMD.BBI.061 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 54 10 / 10 Detail G (4x) KST.DOP.010.060 G (2x) G (2x) BSR.021.010.120 BSR.030.010.002 KST.DON.010.060 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.021.010.120 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 MOD BBI 302 © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 55 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 303 x © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 56 Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm ø5mm ø3mm x 30 BSR.014.005.052 BSR.002.005.050 OME.VRB.903.VZP OME.VRB.903.VZP BSR.002.005.050 BSR.014.005.052 OME.VRB.903.VZP OME.VRB.903.VZP MOD BBI 303 x © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 57 2 / 5 S.BBI.035.x S.BBI.035.x S.BBI.035.x S.BBI.035.x C (2x) C (2x) Detail C (8x) C (2x) BSR.026.010.120 KST.DON.010.060 C (2x) BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 KST.DOP.010.060 BSR.026.010.120 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 MOD BBI 303 x © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 58 3 / 5 S.BBI.036.x S.BBI.036.x S.BBI.036.x S.BBI.036.x Detail C (8x) BSR.026.010.120 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 BSR.026.010.120 KST.DOP.010.060 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 MOD BBI 303 x © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 59 4 / 5 S.BBI.038.x S.BBI.038.x Detail D (4x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.021.010.130 BSR.021.010.130 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 KST.DOP.010.060 MOD BBI 303 x © Copyright BOERplay 22-12-2021 Revision: B...
  • Page 60 Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm mm 70 mm mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 KST.ROR.006.000 BSR.014.005.053 MOD BBI 303 x © Copyright BOERplay 22-12-2021 Revision: B...
