INSTALLATION, OPERATING
AND MAINTENANCE MANUAL
2. NOTES ON POSSIBLE DANGERS................................2
TRANSPORT ......................................................................2
4. DESCRIPTION ................................................................2
principles ...........................................................................2
4.2 Technical data - remarks.............................................2
4.3 Marking/nameplate .....................................................3
4.4 CE marking .................................................................3
5. INSTALLATION...............................................................3
5.1 General remarks on installation ..................................3
UNIFLOW® F0-F9
Y-STRAINERS
Contents
..............................................2
IOM - Y-STRAINERS, UNIFLOW® F0-F9
6. COMMISSIONING & OPERATION.................................4
7. CARE AND MAINTENANCE ..........................................5
8. TROUBLESHOOTING ....................................................5
9. TROUBLESHOOTING TABLE .......................................5
10. DISMANTLING THE STRAINER..................................5
11. GOODS RETURN & DISPOSAL .................................6
12. WARRANTY / GUARANTEE........................................6
13. PARTS LIST..................................................................6
14. ANNEXES .....................................................................6
14.1 Declaration of Conformity .........................................6
14.2 Data Sheet................................................................6
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Uniflow F0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Comeval Uniflow F0

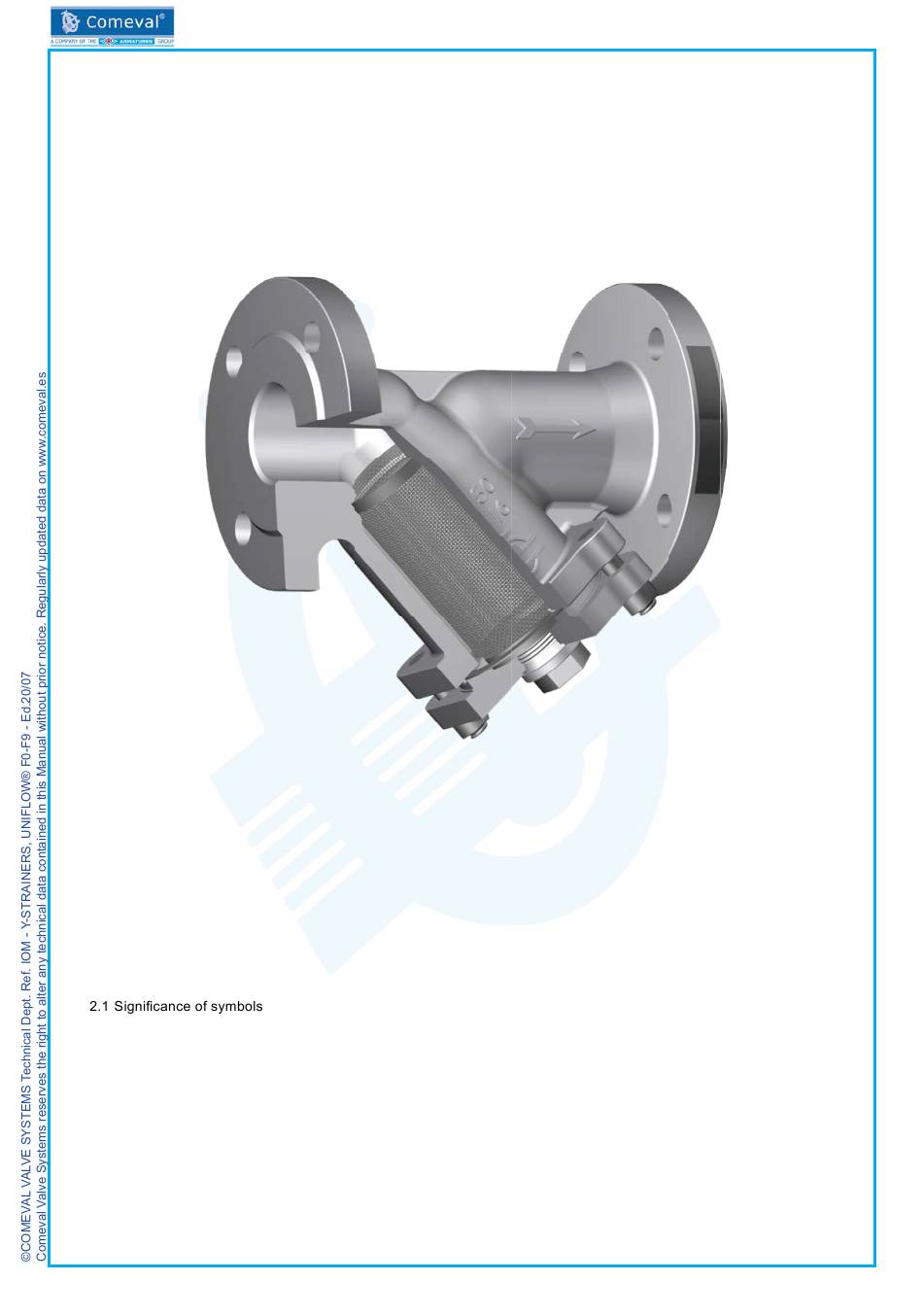

  • Page 1 IOM - Y-STRAINERS, UNIFLOW® F0-F9 INSTALLATION, OPERATING AND MAINTENANCE MANUAL UNIFLOW® F0-F9 Y-STRAINERS Contents 1. GENERAL INFORMATION ON THE MANUAL....2 6. COMMISSIONING & OPERATION.........4 2. NOTES ON POSSIBLE DANGERS........2 7. CARE AND MAINTENANCE ..........5 ..........2 8. TROUBLESHOOTING ............5 2.2 Explanatory notes on safety information.....2 9.
  • Page 2 IOM - Y-STRAINERS, UNIFLOW® F0-F9 1. GENERAL INFORMATION ON THE MANUAL facturer for advice or approval. - This Manual is in accordance with Directive 2014/68/EU on Pressure Equipment (PED). 2. NOTES ON POSSIBLE DANGERS ATTENTION! Warning of general danger. In this Manual dangers, risks and items of safety information are highlighted to attract special attention. danger of death for users or third parties or in material damage to the system or the environment.
  • Page 3 Nameplate description of the strainer: CE-Marking EAC marking (compliance with TR/CU 032/2013 & TR CU 010/2011) Manufacturer logo Explosion protected mark for EU free circulation (see separate instructions for code) www.comeval.es UNIFLOW® Brand PED 2014/68/EU Directive 2014/68/EU FIG. Valve code* Sound Engineering Practice Y.20VV...
  • Page 4 IOM - Y-STRAINERS, UNIFLOW® F0-F9 ATTENTION! WeldIing ends strainers: - Welding works must be carried out in accordance with approved procedure and following appropriate safety measures. Check correct pipe alignment. Clean strainer and pipe connections carefully, tack-weld each end of the strainer on to the pipe in 4 or more points depending on size and weight.
  • Page 5 IOM - Y-STRAINERS, UNIFLOW® F0-F9 7. CARE AND MAINTENANCE ATTENTION! - Before disassembling the strainer, note chapters 3, 10 & 12. - Only carry out maintenance work in the pipework when the strainer has been secured from operation. - Check the strainer surface inside and outside and retouch coating protection if any when needed. If advanced corrosion or erosion is observed, double check service and strainer features and replace the strainer properly.
  • Page 6 01 Body 02 Cover 03 Gasket 04 Drain plug 06 Cover nut 07 Screen 14. ANNEXES Updated documents on www.comeval.es Les Rotes, 15 46540 El Puig (Valencia) España +34 961 479 011 · +34 961 472 799 comeval@comeval.es www.comeval.es Page 6...
