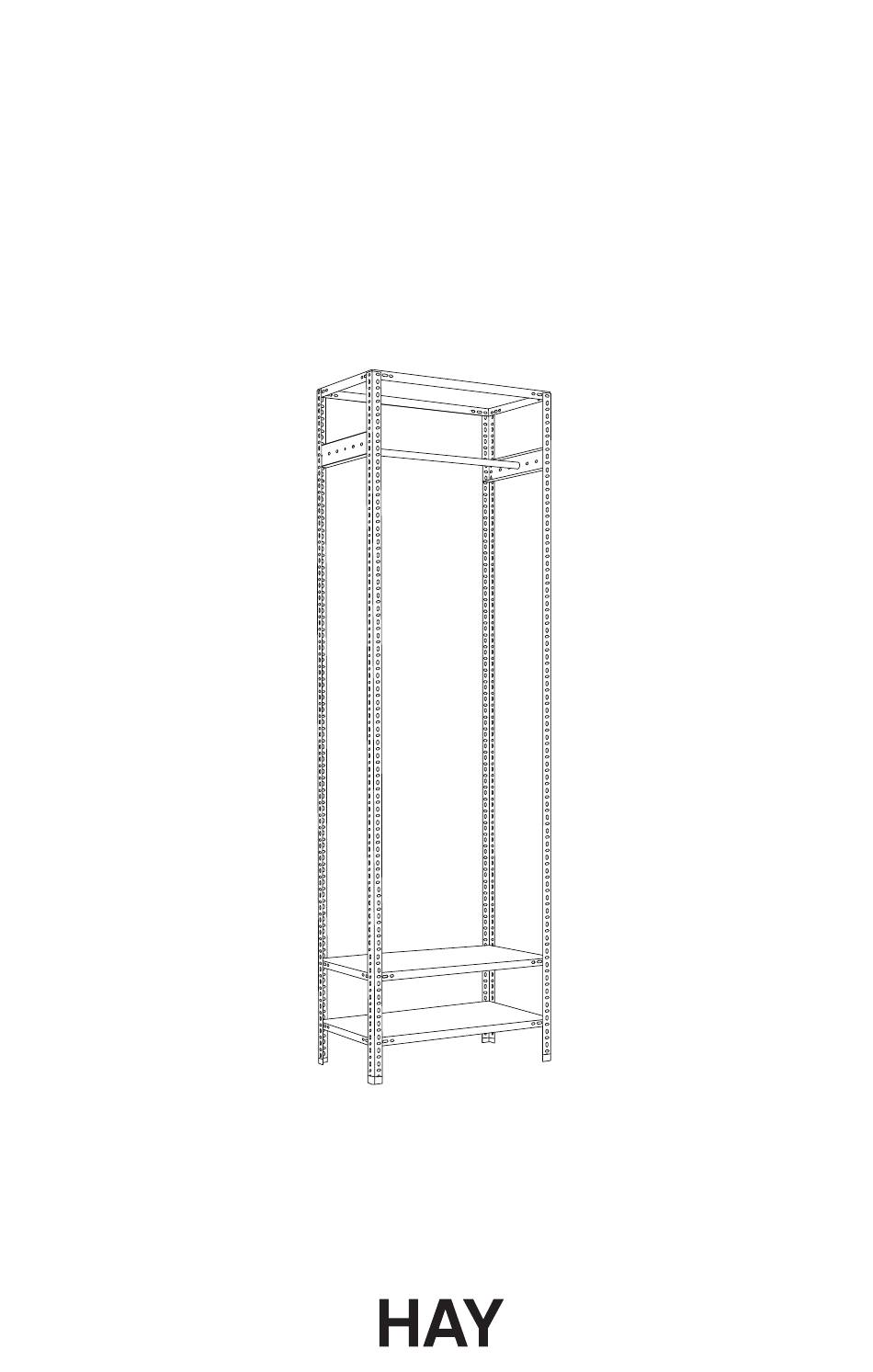

- Page 1 INSTRUCTION M A NUA L W A R D R O B E U N I T...
- Page 3 HAY’s Wardrobe Unit provides a functional and simple storage solution for bedrooms or other home spaces. The steel frame features exposed bolts that reinforce its raw, industrial look. Available in different colors.
-
Page 4: Care And Maintenance
C A R E A ND M A IN TENA NCE CAUTION • With a little care you can prolong the life of your • Tighten up the screws after one to two months’ use furni ture. Follow the instructions for the materials of and whenever required. - Page 5 PA RTS 15 mm 15 mm 13 mm 13 mm A x 4 D x 1 Included tools Necessary tools B x 3 C x 2 E x 4 G x 36 H x 76 I x 36 F x 2 K x 2 J x 2 L x 2...
- Page 6 While assembling, keep the shelves inside the cardboard box in order to protect the shelves from scratches etc. Make sure that all parts are included before you begin. Slide the gliders (E) onto the profiles (A). Make sure all profiles are oriented in the same direction with the horizontal holes at the bottom.
- Page 7 Align the shelves (B) with two profiles (A) as shown in the drawing below. Screw the profiles (A) onto the shelves (B), using the bolts (G), washers (H) and nuts (I). Refer to the details in the drawing below concerning the recommended number of holes between each shelf.
- Page 8 Align the two remaining profiles (A) with the shelves (B). Screw the profiles (A) onto the side and front of the shelves (B), using the bolts (G), washers (H) and nuts (I). Make sure they are not completely tightened.
- Page 9 (1) Screw the side bar (C) to connect the profiles (B), using the bolts (G), washers (H) and nuts (I). (2) Screw the rod (D) to the side bar (C), using the bolts (F) and the washers (H).
- Page 10 Turn the shelf over (two people are recommended) and screw the profiles (A) to the back of the shelves (B), using the bolts (G), washers (H) and nuts (I).
- Page 11 Turn the shelf into an upright position (two people are recommended).
- Page 12 Adjust the top shelf until it is almost level with the profiles. Then tighten all bolts completely. Tighten all bolts completely. Shelf will only become fully stable when all bolts are firmly tightend.
- Page 13 Screw the tip-over restraint bracket (J) into a wall stud. Be sure to use an anchoring system appropiate for your wall material. Use the detachable strap (M) to secure the profile to the bracket, near the top of the shelf. Max weight load 45 kg/ 101 lbs per shelf...
- Page 16 Havnen 1 8700 Horsens Denmark www.hay.com...
