Luda Farm ForkVision PRO Quick Manual

TECHNICAL SPECIFICATION
ForkVision PRO
Art. no 1132
Camera
Operation Frequency: 2408-2478 MHz
Operating Temperature: -20 ºC to +70 ºC
Power Supply: DC 10~32 V
Power Consumption: 2-2.8 W
Transmitting Distance: up to 120m
Viewing Angle: 70°
Resolution: 1920 x 1080
Waterproof IP Ratings: IP69K
Minimum Illumination: 0 Lux
Night Vision Distance: 3-5 m
Video Codec: H.264
Anti Vibration: 5.9 G
Monitor
Operating Temperature: -20 ºC to +70 ºC
LCD Size: 7''
Brightness: 600 cd/m²
Aspect Ratio: 16:9
Channel: 4 channels
Operating Frequency: 2408 -2478 MHz
Micro SD Card slot: Up to 128 GB
Power Supply DC: 10-32 V
Power Consumption: Max 10 W
E
13
Luda.Farm AB, Krokslätts Fabriker 30, 431 37 Mölndal, Sweden
TROUBLESHOOTING
There is no picture on the monitor at all (black).
1. Make sure the machine engine is running to provide power to the outlet.
2. Make sure the monitor is connected to the power outlet. The red LED
on the lighter socket adapter should be lit.
3. Make sure the other end of the lighter socket cable is connected to
the monitor.
4. Make sure the monitor is turned on by pressing the orange circular
button for 1 sec.
5. If you are using the alternative power connection, make sure the
installation is correct and supplying power.
There is no picture on the monitor (no signal).
1. Make sure the antennas are properly fastened on both the monitor
and the camera(s).
2. Loop through the channels to find the channel the camera is
transmitting on. Use the orange arrow buttons.
3. Make sure the camera receives power from its power source. Check that
the joints are put together and that the power cable is not broken or
pinched.
4. Try to move the camera to see if you can get better signal reception.
5. Try to pair the camera with the monitor again (see the Extra Camera page).
The frame rate is low.
Try to move the camera to see if you can get better signal reception.
FAQ
1. Why does the frame rate sometimes drop when I'm driving?
When driving the signal reception might drop sometimes. This occurs as
the signal to the receiver is constantly transmitted from different angles,
and this is considered normal when transmitting wirelessly.
2. Is the camera water resistant?
Yes, the camera is IP69K rated. This means that it is well protected from
dust and humidity. The camera can be placed outside exposed to the
weather, and it can be cleaned using a pressure washer.
3. Will the camera break at very low temperatures (well below -20°C)?
No, at extremely low temperatures the camera might turn off. However,
when the temperature gets higher again the camera will regain its
functionality.
4. Can I use more than one monitor with the same camera?
No, that is not possible.
5. Can I use more than one camera with the monitor?
Yes, you can have up to 4 cameras connected to the same monitor.
INCLUDED IN THE BOX

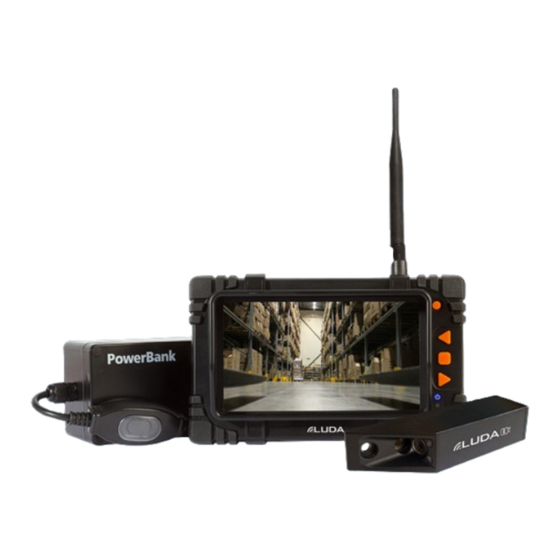

PowerBank 25000
Monitor ForkVision PRO camera
Art no. 2015 Art no. 1064
Art no. 1126
Direct power cable 3 m Monitor sunshield Power charger for PowerBank
Art no. 6042 Art no. 7023 (EU/UK/US/AU) -
Art no. 6038
Antenna for monitor Fan shaped stand for monitor
Art no. 5026 Art no. 7022
ForkVision PRO
E
QUICK GUIDE
For more detailed information
www.luda.farm/products/forkvision-pro
