Summary of Contents for Insta DTS-WIFI-G1

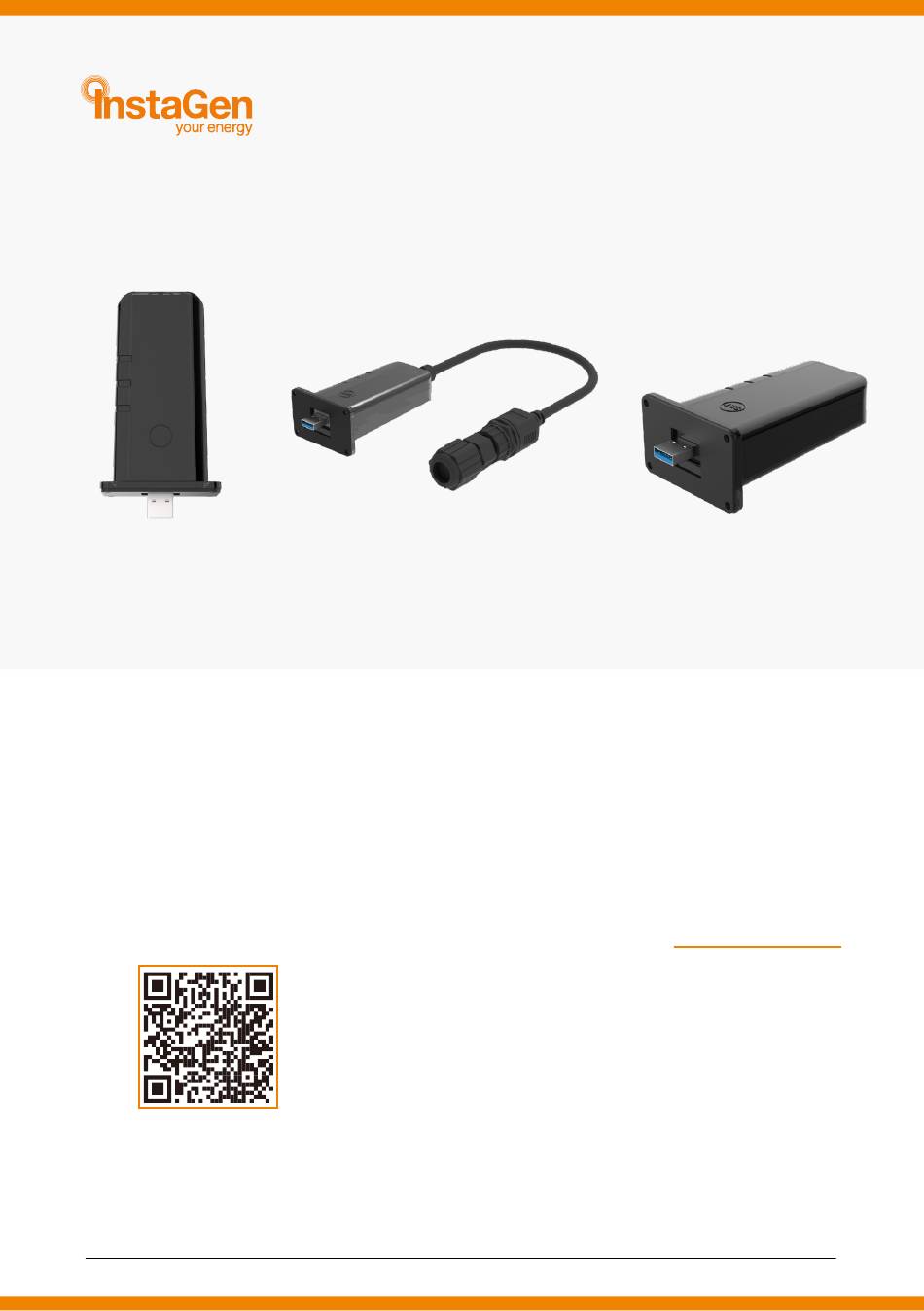

- Page 1 Data Transfer Stick Quick Installation Guide DTS-WIFI-G1 DTS-Ethernet-G1 DTS-4G-G1 https://www.instagroup.co.uk/ technical-support Region: Global REV1.1 instagroup.co.uk...
- Page 2 Data Transfer Stick Quick Installation Guide 1 Packing List DTS-WIFI-G1 DTS-WIFI-G1*1 M3 Screw*4 Document*1 DTS-Ethernet-G1 DTS-Ethernet-G1*1 M3 Screw*4 Document*1 DTS-4G-G1 DTS-4G-G1*1 M3 Screw*4 Document*1 © 2024 InstaGroup Limited All rights reserved.
- Page 3 Data Transfer Stick Quick Installation Guide 2 Installing the Module WIFI and 4G Connection 0.6-0.8 N·m Ethernet Connection 0.6-0.8 N·m 8-NC 7-NC 6-RX- 5-NC PARA1 4-NC 3-RX+ 2-TX- 0.8-1.5 N·m 1-TX+ 0.5-0.8 N·m 3 Indicators Step 1 Power on the inverter. Step 2 Check communication status through DTS indicators.
- Page 4 Data Transfer Stick Quick Installation Guide 4 DTS Online Setting 1. Search “Instagen Installer” in the App Store (iOS) or the Play Store (Android), or scan the QR code to download the Instagen Installer App. 2. Open the App and log in with your installer account and password. For new Instagen installers, please apply for an installer account from your distributor in advance.
- Page 5 Data Transfer Stick Quick Installation Guide (b) Select the DTS’s wireless network and enter the password. (The network name of the DTS consists of DTS and product serial number, and the default password is ESS12345.) © 2024 InstaGroup Limited All rights reserved.
- Page 6 Data Transfer Stick Quick Installation Guide 4. Network configuration. (a) Upon successful connection, tap on “Network Config” again and access the Network Configuration page. (b) Select the router Wi-Fi and enter the password. (c) Tap on “Send to DTU”. 5. Check the DTS indicator for a solid blue light, which signifies a successful connection. The network configuration takes about 1 minute, please be patient.
