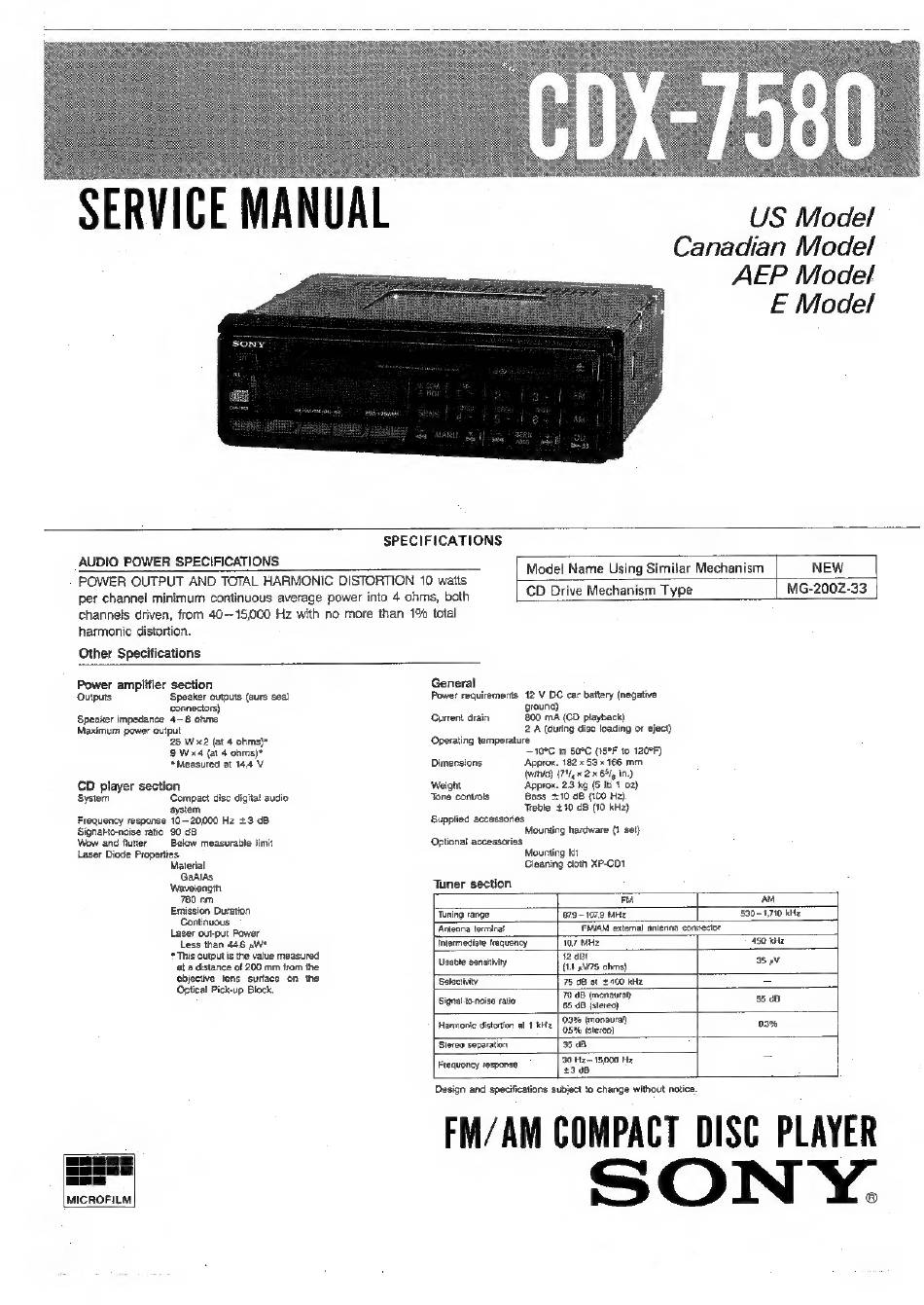

SERVICE MANUAL
US Model
Canadian Model
AEP Model
E Model
AUDIO POWER SPECIFICATIONS
SPECIFICATIONS
Model Name Using Similar Mechanism
POWER OUTPUT AND TOTAL HARMONIC DISTORTION 10 watts
per channel minimum continuous average power into 4 ohms, both
NEW
CD Drive Mechanism Type
MG-2002-33
channels driven, from 40—15,000 Hz with no more than 1% total
harmonic distortion.
Other Specifications
Power amplifier section
'Outputs
Speaker outputs (sure seal
connectors)
'Speaker impedance 4-8 ohms
Maximum power output
25 W x2 (at 4 ohms)"
9 Wex4 (at 4 ohms)"
"Measured at 14.4 V
CD player section
Sysiem
'Compact disc digital audio
system
Frequency response 10-20000 Hz +3 dB
Signal-to-noise ratio 90 8
Wow and flutter
Below measurable limit
Laser Diode Properties
Material
GaAlAs
Wavelength
780 nm
Emission Duration
Continuous
Laser out-put Power
Less than 446 ,W*
'This output is the value measured
at a distance of 200 mm from the
objective tens surface on the
Optical Pick-up Block,
MICROFILM
General
Power requirements 12 V DC car battery (negative
ground)
'Curent drain
800 mA (CD playback)
2A (duting disc loading or eject)
'Operating temperature
10°C 10 50°C (15°F to 120°F)
Approx. 182 «53 x 166 mm
(winéd) (711, x 2641, in.)
Weight
Approx. 23 kg (5 Ib 1 02)
Tone controls
Bass +10 dB (100 Hz)
Treble #10 dB (10 kHz)
Supplied accessories
Mounting hardware (1 set)
Optional accessories
Mounting kit
Cleaning cloth XP-CD1
Dimensions
Tuner section
a
7
Tag ge
ease
STORE
Feta
TTA exer abana Conse
Terme egieigy
[we
ae
:
ea
Ute sesivy
a
me
35
Soeciy
75.38 at 400
=
Gioetonasovoio
'| FSS roma
3508
a
Se jon
Vomone dtaon ote | O58 (rena
oe
io epi
a8
:
ae
emo
-
Frequency response
43:48
Design and specifications subject to change without notice.
