Bugatti 10 MAX Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

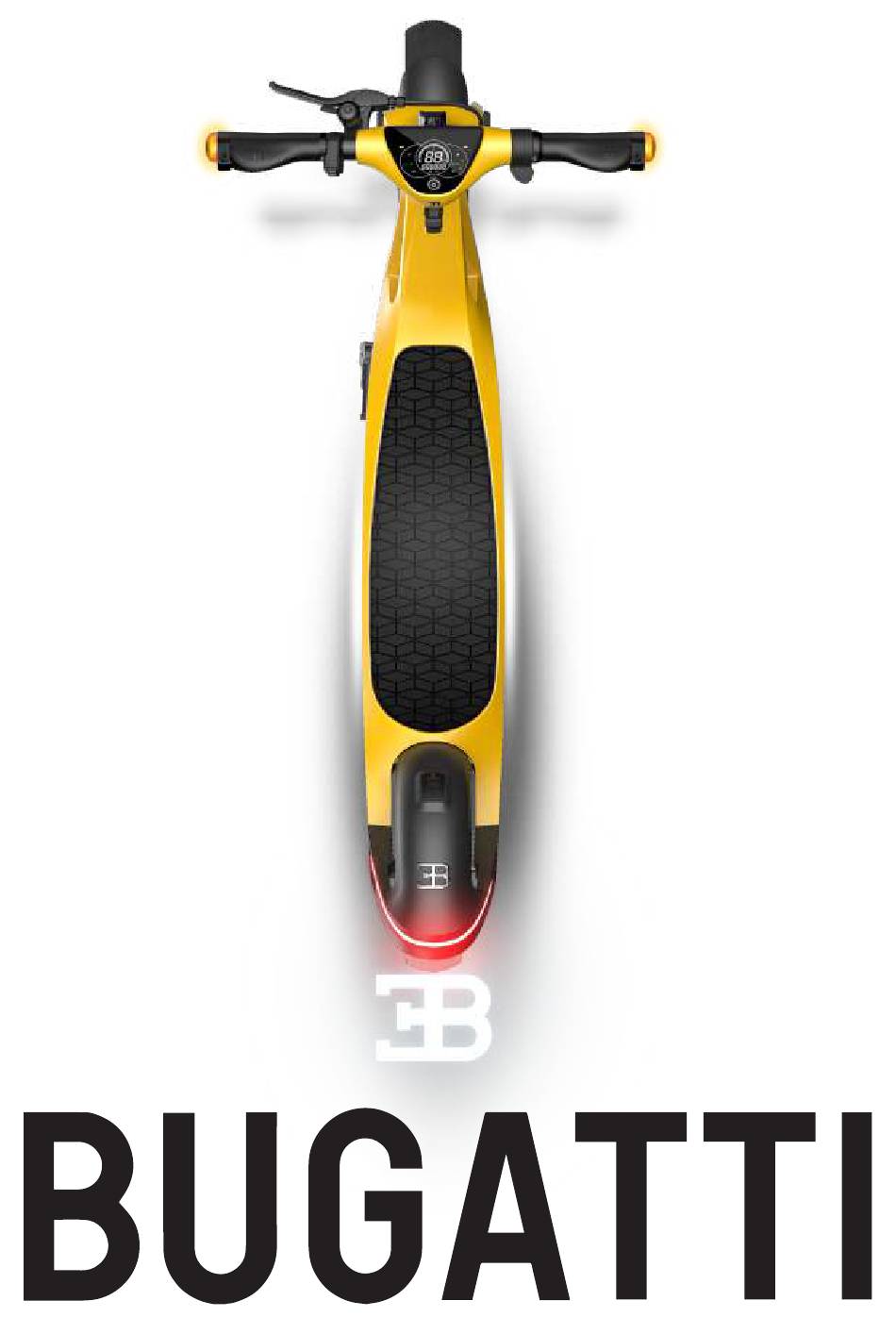

1 0 "
M A X
E L E C T R I C
S C O O T E R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10 MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bugatti 10 MAX

Summary of Contents for Bugatti 10 MAX

  • Page 1 1 0 ” M A X E L E C T R I C S C O O T E R...
  • Page 2 A Work of Art Created and Engineered  to Deliver a New Wave of Mobility T RANSIT R EVO L UTI ON in a...
  • Page 4 One look at the unique aerodynamic design and high end appearance of the 10" MAX Bugatti Electric Scooter can tell you that this is not just your average standard scooter. Fabricated with the everyday consumer in mind, it has a sleek yet functional folding design.
  • Page 5 It has a weight capacity of up to 286lbs and rides at a maximum velocity of 22 MPH. The Bugatti electric scooter will surely not disappoint. Like all its products, Bugatti prioritizes high quality and front-line technology as the leading attributes of its peerless creations.
  • Page 7 WARNING • WHENEVER YOU RIDE AN ELECTRIC VEHICLE, THERE IS A RISK OF DEATH OR SERIOUS INJURY FROM LOSS OF CONTROL, LOSS OF BRAKING POWER, COLLISIONS AND FALLS. • WEAR AN APPROVED SAFETY HELMET AND OTHER PROTECTIVE GEAR TO MINIMIZE ANY POSSIBLE INJURY •...
  • Page 9 A G I L E B L E U...
  • Page 11 B L A C K...
  • Page 13 Y E L L O W...

  • Page 17: Table Of Contents

    TA B L E O F C O N T E N T S Functions Touchscreen Display Passcode Protection Function Features Assembling the Device Operating the Device Charging the Device Folding Double-Lock Mechanism Transport the Device Safety Operate Safely Maintenance Pre-Ride Checklist Safety Precautions Warning...

  • Page 18: Functions

    Touchscreen Dashboard Display Front Headlight Front Reflector Left Brake Lever Safety Bell Folding Stem Folding Safety Lock Folding Safety Lever Aluminum Bugatti Macaron Front Mud Guard Front Wheel Front Caliper Kick Stand Foot Pad Hook Buckle Tail Light Rear Mud Guard...

  • Page 20: Touchscreen Display

    T O U C H S C R E E N D I S P L AY F U N C T I O N S WA R N I N G DO NOT USE TOUCHSCREEN WHILE SCOOTER IS IN MOTION Battery status indicator Speed unit display: KM/H or MPH.(mph in default setting) Mileage display/total: km or miles.(miles in default settings)
  • Page 21 Power Button Functions Power on: Single-press the power icon Power off: Long-press the power icon Switching between MPH and KMH The default distance unit is set to miles. Long-press the headlight icon and ambient light icon to switch the miles/km mode. M Button Speed Mode Functions Single-press the speed mode icon or single-press the power icon to adjust the speed mode 1: Eco mode(15 mph)

  • Page 22: Passcode Protection Function

    PA S S C O D E P R O T E C T I O N F U N C T I O N Headlight Ambient Light Speed Mode Cruise Control Icon Icon Icon Icon...
  • Page 23 Enable/disable the password function Enter default passcode "0000" to start device. Long-press the ambient light icon and cruising function icon at the same time, it will enable/disable the password function. (Password is stored in memory setting) Password input Use the headlight icon , ambient light icon, speed mode icon, and cruising functions icon to input passcode.

  • Page 24: Features

    F E AT U R E S Left & right turn signal mechanism Microfiber leather grips Safety bell Ergonomic rubber deck Dual turn signal light caps Front light & safety reflector...
  • Page 25 F E AT U R E S Passcode protection Hidden suspension Touchscreen display “EB” logo on rear wheel cap Brake light Rear “EB” monogram projection logo...

  • Page 26: Assembling The Device

    A S S E M B L I N G T H E D E V I C E ACCESSORIES 1 User manual 5 Mounting screws 1 Allen wrench 1 Electric scooter battery charger cable 1 Authenticity certificate card 1 Thank you card 1 Extension air pipe (64mm) 6"x6"...

  • Page 28: Operating The Device

    O P E R AT I N G T H E D E V I C E C AU T I O N BEGINNERS LEARNING TO RIDE AN ELECTRIC SCOOTERS ARE AT RISK OF FALLING AND GETTING INJURED. PLEASE WEAR A SAFETY HELMET AND PROTECTIVE GEAR AT ALL TIMES.
  • Page 29 Figure 1. Kickstart Figure 2. Right Power Throttle Figure 3. Left Brake Lever...

  • Page 30: Charging The Device

    C H A R G I N G T H E D E V I C E C AU T I O N *DEVICE DOES NOT POWER ON WHILE CHARGING* *ONLY USE CHARGING ADAPTER SUPPLIED IN THIS PACKAGE TO CHARGE THIS DEVICE.
  • Page 31 Figure 1. Charging Adapter with LED Indicator Lights Figure 2. Charging Port Cap Figure 3. Charging Port Cap...

  • Page 32: Folding Double-Lock Mechanism

    F O L D I N G D O U B L E - L O C K M E C H A N I S M C AU T I O N SET THE KICKSTAND TO STABILIZE THE ELECTRIC SCOOTER BEFORE FOLDING.
  • Page 33 Figure 1. 1st Safety Lock Figure 2. 2nd Safety Lock Figure 4. Lift Hook Buckle to Secure in Place Figure 3. Semi Automization Figure 5. Folding Complete...

  • Page 34: Transport The Device

    T R A N S P O RT T H E D E V I C E C AU T I O N AFTER FOLDING, YOU CAN TAKE THE SCOOTER TO THE BUS, METRO OR VEHICLE CAR TRUNK. Transport the scooter -Leave the kickstand at a stabilized position.
  • Page 35 Y O U C A N T R A N S P O RT T H E F O L D E D B U G AT T I E L E C T R I C S C O O T E R W I T H O N E H A N D .

  • Page 36: Safety

    S A F E T Y C AU T I O N PLEASE USE PROPER PRECAUTION WHEN OPERATING THE ELECTRIC SCOOTER. DO NOT HANG BACKPACKS OR OTHER OBJECTS ON THE HANDLEBARS WHEN RIDING THE SCOOTER. -When the scooter is turned on and needs to be moved, please do not press the thumb power throttle.
  • Page 37 Do Not Operate in the Rain Proceed with Caution Do not press power throttle to accelerate Do not drive the scooter when going downhill. Proceed with caution. in the rain. Avoid Bumpy Roads Avoid High Steps Do not ride over steps more than 0.75 Do not operate at high speed inches at high speeds.

  • Page 38: Operate Safely

    O P E R AT E S A F E LY C AU T I O N PLEASE USE PROPER PRECAUTION WHEN OPERATING THE ELECTRIC SCOOTER. 1. Hold both handlebars while operating electric scooter. Do not drive with one hand.(Figure 1) 2.
  • Page 39 Figure 1. Hold both Handlebars Figure 2. Do Not Lift Feet Figure 3. Do Not Operate in Water Figure 4. Operate with Caution Figure 5. Avoid Preasure on Mud Guard...

  • Page 40: Maintenance

    M A I N T E N A N C E C AU T I O N ADHERE TO THE MAINTENANCE SUGGESTIONS WHEN THE SCOOTER HAS BEEN IN USE FOR A LENGTHLY TIME. Cleaning & storage maintenance 1. Use a soft damp cloth to wipe away any stains.(Figure 1) 2.
  • Page 41 Figure 1. Use Soft Damp Cloth Figure 2. Cool Dry Storage Area Figure 3. Fasten Counterclockwise Figure 4. Fasten Clockwise...
  • Page 42 M A I N T E N A N C E C AU T I O N NOTE: ADHERE TO THE MAINTENANCE SUGGESTIONS WHEN THE SCOOTER HAS BEEN IN USE FOR A LENGTHLY TIME. Tube maintenance 1.If the tube of the scooter is loose, tighten the 4 mounting screws in a counterclockwise direction.
  • Page 43 Figure 5. Secure Front Tube Figure 6. Secure Stem Base Figure 7. Remove Screw on Folding Stem Figure 8. Fasten Folding Mechanism Screw...

  • Page 44: Pre-Ride Checklist

    P R E - R I D E C H E C K L I S T C AU T I O N MAKE SURE THAT THE ELECTRIC SCOOTER IS IN GOOD CONDITION BEFORE EVERY TRIP. IF YOU FIND ANYTHING WRONG, DO NOT RIDE BEFORE CORRECTING. Checklist -Make sure the battery is sufficiently charged before riding.

  • Page 45: Safety Precautions

    S A F E T Y P R E C AU T I O N S The key to safe riding is common sense. Obey all traffic laws. Ride defensively, expect the unexpected. Give pedestrians the right of way. Slow down at intersections and look to the left and right before crossing. Do not ride too fast Do not operate while intoxicated or overly tired.
  • Page 46 WA R N I N G Warning • Do not use alcohol, gasoline, kerosene, abrasive cleaning solvents or volatile chemical solvents to clean the electric scooter. This can seriously damage the electric scooter and circuitry. • Do not wash electric scooter with water. •...

  • Page 47: Warning

    WA R N I N G • For your personal safety, always wear a • This product should only be used in helmet and body protection. private areas and not on public roads, parks or footpaths. • Collisions, falls and loss of control can harm people and •...

  • Page 48: Specifications

    S P E C I F I C AT I O N S 10"MAX SERIES Size & weight Unfolded 46.61 x 20.82 x 50.19 inches (1183.9 x 528.8 x 1274.8 mm) Fold 19.13 x 6.92 x 7.04 inches (485.9 x 175.7 x 178.8 mm) Net weight Approximately 47.39 lbs (21.5 kg) Deck size...
  • Page 49 Battery Type 18650 lithium battery cells Nominal Voltage 36 VDC Charging Voltage 42 VDC Nominal Capacity 561.6Wh (36V, 15.6AH) Max. Continuous discharge current Charging hours Approximately 8 hours Charging Temperature 0-40°C BMS (Battery Management System) Over-heating, short circuit, over-current and over-charge protection Charger Charging voltage...
  • Page 50 D E C L A R AT I O N 1:AN ELE C TRIC S C OOTER IS A SP ORT AND EN TERTAINMEN T TOOL , NOT A TR ANSP ORTATION VEHICLE . HOWE VER ONCE YOU DRIVE I T IN TO A PUBLIC ARE A, I T WILL AL S O HAVE THE PROPERT Y OF A TR ANSP ORTATION VEHICLE , AND YOU NEED TO LE ARN TO MA STER RIDING SKILL S .
  • Page 51 6. CL A S S AC TION WAIVER . IF PERMI T TED BY, AND TO THE E X TEN T PERMI T TED BY, APPLIC ABLE L AW, E ACH PART Y WAIVE S THE RIGH T TO LI TIG ATE IN C OURT OR AN ARBI TR ATION PROCEEDING ANY DISPUTE A S A CL A S S AC TION, EI THER A S A MEMBER OF A CL A S S OR A S A REPRE SEN TATIVE , OR TO AC T A S A PRIVATE AT TORNE Y GENER AL .
  • Page 52 H I G H L I G H T S...
  • Page 53 H I G H L I G H T S...
  • Page 54 WA R R A N T Y For warranty information, please visit us at B U G ATT I SC O OTE RS N A . C OM 90-day limited warranty FCC STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 56 - for - E L E C T R I C S C O O T E R 2585 WEST 13TH ST BROOKLYN, NY 11223 BYTECHINTL.COM ©2023 BYTECH NY INC B U G A T T I S C O O T E R S N A . C O M M A NU FAC T U R ED BY BY T EC H N Y I N C .
