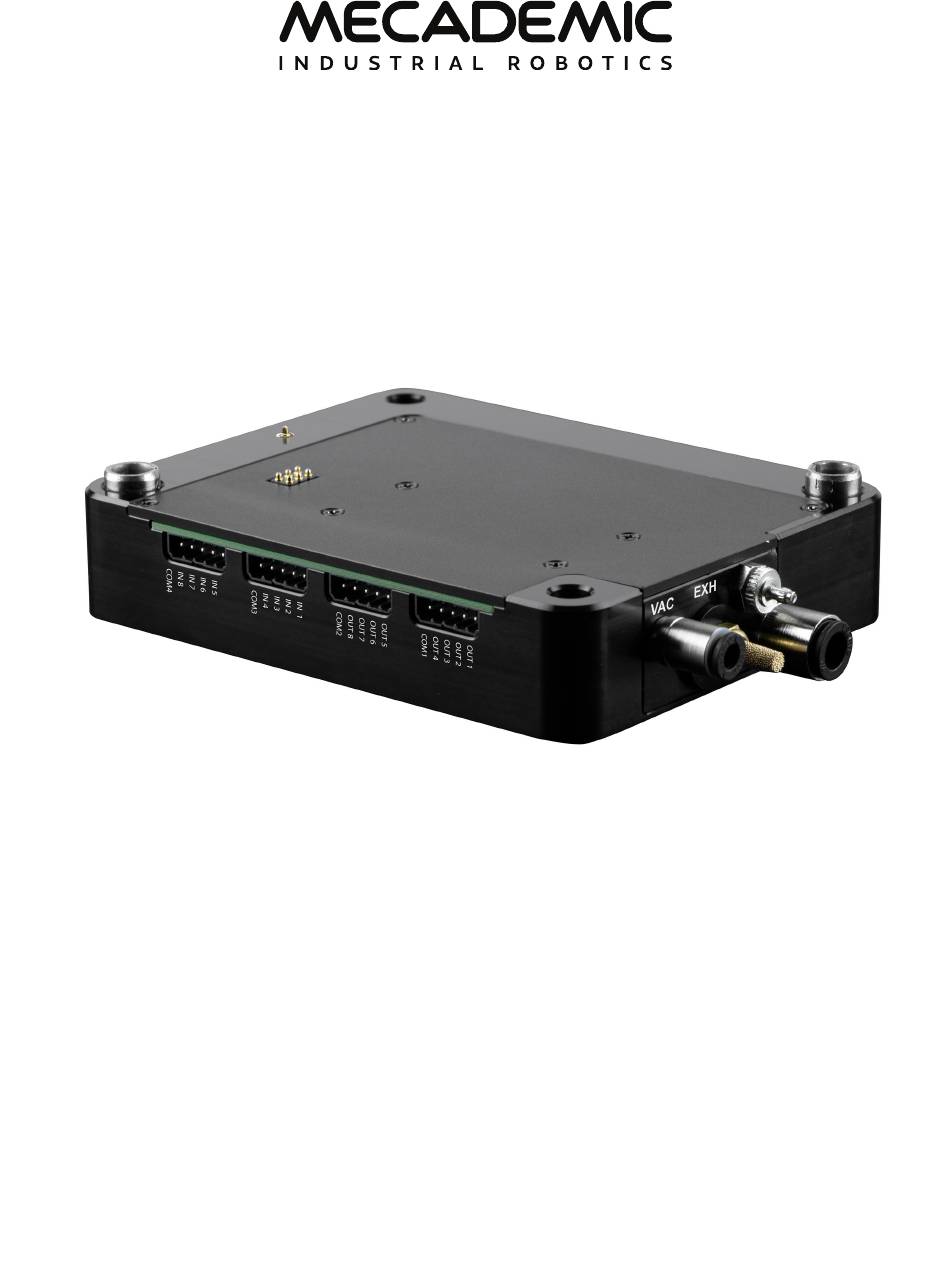

MVK01 VACUUM AND I/O MODULE
USER MANUAL
Document ID: MC-UM-MVK01-EN
For Firmware Version 10.1
Document Revision: A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVK01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mecademic MVK01

  • Page 1 MVK01 VACUUM AND I/O MODULE USER MANUAL Document ID: MC-UM-MVK01-EN For Firmware Version 10.1 Document Revision: A...
  • Page 2 The information contained herein is the property of Mecademic and shall not be reproduced in whole or in part without prior written approval of Mecademic. The information herein is subject to change without notice and should not be construed as a commitment by Mecademic.

  • Page 3: Table Of Contents

    5.1. Adjusting the purging force ........................10 5.2. Firmware update ............................10 5.3. Integration into the MecaPortal .........................10 5.4. Safety ................................10 5.5. Resets of the state of the MVK01 .......................11 User Manual for the MVK01 Vacuum and I/O Module (for firmware 10.1)
  • Page 5 ABOUT THIS MANUAL This user manual describes how to install Mecademic's MVK01 vacuum and I/O module kit onto Mecademic's MCS500 (R1) SCARA industrial robot arm and how to use it. You must read this manual thoroughly before installing or operating the MVK01.

  • Page 7: Introduction

    (R1) SCARA robot arm. The module essentially consists of a configurable vacuum ejector with a pressure sensor and circuitry for 8 digital inputs and 8 digital outputs. The MVK01 kit also comes with several accessories: three suctions cups, a mechanical adaptor, 4-mm (OD) tubing, and four cable connectors.
  • Page 8 4-mm (OD) tubing and an M5-threaded hole for installing a suction cup Phoenix Contact, Product Number 1778861) Figure 4: Push-in cable connector for the digital I/Os ( User Manual for the MVK01 Vacuum and I/O Module (for firmware 10.1)

  • Page 9: Technical Specifications

    TECHNICAL SpECIfICATIONS 2. TECHNICAL SpECIfICATIONS Table 1 lists the main technical specifications for the MVK01 vacuum and I/O module and Figure 5 shows the principal dimensions of the module. Table 1: Technical specifications for the MVK01 vacuum and I/O module TECHNICAL SPECIFICATIONS...
  • Page 10 TECHNICAL SpECIfICATIONS 2X hollow Dowel pins, Ø10, preinstalled (do not remove) 4X through holes for M6 2X Ø10 F8, É 3.5 units: mm Figure 5: MVK01 module dimensions User Manual for the MVK01 Vacuum and I/O Module (for firmware 10.1)

  • Page 11: Installing The Mvk01 Kit

    INSTALLINg THE MVK01 KIT 3. INSTALLINg THE MVK01 KIT The MVK01 module is designed for only one type of installation, underneath the base of the MCS500 R1, as shown in Figure 6. Make sure the MCS500 robot is powered off and the connectors on top of the MVK01 and on the bottom of the robot's base are unobstructed, before installing the MVK01 module.
  • Page 12 Do not remove the retaining rings from the spline shaft, as doing so will cause irreversible damage to the ball-screw spline assembly. Figure 8 shows the main dimensions of the suction cup holder. User Manual for the MVK01 Vacuum and I/O Module (for firmware 10.1)
  • Page 13 IN port on the MVK01 module. Then, cut the proper length of pneumatic tubing with 4-mm outer diameter and connect one end to the VAC port on the MVK01 module and the other to the push-in connector of the suction cup holder. Attach the tubing with a tie wrap to the rigid cable conduit of the SCARA robot as shown in Figure 9.

  • Page 14: Cabling The Inputs And Outputs

    CABLINg THE INpUTS AND OUTpUTS 4. CABLINg THE INpUTS AND OUTpUTS As already specified, the MVK01 provides 8 digital inputs and 8 digital outputs. Each group is divided into two sets, with its independent common terminal (Figure 10). By default, all inputs and outputs are normally open.
  • Page 15 Inductive loads such as relays and solenoids must include a flyback (freewheel) diode in the circuit as depicted in Figure 12 (right). Otherwise, the MVK01 will be damaged permanently by the high voltage spike at the release of the inductive load. User Manual for the MVK01 Vacuum and I/O Module (for firmware 10.1)

  • Page 16: Operating The Mvk01 Module

    OpERATINg THE MVK01 MODULE 5. OpERATINg THE MVK01 MODULE The MVK01 vacuum and I/O module is controlled in the same way as the MCS500. For example, you can control the vacuum using the commands VacuumGrip/VacuumRelease and configure it using the commands SetVacuumThreashold, SetVacuumPurgeDuration.

  • Page 17: Resets Of The State Of The Mvk01

    5.5. Resets of the state of the MVK01 If an activated robot with an MVK01 module becomes deactivated, the MVK01 retains its state (i.e., if it was generating vacuum, it will continue to do so, and all outputs will remain the same).
  • Page 18 Contact Us Mecademic 1300 St-Patrick Street Montreal (Quebec) H3K 1A4 Canada 1-514-360-2205 1-833-557-6268 (toll-free in North America) https://support.mecademic.com © Copyright 2015–2024 Mecademic...
