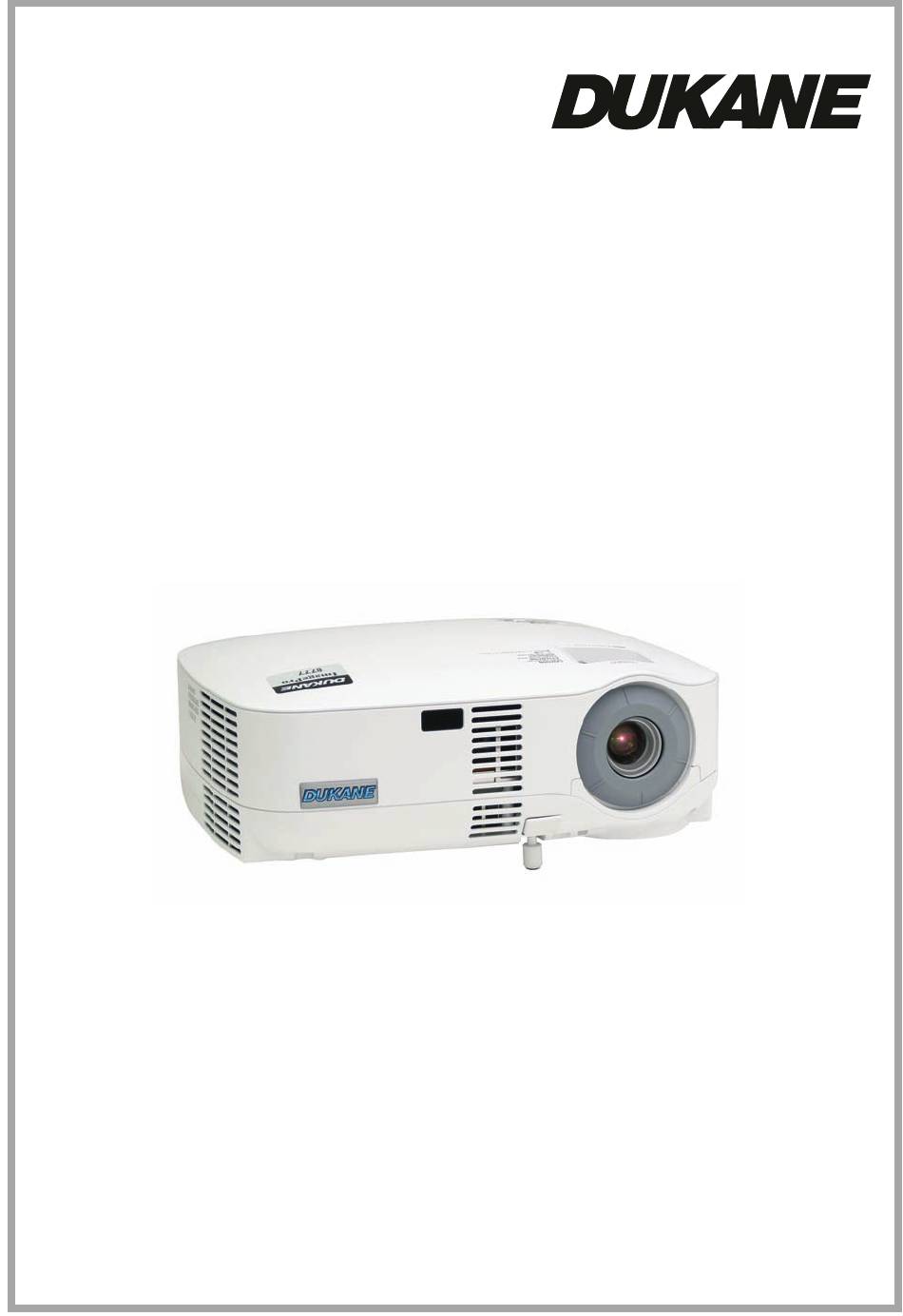

Portable LCD Projector
Model 8777
Model 8779
USER'S MANUAL
401-8777/8779-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 401-8777 and is the answer not in the manual?

Questions and answers

Related Manuals for Dukane 401-8777

Summary of Contents for Dukane 401-8777

  • Page 1 Portable LCD Projector Model 8777 Model 8779 USER’S MANUAL 401-8777/8779-01...
  • Page 2 (3) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us. (4) Notwithstanding article (3), Dukane will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.
  • Page 3 Important Information Safety Cautions Precautions Please read this manual carefully before using your projector and keep the manual handy for future reference. Your serial number is located on the bottom of your projector. Record it here: CAUTION To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.
  • Page 4 The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Dukane Corporation in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 5 Important Information Place the projector in a horizontal position The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically. 10°...
  • Page 6 Important Information CAUTION • Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector. • Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the soft case could be damaged.

  • Page 7: Table Of Contents

    Table of Contents Important Information ----------------------------------------------------------- i 1. Introduction ---------------------------------------------------------------------- 1 What's in the Box? --------------------------------------------------------------------------------- 1 Introduction to the Projector --------------------------------------------------------------------- 2 Part Names of the Projector --------------------------------------------------------------------- 3 Attaching the supplied carrying handle ------------------------------------------------- 4 Top Features -------------------------------------------------------------------------------------- 5 Terminal Panel Features ----------------------------------------------------------------------- 6 Part Names of the Remote Control ------------------------------------------------------------ 7 Battery Installation ------------------------------------------------------------------------------ 8...
  • Page 8 Table of Contents 4. Convenient Features ------------------------------------------------------ 30 Turning off the Image and Sound ------------------------------------------------------------ 30 Freezing a Picture -------------------------------------------------------------------------------- 30 Enlarging a Picture ------------------------------------------------------------------------------- 30 Changing Lamp Mode --------------------------------------------------------------------------- 31 Preventing the Unauthorized Use of the Projector --------------------------------------- 31 Using the Optional Remote Mouse Receiver (NP01MR) ------------------------------ 34 5.

  • Page 9: Introduction

    1. Introduction What's in the Box? Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector. Projector Lens cap (24FT9641) Soft case (24BS7582)

  • Page 10: Introduction To The Projector

    1. Introduction Introduction to the Projector This section introduces you to your new projector and describes the features and controls. Congratulations on Your Purchase of the Projector This projector is one of the very best projectors available today. The projector enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, DVD player, document camera, or a laser disc player.

  • Page 11: Part Names Of The Projector

    1. Introduction Part Names of the Projector Front/Top Zoom lever Controls ( → page 5) Digital Zoom Button) ( → page 24) Ventilation (inlet) / Filter Cover Remote sensor ( → page 50) ( → page 8) Two filters on VT695, VT595, VT590 Focus Ring ( →...

  • Page 12: Attaching The Supplied Carrying Handle

    1. Introduction Bottom Rear Foot (Left / Right) ( → page 23) Adjustable Tilt Foot ( → page 23) Adjustable Tilt Foot Button Lamp Cover ( → page 23) ( → page 52) Attaching the supplied carrying handle (VT695, VT595, VT590 and VT490 only) You can carry the projector by attaching the supplied carrying handle securely to the projector.

  • Page 13: Top Features

    1. Introduction Top Features MENU SELECT LAMP STATUS POWER ON/STAND BY SOURCE AUTO ADJ. 1. LAMP Indicator (→page 52,55) 2. STATUS Indicator (→page 55) 3. POWER Indicator (→page 20,28,55) 4. POWER Button (ON / STAND BY) ( ) (→page 20,28) 5.

  • Page 14: Terminal Panel Features

    1. Introduction Terminal Panel Features S-VIDEO PC CTRL COMPUTER 2 (DVI-I) IN AUDIO IN COMPUTER 1 IN MONITOR OUT (COMP 1) AUDIO OUT VIDEO IN AUDIO IN 1. COMPUTER 1 IN/ Component Input Connector (Mini D-Sub 15 Pin) 2. AUDIO IN Mini Jack (Stereo Mini) (→page 13,14,17) 3.

  • Page 15: Part Names Of The Remote Control

    1. Introduction Part Names of the Remote Control POWER MAGNIFY PIC-MUTE PAGE DOWN MENU ENTER EXIT L-CLICK R-CLICK MOUSE VIDEO COMPUTER COMPUTER AUTO ADJ. S-VIDEO LAMP MODE VOLUME ASPECT HELP PICTURE FREEZE 12. MOUSE R-CLICK Button* (→ page 34,35) 13. VIDEO Button (→...

  • Page 16: Battery Installation

    1. Introduction Battery Installation Slip the cover back over the bat- Press firmly and slide the Install new batteries (AAA). teries until it snaps into place. Do battery cover off. Ensure that you have the not mix different types of batter- batteries' polarity (+/–) aligned ies or new and old batteries.

  • Page 17: Installation And Connections

    2. Installation and Connections This section describes how to set up your projector and how to connect video and audio sources. Your projector is simple to set up and use. But before you get started, you must first: 1 Set up a screen and the projector. 2 Connect your computer or video equipment to the projector.
  • Page 18 2. Installation and Connections Selecting a Location (VT595/VT590/VT490/VT59) The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 21" (0.53 m) measured diagonally when the projector is roughly 30 inches (0.8 m) from the wall or screen. The largest the image can be is 300"...

  • Page 19: Throw Distance And Screen Size

    2. Installation and Connections Throw Distance and Screen Size The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation. Distance Chart B = Vertical distance between lens center and screen center C = Throw distance D = Vertical distance between lens center and...
  • Page 20 2. Installation and Connections WARNING Reflecting the Image * Installing your projector on the ceiling must be done Using a mirror to reflect your projector’s image enables by a qualified technician. Contact your dealer you to enjoy a much larger image when a smaller space for more information.

  • Page 21: Making Connections

    2. Installation and Connections Making Connections NOTE: When using with a notebook PC, be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC. In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered * If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software.

  • Page 22: When Viewing A Dvi Digital Signal

    2. Installation and Connections When Viewing a DVI Digital Signal (VT695/VT595) To project a DVI digital signal, be sure to connect the PC and the projector using a DVI cable (not supplied) before turning on your PC or projector. Turn on the projector first and select Computer 2 (Digital) from the source menu before turning on your PC.

  • Page 23: Using Two Analog Computer Inputs Simultaneously

    2. Installation and Connections Using Two Analog COMPUTER Inputs Simultaneously (VT695/VT595) If you need to use two analog COMPUTER inputs simultaneously, connect a VGA signal cable as shown below. COMPUTER 1 IN COMPUTER 2 (DVI-I) IN S-VIDEO PC CTRL COMPUTER 2 (DVI-I) IN AUDIO IN COMPUTER 1 IN MONITOR OUT (COMP 1)

  • Page 24: Connecting An External Monitor

    2. Installation and Connections Connecting an External Monitor AUDIO OUT MONITOR OUT S-VIDEO PC CTRL COMPUTER 2 (DVI-I) IN AUDIO IN COMPUTER 1 IN MONITOR OUT (COMP 1) AUDIO OUT VIDEO IN AUDIO IN VGA signal cable (supplied) AUDIO VGA signal cable (not supplied) You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog image you're projecting.

  • Page 25: Connecting Your Dvd Player With Component Output

    2. Installation and Connections Connecting Your DVD Player with Component Output AUDIO IN COMPUTER 1 IN S-VIDEO PC CTRL COMPUTER 2 (DVI-I) IN AUDIO IN COMPUTER 1 IN MONITOR OUT (COMP 1) AUDIO OUT VIDEO IN AUDIO IN 15-pin - to - RCA (female) 3 cable adapter (ADP-CV1E) Audio Equipment...

  • Page 26: Connecting Your Vcr Or Laser Disc Player

    2. Installation and Connections Connecting Your VCR or Laser Disc Player AUDIO IN S-VIDEO IN S-VIDEO PC CTRL COMPUTER 2 (DVI-I) IN AUDIO IN COMPUTER 1 IN MONITOR OUT (COMP 1) AUDIO OUT VIDEO IN AUDIO IN VIDEO IN S-Video cable (not supplied) Video cable (not supplied) Audio equipment VCR/ Laser disc player...

  • Page 27: Connecting The Supplied Power Cable

    2. Installation and Connections Connecting the Supplied Power Cable Connect the supplied power cable to the projector. First connect the supplied power cable's two-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet. To wall outlet ←...

  • Page 28: Projecting An Image (Basic Operation)

    3. Projecting an Image (Basic Operation) This section describes how to turn on the projector and to project a picture onto the screen. Turning on the Projector NOTE: • The projector has two power switches: a main power switch and a POWER (ON/STAND BY) button (POWER ON and OFF on the remote control).

  • Page 29: Note On Startup Screen (Menu Language Select Screen)

    3. Projecting an Image (Basic Operation) Note on Startup screen (Menu Language Select screen) When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 8 menu languages. To select a menu language, follow these steps: 1.

  • Page 30: Selecting A Source

    3. Projecting an Image (Basic Operation) Selecting a Source Selecting the computer or video source NOTE: Turn on the computer or video source equipment connected to the projector. Selecting from Source List MENU Press and quickly release the SOURCE button on the projector cabinet to display the Source list.

  • Page 31: Adjusting The Picture Size And Position

    3. Projecting an Image (Basic Operation) Adjusting the Picture Size and Position Place your projector on a flat level surface and ensure that the projector is square to the screen. Lift the front edge of the projector to center the image vertically. If the projected image does not appear square to the screen then use the Keystone feature for proper adjustment.
  • Page 32 3. Projecting an Image (Basic Operation) Zoom Use the ZOOM lever to adjust the image size on the screen. Focus Use the FOCUS ring to obtain the best focus.

  • Page 33: Correcting Keystone Distortion

    3. Projecting an Image (Basic Operation) Correcting Keystone Distortion Correcting Keystone Distortion If the screen is tilted vertically, keystone distortion becomes large. Proceed with the following steps to correct keystone distortion NOTE: The Keystone correction can cause an image to be slightly blurred because the correction is made electronically. NOTE: The Keystone correction range can be made narrower, depending on a signal or its aspect ratio selection.
  • Page 34 3. Projecting an Image (Basic Operation) Adjusting with the Auto Keystone Function (VT695 and VT595 only) The Auto Keystone correction feature will correct the vertical distortion of a projected image on the screen. No special operation required. Just put the projector on a flat surface. TIP: Even when the menu setting for [Auto Keystone] is turned on, [Keystone] can be adjusted manually.

  • Page 35: Optimizing Rgb Picture Automatically

    3. Projecting an Image (Basic Operation) Optimizing RGB Picture Automatically Adjusting the Image Using Auto Adjust Optimizing an RGB image automatically. Press the AUTO ADJ. button to optimize an RGB image automatically. This adjustment may be necessary when you connect your computer for the first time. [Poor picture] MENU L-CLICK...

  • Page 36: Turning Off The Projector

    3. Projecting an Image (Basic Operation) Turning off the Projector To turn off the projector: MENU 1. First, press the POWER (ON/STAND BY) button on POWER the projector cabinet or the POWER OFF button on MAGNIFY PIC-MUTE PAGE SELECT the remote control. The [Power Off / Are you sure?] DOWN LAMP message will appear.

  • Page 37: After Use

    3. Projecting an Image (Basic Operation) After Use Preparation: Make sure that the projector is turned off. 1. Unplug the power cable. 2. Disconnect any other cables. 3. Retract adjustable tilt feet if extended. 4. Cover the lens with the lens cap. 5.

  • Page 38: Convenient Features

    4. Convenient Features ³ Turning off the Image and Sound Press the PIC-MUTE button to turn off the image and sound for a short POWER period of time. Press again to restore the image and sound. MAGNIFY PIC-MUTE PAGE DOWN MENU NOTE: Sound from the AUDIO OUT jack (Stereo mini) on the can be turned off.

  • Page 39: Changing Lamp Mode

    4. Convenient Features Changing Lamp Mode This feature enables you to select two brightness modes of the lamp: Normal and Eco modes. The lamp life can be extended by using the Eco mode. Lamp Mode Description Status of LAMP indicator LAMP Normal Mode This is the default setting (100%...
  • Page 40 4. Convenient Features 5. Use the SELECT button to select [On] and press the ENTER button. The [Security Keyword] screen will be displayed. 6. Type in a combination of the four SELECT buttons and press the ENTER button. NOTE: A keyword must be 4 to 10 digits in length. Please make a note of your keyword. The [Confirm Keyword] screen will be displayed.
  • Page 41 4. Convenient Features To turn on the projector when Security is enabled: 1. Press the Main Power Switch to the On position (I). 2. Press and hold the POWER ON or the ON/STAND BY button for a minimum of 1 second. The projector will be turned on and display a message to the effect that the projector is security-protected.

  • Page 42: Using The Optional Remote Mouse Receiver (Np01Mr)

    4. Convenient Features Using the Optional Remote Mouse Receiver (NP01MR) The optional remote mouse receiver enables you to operate your computer’s mouse functions from the remote control. It is a great convenience for clicking through your computer-generated presentations. Connecting the remote mouse receiver to your computer If you wish to use the remote mouse function, connect the mouse receiver and computer.
  • Page 43 4. Convenient Features Operating your computer’s mouse from the remote control You can operate your computer's mouse from the remote control. PAGE UP/DOWN Button: scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint on your computer.

  • Page 44: Using On-Screen Menu

    5. Using On-Screen Menu Using the Menus NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected. 1. Press the MENU button on the remote control or projector cabinet to display the Menu. POWER MAGNIFY PIC-MUTE PAGE...
  • Page 45 5. Using On-Screen Menu 4. Use the SELECT button on the remote control or the projector cabinet to select the item you want to adjust or set. 5. Adjusting the level of a selected item or selecting an item. Slide bar Solid triangle POWER MAGNIFY...

  • Page 46: Menu Elements

    5. Using On-Screen Menu · Menu Elements Title Slide bar Highlight Source Off Timer remaining time Radio button Solid triangle Check mark Thermometer symbol Key Lock symbol Menu windows or dialog boxes typically have the following elements: Title .......... Indicates the menu title. Highlight ........

  • Page 47: List Of Menu Items

    5. Using On-Screen Menu » List of Menu Items Some menu items are not available depending on the input source. Resettable Picture Default Item Preset 1 to 6 Detail Settings General Reference High-Bright, Presentation, Video, Movie, Graphic, sRGB Gamma Correction Dynamic, Natural, Black Detail Color Temperature 6500, 7800, 8500, 9300...
  • Page 48 5. Using On-Screen Menu Signal Select Computer 1(VT695/VT595) RGB/Component RGB/Component, RGB, Component Computer 2 (Analog) (VT695/VT595) RGB/Component RGB/Component, RGB, Component Computer(VT590/VT490/VT59/VT49) RGB/Component RGB/Component, RGB, Component Video Auto Auto, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM S-Video Auto Auto, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM Deinterlace Off, On...

  • Page 49: Menu Descriptions & Functions [Picture]

    5. Using On-Screen Menu ¿ Menu Descriptions & Functions [Picture] Preset When selecting user adjustable [Preset], the submenu will be displayed. You can customize each gamma or color. To do so, first select [Preset] and press the ENTER button, then proceed using the following steps.

  • Page 50: Menu Descriptions & Functions [Image Options]

    5. Using On-Screen Menu Adjusting White Balance [White Balance] This allows you to adjust the white balance. Contrast for each color (RGB) to adjust the white level of the screen; Brightness for each color (RGB) is used to adjust the black level of the screen. Adjusting Contrast, Brightness, Sharpness, Color and Hue You can adjust contrast, brightness, sharpness, color and hue.
  • Page 51 5. Using On-Screen Menu NOTE: • When you are displaying an RGB image with a higher resolution than the projector’s native resolution, the image will be displayed in the projector’s native resolution. In this case [Native] is not available from the menu. Only when displaying an RGB image with a lower resolution than the projector's native resolution, will the image be able to be displayed in its true resolution [Native].

  • Page 52: Menu Descriptions & Functions [Setup]

    5. Using On-Screen Menu ² Menu Descriptions & Functions [Setup] [General] 8777 Enabling Auto Keystone [Auto Keystone] (VT695/VT595 only) This feature allows the projector to detect its tilt and correct vertical distortion automatically. To turn on the Auto Keystone feature, select [On]. Correcting Vertical Keystone Distortion Manually [Keystone] You can correct vertical distortion manually.
  • Page 53 5. Using On-Screen Menu [Installation] Selecting Projector Orientation [Orientation] This sets your image for your type of projection application. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection. Desktop front Ceiling rear Desktop rear Ceiling front Selecting Communication Speed [Communication Speed] This feature sets the baud rate of the PC Control port (Mini DIN 8 Pin).
  • Page 54 5. Using On-Screen Menu Enabling Security [Security] This feature turns on or off the Security function. Unless the correct keyword is entered, the projector cannot project an image. (→page 31) Selecting Menu Color [Menu Color Select] You can choose between two color modes for menu color: color and monochrome. Selecting Menu Display Time [Menu Display Time] This option allows you to select how long the projector waits after the last touch of a button to turn off the menu.
  • Page 55 5. Using On-Screen Menu Enabling Fan Speed Mode [Fan Mode] This option allows you to select two modes for fan speed: Auto mode and High speed mode. Auto ...... The built-in fans automatically run at a variable speed according to the internal temperature. High ......

  • Page 56: Menu Descriptions & Functions [Information]

    5. Using On-Screen Menu ¶ Menu Descriptions & Functions [Information] Displays the status of the current signal and lamp usage. This item has three pages. The information included is as follows: [Usage Time] [Lamp Life Remaining] (%)* [Lamp Hours Used] (H) [Filter Hours Used] (H) The progress indicator shows the percentage of remaining bulb life.

  • Page 57: Menu Descriptions & Functions [Reset]

    5. Using On-Screen Menu [Version] [Product] [Firmware] Version [Serial Number] [Data] Version Menu Descriptions & Functions [Reset] Returning to Factory Default [Reset] The Factory Default feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except the following: [Current Signal] Resets the adjustments for the current signal to the factory preset levels.

  • Page 58: Maintenance

    6. Maintenance This section describes the simple maintenance procedures you should follow to clean the filters and replace the lamp. Cleaning or Replacing the Filters The air-filter sponge keeps dust and dirt from getting inside the projector and should be cleaned after every 100 hours of operation (more often in dusty conditions).

  • Page 59: Cleaning The Cabinet And The Lens

    6. Maintenance 3. Reinstall the new filter cover. 4. Clear the filter hours used. To reset the filter usage time, from the menu, select [Reset] → [Clear Filter Hours]. (→page for resetting the filter usage time.) NOTE: Do not wash the filter with soap and water. Soap and water will damage the filter membrane. Before replacing the filter, remove dust and dirt from the projector cabinet.

  • Page 60: Replacing The Lamp

    6. Maintenance » Replacing the Lamp After your lamp has been operating for 2000 hours (up to 3000 hours in Eco mode) or longer, the LAMP indicator in the cabinet will blink red and the message [The lamp has reached the end of its usable life. Please replace the lamp.] will appear.
  • Page 61 6. Maintenance 2. Remove the lamp cover. (1)Press firmly and slide the lamp cover by 1 cm (0.4”) • Do not force to pull the lamp cover (2)Push to release two catches on both sides and slide the lamp cover off. 3.
  • Page 62 6. Maintenance 4. Install a new lamp housing. (1)Insert a new lamp housing until the lamp housing is plugged into the socket. CAUTION Do not use a lamp other than the replacement lamp 456-8777. Order this from your dealer. (2)Secure it in place with the two screws. Be sure to tighten the screws.

  • Page 63: Appendix

    7. Appendix Troubleshooting This section helps you resolve problems you may encounter while setting up or using the projector. Indicator Messages Power Indicator Indicator Condition Projector Condition Note The main power is off – Blinking light Green 0.5 sec On, The projector is getting ready to turn on.
  • Page 64 7. Appendix Common Problems & Solutions (→ "Power/Status/Lamp Indicator" on page 55.) Problem Check These Items Does not turn on • Check that the power cable is plugged in and that the power button on the projector cabinet or the remote control is on.
  • Page 65 7. Appendix If there is no picture, or the picture is not displayed correctly. • Power on process for the projector and the PC. Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC.

  • Page 66: Specifications

    7. Appendix Specifications This section provides technical information about the 8777 and 8779 projector's performance. Model Number 8777 & 8779 Optical LCD Panel 8777 0.63" p-Si TFT active-matrix with Micro Lens Array 8779 0.60" p-Si TFT active-matrix with Micro Lens Array Resolution 1024 768 pixels* native, up to UXGA with...
  • Page 67 7. Appendix Sync Compatibility Separate Sync / Composite Sync / Sync on Green / Sync on Video Built-in Speaker 5W (monaural) Power Requirement 100 - 240V AC, 50 / 60 Hz Input Current 3.1 - 1.3A Power Consumption 9W in Standby mode / 8777 285W in Lamp Normal mode / 220W in Lamp Eco mode 8779 270W in Lamp Normal mode / 170W in Lamp Eco mode Mechanical...
  • Page 68 7. Appendix Regulations UL Approved (UL 60950 - 1) Meets FCC Class B requirements For Canada: UL Approved (CSA 60950 - 1) Meets DOC Canada Class B requirements For Australia/New Zealand: Meets AS/NZS CISPR.22 Class B For Europe: Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3) Meets Low Voltage Directive (EN60950 - 1, TÜV GS Approved) For additional information visit: US :...

  • Page 69: Cabinet Dimensions

    7. Appendix Cabinet Dimensions 8777 & 8779 Lens center 308.7 (12.2") 83 (3.3") 71.35 (2.8") Lens center PUSH Unit: mm (inch)

  • Page 70: Pin Assignments Of D-Sub Computer Input Connector

    7. Appendix Pin Assignments of D-Sub COMPUTER Input Connector Mini D-Sub 15 Pin Connector Pin No. RGB Signal (Analog) YCbCr Signal 11 12 13 14 15 Green or Sync on Green Blue Ground Signal Level Ground Video signal : 0.7Vp-p (Analog) Red Ground Cr Ground Sync signal : TTL level...

  • Page 71: Compatible Input Signal List

    7. Appendix Compatible Input Signal List Horizontal: 15KHz to 100KHz (RGB: 24KHz or over) Vertical: 50Hz to 120Hz Signal Resolution Frequency H. Refresh Rate ( Dots ) ( kHz ) ( Hz ) NTSC – 15.73 59.94 – 15.63 50.00 PAL60 –...

  • Page 72: Pc Control Codes And Cable Connection

    7. Appendix PC Control Codes and Cable Connection PC Control Codes (VT695/VT595) Function Code Data POWER ON POWER OFF INPUT SELECT COMPUTER 1 INPUT SELECT COMPUTER 2 (Digital) 02H INPUT SELECT COMPUTER 2 (Analog) 02H INPUT SELECT VIDEO INPUT SELECT S-VIDEO PICTURE MUTE ON PICTURE MUTE OFF SOUND MUTE ON...
  • Page 73 7. Appendix PC Control Connector (DIN-8P) To TxD of PC To GND of PC To RxD of PC NOTE: Pins 2, 3, 5, 6 and 8 are used inside the projector.

  • Page 74: Troubleshooting Check List

    7. Appendix Troubleshooting Check List Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your problem more efficiently.
  • Page 75 7. Appendix In the space below please describe your problem in detail. Information on application and environment where your projector is used Projector Installation environment Model number: Screen size: inch Serial No.: Screen type: White matte Beads Polarization Date of purchase: Wide angle High contrast Lamp operating time (hours):...

  • Page 76: Travelcare Guide

    Audio Visual Products 2900 Dukane Drive Toll-free: 800-676-2487 St. Charles, Illinois 60174 Fax: 630-584-5156 www.dukcorp.com/av e-mail: avsales@dukcorp.com #401-8777/8779-01...
