Summary of Contents for Vitrifrigo MACS

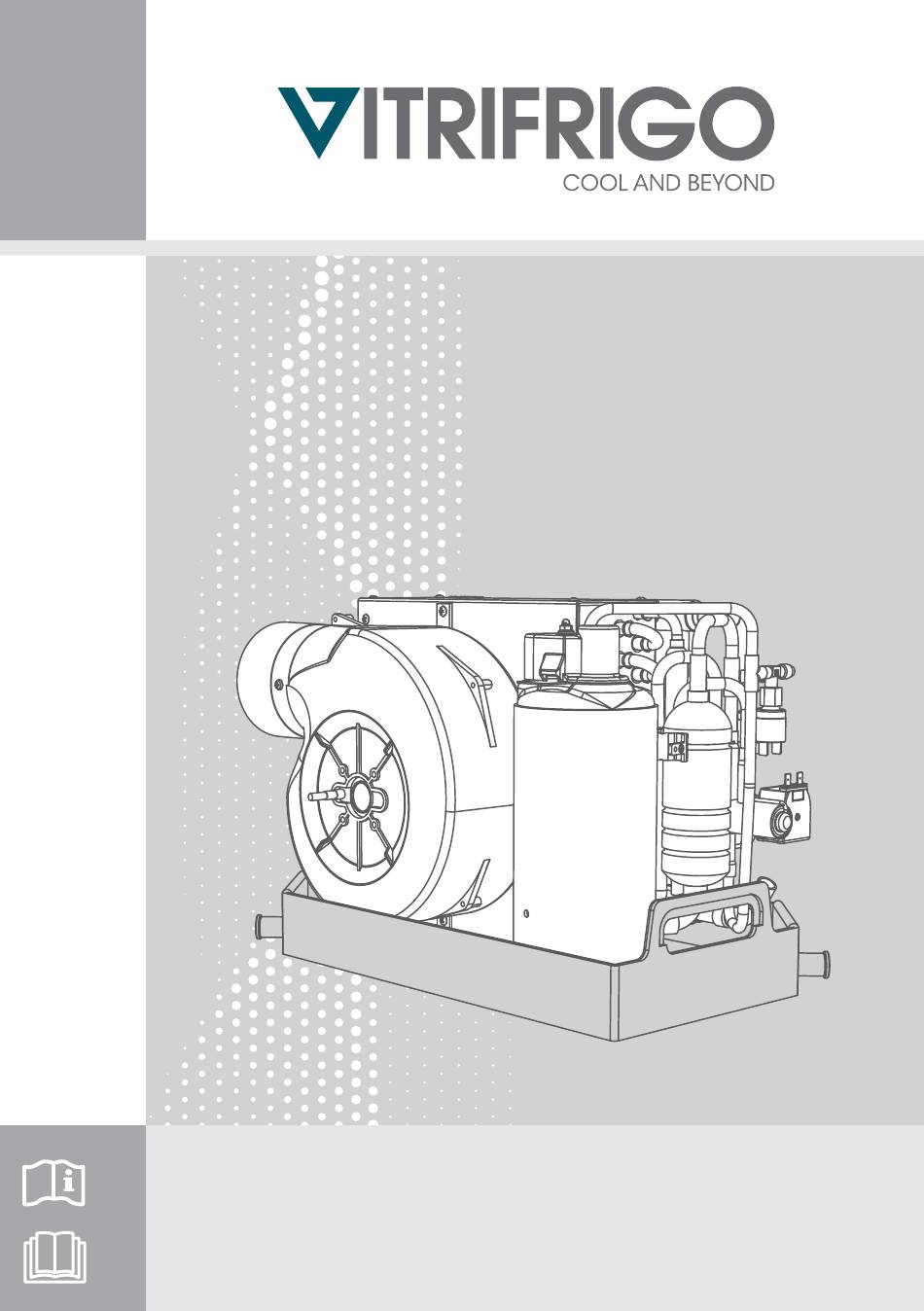

- Page 1 INSTRUCTION MANUAL MACS THANK YOU FOR PURCHASING A VITRIFRIGO PRODUCT...
-
Page 2: Table Of Contents
2. GENERAL WARNING Safety information Disposal 3. PURPOSE OF THE MANUAL Identification of the manufacturer 4. GENERAL DESCRIPTION Description of the MACS Vitrifrigo kits 5. MACHINE DESCRIPTION 6. INSTALLATION Air conditioner positioning Fixing the conditioner Installation of the condensate drain piping 7. -
Page 3: Introduction
This manual is considered an integral part of the refrigerator and must follow the sales path to the user. The same can be consulted on the Vitrifrigo website www.vitrifrigo.com. Each refrigerator, before being shipped, is thoroughly checked and tested to ensure it operates correctly. -
Page 4: Disposal
ATTENTION Do not expose the machine to water jets, do not use harmful substances for its cleaning. Do not place liquid containers on the machine. ATTENTION The operation of the system in heating mode (heat pump) is not convenient if the temperature of sea water is less than 10 ° C. Operation at low sea water temperatures (10 °... -
Page 5: Identification Of The Manufacturer
ATTENTION The accessory kits must always be used with the corresponding machine kits. Ex: The MACS 7 MK kit (Machine Kit) must be used with the MACS 7 AK kit (Accessory Kit). Vitrifrigo declines any responsibility for inadequate operation of the air conditioning system, if accessories of different sizes than those defined by the manufacturer are used. - Page 6 Return air grille 254 X 254 mm - plastic Insulated pipe L = 5 m and D = 102 mm - composite MACS 12M- MACHINE KIT Quantity Description MACS 12 air conditioning units Control panel Electric control box Machine fixing brackets MACS 12A – ACCESSORIES KIT...
-
Page 7: Machine Description
ATTENTION The optional kit “MACS AIR KIT” can be used only with the MACS 12M and MACS 16M machines and only if the main flow grille is present. MACS AIR KIT – SUPPLY AIR GRILLE KIT... -
Page 8: Installation
The air conditioner works according to a compression cycle of refrigerant, sea water and boat room air. The machine has two mode, cooling mode (for the hot seasons) and heat pump mode (for the cold seasons). In cooling mode, the air inside the cabin is drawn in by a fan and passed through the evaporator for to be cooled and dehumidified. -
Page 9: Fixing The Conditioner
For fixing the machine, use screws suitable for the surface used for fixing. Installation of the condensate drain piping With the MACS the ambient air is dehumidified, the water is collected from the anti- condenser tray. The air conditioner is equipped with two anti-condensation drains, it is possible use only one of two. - Page 10 SEA WATER LINE Sea water intake Sea water pump Ball valve MACS conditioner Filter Sea water discharge ATTENTION Follow the instructions below for correct installation of the system 1) Sea water intake: The sea water intake, must be installed oriented towards the bow and as close as possible to the keel and as low as possible with respect to the waterline, in order to avoid the entry of air in the circuit.
-
Page 11: Sea Water Tube
Minimum seawater pump capacity MACS capacity (btu / h) Pump capacity (l / min) 7000 12.5 12000 16000 6) Sea water discharge: The sea discharge must be positioned above the waterline, to have visual confirmation of the flow of water. The height, however, must not be excessive, to minimize the noise produced by the water jet. -
Page 12: Air Distribution Circuit
Vitrifrigo return air grilles are equipped with a filter. If grilles other than the Vitrifrigo accessory kit are used in which the air filter is not present, a filter must be installed in front of evaporator or in the grille. -
Page 13: Electrical Box
The forced air (driven by the fan) can also be conveyed to multiple supply grilles, or in the only one grille of system. For MACS 12 and MACS16, Vitrifrigo has an available kit for the second supply grille in case the machine wants to be used for two distinct environments. -
Page 14: Electrical Panel Assembly
Electrical panel assembly The MACS electrical panel is supplied connected to the machine. Check it before switch on the machine that all components are plug in according to annex 6 fig 6a. The installer will only have to make the electrical connection of the hydraulic pump, the control panel and the general power supply of the electrical panel. -
Page 15: Electrical Connection Of The Sea Water Pump
The control panel must be connected to the electronic board of the air conditioner (inserted in the electrical box) via the 4-pole RS485 cable supplied. Make sure that the terminals of the connection cable are well hooked both on the electronic board and on the back of the panel. -
Page 16: First Start Of The System
• If there are several air conditioners on the boat, and they have a common water circuit, the pump will be powered directly from the network (and not from the electronic board), therefore it will be necessary to provide a special differential magneto thermic switch and a fuse of protection correctly sized (refer to the pump label). -
Page 17: Technical Specifications
12. CONTROL PANEL LAYOUT - : - - 20.0 °C Parametri Password MODE MODE Cooling mode icon MACS parameters menu Heat pump mode icon Set ventilation Ventilation mode icon Infrared sensor Compressor status icon On/Off switch button Seawater pump icon... -
Page 18: Main Commands
To set temperature at the desired value, push buttons 16 (decreasing) or (increasing). In the display is showed the setting temperature. Setting the operating mode You can choose between 4 different modes of operation, described above by their digital representations. For changes the mode of MACS press the button 13. -
Page 19: Ventilation Controls
14. VENTILATION CONTROLS Ventilation mode setting Is possible define two different ventilation mode: Manual: The level is defined in manual setting. • Automatic: The setting of the ventilation is automatic. The ventilation increases and • decrease in function of difference of environmental temperature and 20.0 °C setting temperature. -
Page 20: User Setting Parameters
16. USER SETTING PARAMETERS For to enter in the menu of setting parameters to push the button 13 in the same time of 15. Immediately you can see the word parameter password (see the image below) In the case of final user, is possible to use the button 1 : 30 and you can choice to change the parameter with 20.0 °C... -
Page 21: Techinics Parameters Setting
20.0 °C Parametri Temperature units setting Password Is possible to display the temperature units in two different scales °C and °F. 71.5°F 20.0 °C Temperatura Temperatura Tempera Unità °F Ambient Unità °C 17. TECHINICS PARAMETERS SETTING 20.0 °C 20.0 °C ATTENTION The following parameters must be modified only from qualified user. - Page 22 Maximum temperature setting 1 : 30 °C 20.0 °C 20.0 °C This is option allow the maximum temperature 20.0 °C 20.0 °C value selected from the user. The range of t AUTO Temperatura Temperatura emperature value is from 10 to 30 °C. Parametri DISAB.
- Page 23 Temperatura Temperatura sonda Temp Unità °F Ambiente 1 Ambie Compressor cycle Time OFF – ON 20.0 °C 20.0 °C This is option make to be defined the time (in 20.0 °C 20.0 °C minutes) of stop compressor time (in other word the Tempo ciclo ON - OFF Tempo ciclo OFF- ON Temp...
- Page 24 20.0 °C 20.0 °C Attivazione sonda Differenziale Impos 30°C Esterna DISABLBE Temperatura sonda In the case of heat pump operation of the machine, the automatic speed 20.0 °C 20.0 °C it can also work in reverse automatic speed mode. DIRECT •...
-
Page 25: Infrared Remote Control
- : - - 20.0 °C Infrared remote control The machine kit has the IR control. With the IR control is possible to select all functions. The Parametri icons in the IR control are difference respect the panel control icon. Password 71.5°F Switch ON / Switch OFF... - Page 26 71.5°F 20.0 °C - : - - °C 20.0 °C Temperatura Temperatura sonda Tempe Unità °F Ambiente 1 Ambie In the event of a probe failure, the machine continues to operate according to the “probe failure” function. With an alarm present, an alarm message and a danger icon are displayed. 20.0 °C 20.0 °C 20.0 °C...
-
Page 27: Ordinary Maintenance Of The System
20.0 °C 20.0 °C 20.0 °C 20.0 °C Pressure switch alarm delay An error reporting delay can be set. The default delay time is 10 mins. Modalità di Livello ventilazione Differenziale Imposta calibrazione ventilazione DIRECT minimo caldo ABLBE Temperatura sonda buzz 20.0 °C 20.0 °C... - Page 28 The frequency of its maintenance depends of the AC unit runningtime and the quality of the air. Cleaning the return air filter is fundamentally for the right operation of the AC unit. In fact, a dirt air filter can cause a decreasing AC unit efficiency in cooling mode, and even the block of the system in heating mode, as a result of a too high cond.
-
Page 29: Preparation Of The Water Circuit For The Winter Period
the water-flow. If any object (algae or more) beyond the filter and hang in the pump impeller, it will be necessary a check of the pump. In that case, detach the hose from the pump outlet and check that the water rise up to the water line of the boat. If this does not occur, the pump is obstructed. -
Page 30: Common Problems Solving Guide
If the boat is pulled to the dock during the winter When the boat is already out of the water, open the seacock to ensure that all the water is contained in the circuit is downloaded; open the sea water strainer, remove its basket, empty and clean it. Then request the filter; open the pump head to allow water to drain from inside the pump and from the hose filter-pump;... - Page 31 Locate leak(s) (oil presence on piping Gas leakage indicate cracks or damages causing gas leakage). Replace the correct refrigerant charge Compressor run Check for electrical shorts. Replace it if capacitor defective. Check for electrical shorts, ground and Fan run capacitor open circuits.
- Page 32 Locate leak(s) (oil presence on piping The AC unit provides Refrigerant leakage indicate cracks or damages causing gas insufficient air heating leakage). Replace the correct refrigerant charge Separate any pipe that is making contact Copper piping is vibrating with other pipeor components. Verify that the fan is firmly attached to the air heat-exchanger.
