Summary of Contents for Worker Smuthrider

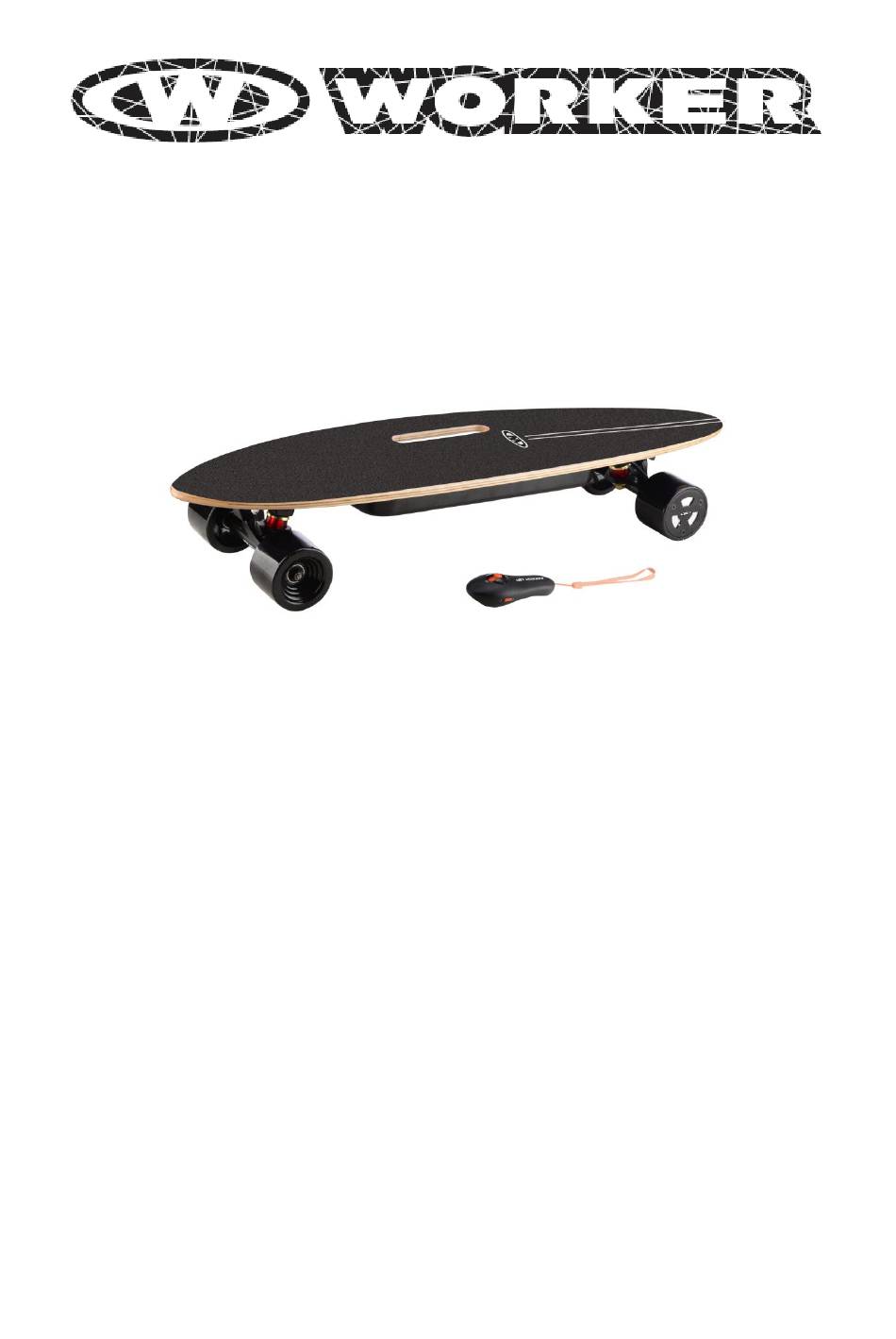

- Page 1 USER MANUAL – EN IN 16084 Electric Longboard WORKER Smuthrider IN 16087 Electric Longboard WORKER Tribequest...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 USAGE INSTRUCTIONS ........................5 SPECIFICATIONS ........................... 5 PRODUCT DESCRIPTION ........................6 OPERATION INSTRUCTIONS ....................... 6 MOTOR PARTS ............................7 REMOTE CONTROLLER ........................7 CHARGING INSTRUCTIONS ......................... 8 CONNECTION............................8 STORING AND MAINTENANCE ......................9 ENVIRONMENT PROTECTION ......................9 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS .......... -
Page 3: Safety Instructions
THANK YOU FOR PURCHASING THIS PRODUCT! Thank you for purchasing this product. It is a remote controlled compact vehicle with a battery. To use it properly and safely, read this manual carefully before first using and retain it for future reference. SAFETY INSTRUCTIONS •... - Page 4 • Check this product before each using. All screws, nuts and quick-release mechanisms should be well tightened. Regularly check bearings, spindles and wheels for damage or wearing. Damaged or worn parts should be replaced immediately. Never use damaged or worn product.
-
Page 5: Usage Instructions
• Lean forward while starting or increasing your speed. • Lean backward while braking. SPECIFICATIONS Single Motor Double Motor Longboard IN 16084 Smuthrider IN 16087 Tribequest 31”*8” PP 31”*8” Canadian Maple Deck Max. load capacity 100 kg 100 kg Max.: 0-20 km/h Max.: 0-24 km/h... -
Page 6: Product Description
PRODUCT DESCRIPTION 1. Bushing 2. Battery chamber 3. Kingpin 4. Motor 5. Truck 6. Wheel 7. Charging port 8. Power switch 9. Board deck OPERATION INSTRUCTIONS 1. Make sure that the direction switch is on FORWARD and the power switch is on. 2. -
Page 7: Motor Parts
MOTOR PARTS 1. Bearing 2. Outside hatch 3. Back hatch 4. Stator 5. Magnetic tile 6. Shell 7. Front hatch 8. PU-coat wheel REMOTE CONTROLLER 1. Binding button 2. Direction switch 3. Indicator 4. Power switch 5. Battery chamber 6. Speed mode switch LS: 10 km/h or 12 km/h HS: 20 km/h or 24 km/h 7. -
Page 8: Charging Instructions
CHARGING INSTRUCTIONS WARNING! Charging should be done only by an adult. • Turn on the longboard. • Take out the adapter and the main cable from the box. Make sure that it is dry and clean. Combine these two parts. •... -
Page 9: Storing And Maintenance
• Use a needle or a similar thin instrument and stick it into the hole on the left side of the controller bottom. Push and hold the binding button. • Hold this button until the blue light on the board starts flashing quickly. That means that the connection has been successfully done. -
Page 10: Terms And Conditions Of Warranty, Warranty Claims
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No. - Page 11 If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the Warranty Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller is eligible to require a compensation for all the costs arising from the repair. The cost shall be calculated according to the valid price list of services and transport costs.
