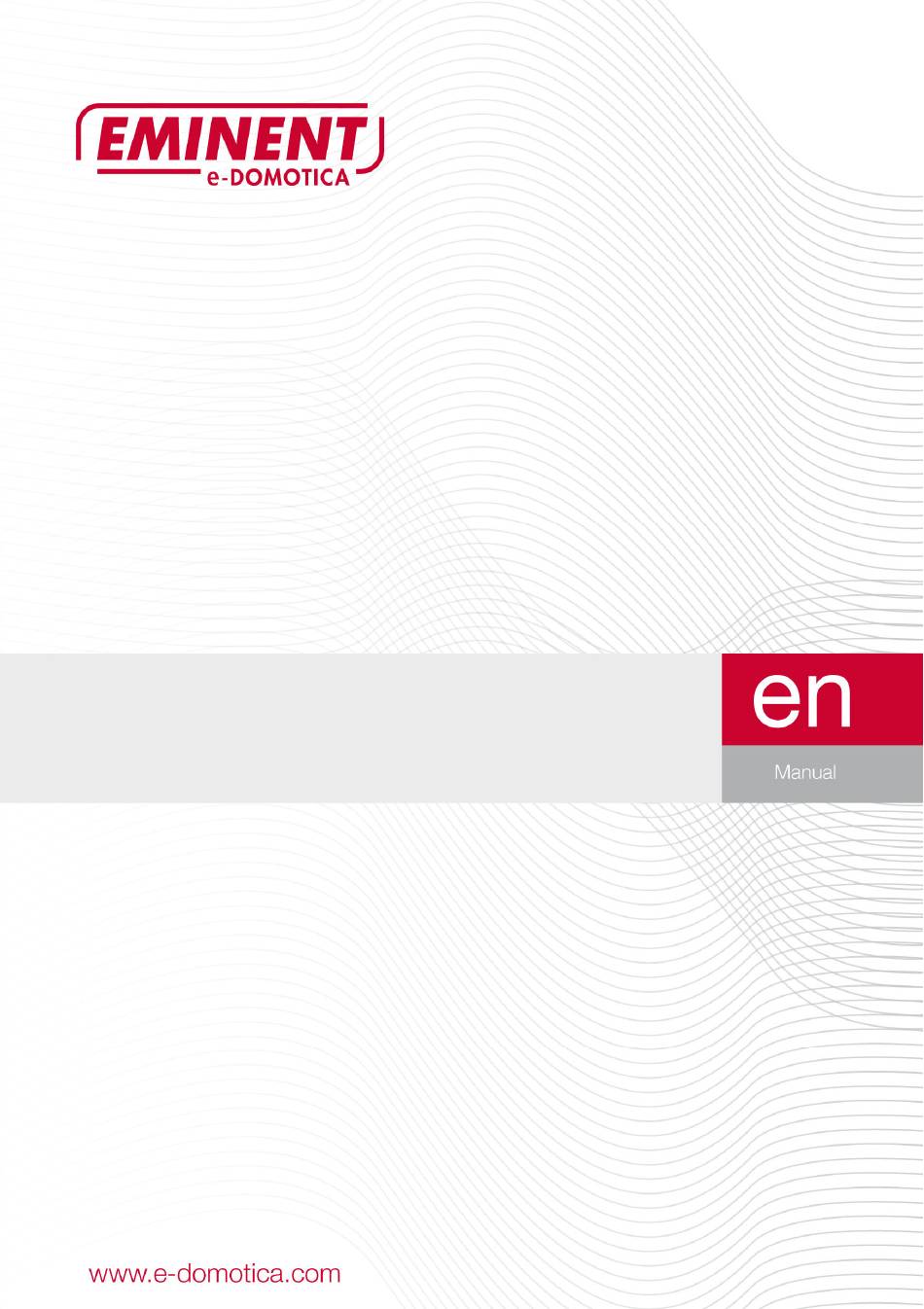

- Page 1 EM6630 e-Domotica Blinds Control...
-
Page 2: Table Of Contents
This product has undergone extensive testing by Eminent’s technical experts. Should you experience any problems with this product, you are covered by a five-year Eminent warranty. Please keep this manual and the receipt in a safe place. 1.1 Functions and features The standard blind control insert (Figure 1), hereafter called "insert", is used with an... -
Page 3: Technical Drawings
ENGLISH Please observe the instructions of the motor manufacturer. 1.2 Technical drawings Figure 1 Connecting terminals 1A: N Neutral conductor • ↓ Motor down • ↑ Motor up • L Phase • Figure 2... -
Page 4: Packing Contents
ENGLISH Figure 3 1.3 Packing contents The following parts need to be present in the packing: EM6630 e-Domotica Blinds Control (insert) • EM6630 e-Domotica Sensor Cover (push button) • EM6630 e-Domotica 1-Gang Frame • Manual • 2.0 How to install the insert Risk of fatal injury from electrical current. -
Page 5: How To Mount The Roller Shutter Push Button
ENGLISH Applications other than switching the blind and roller shutter motors, e.g. controlling a rolling door, can become a cause of danger. Prevent such dangers from occurring by taking suitable additional safety measures. Observe the applicable accident prevention regulations in your area. Wiring the insert (Figure 2). -
Page 6: Add The Roller Shutter To An E-Domotica E-Centre
ENGLISH 4.0 Add the roller shutter button to an e- Domotica e-Centre Make sure your computer is completely started. Open your computer’s web browser. Enter “http://ecentre” in the address bar of your web browser and press the ‘Enter’ key on your keyboard. The webpage of the e-Centre will be shown. -
Page 7: How To Raise And Lower The Roller Shutter
ENGLISH 5.0 How to raise and lower the roller shutter Caution: danger of trapping a finger, clothes, etc. Make sure that the area in which the roller shutter is going to move is not obstructed and that no-one can get caught in it. You can operate the roller shutter by means of the following operating elements: 5.1 Locally using the sensor cover You can use the ▲... -
Page 8: Using The Em6511 E-Domotica Remote Control
ENGLISH By default the ‘Open’ button is displayed on screen. Open Press the button once to close the blinds, icon ‘Closing’ will appear afterwards, blinds go down. Closing To your desire, press the button again to stop, icon ‘Closed’ will appear. -
Page 9: Resetting The Connect Roller Shutter Push Button To The Factory Settings
The e-Domotica system may no longer work and will need to be reconfigured. 8.0 Frequently Asked Questions The latest frequently asked questions for your product can be found on the support page of your product. Eminent will update these pages frequently to assure you have the most recent information. Visit www.e-domotica.com/support/faqs for more information about your product. -
Page 10: Warning And Points Of Attention
Warning: In most cases this concerns an electronic device. Wrong/improper use may lead to (severe) injuries! Repairing of the device should be done by qualified Eminent staff. The warranty immediately voids when products have undergone self repair and/or by misuse. For extended warranty conditions, please visit our website at: www.e-domotica.com/support/warranty... -
Page 11: Warranty Conditions
Eminent warranty. Products are not covered by the Eminent warranty when subjected to incorrect/improper use, external influences and/or when opened by parties other than Eminent. -
Page 12: Declaration Of Conformity
To ensure your safety and compliance of the product with the directives and laws created by the European Commission you can obtain a copy of the Declaration of Conformity concerning your product by sending an e-mail message to: info@eminent- online.com. You can also send a letter to: Eminent Computer Supplies P.O.
