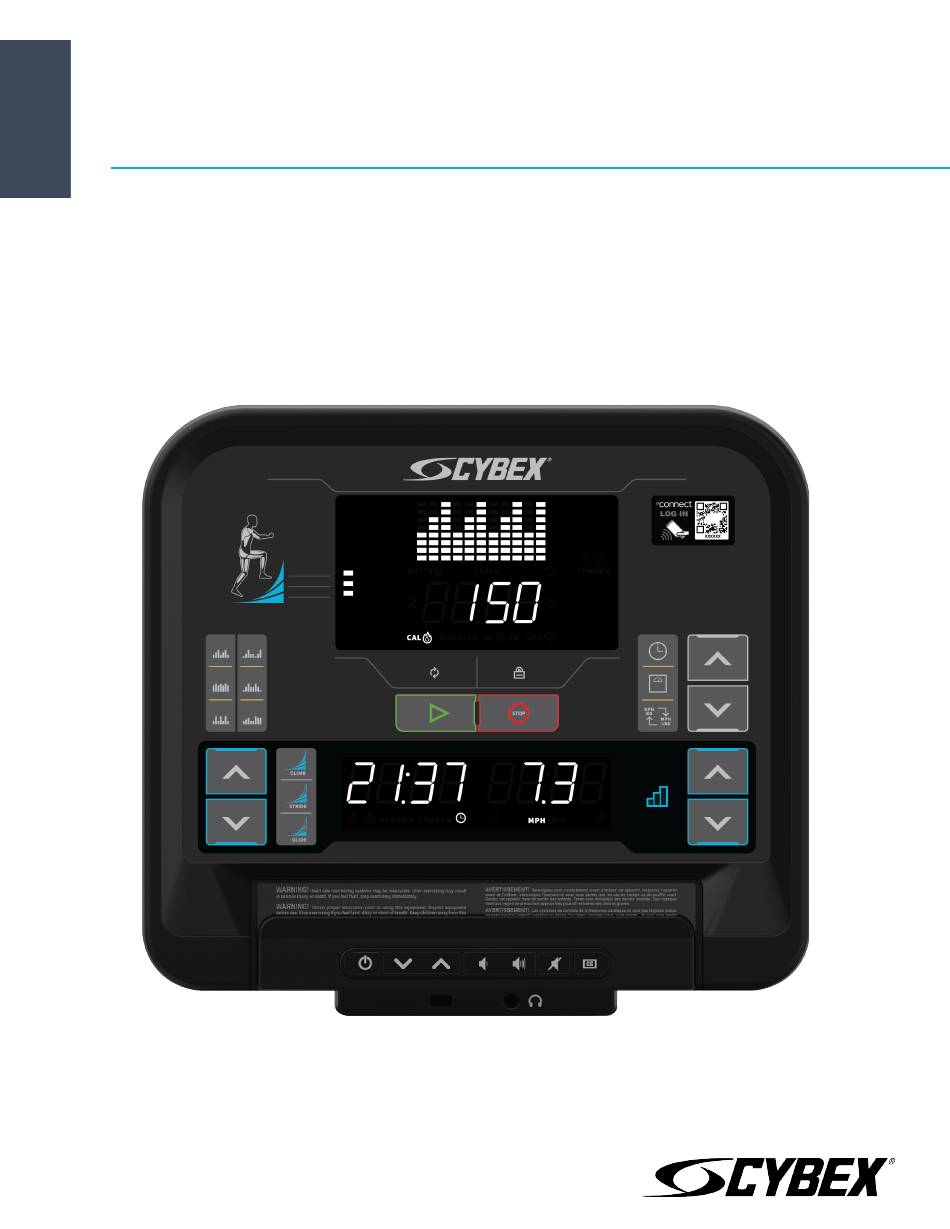

Cybex 50L Console
Owner's Manual
Part Number
1008441-0001 AB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1008441-0001 AB and is the answer not in the manual?

Questions and answers

Summary of Contents for CYBEX 1008441-0001 AB

  • Page 1 Cybex 50L Console Owner's Manual Part Number 1008441-0001 AB...
  • Page 3 International Offices AMERICAS United Kingdom North America Life Fitness UK LTD All Other EMEA Countries and Distributor Business EMEA* Cybex International Inc. Queen Adelaide Bijdorpplein 25-31 Columbia Centre III Ely, Cambs, CB7 4UB 2992 LB Barendrecht 9525 West Bryn Mawr Avenue Telephone: General Office (+44) 1353.666017...
  • Page 4 User and Service Documents Link Operation Manuals and other Product Information available at https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents https://www.lftechsupport.com/web/document-library/documents Trobareu el manual de funcionament i altra informació de producte a https://www.lftechsupport.com/web/document-library/documents Mae Llawlyfrau Gweithredu a Gwybodaeth Arall am Beiriannau ar gael yn https://www.lftechsupport.com/web/document-library/documents Die Betriebsanleitung und andere Produktinformationen erhalten Sie unter https://www.lftechsupport.com/web/document-library/documents...
  • Page 5: Table Of Contents

    Our Pledge To You........................30 Warranty Information.........................31 © Copyright 2018, Cybex International, Inc. Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com • 1008441-0001 AB • 2018 Page 5 of 32...
  • Page 6 FCC Compliance Information Before using this product, it is essential to read this ENTIRE operation manual and ALL assembly instructions. It describes equipment setup and instructs members on how to use it correctly and safely. Avant d’utiliser ce produit, il est indispensable de lire ce manuel d’utilisation dans son INTÉGRALITÉ, ainsi que TOUTES les instructions d’installations.
  • Page 7 • The Cybex Exercise Bike is a machine that simulates the movements of riding a bicycle indoors at various speeds and levels of resistance. • The Cybex Treadmill is an exercise machine that enables users to walk or run, in place, indoors on a moving surface.
  • Page 8: Getting Started

    • If warnings are missing or damaged, please contact Customer Support Services immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before product is used. Cybex is not responsible for missing or damaged warning labels. Page 8 of 32...
  • Page 9 Treadmill CAUTION: Risk of injury to persons – to avoid injury, use extreme caution when stepping onto or off of a moving belt. Read assembly instruction manual before using. WARNING: Keep the area 6.5 ft. (2 m) by 3 ft. (0.9 m) behind the treadmill clear of any obstructions, including walls, furniture, and other equipment.
  • Page 10: Consignes De Sécurité

    • Si certaines étiquettes d'avertissement sont manquantes ou endommagées, contactez immédiatement le Service à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d'avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Cybex n'est pas responsable des étiquettes manquantes ou endommagées.
  • Page 11 Tapis de course Mise en garde :: Risque de blessures - pour éviter toute blessure, faire preuve d'extrême prudence pour monter sur un tapis en mouvement, ou pour en descendre. Lisez les instructions d'assemblage avant toute utilisation. AVERTISSEMENT: Laissez un espace de 2 m sur 0,9 m (6,5 pi. sur 3 pi.) autour de la machine. Ne placez pas cette dernière près de murs, meubles ou autres équipements qui pourraient en obstruer l'accès.
  • Page 12: Getting Connected

    Getting Connected Connecting your product • SSID: LFwireless • Password: See your Cybex representative • Authentication Method: WPA2-Personal Registering Product with Halo 1. Go to the Halo website: https://www.halo.fitness 2. Click the Sign Up link. If you already have an account, Log In.
  • Page 13: Operation

    Operation Console Overview - Arc Trainer Controls Toggle Rotate through metrics. Press to automatically begin a Quick Start workout. Hill Climb, Cardio Interval, Hill Interval, Wave, Target Hip, Workouts key Strength Interval. UP and DOWN arrow keys Use to increase / decrease incline. Quick stride keys Preset stride levels: Glide, Stride, Climb.
  • Page 14 LED's Displays: Distance, Calories, Watts, Heart rate, Workout Upper LED display profile, SPM. Muscle map Displays muscles used. Lower Left LED Displays: Time, Incline. Lower Right LED Displays: Resistance. Page 14 of 32...
  • Page 15: Console Overview - Bike

    Console Overview - Bike Controls Toggle Rotate through metrics Press to automatically begin a Quick Start workout. Workouts key Rollers 1, Ramps, Wave, Rollers 2, Peaks, Bursts. USB Port Charge USB devices. Lock Lock metrics shown STOP Press to Stop a workout. Call out buttons Time, Weight, Imperial/Metric.
  • Page 16 LED's Displays: Distance, Calories, Watts, Heart rate, Workout Upper LED display profile, RPM. Lower Left LED display Displays: Time. Lower Right LED Displays: Road Speed, Resistance. Page 16 of 32...
  • Page 17: Console Overview - Treadmill

    Console Overview - Treadmill Controls Toggle Rotate through metrics Press to automatically begin a Quick Start workout. Speed Bump, Peaks, Hill Interval 1:2, Rollers, Hill Interval 1:1, Workouts key Interval Plus. UP and DOWN arrow keys Use to increase / decrease incline. USB Port Charge USB devices.
  • Page 18 LED's Displays: Pace, Distance, Calories, Heart rate, Workout Upper LED display profile. Lower Left LED Displays: Time, Incline. Lower Right LED Displays Speed. Page 18 of 32...
  • Page 19: Entertainment Rack Overview

    Entertainment Rack Overview The Entertainment Rack is optional Power Press to turn the TV on. Channel Down key Press to decrease channel. Channel Up key Press to increase channel. Volume Down key Press to decrease volume. Volume Up key Press to increase volume. Mute Press to turn off sound.
  • Page 20: Quick Start

    Quick Start 1. Press GO for a Quick Start workout. 2. Enter your weight using the UP and DOWN arrow keys on the right side of the console. Workouts Arc Trainer Extended gradual climbing with Weight Loss - steady increases in both Hill Climb resistance and incline Alternating 2:00 intervals at...
  • Page 21 Treadmill Elevated intervals to keep the HR Speed Bump Climb a hill at moderate to high Rollers grade before repeating Incline level gradually increases to Peaks a peak, gradually decreases. Climb a new hill every 9 minutes 5 minutes. Take on a new hill every Hill Interval 10 minutes.
  • Page 22 Watts Workout profile Select Workout 1. Select a workout by pressing one of the workout keys. 2. Adjust the Time of your workout using the right side UP and DOWN arrow keys. 3. Press GO to confirm and advance to next input. 4.
  • Page 23 Treadmill workout summary Summary screen will toggle through total values. Total time of workout Total calories of workout Total distance of workout QR code. Scan code to save workout to LFconnect Page 23 of 32...
  • Page 24: Manager Configuration

    Manager Configuration View current software version 1. Press the Weight key 5 times. • The current software version status displays left to right in the right, center, and left LED's (i.e 0.2 .01. 003) and beeps once. • After 5 seconds of displaying software version screen will return to the attract screen. 2.
  • Page 25: Maintenance And Troubleshooting

    Maintenance and Troubleshooting NOTE: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use until defective parts are repaired or replaced. NOTE: Pour assurer la sécurité du matériel, il convient de l'inspecter régulièrement afin de déceler tout signe d'usure ou d'endommagement.
  • Page 26: Software Updates Via Usb

    Problem Probable Cause Possible Solutions User is pushing striding belt. This occurs when the runner is running faster than the striding belt will travel, with the result of the striding belt being pushed with the runner’s feet. Instruct users not to push striding belt in either direction. User is stalling striding belt.
  • Page 27 • The progress indicator will flash full for 1 second, then appear empty for the next sequence. This flashing shall continue until software update is complete. Successful update A check mark appears in the progress display for 5 seconds before rebooting console. Unsuccessful update An X appears in the progress display for 60 seconds before rebooting console.
  • Page 28: Specifications

    Specifications Specifications LED console display Display Multiple LED displays Ambient Temperature Range: 0°C to +40°C@ 90% RH (non-condensing) (Operating) Storage and Shipping Temperature -33°C to 71°C Range ™ Heart Rate Monitoring Systems Patented Lifepulse digital contact heart rate Mobile Device Compatibility Bluetooth proximity, NFC USB Device Charging USB port available for charging...
  • Page 29: Warranty

    Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Cybex, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year.
  • Page 30: Exclusive Warranty

    Warranty coverages and terms may differ outside the United States. Please contact the Cybex office servicing your country (contact information found at the front of this manual) or visit the applicable local Cybex website to receive the specific warranty information for your country.
  • Page 31: Warranty Information

    Warranty Information Lifetime 10 years 7 years 3 years 2 years 1 Year 6 Months Overlay, Electrical and Headphone Console Mechanical Labor Jack, and USB Parts Port Frame, Lifespring™ Mechanical Electrical Treadmill Shock Components Components Absorbers, and and Labor Motor Electrical and Arc Trainer Mechanical...
  • Page 32 Columbia Center III - 9525 West Bryn Mawr Ave, Rosemont, IL 60018 • 800-351-3737 • 847-288-3700 • FAX 800-216-8893 www.cybexintl.com...
