hager performa elite User Instructions

performa elite
Note: Only licensed Electrical Installers are
to do any installation to panelboards.
The electrical installer is to ensure that the
panelboard meets site specific requirements.
Final installation is to meet all rules as
described in AS/NZS 3000:2018.
Switchboard Mounting
The electrical installer must ensure that the
support structure or wall is adequate to support
the weight of the panelboard. All cables
entering or exiting the switchboard are to be via
a gland or sealed as required. All panelboards
have lockable doors suitable for restricted areas
as per AS/NZS 61439
Switchgear mounting in Panelboard
The electrical installer is to ascertain that
all installed devices are suitable to meet the
appropriate fault current ratings required.
The chassis on this panel board is suitable for
Hager 10kA type of MCBs and RCBOs and
was designed to suit only Hager MCBs. Hager
recommends fitting only Hager approved
switchgear otherwise this may void warranty.
If the fault level at the switchboard is greater
than the MCB fault rating, they must be backed
up by current limiting fuses or current limiting
circuit breakers. For backup protection levels,
refer to Hager. Devices are to be mounted with
the DIN clip toward the centre of the enclosure.
Transportation may cause terminations,
mechanical supports and other connections to
become loose. The electrical installer is
to ensure all these connections are tightened
prior to any energisation.
Final overview prior to Energisation
Review alignment of all devices and ensure
there has been no damage during final
terminations. The panelboard is to be cleaned
and vacuumed from filings and other foreign
objects after final terminations are completed.

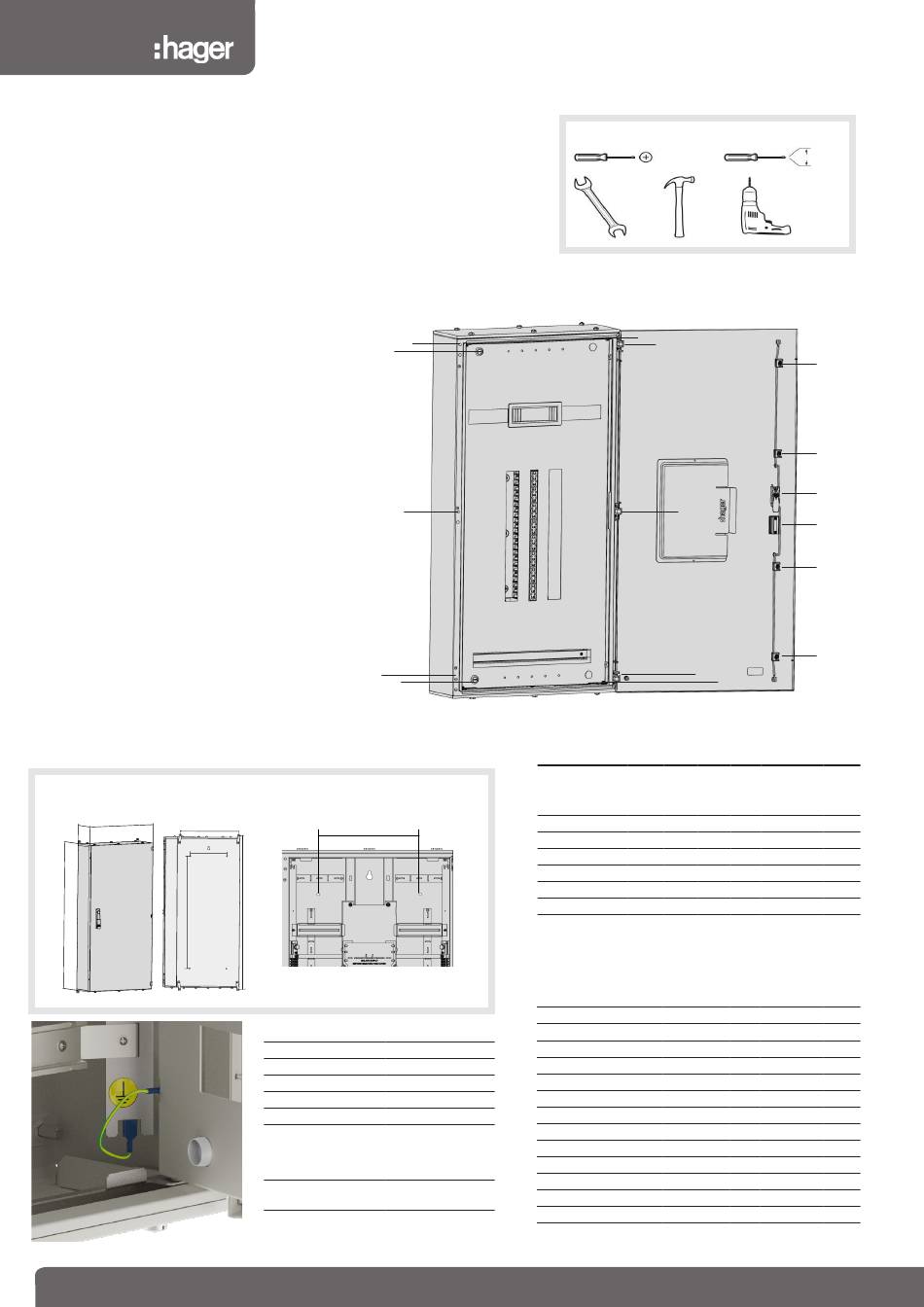

Board Mounting
D W
C
A
B
H
1
Panelboard
User Instructions
Indication position
4
2
A
E
E
F
E = Central keyhole fixing point
Earth and Neutral Links
Neutral bars integrated neutral bars
Neutral bar size (mm) 12.5x16
Split neutral As standard
Earth bars Earth bars both sides
Earth bar size (mm) 12.5x16
Single screw tunnel
Earth and neutral Ø7mm (up to 25mm
bar tunnels cable) solid and
stranded conductors
Earth and neutral Single stud
bar connection (M6 = 2.5Nm)
Earth and neutral 250A
bar rating
Tools needed
5
3
1
elite (JPExxxx) dimensions
Standard
Chassis
JPE2400
JPE3600
JPE4800
JPE6000
JPE7200
JPE9600
JPA0EX
apex exension
Split
Chassis
JPE1812
JPE2418
JPE3012
JPE3618
JPE3630
JPE4212
JPE4224
JPE4818
2
JPE4842
JPE6030
JPE7218
JPE243624
JPE363624
JPE422430
Pozidrive
PZ3
6 7
8
9
10
H W D A B C
1000 600 250 350 700 560
1200 600 250 350 900 560
1200 600 250 350 900 560
1400 600 250 350 1100 560
1400 600 250 350 1100 560
1600 600 250 350 1300 560
400 600 200 350 150 560
H W D A B C
1200 600 250 350 900 560
1200 600 250 350 900 560
1200 600 250 350 900 560
1400 600 250 350 1100 560
1400 600 250 350 1100 560
1400 600 250 350 1100 560
1400 600 250 350 1100 560
1400 600 250 350 1100 560
1600 600 250 350 1300 560
1600 600 250 350 1300 560
1600 600 250 350 1300 560
1600 600 250 350 1300 560
1800 600 250 350 1500 560
1800 600 250 350 1500 560
performa elite user instruction
4.5mm
11
12
13
14
15
16
F
1022
1222
1222
1422
1422
1622
422
F
1222
1222
1222
1422
1422
1422
1422
1422
1622
1622
1622
1622
1822
1822
