Summary of Contents for SFL Europa

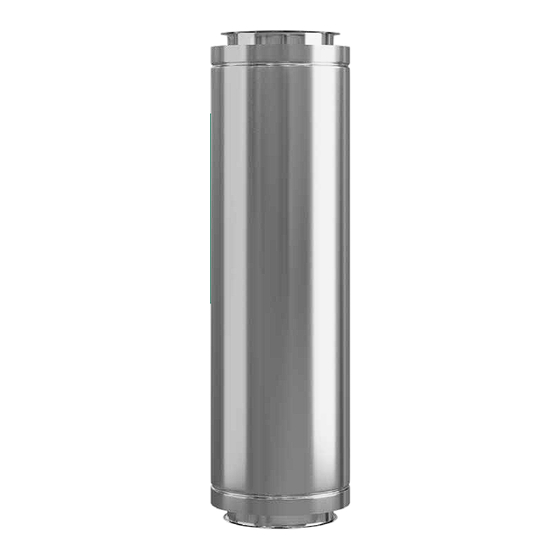

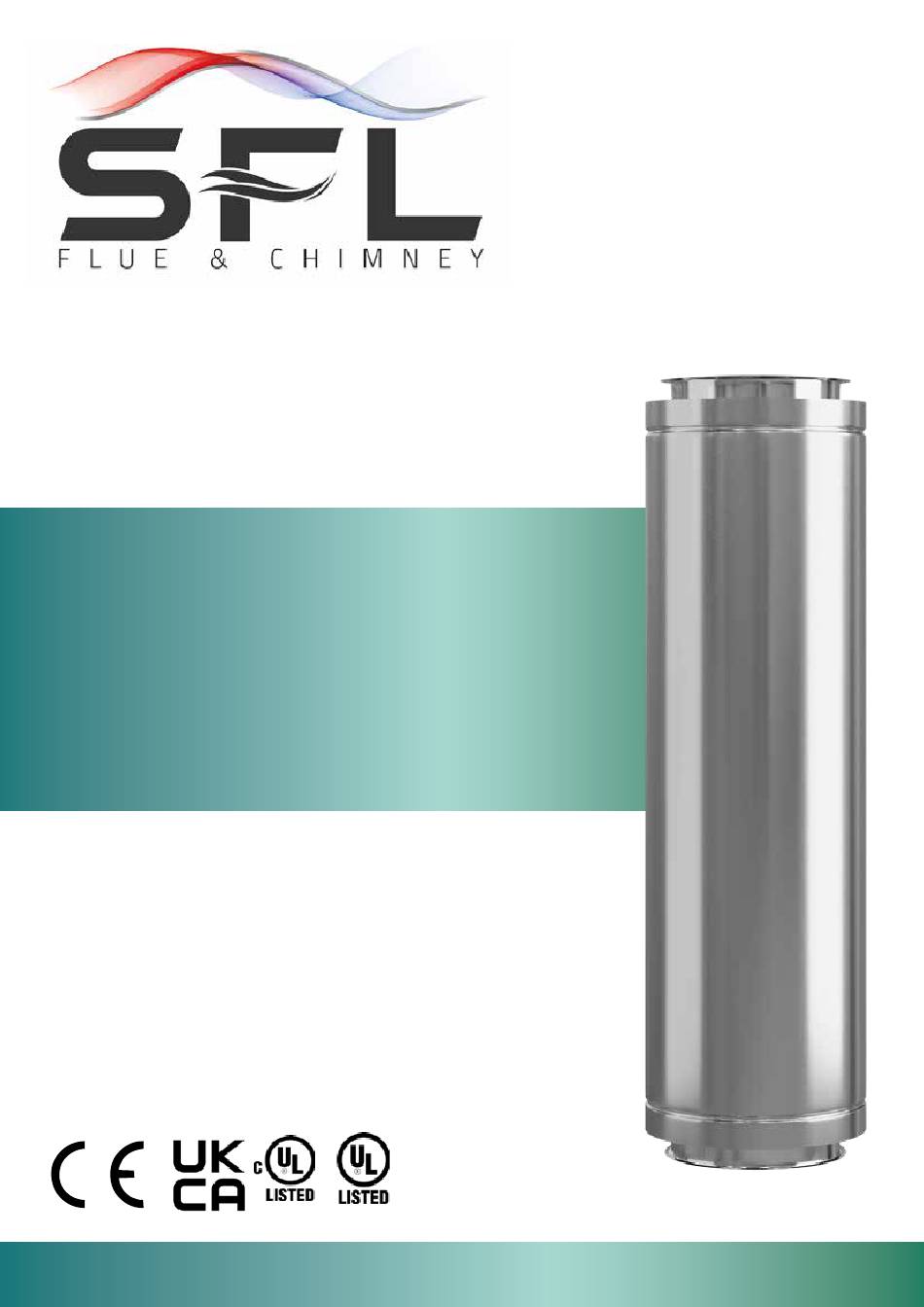

- Page 1 EUROPA Installation Instructions Europa, Europa Plus & Europa Lite MH49940 MH49940 A member of the SFL Commercial Product Range...
-
Page 2: Product Information
AES high density Other Approvals blanket Joint Construction: Vee Band utilising high or low temperature sealant Europa Plus is listed by UL in North America and Canada as depending on application. follows: Annulus Options: 50mm and 100mm (128Kg/m Insulfrax AES blanket) -
Page 3: Installation Instructions
Installation Instructions The assembly method and joint construction used between Europa Although the Europa brands are supplied as standard with a high Lite, Europa Industrial and Europa Plus is very similar. All products, corrosive 316L austenitic stainless steel liner and 304 austenitic... - Page 4 For Europa Plus, it is also important to ensure that the graphite seal Having ensured all flange is securely bonded to the face of the flange and that there is...
- Page 5 IMPORTANT: mating components. Ensure Both sealants have been specially selected and tested on the Europa products that the insulating blanket as part of the CE type testing. No other sealant should be used, as this could...
- Page 6 Example Thermal Expansion Components A 25 metre run of Europa Plus is subjected to a maximum flue gas temperature of 550°C above ambient, based on an ambient EXPANSION BELLOWS (LINED) temperature of 15°C . Where used on generators, turbines and for positive pressures up Expansion = 0.016 X 25 X 550 = 220mm...
- Page 7 Table 2: Expansion Bellow - Technical Data EXPANSION LENGTH The Expansion Length is a universal solution for both high Size Dia A Axial Spring Rate pressure / high temperature and low pressure / low temperature applications, such as condensing systems and CHP units, where N/mm Kg/mm the flue gas temperature will not exceed 450°C and where the...
- Page 8 ‘A’ and the Cover Jacket. Ensure sufficient room for expansion when fitting lateral supports. Table 3: Europa Plus and Europa Lite Expansion Length sizes Expansion Length With the slip section now in place, the compression band can be...
- Page 9 Note: The flanged end of the Slip Section of the Alternating between the Seal Ring and the Vee Band, tighten Europa Plus and Lite is expanded to allow for the spigot of the bolts, thus securing the Variable Length to the preceding the next mating component to enter.
- Page 10 Europa Industrial (Only available in Long version) with a Blanking Plate. Unlike the Europa Plus and Europa Lite, the Europa Industrial version is supplied complete with a 750mm standard length and the Slip Length.
- Page 11 5° or 3° slope to allow for the back flow of condensation through the system to a suitable drainage component. Where Europa products are used on condensing systems, it is critical that adequate provision within the system is made to allow for...
- Page 12 With frequent support, there is no structural or operating limit to the length of horizontal or sloped portions of a Europa installation, Support Plate rigidly braced or providing the system meets the capacity, pressure drop or secured to building structure.
- Page 13 Flanged Support Plate as used with the Wall Support Bracket. As the Support Plate interrupts the annulus of the Europa construction, a Cover Jacket Set should be used to close the annulus on each side of the Plate joint. See page 16 for further...
- Page 14 The application is very important. The side support must always be orientated so that they are on the load bearing side of the trapped Europa welded liner joint. The load bearing features may be either mechanically (weight) or thermally (expansion) induced, and it is the greater of these which will determine the orientation of the construction.
- Page 15 650mm to 1200mm Heavy Duty Version Rear Wall Bracket Fixing Locations (25mm Insulation) The heavy-duty wall support bracket is used on larger diameters Dimensions (mm) covering 700mm to 1200mm on standard 25mm annulus Size products. It is also used for 50mm annulus products at 600mm and 100mm annulus products at 500mm and above.
- Page 16 GUIDE BAND AND SUPPORT CRADLE The Wall Support forms a fixed point in the support system; thus The Guide Band is used as an expansion / lateral guide for Europa expansion movement above and below must be allowed for during by attachment to suitable structure.
- Page 17 Support Cradle not be used to carry the weight of a vertical Europa system. The assemblies are not to be used for attachment to any combustible structure. If Europa must be attached to a combustible...
- Page 18 Such terminations, however, will allow entry of rain and will require a drainage component. A Vent Cap is only partially effective in excluding rain. With all Europa terminations where rain is likely to enter the chimney, the 40mm following components can be used: 1.
- Page 19 Telescopic Flashing Con’t TERMINATIONS Dimensions (mm) Parallel vent Terminal Size 100mm This component must be secured to the top end of the chimney/ vent in exactly the same way as standard components. Being 150mm open ended, depending upon application a Drain Section or Drain 175mm Tee Cap may be required in the vent run.
- Page 20 Installation & Product Information Horizontal Exhaust Terminal Firstly install the single wall drain section in the normal way between two length, ensuring that the drain boss is located on Secure to the horizontal discharge with a ‘U’ Band / Vee Band the required side.
- Page 21 Drain Tee Cap - Boss Sizes Vent Size Drain Boss Size For large Europa diameters from 650ID and above the assembly of the Drain Tee Cap and Blanking Plate are very similar. 100mm - 350mm 1” BSP 400mm - 600mm 2”...
- Page 22 Appliance Clamp Split flange Appliance Spigot Full flange Once the Vee Band is applied, the upper Connector Stub flange is connected to the Europa Plus product in the conventional way Appliance flange using a ‘U’ Band. Bespoke Component Fixing by others...
- Page 23 LOAD BEARING CAPACITY OF SUPPORT COMPONENTS When calculating loading, the mechanical and thermally induced loads must be summed. Elbows do not loadbear. Europa (Approx. Weight Per Metre Kg) Europa Plus & Lite (Approx. Weight Per Metre Kg) Size 25mm Annulus...
-
Page 24: Fire Resistance
Installation & Product Information GUIDE AND LATERAL BRACING The Europa Plus product must be adequately supported or given lateral bracing in accordance with the following table, bearing in mind the above loading characteristics and product weights. Europa Plus & Lite... - Page 25 Apply a bead of Intumescent Using the supplied 100mm x 25mm blanket insulation strips, sealant to the underside of the wrap the outer case of the vent from the base of the Top Outer Surface Plate (E) Figure Plate and Drum (C) to a height of 300mm as Figure 15. 10.
- Page 26 Notes On Fire Resistance Due to different joist spans used in construction it maybe required to Although the Europa products have a fire resistance of up to construct a timber frame through four hours for stability and integrity, consideration needs to be...
- Page 28 EX31 1LZ SFL pursues a policy of continues improvement in both design and performance of its products and therefore reserves the right to change, amend or vary specifications without notice. Whilst the details contained herein are believed to be correct they do not form the basis of any contract and interested parties should contact the Company to confirm whether any material alterations have been made since publication of this brochure.
