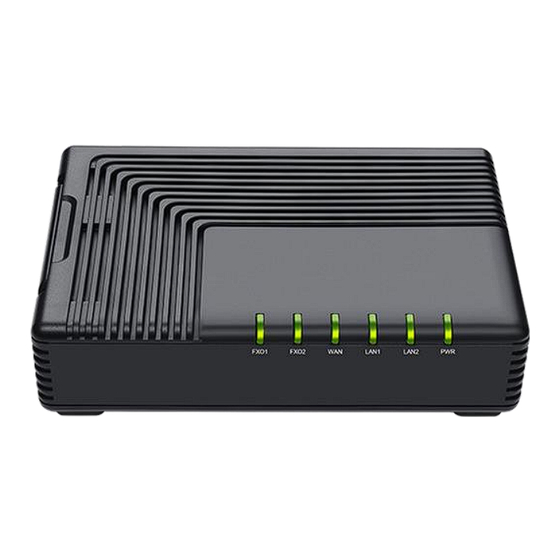

FTA5120
SAS User's Guide
Version: 1.0
Date: Dec. 2023

Advertisement

Table of Contents
loading

Related Manuals for Flyingvoice FTA5120

Summary of Contents for Flyingvoice FTA5120

  • Page 1 FTA5120 SAS User’s Guide Version: 1.0 Date: Dec. 2023...
  • Page 2 LTD. will not be liable for any damages arising from use of an illegally modified or altered publication. Trademark Flyingvoice®, the logo and the name and marks are trademark of Flyingvoice Network Technology CO., LTD, which are registered legally in China, the United States, EU (European Union) and other countries.
  • Page 3 Flyingvoice and/or its respective suppliers are not responsible for the suitability of the information contained in this document for any reason. The information is provided “as is” , and Flyingvoice does not provide any warranty and is subject to change without notice. All risks other than risks caused by use of the information are borne by the recipient.
  • Page 4 The EULA for this product is available on the Flyingvoice Support page for the product.
  • Page 5 GNU GPL INFORMATION Flyingvoice phone firmware contains third-party software under the GNU General Public License (GPL). Flyingvoice uses software under the specific terms of the GPL. Please refer to the GPL for the exact terms and conditions of the license.

  • Page 6: Table Of Contents

    C a t a l o g u e 1. SAS Introduction ..................... 1 1.1. SAS Principle and Working Logic ................1 1.2. Hardware ........................2 2. Configuration of SAS ....................3 ..................3 2.1. Local Networking Mode 2.1.1. Auto Deployment with SIP PnP ................3 2.1.2.

  • Page 7: Sas Introduction

    UAs in the network. In Emergency state, FTA5120 will server as a proxy for UAs in the network, handle all the Register request and SIP Invite from UAs. Enterprise can carry internal call when the Cloud PBX fails.

  • Page 8: Hardware

    (according to AOR or Contact). If the destination address is not found, FTA5120 will forwards the call to itself. FTA5120 has two FXO port, enterprise can preserves its capability for outgoing calls (from UAs to the PSTN network) or convey IP calls through PSTN line (Via SIP Trunk).

  • Page 9: Configuration Of Sas

    IP network in minutes. 2.1.1. Auto Deployment with SIP PnP 1. Login to the Web of FTA5120, If you don’t know the WAN port IP address of FTA5120, you can connect the LAN port of FTA5120 to your computer and type 192.168.1.1 in your web browser, the default username and password is...
  • Page 10 Users can add extension with special configuration(e.g. password, number) by clicking “Add”button. The maximum number of extensions is 50; When using PNP, IP phone should be in the same network segment with FTA5120, Otherwise, the configuration may fail to be distributed, we recommend that closing the LLDP and CDP on IP Phone；...

  • Page 11: Manual Registration

    Name; Auth ID(Account for IP Phone), Password according to the information on “SIP PnP”page of FTA5120 3. Fill in the IP Address of FTA5120 in the “Proxy Server”of the IP Phone; 4. Click Save & Apply. Flyingvoice Network Technology Co., Ltd.

  • Page 12: Call To Pstn

    2.1.3. Call to PSTN FTA5120 provides two FXO port, you can make a phone call through PSTN by connecting FTA5120 to PSTN or convey an emergency call through PSTN when network fails. 1. Navigate to SAS -> SAS Call Route 2.

  • Page 13: Answer A Call From Pstn

    Example: Fill "600,601,602,603" in the ringing group, when receiving an incoming call from FXO port, 600 will ring first, 601, 602 and 603 will ring in sequence after the end of ringing of last extension. Flyingvoice Network Technology Co., Ltd.

  • Page 14: Check Status

    For any operation in the following steps, please make sure your IP PBX is reachable for the network that FTA5120 is in. The following steps may have different configuration steps and configuration item name due to the divergence of IP PBX, the following steps are for reference only.

  • Page 15: Create Extension On Pbx

    For demonstration purposes, we select “Prefix + Extension Number”as the passwords format and configure the password Prefix as“Password”to accommodate the default password for Auto Generate Account on FTA5120, please change your password and set a higher lever password for security consideration.

  • Page 16: Auto Deployment With Sip Pnp

    2.2.2. Auto Deployment with SIP PnP 1. Login to the Web of FTA5120, If you don’t know the WAN port IP address of FTA5120, you can connect the LAN port of FTA5120 to your computer and type 192.168.1.1 in your web browser, the default username and password is admin/admin;...

  • Page 17: Manual Registration

    MAC address of the IP Phone in the blank “Bind MAC”; 7. When using PNP, IP phone should be in the same network segment with FTA5120, Otherwise, the configuration may fail to be distributed, we recommend that closing the LLDP and CDP on IP Phone.

  • Page 18: Sip Trunk Configuration

    Users can also configure some advanced function, which is depends on the PBX. The following section is the configuration steps of basic function, please connect FTA5120’s FXO port to your PSTN line before the configuration. 1. Navigate to FXO -> SIP Trunk, select SIP 1 in “SIP Trunk”,enable “register” ；...
  • Page 19 4. Click“Save&Apply”. Note: If you need to use two PSTN line, please select SIP 2 in “SIP Trunk”and register another SIP trunk. Flyingvoice Network Technology Co., Ltd.

  • Page 20: Call Route Setting

    IP Phone)； Number If the route is from FXO to SIP Trunk, but your PBX configure IVR for the FXO calls, this can be left blank； No require for route from SIP Trunk to FXO； Flyingvoice Network Technology Co., Ltd.
  • Page 21 “Slected ”blank; 4. Select IVR in the “Default Destination”,select a number for IVR (In Yeastar P series PBX, you need to configure one previously in Call Feature -> IVR.); 5. Click “Save”, and “Apply” the changes. Flyingvoice Network Technology Co., Ltd.
  • Page 22 6. Select Always in “Time Condition -> Available Time”. Note： 1. Please make sure there is no conflict route on FTA5120 and your PBX, otherwise the function may work abnormally. 2. If you need to use two PSTN line, please create another group of Inbound and Outbound route that use different SIP Trunk and FXO port.

  • Page 23: Sas Call Route

    At this time there will be a new SAS call routing, you can dial 8 + external number to call the phone on PSTN: If you need to use two FXO ports, you need to add another route item: Flyingvoice Network Technology Co., Ltd.
  • Page 24 Reception -> All calls from FXO will be forwarded to this extension。 Example: Fill in the extension number 600 in the "Reception" configuration blank 1001, when receiving an incoming call from FXO port, the 1001 will ring. Flyingvoice Network Technology Co., Ltd.

  • Page 25: Check Status

    The IP phone is registered to the IP PBX and the PBX is in (Normal) normal status. Registered 1. The PBX is offline, FTA5120 enters Emergency mode (Standalone) 2. FTA5120 works in Local Mode Unavailable The IP phone is offline,removed or broken.
