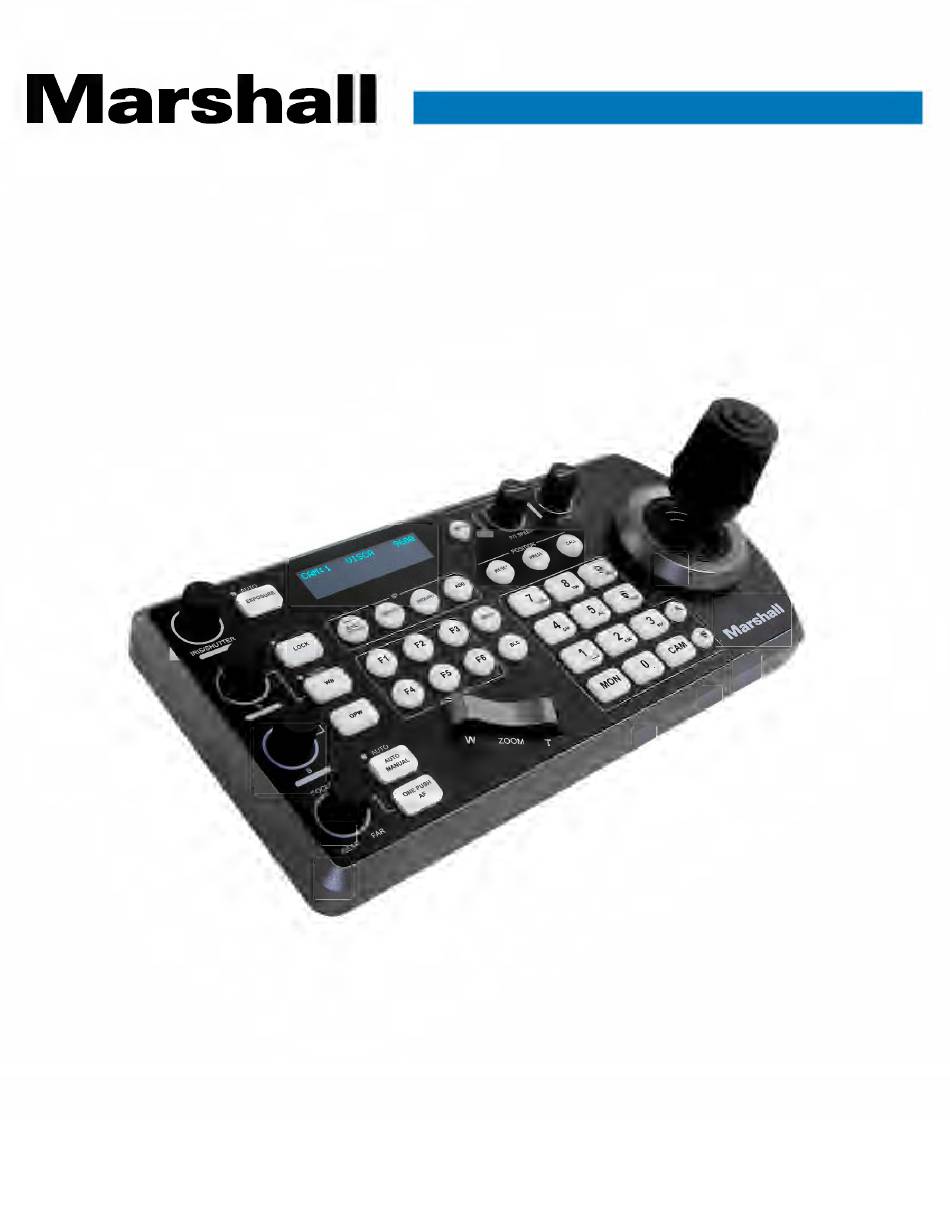

- Page 1 B r o a d c a s t A / V D i v i s i o n VS-PTC-IP PTZ Camera Remote Controller User Manual...
-
Page 2: Table Of Contents
Trademark Acknowledgement ................................2 1. IMPORTANT INFORMATION ..............................2 Thank you for purchasing our Marshall VS-PTC-IP Controller. If there are any questions, please contact the Authorized 2. WHAT’S IN THE BOX ................................4 Dealer or Marshall Electronics directly (800) 800-0688. -
Page 3: What's In The Box
VS-PTC-IP Manual Safety Information 2. WHAT’S IN THE BOX WARNING! Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of operation. the Safety Instructions supplied with your equipment before installation and Warnings: •... -
Page 4: Models
VS-PTC-IP Manual Please Note regarding Serial Control protocols (RS422 and RS232): • When controlling only RS232 cameras, the keyboard can control a total of 7 RS232 cameras • When controlling RS422 and RS232 cameras simultaneously, the keyboard can control a total of 7 RS232 and RS422 cameras •... -
Page 5: Keyboard Diagrams
VS-PTC-IP Manual 4. Keyboard Diagrams VS-PTC-IP 1. Camera Identifier – Identifies which camera is being controlled, and the protocol being used 2. Camera Title – User-defined title of the current camera 3. IP Address – The IP address of the current camera (if applicable) 4. -
Page 6: Vs-Ptc-Ip
Depending on the protocol being used to control the cameras, you may need to connect one or more of the following: 26. PTZ Joystick 27. Enter Button for menu setting to Enter/Confirm data. IP port to network switch • Used for logging in to web interface of VS-PTC-IP • Used to control the following PTZ protocols: • VISCA over IP •... -
Page 7: Initial Setup
VS-PTC-IP Manual Initial Setup Connector Pinout Definition Power Power up the controller using one of the following options: 1. Power supply (included) • Power Voltage Tolerance 9V – 12V 2. Use POE (connect Ethernet IP port to POE switch) •... -
Page 8: Rs232 Connection
VS-PTC-IP Manual RS232 connection 2. Use RJ45-RS232 adapter (Marshall/Non-Marshall camera) 1. Follow the diagram below for the following options: • 1 to 1 connection, Marshall camera ONLY - Use the included (premade) Ethernet cable direct connect or standard Ethernet cable. -
Page 9: Rs422 Connection
VS-PTC-IP Manual Daisy Chain: 2. Use RJ45-RS422 adapter + control wire (Daisy Chain) (Marshall/Non-Marshall camera) 3. Use Junction Box (Marshall/Non-Marshall camera) RS422 connection 1. Follow the diagram below for the following options: • Use premade network cable direct connect (1 to 1 connection) Make your own cable to connect (Use pinout) (Marshall/Non-Marshall camera) www.marshall-usa.com... -
Page 10: Rs485 Connection
Use premade network cable direct connect (1 to 1 connection) • Make your own cable to connect (Use pinout) (Marshall/Non-Marshall camera) 2. Use RJ45-RS422 adapter + control wire (Daisy Chain) (Marshall/Non-Marshall camera) 5. Keyboard Configuration Interacting with the VS-PTC-IP Setup Button: P/T Speed Dial: • Rotate: Move Cursor •... -
Page 11: Keyboard Setup
VS-PTC-IP Manual • Long Press: Invert U/D (Tilt axis) Keyboard Setup • If setting the IP address to DHCP, move the cursor to the Type field, and rotate the Zoom Speed dial to change the value to DHCP. Click the Zoom Speed dial to save Default Password: 0000 •... -
Page 12: Button Light
VS-PTC-IP Manual Assign keys Factory Default Assigned keys can be configured as shortcuts to activate camera functions Clear all keyboard settings, and restore factory default • From the Keyboard Setup Menu, select FACTORY DEFAULT • Select Yes NOTE: DO NOT move the Joystick nor the Zooming Seesaw and leave them at original position while the FACTORY DEFAULT is processing. -
Page 13: Password Setting
VS-PTC-IP Manual How to assign camera • Expand - Handles camera numbers as binary numbers. • Tally input numbers 8 and higher in a serial connection are ignored. In this case, the response is equivalent Manually adding cameras to no input. -
Page 14: Adding An Onvif Camera To Keyboard
• Select Yes to start the search Repeat this process for each discovered camera that you wish to add to the VS-PTC-IP • A list of discovered cameras will appear showing the cameras that have been discovered. Scroll through the discovered cameras using the Zoom Speed dial •... -
Page 15: Adding Onvif Cameras To Be Controlled Via Wan
IP Address: IP Address of the keyboard • Protocol: Both (TCP and UDP) • Within the Setup menu of the VS-PTC-IP, add the ONVIF camera using the WAN IP of the camera location as the IP Address • Click the P/T Speed dial to save Adding a VISCA over IP camera to Keyboard •... -
Page 16: Scanning Local Network For Available Visca Over Ip Cameras
• Protocol: Both (TCP and UDP) • Within the Setup menu of the VS-PTC-IP, add the VISCA over IP camera using the WAN IP of the camera location as the IP Address • Click the P/T Speed dial to save... -
Page 17: Interacting With Cameras
VS-PTC-IP Manual 7. Interacting with Cameras RS422 A button and RS422 B button Controlling a Camera Engaging the Camera OSD Menu for non-IP cameras 1. Press the Menu button on the keyboard to send a command to the camera to engage the OSD menu 2. -
Page 18: Setting And Calling Presets
VS-PTC-IP Manual Calling presets: 1. Enter the desired preset number on the alphanumeric keypad 2. Press the Call button Resetting / Clearing presets: 1. Enter the number of the preset you would like to clear Setting and calling presets 2. Press the Reset button Setting / creating presets: 1. -
Page 19: Adjusting Image Parameters
1. Load a flash drive with the “.bin” firmware file in the root directory (not inside of a folder), and place the flash drive into the USB port on the back panel of the VS-PTC-IP. Hold down the L/R Direction knob and the U/D Direction Knob 3. -
Page 20: Dimensions
VS-PTC-IP Manual 9. Dimensions Junction Box VS-PTC-IP dimensions Unit: mm www.marshall-usa.com... - Page 21 Warranty For Warranty information please refer to Marshall website page: https://marshall-usa.com/company/warranty.php 20608 Madrona Avenue, Torrance, CA 90503 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.marshall-usa.com support@marshall-usa.com V.1.0...
