Avantco 177PG100 User Manual

Avantco 177PG100 User Manual

Panini grills

Advertisement

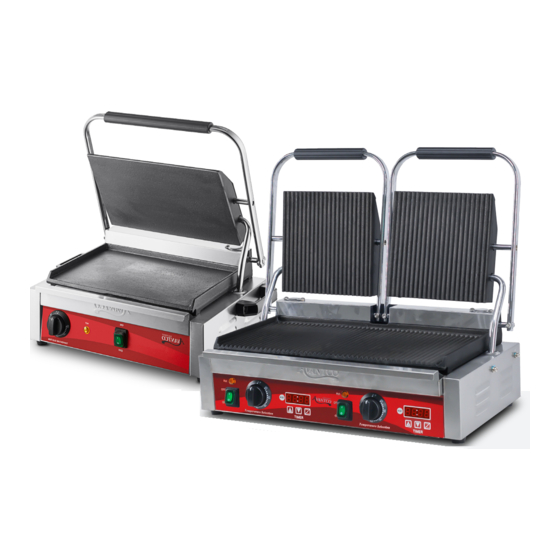

177PG200S
Panini Grills
Base Models:
177PG100, 177PG100S,
177PG100GS, 177PG100T,
177PG100ST, 177PG100GST
Warning:
Improper installation, adjustment, alteration, service, or
maintenance can cause property damage, injury, or death.
Read the installation, operating, and maintenance Instructions
thoroughly before installing or servicing this equipment.
www.AvantcoEquipment.com
User Manual
177PG400T
177PG200, 177PG200S,
177PG200GS, 177PG200T,
177PG200ST, 177PG200GST
For Your Safety:
Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
Note:
Please read and keep these instructions. Indoor use only.
01/2024
177PG400, 177PG400S,
177PG400GS, 177PG400T,
177PG400ST, 177PG400GST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 177PG100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avantco 177PG100

  • Page 1 User Manual 01/2024 177PG200S 177PG400T Panini Grills Base Models: 177PG100, 177PG100S, 177PG200, 177PG200S, 177PG400, 177PG400S, 177PG100GS, 177PG100T, 177PG200GS, 177PG200T, 177PG400GS, 177PG400T, 177PG100ST, 177PG100GST 177PG200ST, 177PG200GST 177PG400ST, 177PG400GST Warning: For Your Safety: Improper installation, adjustment, alteration, service, or Do not store or use gasoline or other flammable vapors or maintenance can cause property damage, injury, or death.
  • Page 2: Table Of Contents

    User Manual Panini Grills Table of Contents Safety Precautions .............................3 Features ................................3 Specifications ..............................4 First Time Usage ............................4 Operation ..............................4 Timer Instructions ............................5 Cleaning & Maintenance ..........................5 Daily Check ..............................5 Exploded Parts Diagrams ........................6-7 Wiring Diagrams ........................... 8-10 Thank you for purchasing and using our Panini/Sandwich Grill. To make best use of this product and avoid damage and injury, please read this manual carefully before using the machine, and keep it handy for future reference.
  • Page 3: Safety Precautions

    User Manual Panini Grills Notes This product is intended for commercial use only. 2. Do not disassemble or modify the machine. 3. Lift the upper grill assembly smoothly; jerking it up may cause damage or injury. 4. Before cleaning, disconnect power and allow machine to cool. 5.
  • Page 4: Specifications

    Amps Hertz Voltage Wattage Size Phase Number Length Width Depth 123/8" 12" 81/2" 81/2" 81/2" 14.6 1750 Single 4 feet 177PG100 17" 12" 81/2" 133/8" 83/4" 14.6 1750 Single 4 feet 177PG200 221/4" 12" 81/4" 195/8" 91/8" 14.6 3500 Dual...
  • Page 5: Operation

    User Manual Panini Grills Timer Instructions Note: The timer does not turn off the grills. The timer will beep continuously until the “reset” button is hit. The grills will continue to heat. To program the timer of your panini grill, plug in and turn on the grill.
  • Page 6: Exploded Parts Diagrams

    User Manual Panini Grills Parts Key Single Grill Diagram # and Part Name Diagram # and Part Name Diagram # and Part Name 1. Green "Power" Light 19. Bottom Plate 37. Drip Tray 2. Temperature Control Knob 20. Upper Grill Cover 38.
  • Page 7 User Manual Panini Grills Parts Key Double Grill Diagram # and Part Name Diagram # and Part Name Diagram # and Part Name 1. Green "Power" Light 19. Bottom Grill Plate 37. Bottom Insulator 2. Temperature Control Knob 20. Upper Grill Cover 38.
  • Page 8: Wiring Diagrams

    User Manual Panini Grills Single Grill Wiring Diagram AC/120V /1.75k W 177PG100, 177PG100S, 177PG100GS, 177PG200, 177PG200S, 177PG200GS 1、177PG100 、177PG100S 、177PG100GS 、177PG20 0、177PG200 S、177PG200G S AC/120 V/1.75k W 177PG100T, 177PG100ST, 177PG100GST, 177PG200T, 177PG200ST, 177PG200GST 2、177PG100 T、177PG100ST 、177PG100GS T、177PG200 T、177PG200S T、177PG200GS T www.AvantcoEquipment.com...
  • Page 9 User Manual Panini Grills Double Grill Wiring Diagram AC/120 V/1.75kW AC/120V /1.75k W 1、177PG400 、177PG400S 、177PG400GS 177PG400, 177PG400S, 177PG400GS www.AvantcoEquipment.com...
  • Page 10 User Manual Panini Grills Double Grill Wiring Diagram AC/120V /1.75k W AC/120V /1.75k W 2、177PG400S 、177PG400S T、177PG400GS T 177PG400T, 177PG400ST, 177PG400GST www.AvantcoEquipment.com...
