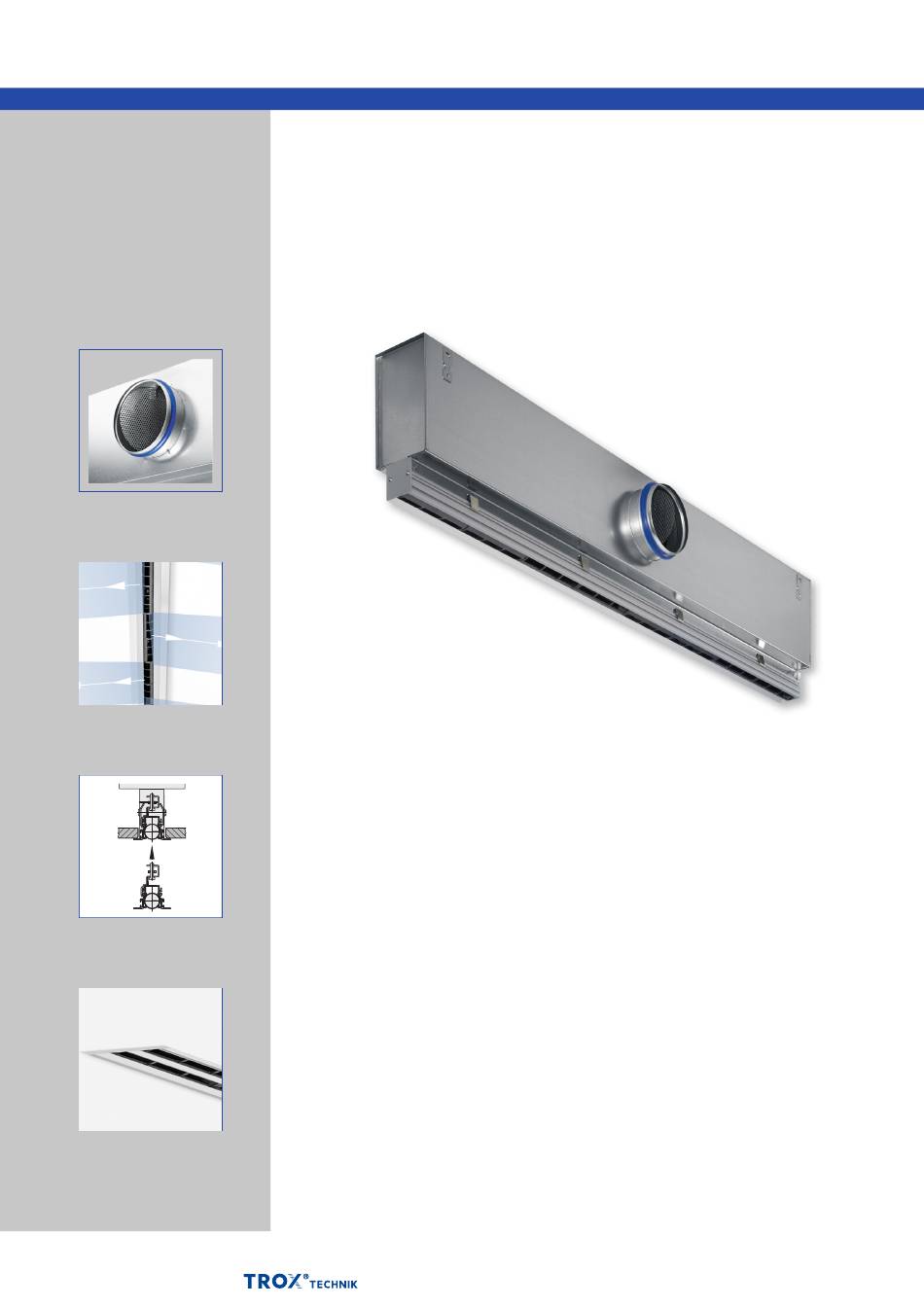

XVSD50
X
testregistrierung
Plenum box with dam
per blade (optional)
Alternating horizontal air
discharge
Concealed screw fixing
Installation in conti
nuous ceilings
03/2017 – DE/en
Slot diffusers for ceiling
installation
Type VSD50
With wide diffuser face for larger volume flow rates
Slot diffusers with 50 mm diffuser face (nominal width) and adjustable air control
elements
■
Nominal length from 600 to 1950 mm, 1 to 2 slots
■
Volume flow rate range 20 – 120 (l/s)/m or 72 – 432 (m³/h)/m
■
Diffuser face made of extruded aluminium sections
■
For variable and constant volume flows
■
Suitable for continuous linear arrangement
■
High induction results in a rapid reduction of the temperature difference and
airflow velocity
■
Individually adjustable air control elements to meet individual local
requirements
Optional equipment and accessories
■
Exposed diffuser face available in RAL CLASSIC colours
■
Diffuser face with extended border
■
Damper blade for volume flow rate balancing, can be adjusted through the
diffuser face
■
Concealed screw fixing that simplifies installation of the diffuser after the
ceiling has been completed
■
Symmetric and asymmetric plenum boxes, with or without lining
■
End plates, end angles, corner sections
PD – VSD50 – 1
Advertisement
Table of Contents
Related Manuals for Trox VSD50
Summary of Contents for Trox VSD50
- Page 1 Concealed screw fixing that simplifies installation of the diffuser after the nuous ceilings ceiling has been completed ■ Symmetric and asymmetric plenum boxes, with or without lining ■ End plates, end angles, corner sections 03/2017 – DE/en PD – VSD50 – 1...
-
Page 2: General Information
VSD50 – 30 – Suitable for continuous linear arrangement Application Application – Type VSD50 slot diffusers are used as supply Special characteristics air or extract air devices in comfort zones – Individually adjustable air control elements to – Air discharge is oneway or alternating meet individual local requirements horizontal, or alternating angled;... - Page 3 – Inspection and cleaning to VDI 6022 – Air control elements made of plastic, UL 94, V 0, flame retardant – Plenum box made of galvanised sheet steel 03/2017 – DE/en PD – VSD50 – 3...
- Page 4 To give rooms an aesthetic, uniform look, turbulence in the occupied zone. Type VSD50 diffusers may also be used for extract Type VSD50 slot diffusers have adjustable air air. Schematic illustration of the VSD50 with clamp fixing ④...
- Page 5 (HL) control elements All air control elements as shown One-way horizontal air discharge to the right One-way horizontal Setting of the air right (HR) control elements All air control elements as shown 03/2017 – DE/en PD – VSD50 – 5...
- Page 6 Slot diffusers for ceiling installation Function VSD50 Alternating angled air discharge Schräge, Setting of the air wechselseitige control elements Strömung (WS) Alternating air control elements (150 mm) as shown PD – VSD50 – 6 03/2017 – DE/en...
-
Page 7: Technical Data
20 – 40 (l/s)/m or 72 – 144 (m³/h)/m 70 – 120 (l/s)/m or 252 – 432 (m³/h)/m Maximum volume flow rate, with L ≅ 50 dB(A) Supply air to room air temperature difference –10 to +10 K 03/2017 – DE/en PD – VSD50 – 7... - Page 8 50 dB (A) with damper blade position 0°. Exact values for all parameters can be determined with our Easy Product Finder design programme. VSD50-1, supply air, alternating horizontal air discharge, sound power level and total differential pressure Damper blade position 0° 45°...
- Page 9 Slot diffusers for ceiling installation Quick sizing VSD50 VSD50-2, supply air, alternating horizontal air discharge, sound power level and total differential pressure Damper blade position 0° 45° 90° Nominal length D = 158 D = 198 D = 158...
-
Page 10: Specification Text
– Lip seal made of rubber [Pa] – Lining is mineral wool Airregenerated noise – Diffuser face with anodised finish, E6C0, – L ___________ _______________________ natural colour [dB(A)] – P1: Powdercoated, RAL CLASSIC colour PD – VSD50 – 10 03/2017 – DE/en... -
Page 11: Order Code
Slot diffusers for ceiling installation Order code VSD50 VSD50 VSD50 – 1 – AK – M – L / 900×123×25 / C2 / B00 / P1 – RAL ... / WS / WW ... - Page 12 Exposed surface RAL 9010, pure white, gloss level 50 % Air pattern Alternating angled Colour of air control elements White VSD50 VSD50 – 1 – EW / B00 / P1 – RAL ... Type Extended border...
- Page 13 – Thermal and acoustic insulation (lining) screw fixing – Damper blade (optional) – Plenum box with lining – Lip seal (optional) – Concealed screw fixing only with profile B00 (with extended border) 03/2017 – DE/en PD – VSD50 – 13...
- Page 14 – Plenum box for horizontal duct connection – Asymmetric plenum box Variant – Damper blade (optional) – Slot diffuser with plenum box for clamp fixing – Lip seal (optional) – Asymmetric plenum box Parts and characteristics PD – VSD50 – 14 03/2017 – DE/en...
- Page 15 Nominal length 1050 1050 1200 1200 1350 1350 1500 1500 1650 1650 1800 1800 1950 1950 End angle C1 L₁ Profile without extended border End angle C2 L₁ Profile with extended border 03/2017 – DE/en PD – VSD50 – 15...
- Page 16 Slot diffusers for ceiling installation Attachments VSD50 End plate C5 L₁ Profile without extended border End plate C6 L₁ Profile with extended border VSD50 Variant VSD50-1 VSD50-2 PD – VSD50 – 16 03/2017 – DE/en...
-
Page 17: Dimensions And Weight
Slot diffusers for ceiling installation Dimensions and weight VSD50 VSD50, L : 600 – 1500 L₃ ∅D L₁ VSD50 Variant VSD50-1 VSD50-2 VSD50, L : 1650 – 1950 L₃ ∅D ∅D L₁ Diffuser face VSD...-*-F L₁ 03/2017 – DE/en PD – VSD50 – 17... - Page 18 = 75 y = 100 ØD Variant VSD50-1/... × 123 VSD50-1/... × 158 VSD50-2/... × 158 VSD50-2/... × 198 Y: Neck extension, resulting neck lengths 80, 105, 130, 155, 180 mm PD – VSD50 – 18 03/2017 – DE/en...
- Page 19 Y: Neck extension, resulting neck lengths 80, 105, 130, 155, 180 mm VSD50-*-DS VSD50-1 VSD50-2 Nominal length 1050 10.0 1200 11.3 1350 10.6 12.6 1500 11.7 13.9 1650 12.9 15.3 1800 14.0 16.6 15.1 17.9 1950 03/2017 – DE/en PD – VSD50 – 19...
- Page 20 VSD50-1/... × 123 242 149 267 174 292 199 317 224 342 249 367 274 100 187 123 VSD50-1/... × 158 242 149 267 174 292 199 317 224 342 249 367 274 100 187 158 VSD50-2/...
- Page 21 VSD50-1/... × 123 262 149 287 174 312 199 337 224 362 249 387 274 138 207 123 VSD50-1/... × 158 262 149 287 174 312 199 337 224 362 249 387 274 138 207 158 VSD50-2/...
- Page 22 VSD50-1/... × 123 242 149 267 174 292 199 317 224 342 249 367 274 100 187 123 VSD50-1/... × 158 242 149 267 174 292 199 317 224 342 249 367 274 100 187 158 VSD50-2/...
- Page 23 Slot diffusers for ceiling installation Dimensions and weight VSD50 Corner section VSD...-*-E VSD50-*/.../000 Variant VSD50-1 VSD50-2 03/2017 – DE/en PD – VSD50 – 23...
-
Page 24: Product Details
0.0133 0.0151 0.0265 0.0302 1650 0.0146 0.0166 0.0291 0.0332 1800 0.0159 0.0181 0.0318 0.0362 1950 0.0172 0.0196 0.0344 0.0392 : Oneway horizontal and alternating horizontal air discharge WS: Alternating angled air discharge PD – VSD50 – 24 03/2017 – DE/en... -
Page 25: Installation Examples
Slot diffusers for ceiling installation Installation examples VSD50 VSD50-1/.../B00, installation in continuous VSD50-2/.../B00/P1-RAL 9010, installation in ceilings continuous ceilings Anodised, E6C0, natural colour Powdercoated RAL 9010, pure white 03/2017 – DE/en PD – VSD50 – 25... -
Page 26: Installation Details
Installation with plenum box ② ① ③ ① Duct ③ Diffuser face ② Suspension lug – Horizontal duct connection – Four suspension lugs – Suspension with cords, wires or hangers, to be provided by others PD – VSD50 – 26 03/2017 – DE/en... - Page 27 – Push the diffuser face into the neck of the plenum box – Turn the tab of each screw fixing by 90° and tighten the screws – To remove the diffuser, follow the steps in reverse order 03/2017 – DE/en PD – VSD50 – 27...
- Page 28 P + 2 Slot diffuser without extended border – Fix the plenum box to the ceiling slab – The ceiling tile or panel of a panelled ceiling has no contact with the diffuser PD – VSD50 – 28 03/2017 – DE/en...
- Page 29 Volume flow rate balancing – Move the air control element near the spigot in such a way that it is possible to insert a screw driver 03/2017 – DE/en PD – VSD50 – 29...
- Page 30 Weight H₁ [mm] Distance (height) from the lower edge of the Definitionen Zulufttemperaturdifferenz, Zulufttemperatur minus Raumtemperatur [dB(A)] Schallleistungspegel des Strömungsgeräusches, Δp [Pa] Abewertet Gesamtdruckdifferenz [m³/h] und [l/s] Alle Schallleistungspegel basieren auf 1 pW. Volumenstrom Δt PD – VSD50 – 30 03/2017 – DE/en...
