Legal claims cannot be derived from the content of this installation manual. LAMILUX reserves the right to change technical specifications. Every work has to be done in accordance with the current state of technology, the regulations and guide- lines of authorities, trade associations, accident prevention regulations and professional associations of the Federal Republic of Germany, the European Union and the country of destination.
Page 3

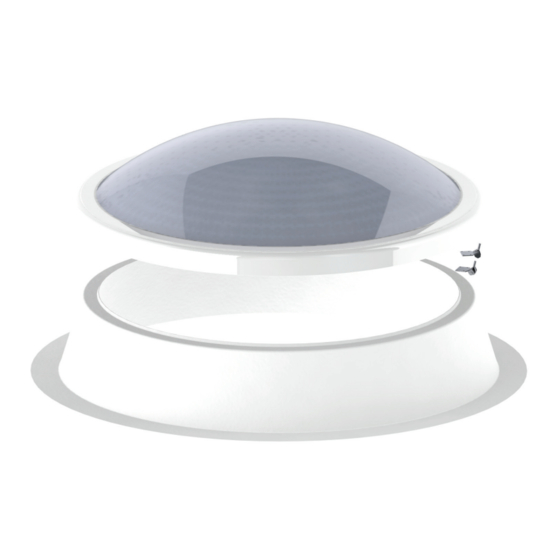

Always use fall arrest equipment and follow national regulations for fall-through protection Check all materials are complete on delivery Check and prepare for installation In general, the building tolerances apply which can be given on request Rooflight F100 circular Assembly instruction...
Do NOT lift up the rooflights on the frame (risk of breakage). Rooflights can be carefully lifted from the bottom flange to carry it to the roof opening. ATTENTION Place the rooflight on wooden beams ensuring the element can aerate. Risk of deformation Avoid overheating! Rooflight F100 circular Assembly instruction...
Page 7
Starting at one point, evenly space your fixings at 300mm centres. Please refer to fixing details table (page 6) depending on substructure. Screws item 1-5 Please note! Waterproofing is to be carried out by an approved roofer after installation. Rooflight F100 circular Assembly instruction...
Removal of transport protection 1. Cut the cable connector 2. Raise the upper part 3. Remove the wood truss 4. Hinge the driver in the motor console (see assembly instruction below)
Glass fi xing option B Ventilated locked - solo In the event of upstand and upper part being separated Components: #304238 #209941 #206040 wing bent bracket cylinder head screw nut M6 M6x16 #201678 #310690 washer Ø6,4 locking sheet OKD 60-150 #207376 #214597 rivet 4,8x16...
Glass fi xing option C Ventilated locked - tandem In the event of upstand and upper part being separated Components: #304240 #209941 #206040 wing bent bracket cylinder head screw nut M6 – pair M6x16 #201678 #310691 washer Ø6,4 locking sheet OKD 180 #207376 #214597...
Wiring diagrams of electric drives ventilation electric 24V/230V technical details Jo65 Jo100 driving force spindle drive Solo / Tandem 24V maintenance 24V DC, +4/-2V blue rated current 0,8A / 19,2W open close brown - nominal force 650N 1000N run-time ca. 375mm/min ca.
