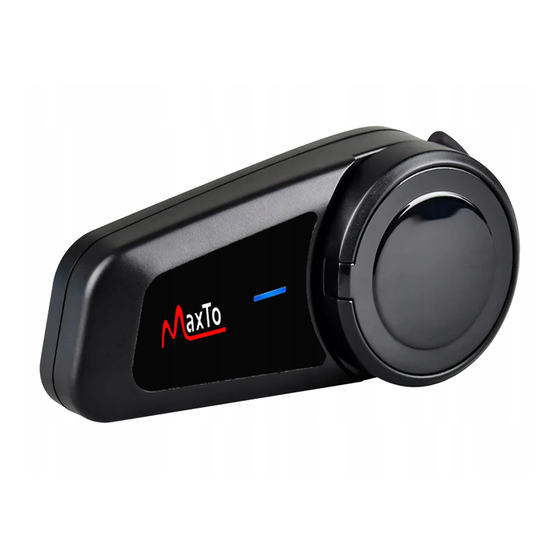

MaxTo M2 User Manual

Group intercom helmet bluetooth headset
Hide thumbs

Advertisement

Quick Links

Download this manual
M2
GROUP INTERCOM HELMET BLUETOOTH
HEADSET
1 Packing List
･ Bluetooth Device
･ Microphone & Ear Speakers
･ Clamp
･ Velcro Clamp
･ Manual
･ Headphone Velcro
･ USB Cable
･ Screw Driver
･ Two-way Radio Control Cable (Optional)
2 Function Introduction
･ Fleet communication

Advertisement

loading
Need help?

Need help?

Do you have a question about the M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for MaxTo M2

  • Page 1 GROUP INTERCOM HELMET BLUETOOTH HEADSET 1 Packing List ･ Bluetooth Device ･ Microphone & Ear Speakers ･ Clamp ･ Velcro Clamp ･ Manual ･ Headphone Velcro ･ USB Cable ･ Screw Driver ･ Two-way Radio Control Cable (Optional) 2 Function Introduction ･...

  • Page 2: Installation Step

    ･ Connect to any bluetooth headset ･ Simultaneous connection of multiple devices ･ Operating range 1000 meters ･ Connected with 2 mobile phones ･ Stereo music A2DP ･ Voice Dial ･ Voice prompt ･ Usable during recharging ･ Bluetooth 5.0 ･...
  • Page 3 1. Loosen the screws on the back of clamp with the provided screw driver. 2. Open the lining of helmet, insert the clamp in the proper position on the left of helmet and fasten the screw. 3. Slide the back track of the device into the clamping track. 4.

  • Page 4: Product Introduction

    installation complete. 3.2 Fixed by VELCRO sticker 1. Slide the back track of the device into the clamping track. 2. Tear off the white paper on the back of the clamp and stick it in the right position on the left side of the helmet. 3.
  • Page 5 ･ On/Off Button ･ Multi-function Button ･ Charger Socket ･ Headset Socket ･ Knob ･ Indicator Light ･ Clamp ･ Ear Speakers ･ Headset Plug ･ Microphone ･ Butterfly Sticker 6 Button Operation Introduction 6.1 On/Off Button...
  • Page 6 ･ Turn on ( When the headset is off, press and hold it for 3 seconds. There is a “Welcome to use Maxto Product” sound prompt，and the blue light will be on for 1 second.) ･ Turn off ( When the headset is on, press and hold it for 5 seconds.
  • Page 7 Note: When B connects with A first and then connected with C, B needs to press the button twice to initiate intercom with A, and B needs to press the button once to initiate intercom with C ･ End the Bluetooth Intercom ( Shortly press the button and intercom closes after a “Intercom disconnected”...
  • Page 8 ･ Rejection of call ( If there is a call, press and hold it for 2 seconds. The call will be rejected with a “Dong, Dong” sound prompt. ) ･ Voice switching between Bluetooth headset and mobile phone itself ( During a call, press and hold it for 2 seconds. There is a “Dong”...
  • Page 9 6.3 Knob ･ Turn up the volume ( On a call , intercom, playing music or FM, turn the knob clockwise and hold it to increase volume until it reaches the level you want . A “toot” prompt will be heard when it reaches Max volume.) ･...
  • Page 10 7 Bluetooth Status Indication and Prompt ･ Power on status ( If Bluetooth is connected, there is a “Bluetooth connected” sound prompt , the blue indicator light flashes once every 6 seconds; if Bluetooth is disconnected, there is a “Bluetooth disconnected” sound prompt , the blue indicator light flashes twice every 6 seconds.) Low power alarm...
  • Page 11 Multi-function Button for 6 seconds. There is a “Pairing” sound prompt, and blue and red lights flash alternately. 8.2 Pairing with the Non-Maxto intercom function Bluetooth device Step 1 : Place the M2 and the device within a visible range of 1 meter.
  • Page 12 8.3 Pairing with Mobile, GPS and MP3 Step 1 : Place the M2 and the device within a visible range of 1 meter. Step 2 : Follow step 8.1, M2 enters pairing status.
  • Page 13 8.4 Pairing between two M2 Step 1 : Ensure both M2 are of f and within 1 meter visible range of each other. Step 2 : Follow step 8.1, both M2 are paired. Step 3 : Quickly press the on/off button on either M2, then it will search for the other M2 for pairing, the “intercom...
  • Page 14 Step 2 : Refer to the matching operations in 8.4 for following operations 1. Match A and B; 2. Match B and C; 3. Match C and D; 4. Match D and E; 5. Match E and F. Step 3 : Connect A, B, C, D, E and F in series 1.
  • Page 15 8.6 Simultaneous connection of multiple devices Note: When non-maxto device is connected to the mobile phone first and then looped into M2 multi-person intercom, it may cause intercom communication error. If not connected to mobile phone, no this error.
  • Page 16 10 Specifications Bluetooth version Operating range Up to 1000 meters Standby time Up to 200 hours Operating time Up to 10 hours Charging time Approximately 2.5 hours Charging interface Micro USB Android universal plug Battery Type Rechargeable Li-Polymer Batteries Power Supply 5V –...
  • Page 17 high or too low temperatures. Otherwise the service life will be affected. 2.Please do not expose it to open fire, to avoid explosion. 3.For a long period of time without being used, please keep the device in dry place and charge it regularly (once every 3 months), to ensure it work properly.
  • Page 18 -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
