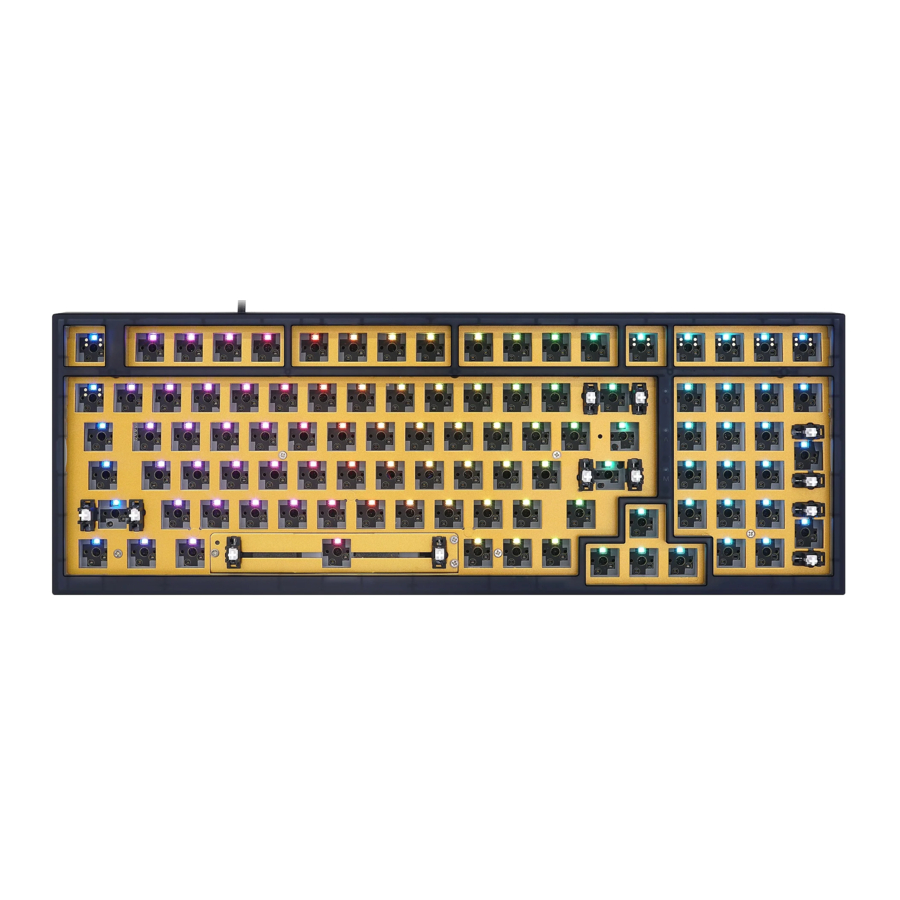

Skyloong GK980 Triple-mode - Keyboard Manual

Mode switch function

Switch 1

Pull it to Win, it is Win mode win Mac
Pull it to Mac, it is Mac mode

Switch 2

Pull it to BT. it is BT mode
Pull it to 2.4, it is 2.4g mode
USB wired mode in the middle / Turn off the battery

2.4g receiver

Keyboard indicator

Num Lock

Caps Lock

Win Lock & other

Fn function

Backlight Settings

(cannot modify)

Key	Function
FN + 9(	Backlight ON/OFF
FN + 0)	Light effect pause/play
FN + -_	Backlight mode 1-5
FN + =+	Backlight mode 6-9
FN + ↓	Backlight brightness -
FN + ↑	Backlight brightness +
FN + ←	Backlight Effect Speed -
FN + →	Backlight Effect Speed +
FN + Win	Lock/Unlock Win key
FN + 4$	Turn off/on the charging indicator low voltage alarm
FN + L-Ctrl	Backlight and wireless sleeping time setting, LED on F1: 5 minutes, F2: 10minutes... F9: 45minutes, F10: never sleep.

Wireless Control

Key	Function
FN + 1!	Long press: The red & blue LED of 1! keycap will flash, The Bluetooth equipment can be paired	Press: The keyboard will connect the BT equipment or disconnect.
FN + 2@	Long press: The red&blue LED of 2@ keycap will flash, The Bluetooth equipment can be paired.	Press: The keyboard will connect the BT equipment or disconnect.
FN + 3#	Long Press: for 3 seconds into 2.4 g equipment, enter the search device the red & green LED of 3# keycap will flash, pairing search time is 20 seconds, the keyboard with dongle can be paired, the keyboard will connect while 3# light green LED, 2 seconds into current light effect, the code has been successfully matched and can be used directly.
	Press: 2.4 g mode. Or disconnect 2.4g, into USB or Bluetooth mode If no any other connect, keyboard will go to sleep.
FN + space	In BT or 2.4g mode, Plug USB cable can quickly switch USB mode and wireless mode, easy to connect between multiple devices It does not respond if there is no USB connection
Note: If the Wireless pairing timed out or failed, please re-pair; if the Bluetooth pairing is successful on the equipment, but the keyboard can not work still, Please delete this keyboard in the Bluetooth list, Turn off Bluetooth of your PC or Mobile, restart the keyboard, and re-pair.

Win Driver download address: http://www.jikedingzhi.com/downloadlist?driverlD=41

Knob function

(6 PCS switches can be replaced to knobs, Install one knob by default)

Standard Knob Settings

1. Turn left: Volume -
2. Turn right: Volume +
3. Press: Mute

Knob function can be modified by the driver e.g. picture zoom in and zoom out

1. Turn left: Zoom -
2. Turn right: Zoom +
3. Press: ESC

Mode function settings

(User can modify the settings by the driver, download and save to the keyboard.)

Key	Win mode (Win mode can modify on layer 1)	Mac mode (Mac mode can modify on layer 2)
F1	F1	Screen brightness for Mac (FN+F1=F1)
F2	F2	Screen brightness + for Mac (FN+F2=F2)
F3	F3	for Mac
F4	F4	for Mac (FN+F4=F4)
F5	F5	One click call Siri for Mac (FN+F5=F5)
F6	F6	Screenshot for Mac (FN+F6=F6)
F7	Previous (FN+F7=F7)	Previous (FN+F7=F7)
F8	Play/Pause (FN+F8=F8)	Play/Pause (FN+F8=F8)
F9	Next (FN+F9=F9)	Next (FN+F9=F9)
F10	Mute (FN+F10=F10)	Mute (FN+F10=F10)
F11	Volume - (FN+F11= F11)	Volume - (FN+F11=F11)
F12	Volume + (FN+F12=F12)	Volume + (FN+F12=F12)
	Ctrl	control
	Win	option
	Alt	command
	Alt	command
	Ctrl	control

Mac APP download address: http://www.jikedingzhi.com/downIoadlist?driverID=90
