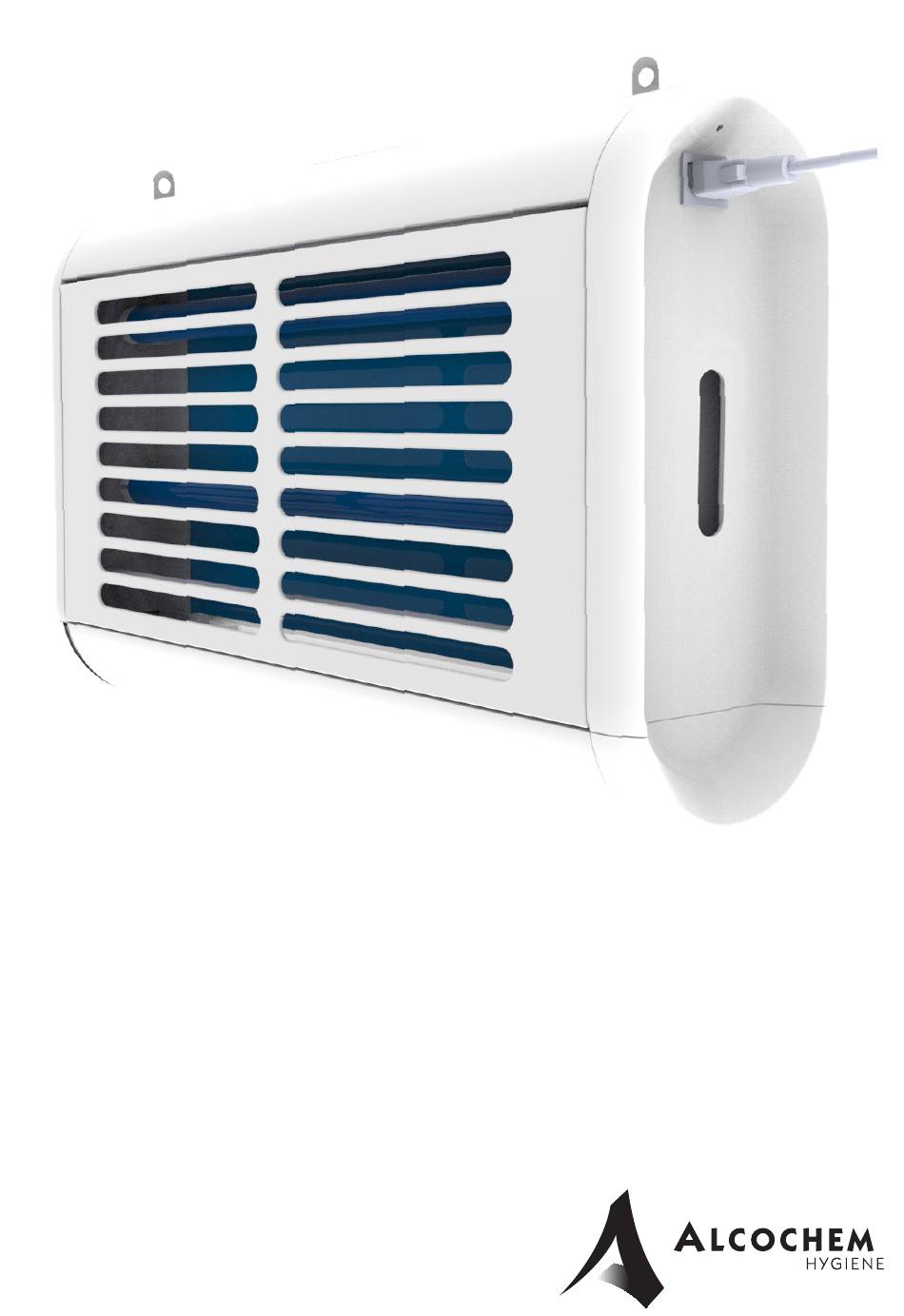

- Page 1 ENGLISH I-TRAP 120 LED I-TRAP 120 WP LED Without mounting ceiling hooks, only bracket mounting Instruction manual insect control unit...
- Page 2 . Please read this Manual carefully before taking any action with regard to your I-TRAP 120 LED / 120 WP LED. Congratulations on the purchase of this high quality electric insect-trap. Before using this unit we ask you to read this manual carefully.
- Page 3 Use a safe mains connector with earth pin. Note: insect control unit should never be placed directly above uncovered food!! MAINTENANCE/REPLACEMENT The I-TRAP 120 LED insect trap requires little maintenance other than cleaning, and replacing the glueboard and lamp. 1) Cleaning a) Disconnect the unit from the mains.
- Page 4 A. UNIT / REPLACEMENT PARTS 1x i-trap 120 LED Replacement parts: 1x i-trap 120 WP LED 1x glueboard 4x 15 W ASTRON UV-A LED B. EXPLODED VIEW (see explanation on next page of this manual) *Main plug: IP20 with separate plug / IP65 with fixed connection C.
- Page 5 Live side without WP install/replacement with WP install/replacement F. GLUE BOARD INSTALL/REPLACE G. SPECIFICATIONS OF THE I-TRAP 120 LED Area coverage (m²) : up to 120 m (depending on situation/location) Light source (W) : 4 x 15 Watt ASTRON UV-A LED lamp...
- Page 6 CERTIFICATION AND DECLARATION The I-TRAP 120 LED / I-TRAP 120 WP LED complies with the EU-directive on machine safety. The unit and spare part components are all in full compliance with the CE directive and the WEEE / RoHS directives. The EC declaration of conformity is listed below: CE declaration of conformity.
- Page 7 NOTES...
- Page 8 NL Head office Zeilmaker 4 3861 SM Nijkerk The Netherlands Article number of assembled unit: Phone +31 (0)33 299 4139 I-trap 120 LED - 2.05.0025 hygiene@alcochem.com I-trap 120 WP LED - 2.05.0040 I-TRAP 120 LED versions - instruction manual version 3.0...
