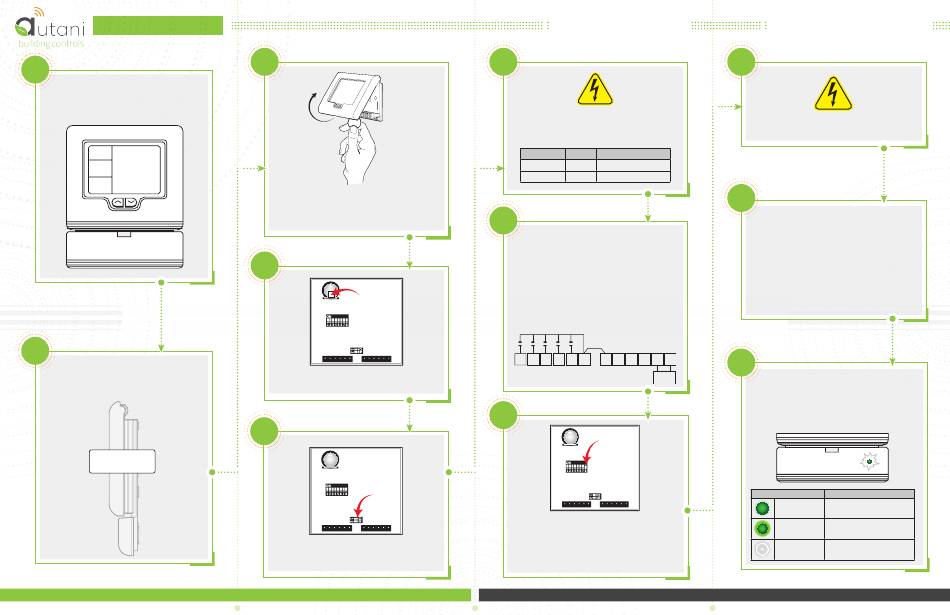

Autani T-32-P Quick Installation Sheet

T-32-P Thermostat
Quick Installation Sheet
Model #
1000140-14
1
On the provided list of thermostatserial
numbers, document the location for each
thermostat.
mac : xxxxxxxxxxxxxxxx
EXAMPLE EXAMPLE
Autani, LLC | 7090 Columbia Gateway Drive, Suite 140
2
Insert a small coin (dime) in the release slot on the
bottom of the thermostat and gently twist the coin
to release the thermostat from the subbase.
3
If present, remove the white battery tab.
4
Confirm the two Modbus slide switches are in the
ON position.
| Columbia, MD 21046 USA | (443) 320-2233 | www.autani.com
Color versions available @ autani.com
5
Make sure HVAC power is de-energized!
Connect the thermostat wires to the HVAC
equipment Hot and Common.
Terminal HVAC Transceiver Wire
24C C Black
24 R Red
6
Connect the remaining HVAC wires to the thermostat
terminals based on the specific equipment and
corresponding wiring diagram on the back of this
sheet. After inserting each wire, tighten the set
screw.
NOTE: To wire an indoor or outdoor remote sensor:
Wire the sensor to the T T terminals.
‰
The sensor wiring must be a separate 18-2 cable
‰
and should not exceed 200 feet.
W2 Y2 W1
Y1 G1 R 24 24C B A T T
G3 G2 O/B
OPTIONAL
SENSOR
7
Set the thermostat slide switches based on the
specific equipment configuration and tables on the
back of this sheet, and then attach the thermostat to
the subbase.
NOTE: Switch 8 must be in the ON position.
Copyright Autani, LLC 2024. All rights reserved. For warranty and other legal information, go to www.autani.com/legal.
Document Number : 80344 | January 2024
8
Ensure wiring is complete, and energize HVAC
power.
9
Refer to the T-32-P Thermostat
Installation Guide for menu settings:
Required for the specific equipment
‰
applications,
To confirm the baud rate is set at 19.2, and
‰
To confirm the Modbus address is set at 01.
‰
LED Behaviours
Pressing SW1 will 'double flash' the LED if device is
on a network. The LED will also 'double flash' if the
'identify' command is sent to the device.
LED Color Device Status Description
Solid Green Searching for a network
Flashing Green Joining a network
LED OFF Device is on a network
Continued.....
