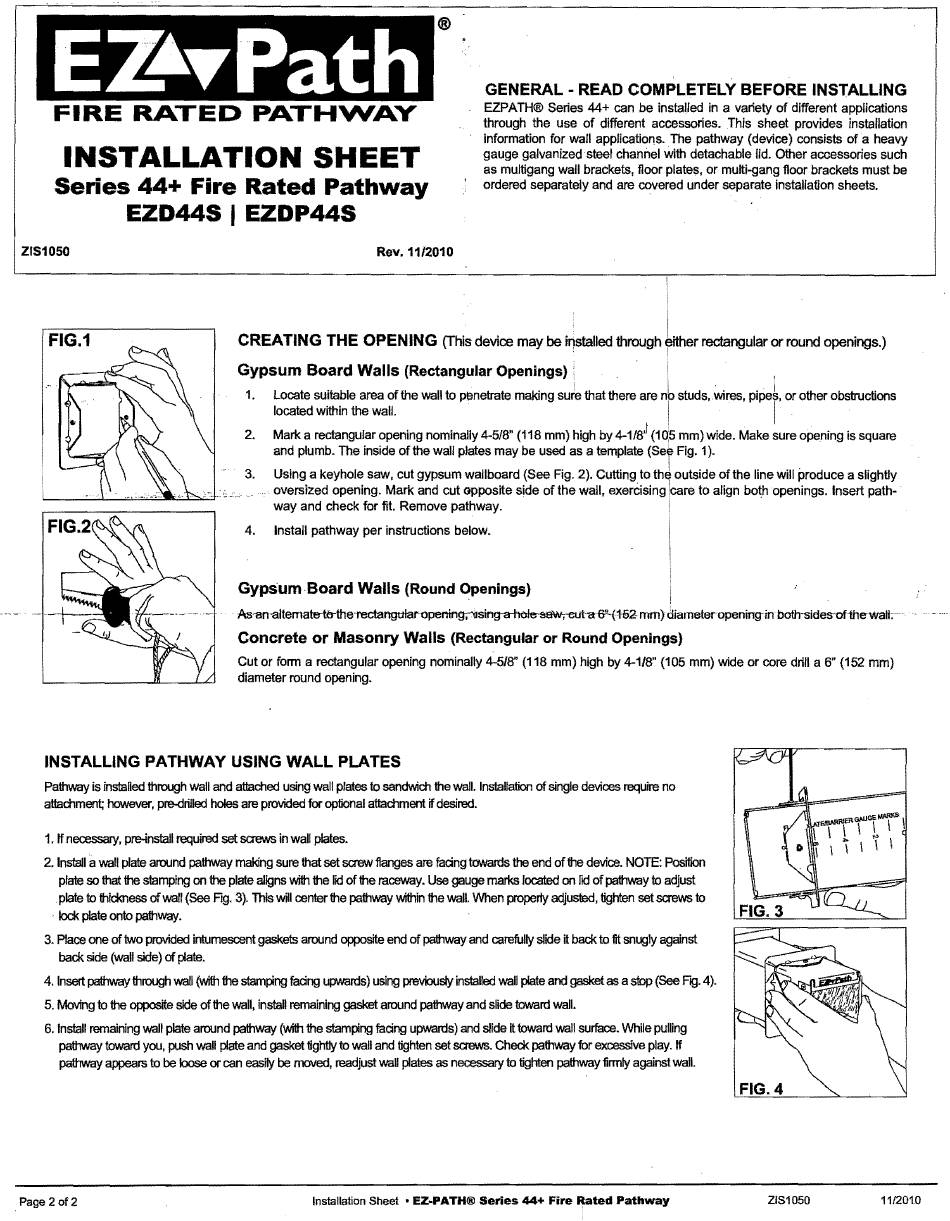

EZ-Path 44+ Series Installation Sheet

Fire rated pathway

Advertisement

Quick Links

FIG.1
1.
2.
3.
4.
®
GENERAL - READ COMPLETELY BEFORE INSTALLING
EZPATH® Series 44+ can be installed in a variety of different applications
FIRE RATED PATHVVAY
through the use of different accessories. This sheet provides installation
information for wall applications. The pathway (device) consists of a heavy
gauge galvanized steel channel with detachable lid. Other accessories such
INSTALLATION SHEET
as multigang wall brackets, floor plates, or multi-gang floor brackets must be
Series 44+ Fire Rated Pathway
;
ordered separately and are covered under separate installation sheets.
EZD44S
I
EZDP44S
ZIS1050
Rev.
1112010
CREATING THE OPENING
(This
device may
be
il')stalled through
~ither
rectangular or round openings.)
Gypsum Board Walls (Rectangular Openings).
,
Locate suitable area of the wall
to
penetrate making
su~
that there are nb studs, .wires,
pipe~,
or other obstructions
located within the w a l l . '
I
I
Mark a rectangular opening nominally 4-5/8" (118 mm) high by4-1/8
J
(10,5 mm)wide. Make sure opening is square
and plumb. The inside of the wall plates may be used as a template (See Fig. 1).
Using a keyhole saw, cut gypsum wallboard (See Fig. 2). Cutting to
th~
outside ofthe line will produce a slightly
oversized opening. Mark and cut Gpposite side of the wall, exercising bre to align both openings. Insert path­
way and check for fit. Remove pathway.
Install pathway per instructions below.
GypSum Board Walls (Round Openings)
As'1:ln-altemate-to-the-rectangttlaNlpening;-'llsing a hole
sa\V,-euht~(16a
mm} diameter opening-in
both-sideS"ofthe-wall:~
Concrete or Masonry Walls (Rectangular or Round Openings)
Cut or form
a
rectangular opening nominally 4-5/8" (118 mm) high by 4-1/8" (105 mm) wide or core drill a 6" (152 mm)
diameter round opening.
INSTALLING PATHWAY USING WALL PLATES
Pathway is instaged through wall and attached using wall plates
to
sandvvich the wall. Installation of single devices require no
attachment; however, pre-drilled holes are provided for optional attachment if desired.
1.
If necessary, pre-install required
set screws
in wall plates.
2. Install a wall plate around pathway making sure that set
screw
flanges
are
facing towards the end of the device. NOTE: Posifion
plate so that the stamping on the plate aligns with the lid of the raceway. Use gauge marks located on lid of pathway
to
adjust
plate
to
thickness of wall (See FJg. 3). This will center the pathway within the wall. When properly adjusled, tighten
set screws to
. lock plate
onto
pathway.
3. Place one of two provided intumescent gaskets around opposite
end of pathway and carefully slide it back
to
fit snugly against
back
side (wall side) of plate.
4. Insert
pathway through wall (with the stamping facing upwards) using previously inslalled wall plate and gasket as a stop
(See Fig. 4).
5. Moving
to
the opposite side of the wall. install remaining
gasket around pathway and slide toward wall.
6. Install remaining wall plate around pathway (with the stamping facing upwards) and slide it toward wall surface. While pulling
pathway toward you, push wall plate and gasket tightly
to
wall and tighten set
screws.
Check pathway
for excessive play. If
pathway
appears to be loose or can easily be moved, readjust wall plates as necessary
to
tighten pathway firmly against wall.
Page2of2
Installation
Sheet • EZ-PATH® Series 44+ Fire Rated Pathway
ZIS1050
111201.0
