Heavy Duty
Busbar Range
777-BB4S-500

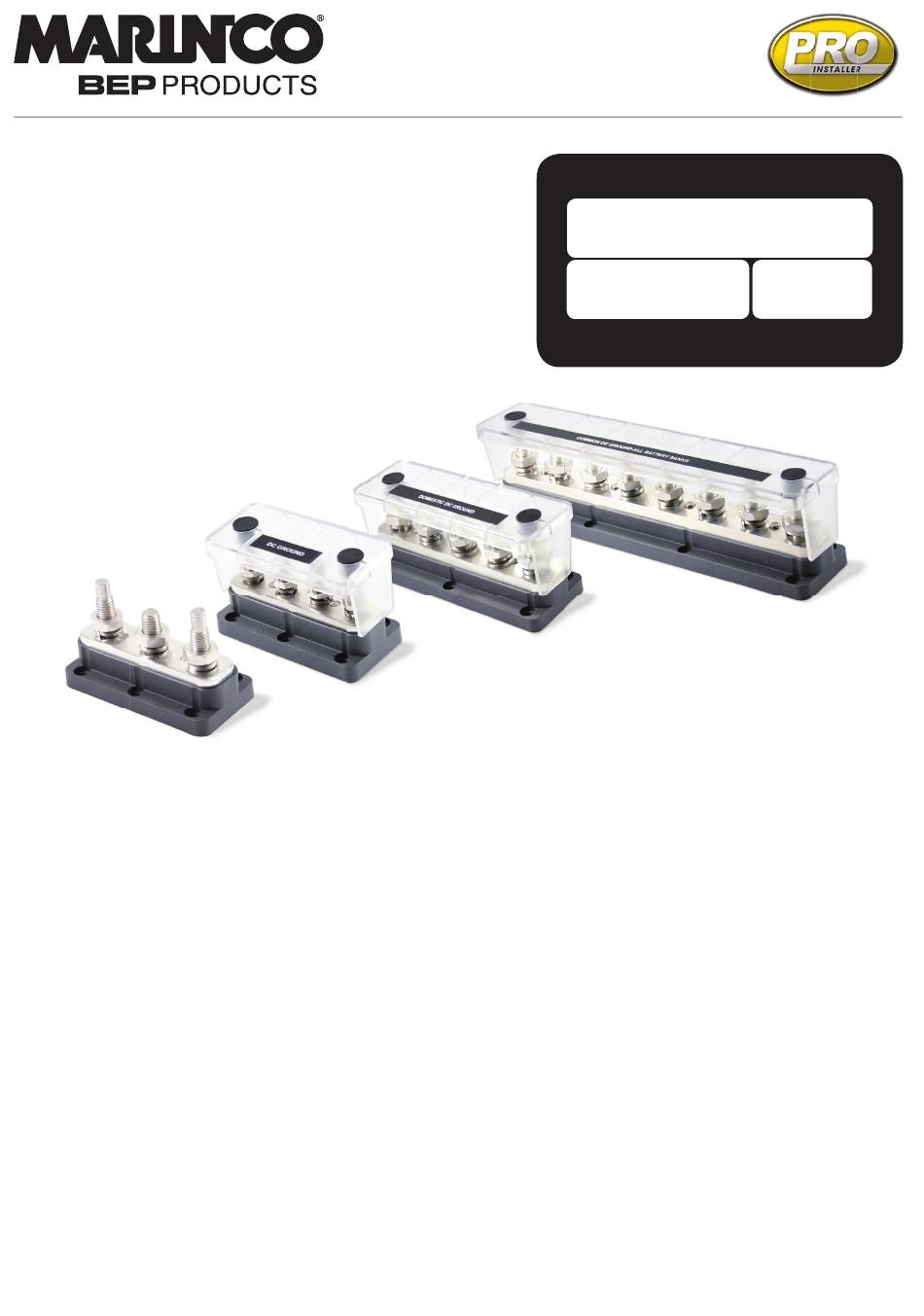

4 Stud, 8mm (5/16") Busbar, 500A
777-BB3S-650
3 Stud, 10mm (3/8") Busbar, 650A
777-BB5S-650
5 Stud, 10mm (3/8") Busbar, 650A
777-BB8S-650
8 Stud, 10mm (3/8") Busbar, 650A
Pro Installer Heavy Duty Busbars provide a robust means to connect (bus) together
the multitude large cables found in modern electrical installations. This range
offers the installer greater fl exibility to select busbars to match their load and space
requirements.
Specifi cations:
• 4 Stud-500A busbar: 8mm (5/16") stainless steel studs
• 650A busbars: 10mm (3/8") stainless steel studs
• 50 VDC
• High temperature, fi bre reinforced plastic base provides strength and chemical resistance
• Clear polycarbonate cover
• Tinned CDA102 Copper conductors, stainless steel studs and nuts, for longevity in the marine
environment
• All threads are metric
