Summary of Contents for SIMPLY CONSERVE AM-AP1115-WH

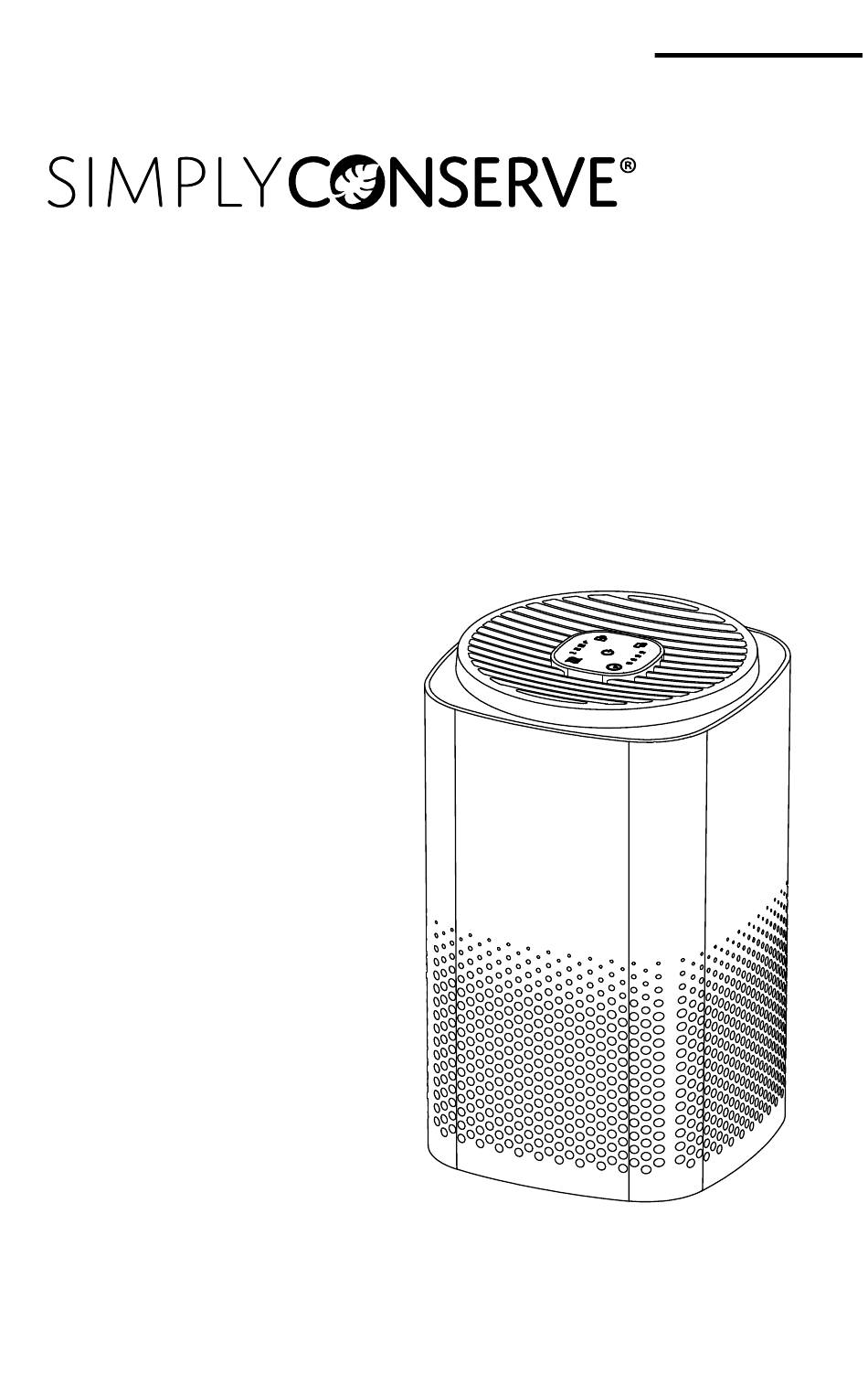

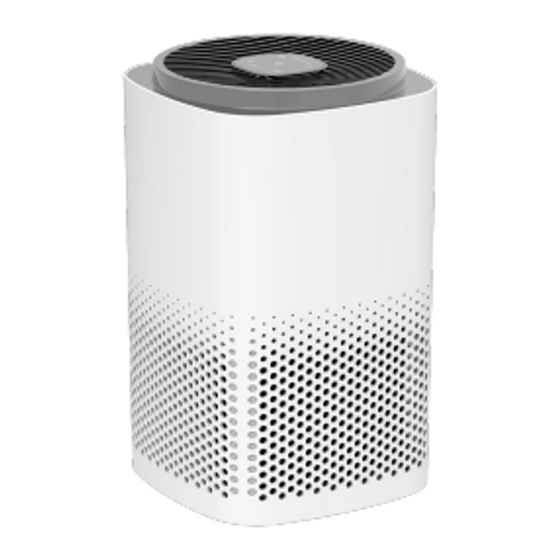

- Page 1 User Manual TABLETOP AIR PURIFIER Model: AM-AP1115-WH This diagram is for illustration purposes only. Your model may vary. Please read this manual carefully before using your air purifier. This product should only be used in a family residence or similar location.
-
Page 2: Table Of Contents
USER MANUAL TABLE OF CONTENTS Safety Precautions ................3 Product Introduction ................6 Control Display ..................7 Before Use ....................8 Removal and Installation of Rear Cover Plate ......8 Placement of Air Purifier ..............9 Filter Installation ..................10 Usage ......................12 Turning on the Purifier .................12 Manual Mode ...................12 Filtration Speed ..................12 Sleep Mode ....................13... -
Page 3: Safety Precautions
USER MANUAL SAFETY PRECAUTIONS To avoid injury or accidents, please follow all safety precautions. If the power cord is damaged, it must be repaired or replaced by the manufacturer. WARNING Do not touch the power plug with wet hands. This may cause electric shock. Before cleaning the air purifier, make sure the power supply has been disconnected. - Page 4 USER MANUAL SAFETY PRECAUTIONS (continued) WARNING Clean the power plug regularly. If dust accumulates on the power plug, the insulation component could become damaged, resulting in fire. Remove the power plug and clean it with a dry cloth. Do not use a wet cloth! If the air purifier is not used for an extended period of time, the power plug should be disconnected.
- Page 5 USER MANUAL SAFETY PRECAUTIONS (continued) WARNING Do not get the unit wet. Electric shock and fire may occur. When unplugging the unit, pull from the power plug, not the cable. Pulling directly on the cable could damage the internal wires, leading to fire or electric shock.
-
Page 6: Product Introduction
USER MANUAL PRODUCT INTRODUCTION Control Panel Outlet Purifier Body 3-Stage Composite Filter (Pre-Filter True HEPA H13 Filter Super Absorbent Carbon Filter) Base Cover This diagram is for illustration purposes only. Your model may vary. TABLETOP AIR PURIFIER... -
Page 7: Control Display
USER MANUAL CONTROL DISPLAY Display Lock Replace Filter Indicator/ Filter Reset Button Speed Indicators Time Indicators Sleep Mode 8-Hour Timer 6-Hour Timer High-Speed Fan Medium-Speed Fan 4-Hour Timer Low-Speed Fan 2-Hour Timer Timer Filtration Fan Speed Adjustment Power TABLETOP AIR PURIFIER... -
Page 8: Before Use
USER MANUAL REMOVAL AND INSTALLATION OF REAR COVER PLATE Disassembly of base Press the indicator to unscrew the base. Installation of base Re-install the base, press unlock key to align, and rotate in the locking direction. TABLETOP AIR PURIFIER... -
Page 9: Placement Of Air Purifier
USER MANUAL PLACEMENT OF AIR PURIFIER To achieve purified air circulation in your room, make sure the unit’s air inlet and outlet have at least 8 inches of clearance from walls and other objects. Obstructing the unit’s air inlet or outlet will lower the purifier’s cleaning efficiency. -
Page 10: Filter Installation
USER MANUAL FILTER INSTALLATION This air purifier is equipped with an internal filter. Before using the product, remove the filter’s outer packaging. Place the filter back in the unit after doing so. WARNING • Disconnect the power supply before the unit is transported or serviced. - Page 11 USER MANUAL OPERATION STEPS (continued) Remove the filter from inside the air purifier. Remove the packing material from the filter. Put the filter back into the air purifier. Press the indicator key to insert the bottom cover and rotate to lock it in place. When installing the bottom cover, use caution to avoid pinching your hand.
-
Page 12: Usage
USER MANUAL PLUGGING IN THE MACHINE When the power is plugged in, the machine will sound, all indicator lights will flash on and then half off, and the machine will enter standby mode. TURNING ON THE PURIFIER The product utilizes a fan system composed of DC BLDC and centrifugal fan and air ducts. -
Page 13: Sleep Mode
USER MANUAL DISPLAY LOCK Press and hold the display lock button for SLEEP MODE approximately three seconds, until you hear a sound. The panel will then enter the display lock When in sleep mode, state. If you try pressing any other buttons, the the fan will run while display lock indicator will flash three times to in- all other indicators... -
Page 14: Maintenance And Cleaning
USER MANUAL MAINTENANCE AND CLEANING Clean the inside and outside of the purifier regularly to prevent dust accumulation. Use a soft, dry cloth to wipe dust off the purifier. Clean the air inlet and outlet with a soft, dry cloth. WARNINGS •... -
Page 15: Understanding The Role Of Filters
USER MANUAL UNDERSTANDING THE ROLE OF FILTERS Purified Air Output Unpurified Air Intake Unpurified air enters the filter through its outer surface. Purified air exits from the middle of the filter and travels upward. Diagram is for illustration purposes only. Your model may vary. TABLETOP AIR PURIFIER... -
Page 16: Unique Triple Purification Technology
USER MANUAL UNIQUE TRIPLE PURIFICATION TECHNOLOGY Pre-Filter True HEPA Super Absorbent H13 Filter Carbon Filter Pre-Filter Captures large particles Medical-grade HEPA H13 filter traps fine particles and True HEPA H13 Filter pollutants down to .03 microns Super Absorbent Eliminates airborne toxins and odors Carbon Filter NOTE High-efficiency HEPA and activated carbon are combined in the same... -
Page 17: Filter Replacement
USER MANUAL FILTER REPLACEMENT Remove the packing material from Turn off the power and unplug the new filter. the machine. Press the bottom cover with your Put the filter back into the purifier. fingers. Unscrew it according to the unlocking direction and remove the bottom cover upward at the same time. -
Page 18: Idle Unit
USER MANUAL STEPS FOR REPLACING THE FILTER (continued) NOTE The filter cannot be washed and should be changed approximately every six months (replacement time is subject to change depending on environment and usage habits). ATTENTION When the indicator light flashes, it may sound an alarm to remind the user to replace the filter. -
Page 19: Troubleshooting
USER MANUAL TROUBLESHOOTING These are common situations that may be encountered when using this product. If you are unable to solve your issue using the information below, please contact our customer service center at customercare@amconservation.com. State Possible Causes Solutions Remove the power plug cord and Power plug is not plugged in The machine plug it in again. -
Page 20: Warranty And Service
USER MANUAL WARRANTY AND SERVICE If you need information or have any questions, please contact our customer service center at customercare@amconservation.com. ORDERING PARTS OR ACCESSORIES To order machine parts or accessories, please contact our customer service center at customercare@amconservation.com. OTHER INFORMATION Recycling When discarding electronics products, do not dispose of them with general domestic waste.
