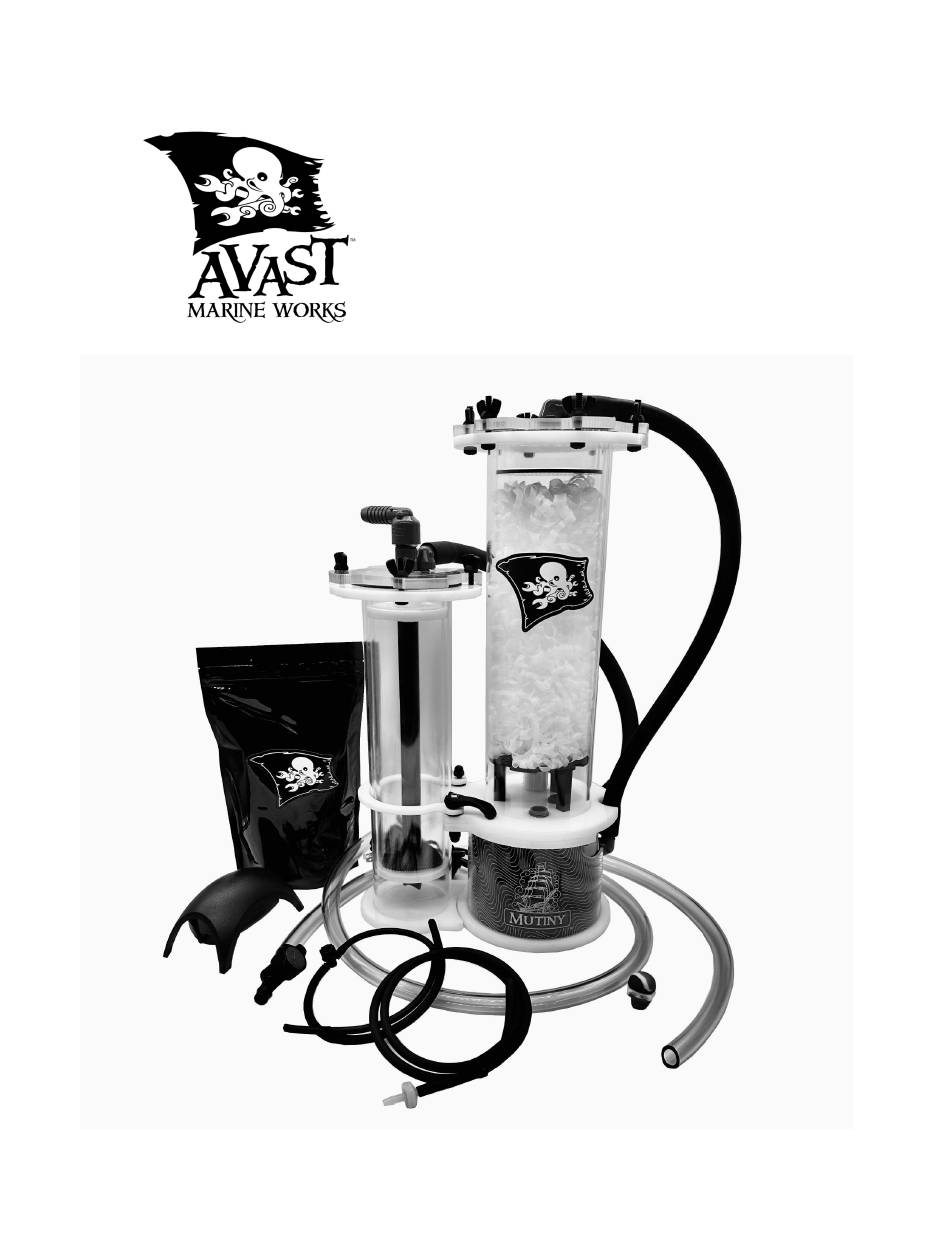

- Page 1 Mutiny 2.1 Setup and User Manual Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 1...
-
Page 2: Table Of Contents
Turning on recirculating pump and setting air flow Ozone dosing using the Poseidon 200 Monitoring and control with ORP Monitoring with your eyes Other considerations Fine Tuning and Final Thoughts Maintenance Warranty and contact information Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 2... -
Page 3: Introduction
Be sure to follow all safety guidelines according to your ozone generator’s documentation. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 3... -
Page 4: Reactor Setup
½” effluent lines onto the ½” barbs. Then place the longer 3’ section of 3/16” black tubing with the check valve on the venturi barb as shown. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 4... -
Page 5: Attach Sicce Recirculating Pump
Once this is in place, grease the pump output barb and push the other section of ½” black tubing onto the pump as shown. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 5... -
Page 6: Attaching Reactor To Stand
If you are installing the Mutiny in sump you will want to instead use the other plastic bolt installed from the bottom and wing nuts as shown. External Configuration In Sump Configuration Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 6... -
Page 7: Install Second Chamber Clamp And Attach Remaining Tubing
Install Second chamber clamp and attach remaining tubing Slightly pull the clamp outward and push on to the carbon chamber. Lightly grease the top barb connection, install the black tubing from the pump as shown. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 7... -
Page 8: Carbon Preparation
You can now use the carbon as is or store it for future use. We like to thoroughly dry it out so it loads into the reactor easier, to do this we simply lay it out on a cardboard box overnight. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 8... -
Page 9: Load The Cartridge
Place the cartridge in the carbon filter and lock the carbon chamber in place. You are now ready for installation on your tank. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 9... - Page 10 Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 10...
-
Page 11: Tank Installation And Tuning The Reactor
3/16" tubing from the Sicce pump to the output. Make sure that the check valve is oriented so the flow is going towards the reactor and away from the generator as shown. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 11... -
Page 12: Installation Considerations
“microbubbles” like a skimmer output, still behind a baffle is recommended to reduce the chances of bubbles in your return line. You can now turn on the water from your feed pump. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 12... -
Page 13: Setting Flow Rate Through The Reactor
If you need to adjust your flow rate in the future, make sure the rest of the system components are off for the most accurate results. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 13... -
Page 14: Turning On Recirculating Pump And Setting Air Flow
This is the maximum air flow. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 14... - Page 15 Air Valve Closed Approximate Starting Position Max Air Flow Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 15...
- Page 16 The picture below shows the water levels during normal operation. ← → Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 16...
-
Page 17: Ozone Dosing Using The Poseidon 200
The air pump and water pumps should always remain on. In the case of power failure the system will come back online by itself, everything “on” at the same time is the ideal start up order! Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 17... -
Page 18: Monitoring With Your Eyes
If you would like to dry the air, use a silica gel desiccant dryer installed in between the air pump and the generator. The Mutiny is not compatible with electric air dryers. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 18... - Page 19 This will vary from system to system depending on the starting clarity of the water. Raising your lights or adjusting the photoperiod for the first few weeks is recommended. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 19...
-
Page 20: Fine Tuning And Final Thoughts
This is no different than placing a space heater next to your thermostat, it doesn’t heat your house, only the measurement device. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 20... -
Page 21: Maintenance
The pumps and supplied tubing should last at least 5 years under normal operating conditions. Clean and inspect the Sicce recirculating pump impeller annually. Check Valves Replace check valves every 6 months. Avast Marine Works - Mutiny v2.11 - Updated 10//23 Page 21... -
Page 22: Warranty And Contact Information
Liability In no event will AVAST Marine Works be liable for any lost livestock, profits or any special, indirect or consequential damages due to loss of use. The laws of the Commonwealth of Virginia will govern this warranty plan.
