Summary of Contents for Mantis ULV BioMant-Compact EL

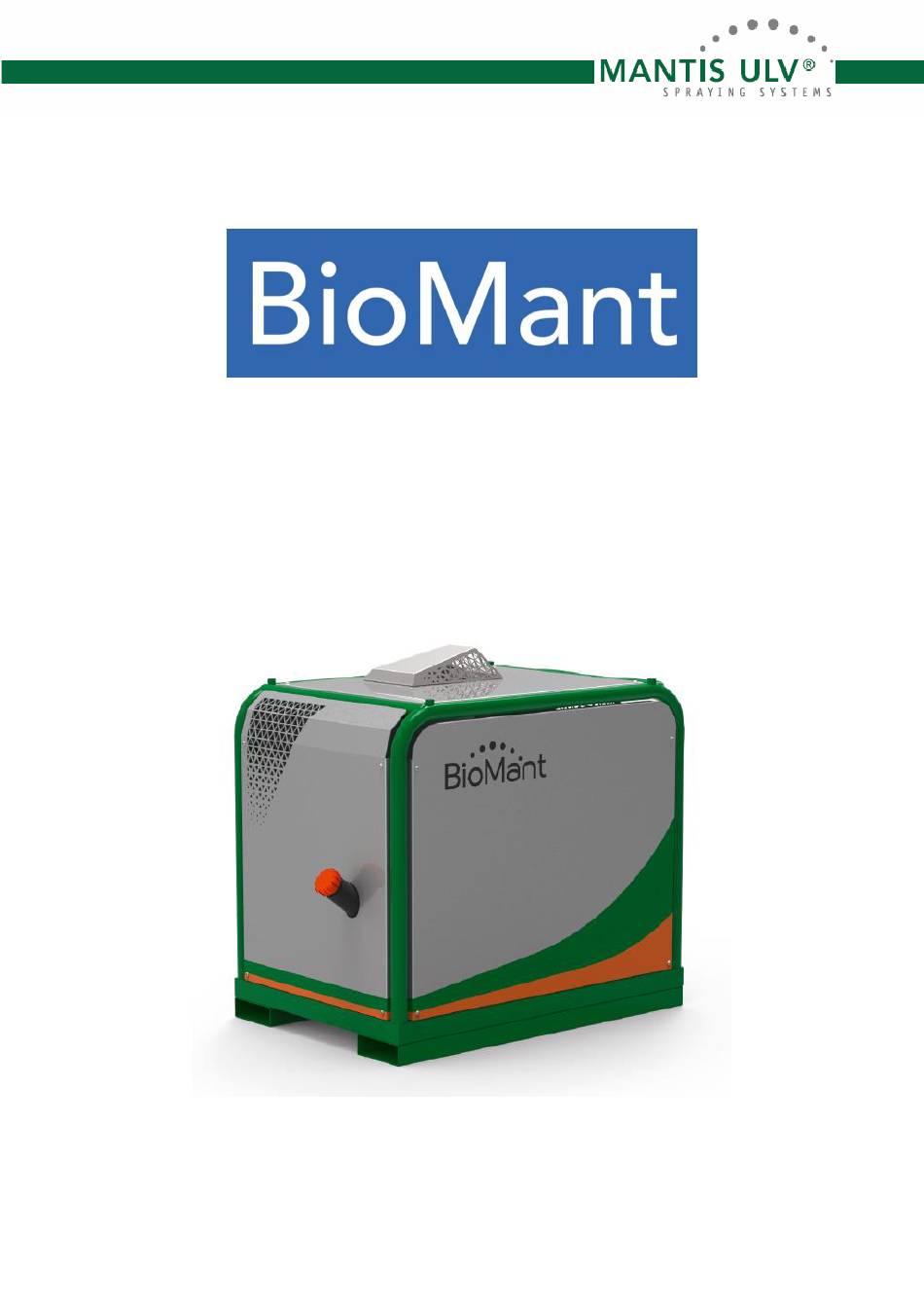

- Page 1 Operating Instructions: BioMant-Compact EL & BE Mantis-ULV Sprühgeräte GmbH - 2020...
-
Page 2: Table Of Contents
TABLE OF CONTENT INTENDED USE ....................... 2 DESCRIPTION OF THE MACHINE ................. 3 TECHNICAL SPECIFICATIONS ..................4 IMPROPER USE ......................4 INCORRECT USE ......................5 BEFORE FIRST USE ....................... 5 STARTING THE MACHINE ....................6 OPERATING A COMPACT-BE ..................7 OPERATING A COMPACT-EL .................. -
Page 3: Description Of The Machine
DESCRIPTION OF THE MACHINE Hot water low pressure weeding machine with high-pressure function, comprising a tube frame with panelling, an electric motor, diesel boiler for generating hot water, diesel oil tank, pipe for exhaust fumes, electrical system for the high-pressure pump, mains plug-in power supply or Honda petrol engine (depending on model), anti-lime scale unit, control panel, and possibly optional accessories such as e.g. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS PETROL (COMPACT-BE) MODEL: 4 Kw Petrol engine with integrated tank SINGLE-PHASE (COMPACT-EL) MODEL: supply from 230V 50Hz (+ - 10%) single-phase network with surge protection. - Maximum ambient temperature: 40°C; - Minimum ambient temperature: +5°C; - Maximum humidity 80% - Noise level: EL-model +/- 66 dBa - BE-model +/- 99 dBa) petrol-model (BE): 4 Kw Model Compact-EL... -
Page 5: Incorrect Use
INCORRECT USE Incorrect use of our machines means use that does not comply with these instructions of use and maintenance. If these instructions are not observed, there is a risk of injury to the operator and damage to the machine. Below are some examples of incorrect use: •... -
Page 6: Starting The Machine
For BioMant-Compact BE as well as EL models from 2020 onwards follow the instructions in chapter 14 b. For BioMant-Compact EL, which are older than 2020, the setting can only be adjusted by using an external keyboard. Please ask an authorised service center. -
Page 7: Operating A Compact-Be
OPERATING A COMPACT-BE STARTING A COMPACT – BE (with petrol motor) To use the petrol version of the BioMant-Compact, please follow the below instructions: 1. Switch the fuel valve of the petrol motor to the ON position To start a cold engine, move the chocke lever to the CLOSED position. - Page 8 7. To start the water flow, engage the spray gun and hold the lance firmly. Let the water flow to reach the set temperature. 8. For weed control use the low-pressure lance. Spray the plants to be treated making sure the foliage and the plant is completely wetted with hot water. For high-pressure cleaning, use the high-pressure lance with nozzle and set the desired temperature for cleaning (not MAX).
-
Page 9: Operating A Compact-El
OPERATING A COMPACT-EL STARTING A COMPACT – EL (with electrical motor): To use the electrical version of the BioMant-Compact, please follow the below instructions: 1. Connect the supplied power plug to a suitable power outlet. CAUTION: When using an external power source, e.g. an emergency generator, please ensure that the power supply is constant and stable, or the machine can be damaged. - Page 10 • Do not use the machine when barefoot. • Always wear rubber boots and a safety mask when operating the machine. • Protective clothing should be worn for your own protection • When opening the spray gun, there is a slight kickback. Ensure that you hold the spray gun securely.
-
Page 11: Routine Maintenance
WARNING RELATING TO THE USE OF ACCESSORIES When using accessories that are not part of the standard equipment, read the usage instructions through carefully. Always check whether the accessory used is compatible with the features of the BioMant-Compact machine. The manufacturer shall not accept any responsibility for the use of accessories. - Page 12 • The adjustment of fuel pressure and air supply must be made regularly by the manufacturer or an authorised service centre, • From time to time, check the wear and tear of the burner electrodes. The spacing between the electrodes should be 3 mm. •...
-
Page 13: Dismantling Of The Machine & Environmental Regulations
• Check the oil level of the high-pressure pump regularly by checking the oil level gauge. The oil level has to be above the minimum mark on the oil level gauge. Don’t start the machine if the oil level is too low. If the oil level is too low, fill in oil until the oil level reaches the upper mark. - Page 14 The machine packaging and the machine itself and the various liquids must be disposed of in an environmentally responsible way, without contaminating the soil, air or water, and in accordance with the relevant local legislation in force. HANDLING WASTE: • Materials containing iron, aluminium, copper: recyclable materials must be brought to a recognised collection point.
-
Page 15: Troubleshooting
TROUBLESHOOTING FAULT ANALYSIS OF THE HIGH-PRESSURE PUMP In the event of operating faults, refer to the table below or consult the instruction manual of the pump. It’s available here: https://www.interpump.it/download/allegati/31007203_7- librettogenericopompe.pdf and here: https://www.interpump.it/download/allegati/fn000581.pdf Problems and possible causes • The pump doesn’t fill or drain •... - Page 16 If the motor doesn’t start when pulling the reversing starter: 1. Is the motor switched in position ON? 2. Is there enough oil in the motor? 3. Is there enough petrol in the engine (BE-model only)? 4. Is the fuel valve in position ON? 5.
-
Page 17: Setting Of The Anti-Lime Scale System Of Biomant-Compact Be
SETTING OF THE ANTI-LIME SCALE SYSTEM OF BIOMANT-COMPACT EL WITH SEKO 230V PUMP rotect the machine from calcification, check the water hardness and adapt the anti-lime scale dosage on the machine! Water hardness can be measured on site using Aquadur® test sticks or data can be obtained from the water supply utility. - Page 18 BioMant-Compact BE SETTING OF THE ANTI-LIME SCALE SYSTEM OF BIOMANT-COMPACT BE WITH SEKO 24V PUMP To protect the machine from calcification, check the water hardness and adapt the anti-lime scale dosage on the machine! Water hardness can be measured on site using Aquadur® test sticks or data can be obtained from the water supply utility.
- Page 19 BioMant-Compact BE SETTING OF THE ANTI-LIME SCALE SYSTEM OF BIOMANT-COMPACT BE WITH MICRODOS 24V PUMP To protect the machine from calcification, check the water hardness and adapt the anti-lime scale dosage on the machine! Water hardness can be measured on site using Aquadur® test sticks or data can be obtained from the water supply utility.
-
Page 20: Electrical Diagram
ELECTRICAL DIAGRAM ELECTRICAL DIAGRAMM BIOMANT-COMPACT EL Mantis-ULV Sprühgeräte GmbH - 2020... -
Page 21: Spare Parts List
ELECTRICAL DIAGRAMM BIOMANT-COMPACT BE... -
Page 23: Eg Declaration Of Conformity
EG DECLARATION OF CONFORMITY according to Council Directive 2006/42/EG Mantis ULV-Sprühgeräte GmbH, Vierlander Strasse 11 a, 21502 Geesthacht declares under their sole responsibility that the following products Type: BioMant-Compact-EL BioMant-Compact-BE are in conformity with the provisions of the following Council Directive: 2006/42/EG...
