Summary of Contents for Homestead 26-3560

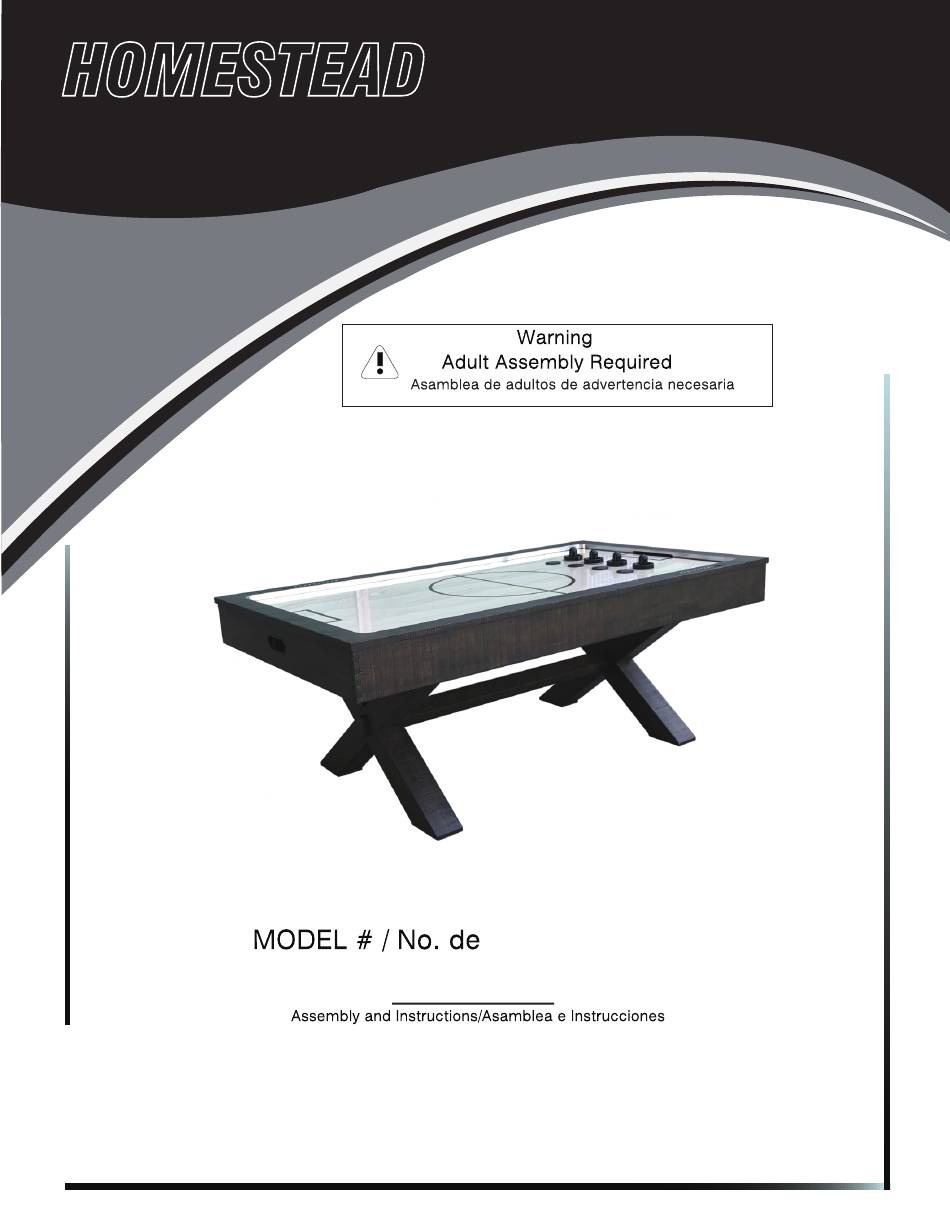

- Page 1 HOMESTEAD AIR HOCKEY Homestead #26-3560...
- Page 3 Left leg Right leg A Right leg B Main cabinet 1 piece 2 pieces 2 pieces 2 pieces Leg connector Bolt plate Long support rod Tenon 1 piece 2 pieces 2 pieces 12 pieces 5/16"X5-1/2" Bolt 5/16"X1-1/4" Bolt 5/16"X23mm Washer 5/16"...
- Page 4 Step 1: Screw #8 tenon in to #3 Leg A, #4 Leg B, and #6 Wood blocks. Screw #7 iron rod in to #4 Leg B.Repeat these steps for both sets of legs. Step 2: Attach #4 Leg B through #2 Left Leg using,tight with #12 washer and #10 bolt. .
- Page 5 Step 3: Attach #3 Leg A through . Step 4: tightening with #13 washer and #9 nut. Repeat this process for both legs.
- Page 6 Step 5: Attached the assembled leg set to the main cabinet using #12 washers and #11 bolts Step 6: Attach #5 leg connector to both assembled legs using #12 washer and #10 bolt.
- Page 7 Step 7: Insert #6 wood block on to leg, repeat on both sides Then screw in #14 leg levelers. Step 8: Using two strong adults turn the table right side up.
