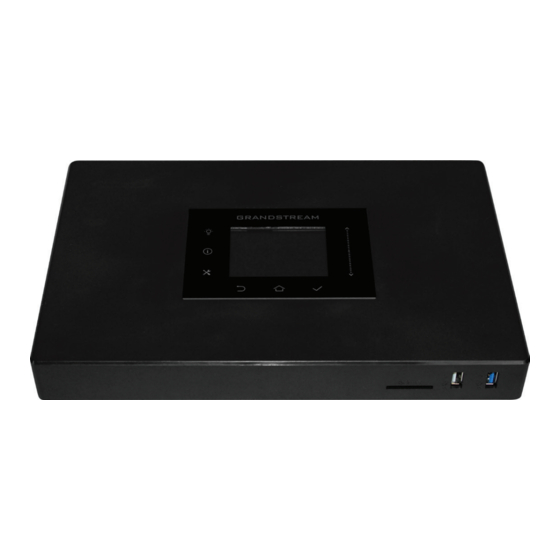

Aiphone IXW-PBXA Programming Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Table of Contents

Page 2
- Where to locate the password for the IXW-PBXA, and how to log into the device
Page 2-4
-
Step-by-step instructions for the initial setup of the IXW-PBXA
Page 5
-
Configure the SIP settings for the IXW-PBXA
Page 6
-
Adding IX Series devices to the IXW-PBXA
Page 7
-
Setting up a VoIP Trunk
Page 8
-
Setting up an Analog Trunk
Page 8-9
-
Adding a Phone Number to the Support Tool
Page 9
Adding an Outbound Route rule
-
Creating an outbound route for analog dial out
Page 11
-
Adding the IXW-PBXA to the Support Tool
Page 11
Uploading
-
Uploading Settings to Stations
IXW-PBXA
Programming Guide
06/23
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IXW-PBXA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aiphone IXW-PBXA

  • Page 1: Table Of Contents

    Programming Guide Table of Contents Page 2 Logging into the IXW-PBXA - Where to locate the password for the IXW-PBXA, and how to log into the device Setup Wizard Page 2-4 Step-by-step instructions for the initial setup of the IXW-PBXA...

  • Page 2: Logging Into The Ixw-Pbxa

    Logging into the IXW-PBXA Access the IXW-PBXA by entering its IP address and port in a browser. The IP address of the IXW-PBXA will be shown on its LCD screen, and the port used is 8089. Example: Login : admin (default)
  • Page 3 Setup Wizard - Network Settings The network settings for the IXW-PBXA will need to be changed in order for it to communicate with IX Series products. Change the Method to “Switch”. The LAN settings will need to match the local network and be in a range that the IX stations can reach.

  • Page 4: Setup Wizard

    Setup Wizard - Extensions IX Series stations are assigned in the IXW-PBXA as extensions. Leave Disable Extension Range checked and set the Start Extension to the first IX station’s Identification Number from IX Support Tool. Set Create Number to 1 and create a custom SIP Password that will be assigned to all extensions.

  • Page 5: Sip Settings

    SIP Settings Expand IXW-PBXA Settings in the menu on the left and select SIP Settings. Select the NAT tab and enter the network address in the field labeled Local Network Address. Click click to enter the address, then Save 06/23...

  • Page 6: Editing Extensions

    Editing Extensions Each IX Series station needs an extension to be registered to the IXW-PBXA. The extension number will be assigned to the station in the IX Support Tool in a later step. To configure this, expand Extension/Trunk and select Extensions.

  • Page 7: Voip Trunk Settings

    VoIP Trunk Settings The IXW-PBXA can connect to SIP Trunks to place outbound calls. If using an analog phone line instead, skip to the next step. To configure SIP Trunks, expand Extension/Trunk and select VoIP Trunks. Click Add Sip Trunk Select the Type drop-down and select Register SIP Trunk and enter the Provider and Host Name of the SIP Trunk service provider.

  • Page 8: Analog Trunk Settings

    Analog Trunk Settings The IXW-PBXA can also utilize Analog Trunks for outbound calls. The POTS line will plug into one of the FXO Ports on the back of the device. To configure this, expand Extension/Trunk and select Analog Trunks. At the top of the page, click .
  • Page 9 Assign a name and a unique extension to the ring group. The extensions that have already been programmed into the IXW-PBXA will be listed in the left Members menu. Select the desired Members from the list and click to move them to >...

  • Page 10: Registering A Phone Number

    Registering the IXW-PBXA The IXW-PBXA must be registered to the IX Series stations for the stations to call out. From the menu on the left, expand Network Settings and select SIP. Enter the extension number in the ID column, the SIP password in the password column, and the IP address of the IXW-PBXA in the IPv4 Address column.
  • Page 11 Answer it and ensure there is two-way communication between the phone extension and the door station. If there is not, verify the settings on the IXW-PBXA and in IX Support Tool. For more details about the features and information above, please contact Technical Support.
