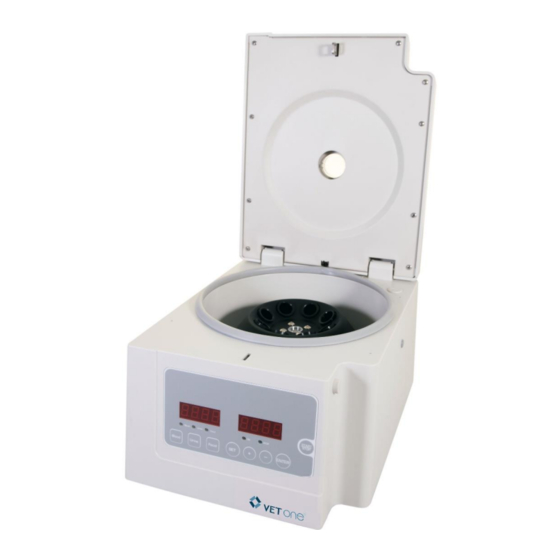

VetOne PowerSpin LX Operation Manual

VetOne PowerSpin LX Operation Manual

Centrifuge with linear speed control 300-4,000 rpm

Advertisement

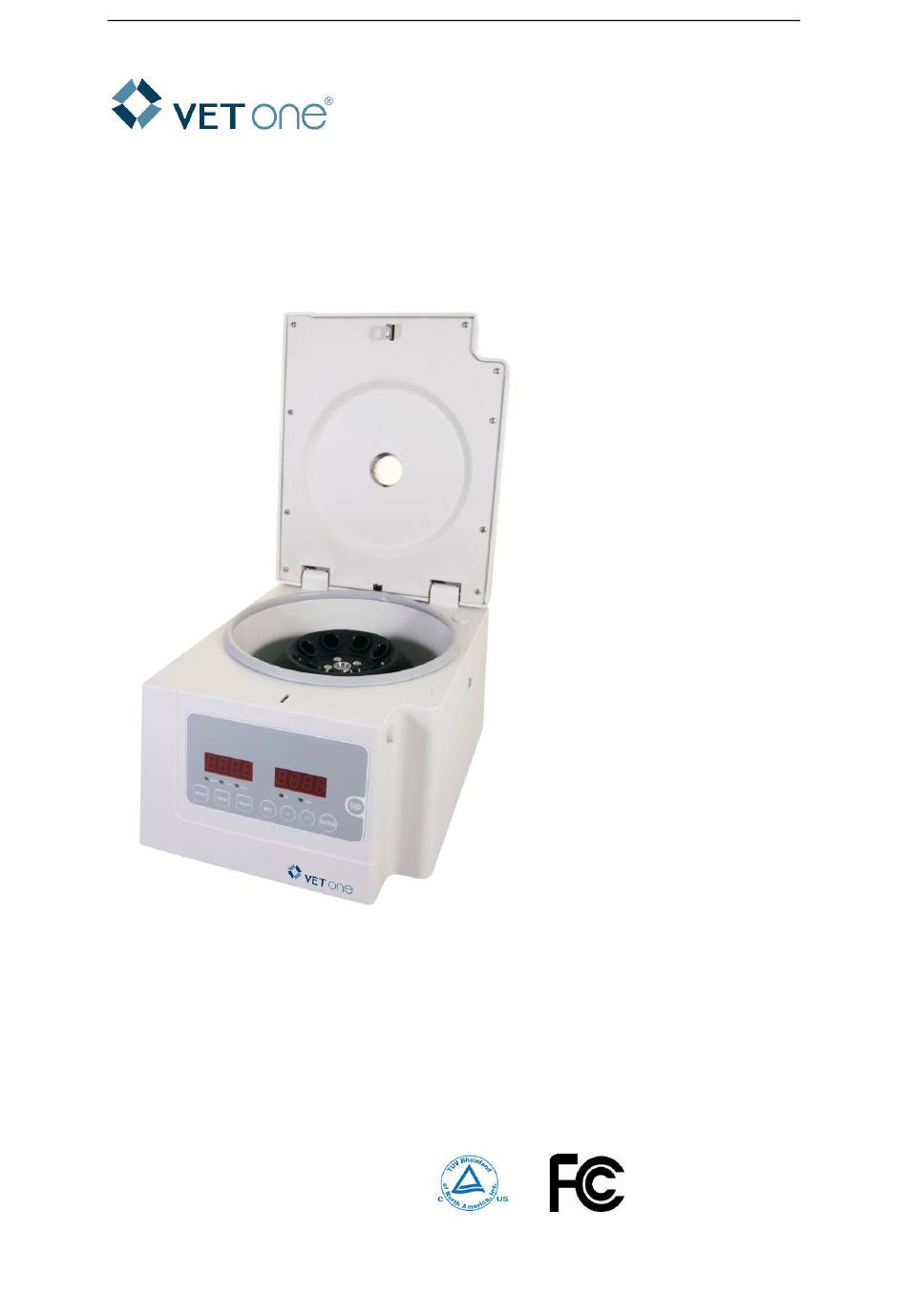

POWERSPIN LX CENTRIFUGE
Operation Manual
PowerSpin™ LX Centrifuge
With linear speed control 300-4,000 RPM
MWI Veterinary Supply Company
VetOne® Brand
651 South Stratford Drive, Suite 100
Meridian, ID 83642-6203
Phone: 800-824-3703
www.mwivet.com
Before operating and using the centrifuge, please carefully read this manual and carefully review
safety precautions.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerSpin LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VetOne PowerSpin LX

  • Page 1 POWERSPIN LX CENTRIFUGE Operation Manual PowerSpin™ LX Centrifuge With linear speed control 300-4,000 RPM MWI Veterinary Supply Company VetOne® Brand 651 South Stratford Drive, Suite 100 Meridian, ID 83642-6203 Phone: 800-824-3703 www.mwivet.com Before operating and using the centrifuge, please carefully read this manual and carefully review...
  • Page 2 POWERSPIN LX CENTRIFUGE Safety Notice The symbol is the internationally accepted safety icon. Please carefully read and fully understand the following safety rules. ⚫ Comply with the operating requirements of the manual to ensure correct and safe use of this centrifuge.
  • Page 3: Specifications

    POWERSPIN LX CENTRIFUGE Specifications Max. rotation speed 4000rpm(300-4000rpm), step: 100rpm Max. relative centrifugal force 1860×g Capacity 15ml×8 Timing 1 min-99 min-HOLD (continuous operation) Noise ≤60dB(A) Drive motor Brushless DC motor Safety mechanism Lid lock, over speed and status diagnosis system...
  • Page 4: Installation

    POWERSPIN LX CENTRIFUGE INSTALLATION Users must comply with the installation instructions contained in this chapter. Warning ⚫ Improper power supply may damage centrifuge. ⚫ Make sure the power source conforms to the requirement before connecting. Location (1) Place the centrifuge on a firm, flat and level bench top, ensure the four feet of this centrifuge stand on the table firmly.
  • Page 5: Operation Panel

    POWERSPIN LX CENTRIFUGE Ventilation slot Tachometer Window Power socket Power switch Figure 6.2 Rear view of centrifuge OPERATION PANEL Item Icon Name Function Blood program key Press to load the parameter settings for blood separation. Urine program key Press to load the parameter settings for urine separation.
  • Page 6: Rotor Preparation

    POWERSPIN LX CENTRIFUGE SET key Press to enter spin parameters Plus key Parameter increase Minus Key Parameter decrease ENTER key Confirm the parameter. Start/Stop key Press to start or stop the spinning cycle Speed display area Time display area Rotor Preparation Balance the rotor ⚫...
  • Page 7: Operation

    POWERSPIN LX CENTRIFUGE OPERATION Caution ⚫ While the centrifuge is in operation, do not move the centrifuge or lean against it. ⚫ Before running the centrifuge, keep the centrifugal chamber clean and be sure to remove any foreign object from the centrifugal chamber.
  • Page 8: Maintenance

    POWERSPIN LX CENTRIFUGE ⚫ After the rotor fully stops, the red LED and green LED indicators will blink continuously, and you will see a flashing text “OPEN” in the time display area to remind you that the operation is over. If there is no operation within 1 minute, the red LED indicator goes out and the green LED indicator stays on.
  • Page 9 POWERSPIN LX CENTRIFUGE E-02 Door opened during operation Immediately close the cover door. Upper cover Close the cover door and start Press the key when the door is open. door failed operation. E-10-86 See the service manual. Contact the service representative.
  • Page 10: Warranty

    Note: This warranty will not extend to any repairs or modifications made to the instrument by some party other than the manufacturer or a party authorized by MWI Veterinary Supply Co., and VetOne® brand. Also, this warranty shall be in effect only upon the notice of the defect to the manufacturer or it’s authorized distributor, or dealer, within five (5) days after the occurrence of said defect.
