Summary of Contents for Diamatic 735PRO

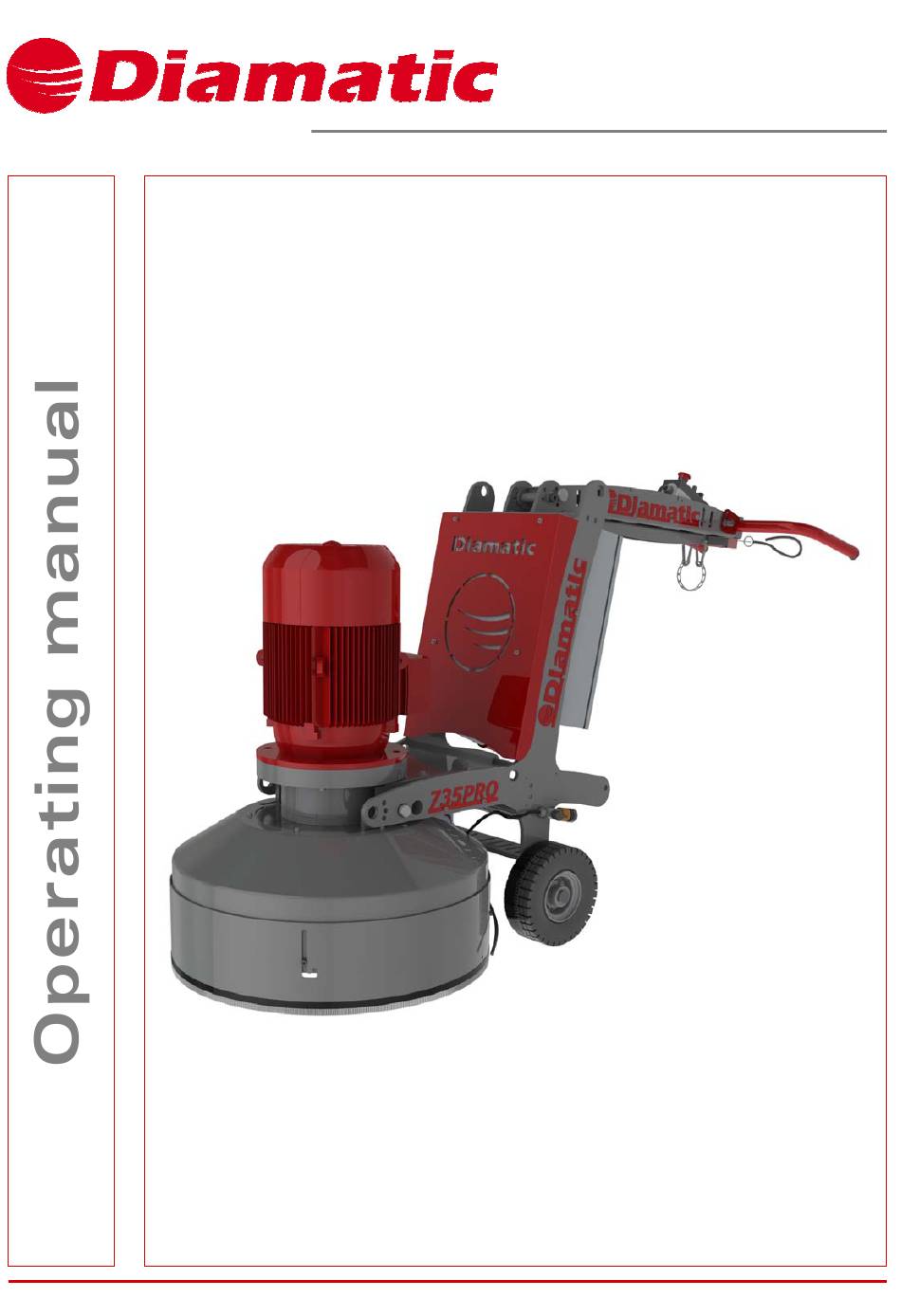

- Page 1 The choice of professionals Diamatic 735PRO Operating manual Version 1.0 Diamatic Utrechthaven 12 NL - 3433 PN NIEUWEGEIN Tel: 0031 (0)30 223 8630 Fax: 0031 (0)30 223 8981 Info@diamatic.eu The Netherlands www.diamatic.eu info@diamatic.eu...
-
Page 2: Ec Declaration Of Conformity
Safety. In case of changes to the machine without our written authorization this declaration loses its validity. Model: Diamatic 735PRO Serial number: XXXXB 1. satisfies the conditions set out in the Machine Directive (Directive 2006/42/EC); Low voltage directive (2006/95/EC, as last amended;... -
Page 3: Table Of Contents
4. Initial operation Checkpoints of electrical safety Checkpoints of machine safety Removing the diamond wings Mounting the diamond wings 5. Operating Switch on the machine Switch of the machine Operating during grinding 6. Maintenance 7. Technical data www.diamatic.eu 3/11 info@diamatic.eu... -
Page 4: Introduction
The Diamatic 735PRO is an electrical driven planetary grinding machine. This is a three headed machine for levelling and polishing of floors. Application The Diamatic 735PRO can be used on almost any floor to plane, to make ready for coatings, or to remove coatings or glue residues. Steer handle... -
Page 5: Accessories
Wing PCD 1 x 1 BG200997/set Wing PCD split BG300117 Cutter plate 240mm E07240 DIAMAG 240mm adapter plate E06447 DIAMAG adapter plate for polishing dots See the service manual for the complete list with all the wings, dots and spare parts. www.diamatic.eu 5/11 info@diamatic.eu... -
Page 6: Safety
The machine contains rotating parts; because of this never pull the machine backwards with a turning motor. Be careful with the machine and pull or let down the machine slowly, big shocks can damage the electrical parts. www.diamatic.eu 6/11 info@diamatic.eu... -
Page 7: Safety Instructions
It is not allowed to lift the machine without appropriate appliances as a lift or crane, lift the machine with a rope on the lifting eyes as showed in imagine mentioned below. Make sure the floating shroud is in transport mode when you transport the machine www.diamatic.eu 7/11 info@diamatic.eu... -
Page 8: Initial Operation
Clean the Diamag plates so the diamond wings will connect well to the plate. Place the diamond wings one by one on the Diamag plates. www.diamatic.eu 8/11 info@diamatic.eu... -
Page 9: Operating
The choice of professionals 5. Operating When operating the Diamatic 735PRO, the following additional safety instructions must be followed closely. Switch on the machine Turn on the dust collector before switching on the machine and connect the dust hose to the machine. -
Page 10: Maintenance
Store the cleaned and dry machine in a dry and humid free room. Protect the electrical motor from moisture, heat, dust and shocks All repair work must to be done by qualified Diamatic personnel, this to guarantee a safe and reliable machine. -
Page 11: Technical Data
Noise level 78dB(A) 78dB(A) Dust hose 75 mm Ø 75 mm Ø connection Suitable filter unit Contact Diamatic, we will assist you with a good advice Design and specifications are subject to change without notice by Diamatic www.diamatic.eu 11/11 info@diamatic.eu...
