DIGITAL MICROSCOPE

User Manual

Model NO.： W7/W10

Thank you for purchasing this device.

Please read this manual carefully before using it.

Table of Contents

Need help?

Do you have a question about the W7 and is the answer not in the manual?

Questions and answers

Summary of Contents for GIMYUAN W7

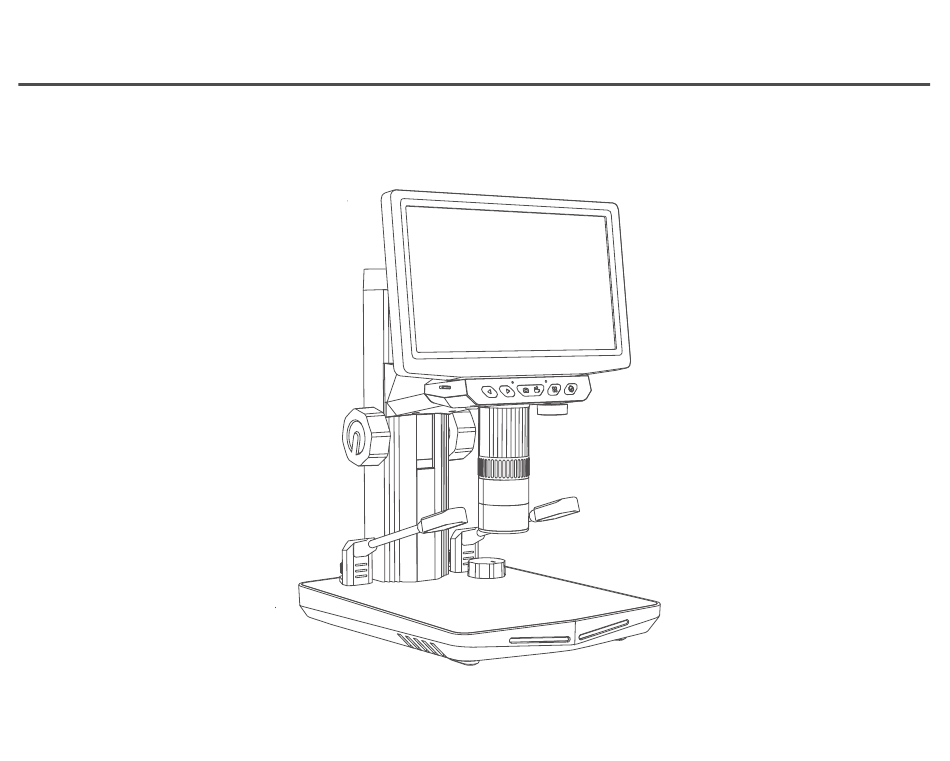

Page 1 DIGITAL MICROSCOPE User Manual Model NO.： W7/W10 Thank you for purchasing this device. Please read this manual carefully before using it.
Page 2: Table Of Contents
Contents 1. Product Overview 2. Important Notes 3. Accessories and tools 4. How to assemble 5. Function Introduction 6. Remote Control 7. Overall Parameters of Microscope 8. System Interface Guide 9. Usage Instructions on computer 10. Microscope Troubleshooting 11. Operating Environment...
Page 3: Product Overview
Product Overview 1. Thank you for purchasing the digital microscope device. Before using it, please read this user manual carefully. 2. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: （1） This equipment will not cause harmful interference (2) This equiment must accept any interference received, including inter- ference that may cause unitended operation.
Page 4: Important Notes
Important Notes 1. Please fully charge the product before ﬁrst use. Please do not charge directly through the PC, but choose a 5V-2A adapter. 2. This product is not a biological microscope and is not suitable for cell biology research. 3.
Page 5: Accessories And Tools
Accessories and tools Hex key x1 Screws x 4 Remote control x1 Data cable x1 HDMI cable x1 Column x 1 Base x 1 Screen x1 Fill light x2...
Page 6: How To Assemble
How to assemble Microscope components Screen Column Card slot Lens light adjust- ment knob height adjustment knob Fill light Fill light brightness adjustment knob Base Decorative light...
Page 7 How to assemble 1. Connect the both by the connectors as 2. Align the column with the groove and insert it. illustrated groove 3. Insert four screws into the base to ﬁx the 4. Insert the ﬁll light into the USB port. column.
Page 8 How to assemble 5.The Type-C on the top of the column is 6. Insert the latch at the back of the host into connected to the host as illustrated . the dovetail slot on the column. 8. Adjust the height of the host to a suitable 7.
Page 9: Function Introduction
Function Introduction Interface usage instructions Base power supply interface HDMI port Charging Camera Charging indicator Memory The red light is on under charging. The green light is on when fully charged. Please refer to page 26 for instructions on how to operate after connect- ing the device to the computer using Type-C.
Page 10 Function Introduction Button Functions 5 6 7...
Page 11 Function Introduction Fill light adjustment Power button Video button knob Press and hold for 3 seconds to Start recording/End recording Left for bright switch on/oﬀ the device Right for dim Focus ring Reset button Menu button Magniﬁcation adjustment Reset to the original factory Open the menu/Exit the Microscope optical focus defaults.
Page 12 Function Introduction Supports connection to HDMI display HDMI output for larger view Connect the microscope to the screen via an HDMI cable, then turn on the device, and you can watch it simultaneously on the large screen.
Page 13: Remote Control
Remote Control OK button Move up/Zoom in/Page up Conﬁrm selection/Play/Pause Back button Menu button Move down/Zoom out/ Page down Photo button Take a photo Video button Start recording/End recording zoom in Observation Mode zoom out page up Preview Mode page down Contains a Battery, Battery Model: CR2050 move up Menu...
Page 14: Overall Parameters Of Microscope
Overall Parameters of Microscope Lens pixels 48 MP Magniﬁcation 1600 X Focusing mode Manual Focusing Distance 0-40 mm Lens Video resolution 720/1080/1440P 2-48M Photo resolution MP4/AVI Video format Photo format...
Page 15 Overall Parameters of Microscope 7”IPS Screen size Screen 10.1” IPS Screen resolution 1024*600P Model No. 5V/2A Input voltage&current Battery capacity 4000mAh lithium battery Other Working time 2.5hrs Charging time 2.5hrs Support expansion 0-64GB Only support high-speed TF capacity storage cardof class 10 or above, not including class 10...
Page 16 Overall Parameters of Microscope Aluminum Alloy+ABS+PC Material Operating tempera- -10℃ ~45℃ ture -10℃ ~45℃ Camera temperature 8 high brightness LEDs Other Light source 2 LED ﬁll light Windows 7and above Operating systems MacOS 11.0 and above Simpliﬁed Chinese/Traditional chinese/English/Français/ Deutsch Languages Español/Italiano/Português/ Japa- nese...
Page 17: System Interface Guide
System Interface Guide Battery Level Date Startup Screen Sample Time 2022/01/07 17:45:16 Video 1080FHD resolution Video File Photo File Setting...
Page 18 System Interface Guide Settings Interface Functions Photo Resolution Date/Time Video Resolution Line Support Exposure Light source Compensation frequency Date Tags Formatting Auto shutdown Default Settings Screen brightness Versions Language Settings 1. Setting: After powering on, the device defaults to the observation mode. Click “...
Page 19 System Interface Guide Settings Interface Functions Photo Resolution Video Resolution Adjust the size of the output image Change the output video resolution, the resolution, the higher the resolution, the higher the resolution, the clearer the clearer the image, but the more memory it image, but the more memory it occupies.
Page 20 System Interface Guide Settings Interface Functions Auto shutdown Screen brightness Set the automatic shutdown time for the Adjust the device screen brightness device, you can choose to automatically (10%-100%) according to the observation shut down or turn oﬀ the function after needs.
Page 21 System Interface Guide If the device has suﬃcient battery power, you can use it directly. The following are the operating instructions without charging. If you want to use the device while charging, please refer to the settings on page 26. 1.
Page 22 System Interface Guide 3. Video Playback: Click button to enter menu mode, click button to select “ ” “ ” , click button to enter the video browsing page, as shown in pictures (2). “ ” “ ” 4. When browsing page, click button 1-2 times to locate at the top left corner of the “...
Page 23 System Interface Guide 5. When viewing photos in full-screen mode click botton for page turning . “ “ ” ” 6. When video playback, click button to rewind, click button to fast forward, “ ” “ ” click button to pause/start. As shown : “...
Page 24: Usage Instructions On Computer
Usage Instructions on computer Diﬀerent systems require diﬀerent software. Please choose and download the corresponding software based on your system. Download for Windows system (Supports Windows 7/8/9/10/11 or higher versions): ① When using Windows 7 and above,download the application“UniLab ” Download link ：...
Page 25 Usage Instructions on computer ② When using Windows 10 and higher versions, search for the software in the Microsoft Store“UniLab” or use the pre-installed software on your computer called“ Camera ” Software “unilab”page, as shown:...
Page 26 Usage Instructions on computer Software “Camera”page, as shown: Note: To switch the camera, click button located at the top right corner of the screen. If the image still cannot be captured, please adjust the privacy settings of your camera.
Page 27 Usage Instructions on computer For Apple systems (Supports macOS X 11.0 or higher versions): ③ Using the pre-installed software on your Apple computer called "Photo Booth" Software “Photo Booth”page, as shown:...
Page 28 Usage Instructions on computer 1. Connect the Type-C cable that comes with the original packaging to USB port of the computer. 2. After powering on， click button to select as shown in pictures(1), click “ ” Camera button as shown in pictures (2), You can watch by opening the software on your “...
Page 29 Usage Instructions on computer Camera Memory Charging Camera Mode Storage Mode...
Page 30: Microscope Troubleshooting
Microscope Troubleshooting Problem description Causes Solutions ① The charging port is not securely plugged in. Device cannot be ① Re-plug the interface ﬁrmly. ② No power source is connected. charged. ② Connect the power supply. ③ Device malfunction. Re-plug the interface, replace the Loose connection, damaged data Device cannot connect data cable, or use a data cable...
Page 31: Operating Environment
Operating Environment Storage Environment Store in a cool, dry place away from direct sunlight for daily use Avoid storing the microscope in places where there is a risk of falling. Falling may cause deviation of the internal lenses or damage to other components, as well as other irreparable damage issues.
Page 32 Thank you!
