Edge Gateway
User's Manual
for amnimo G series
IM AMD03A02-01EN Third edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G Series and is the answer not in the manual?

Questions and answers

Related Manuals for amnimo G Series

Summary of Contents for amnimo G Series

  • Page 1 Edge Gateway User's Manual for amnimo G series IM AMD03A02-01EN Third edition...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Table of Contents ......................... 2 Licenses and Trademarks ....................5 Licenses ............................5 Trademarks ............................5 Introduction ........................6 About Edge Gateway ......................7 Model and Suffix Codes ........................7 RF Supported Band ......................... 8 RF Output Power ..........................
  • Page 3 Table of Contents Outdoor-type Edge Gateway ..................23 Interface ..........................26 LED ............................. 26 DIP switch .......................... 29 Push switch ........................30 Console port ........................31 RS232 port ......................... 33 RS485 port ......................... 34 D IN/D OUT ports ......................35 Power connector ......................
  • Page 4 Table of Contents Soft rebooting ........................62 Hard rebooting ......................... 62 Updating the Package ....................... 63 Updating the package using commands ..............63 Updating the Firmware ..................... 64 Updating the firmware over the network ..............64 Using Edge Gateway ......................66 Revision history .........................

  • Page 5: Licenses And Trademarks

    Warranty coverage and responsibilities  In this product, amnimo does not offer any warranties for the operation of the open source software itself under the terms of the GPL, etc. Trademarks Proper nouns including product or company names, etc. mentioned in this manual are the trademarks ...

  • Page 6: Introduction

    Introduction Introduction Thank you for choosing our Edge Gateway amnimo G series (hereinafter referred to as "Edge Gateway"). The amnimo G-Series Edge Gateway User's Manual (hereinafter referred to as "this manual") explains basic instructions for working with the Edge Gateway.

  • Page 7: About Edge Gateway

    About Edge Gateway About Edge Gateway Model and Suffix Codes This manual is intended for Edge Gateway of the following model number: Check with the model name and specification code on the nameplate of Edge Gateway. Model name/specification code and specification content Item Suffix Codes Description...

  • Page 8: Rf Supported Band

    About Edge Gateway RF Supported Band AG10-010 AG10-020 AG10-030 AG10-040 Mobile LTE (FDD) B1/B3/B8/B18 B1/B18 B1/B3/B7/B8 B2/B4/B5/B12 Network /B19/B21 /B20 LTE (TDD) － － － W-CDMA B1/B6/B8/B19 － B1/B8 B2/B5 (including HSUPA) GSM (GPRS) － － GSM900 GSM850 /DCS1800 /PCS1900 RF Output Power The following table shows the RF output power.

  • Page 9: About This Manual

    Note that for changes to specifications, structure, and used parts where it seems that there are no  problems in terms of function or performance, they may not be revised on each occasion. List of Manuals  amnimo G Series Edge Gateway User's Manual（this manual） https://amnimo.com/manual/edge_gw/en/edge_gw_users_manual.pdf  amnimo Gateway Series GUI User's Manual https://amnimo.com/manual/edge_gw/gui/en/gui_users_manual.pdf ...

  • Page 10: Icons And Symbols Used In This Manual

    About This Manual Icons and Symbols Used in This Manual The icons and symbols in this manual have the following meanings: Provides information about features and operations that should be paid special attention. Provides additional information about features and operations. Provides reference information in this manual or other documents.

  • Page 11: Safety And Modification Precautions

    For the protection and safety of yourself and Edge Gateway or systems that include Edge Gateway, follow the safety instructions in this manual when handling Edge Gateway. If you do not follow these instructions, amnimo cannot guarantee safety. Modification to Edge Gateway without permission is strictly prohibited.

  • Page 12: Use Of Edge Gateway Main Unit

    Safety and Modification Precautions Use of Edge Gateway Main Unit Do not disassemble or modify.  Doing so may cause fire, electric shock, or personal injury. Do not put any foreign objects, including metal objects, such as pins and wires ...

  • Page 13: Precautions About Radio Communications

    (-20℃ to 60℃) must be observed. In addition, be careful when handling the bottom part, which can become hot under certain use environments and conditions. Disclaimer for Edge Gateway amnimo shall not offer any warranties with regard to Edge Gateway except as provided in a separate  warranty statement.

  • Page 14: Conformance With Standards

    Safety and Modification Precautions Conformance with Standards The various standards that Edge Gateway meets are described as follows. Mark Standards/Region Description of the mark, etc. Telecommunications This mark indicates that a device has obtained a technical Business Law/Japan standards conformity approval, etc. concerning the Telecommunications Business Law of Japan.

  • Page 15: Telecommunications Business Law/Japan

    Safety and Modification Precautions Telecommunications Business Law/Japan Edge Gateway (Japanese model) has the following certifications: Eligible countries Authentication type Product form name Certification number Japan Certification of the AG10-010JP-10 Certification number T: D200011019 Telecommunications AG10-020JP-10 Certification number T: D200012019 Business Law AG20-010JP-21 Certification number T: D210073020 Design certification of...

  • Page 16: Ce Marking/Eu

    Grazper Technologies ApS, Frederiksgade 7, 1st floor DK-1265  Copenhagen K, Denmark Hereby, amnimo.Inc declares that the radio equipment type, AG10-030GA-10-XXXX, is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following website: https://amnimo.com/manual/edge_gw/ce/doc...
  • Page 17 Safety and Modification Precautions RoHS Directive (2015/863/EU) EN 50581: 2015  To comply with the RF exposure requirements, this equipment must be operated with a minimum of 30 cm separation from the user. This is a regulatory requirement and applies to all 2G/3G/4G capable devices meeting standard regulatory compliance such as the compliance standards listed above.

  • Page 18: Weee Directive/Eu

    Please ask Grazper Technologies ApS, or your authorized dealer about collection points in your area. Within the scope of application of this Directive, amnimo. Inc is responsible for the proper disposal of this device. This directive is only valid in the EU.
  • Page 19 Safety and Modification Precautions This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 20: Chap 1

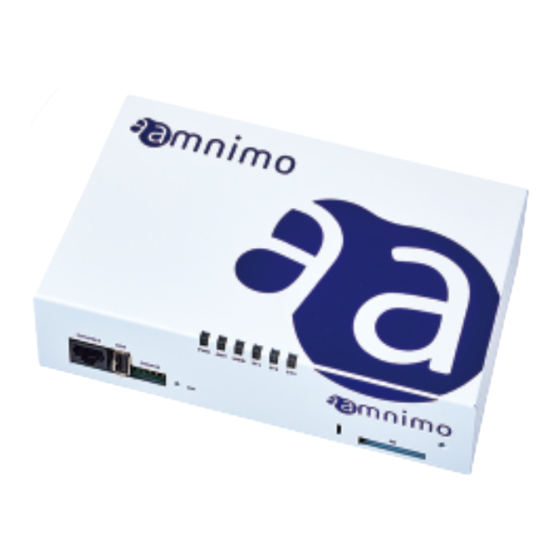

    Chap 1 Product Outline of the Edge Gateway Chap 1 Product Outline of the Edge Gateway This chapter explains the elements that make up the main unit of Edge Gateway. Names and Functions of Edge Gateway's Parts This section explains the basic configuration of the front and rear of Edge Gateway. Indoor-type Edge Gateway This subsection explains the basic configuration of the main unit of the indoor-type Edge Gateway.

  • Page 21: Rear

    Chap 1 Product Outline of the Edge Gateway Rear The rear configuration of Edge Gateway is shown as follows. ❶ ❷ ❸ ❹ ❻ ❺ ❼ ❽ ❾ ❿ ⓫ Name Description ❶ Sub antenna connector Connect the Cellular(2G/3G/4G) antenna. SMA-J type. ❷...

  • Page 22: Three-View Drawing

    Chap 1 Product Outline of the Edge Gateway Three-view drawing The three-view drawing is shown as follows. The nameplate label uses AG10-030GA-10 as an example.

  • Page 23: Outdoor-Type Edge Gateway

    Chap 1 Product Outline of the Edge Gateway Outdoor-type Edge Gateway This section explains the basic configuration of the main unit of the outdoor-type Edge Gateway. Front (with the lid open) The front configuration (with the SD card lid open) is shown as follows. ❶...
  • Page 24 Chap 1 Product Outline of the Edge Gateway Three-quarter view (with the lid open) The three-quarter view is shown below. ❹ ❺ ❻ ❸ ❶ ❷ Name Description ❶ ETH0 port Standard Ethernet port which supports Gigabit Ethernet. ❷ LAN0, LAN1, LAN2, and Standard Ethernet port which supports Gigabit Ethernet.
  • Page 25 Chap 1 Product Outline of the Edge Gateway Three-view drawing The three-view drawing is shown as follows.

  • Page 26: Interface

    Chap 1 Product Outline of the Edge Gateway Interface This section explains detailed information about each interface installed in Edge Gateway. This section explains the lighting or flashing patterns of the LED installed on the front of the Edge Gateway. Description of the LED icons Description Indicates that the red and green LEDs are off.
  • Page 27 Chap 1 Product Outline of the Edge Gateway Item Remarks Shutdown is 125 ms intervals processing Antenna level Normal RSSI (-73 dBm or higher) Somewhat 500 ms intervals normal RSSI (-74 dBm to -83 dBm) Medium 125 ms intervals RSSI (-84 dBm to -93 dBm) Somewhat 125 ms intervals weak...
  • Page 28 Chap 1 Product Outline of the Edge Gateway...

  • Page 29: Dip Switch

    Chap 1 Product Outline of the Edge Gateway DIP switch Set the startup mode using the DIP switch for configuration on the front of Edge Gateway. Description of the DIP switch icons DIP switch Description ON status OFF status For the startup mode, the DIP switch No.4 may be either ON or OFF. It is not referred by the boot loader. (used only on the application side.) DIP switch settings for Linux startup mode ...

  • Page 30: Push Switch

    Chap 1 Product Outline of the Edge Gateway Push switch After starting up the OS, press and hold the push switch for three seconds to turn Edge Gateway into the power-off state. After the power-off state lasts for a specific time, Edge Gateway will be restarted by the Watchdog Timer. By this feature, you can recover Edge Gateway even if you accidentally powered off by a remote command operation (such as poweroff command), instead of going to the site.

  • Page 31: Console Port

    Chap 1 Product Outline of the Edge Gateway Console port Indoor-type Edge Gateway Since the console of the indoor-type Edge Gateway is compatible with a CISCO Console at the RS-232 level, a CISCO console cable can be used. For pin numbers of the signals assigned to RJ-45 and the available connections to Edge Gateway, refer to the following table.
  • Page 32 Chap 1 Product Outline of the Edge Gateway Outdoor-type Edge Gateway Since the console of the outdoor-type Edge Gateway is a USB Type-C, a USB Type-C cable can be used. You may need to install FT230X Basic UART drivers on a PC depending on the PC to which it is connected. Select the driver for your environment at the following site and follow the instructions to install it.

  • Page 33: Rs232 Port

    Chap 1 Product Outline of the Edge Gateway RS232 port For the indoor-type Edge Gateway, RS-232 is supplied with a D-sub 9-pin male and operates as a DTE. It supports hardware flow control and software flow control. The maximum baud rate is up to 230 kbps. Pin numbers of RS232 port Pin assignments of RS232 port Pin assignment...

  • Page 34: Rs485 Port

    Chap 1 Product Outline of the Edge Gateway RS485 port For the outdoor-type Edge Gateway, RS-485 is supplied with a terminal block and the interface is not isolated. Half-duplex communication is possible. Termination resistor (120 Ω) can be enabled or disabled. The maximum baud rate is up to 230 kbps.

  • Page 35: D In/D Out Ports

    Chap 1 Product Outline of the Edge Gateway D IN/D OUT ports This subsection explains digital inputs (D IN) and digital outputs (D OUT). Interface circuits Edge Gateway has interfaces for digital input (D IN) and digital output (D OUT). Each port can be connected to one connector.
  • Page 36 Chap 1 Product Outline of the Edge Gateway Circuit schematics of the internal interfaces for digital input and output are shown as follows. Schematic example of digital input Internal Interface Schematic example of digital output Internal Interface...
  • Page 37 Chap 1 Product Outline of the Edge Gateway Pin assignment This subsection explains the pin assignments for the digital inputs (D IN) and digital outputs (D OUT) of Edge Gateway. Digital input (D IN) Has four isolated digital inputs.  The input voltage is shared between 12 V and 24 V and accepts both positive and negative voltages.
  • Page 38 Chap 1 Product Outline of the Edge Gateway Digital output (D OUT) Has two isolated digital outputs.  Up to 100 mA of current can be carried by a PhotoMOS relay. However, Edge Gateway does not provide  power. The connector has different model numbers for the indoor-type and outdoor-type. ...
  • Page 39 Chap 1 Product Outline of the Edge Gateway Connection example Connection examples of digital inputs (D IN) and digital outputs (D OUT) of Edge Gateway are shown as follows. Connection example of digital inputs Connection example of digital transistors Connection example of volt-free contact switches...
  • Page 40 Chap 1 Product Outline of the Edge Gateway Connection example of the digital outputs Connection example of LEDs Connection example of relays...

  • Page 41: Power Connector

    Chap 1 Product Outline of the Edge Gateway Power connector This subsection explains power connectors. Power connector Pin assignment Pin number Pin assignment Details 1, 2 (top) ＋ Positive side of power supply 3, 4 (bottom) Negative side of power ―...

  • Page 42: Product Specification Of Edge Gateway

    Chap 1 Product Outline of the Edge Gateway Product Specification of Edge Gateway This section explains the specifications of Edge Gateway hardware and software. Hardware specifications Category Indoor type (AG10) Outdoor type (AG20) Arm Cortex-A53 1000 MHz (2 cores) 2 Gbyte NOR-FLASH 4 MByte NAND-FLASH...

  • Page 43: Software Specifications

    Setting method  Dedicated command line interface (CLI) for IoT router amnimo GUI  Dedicated Graphical User Interface (GUI) for amnimo IoT router Web browser setting Firmware update apt (incremental update) / amfirm (full update) Log management syslog Device management system...
  • Page 44 Chap 1 Product Outline of the Edge Gateway...

  • Page 45: Factory Default Settings

    192.168.0.254/24 - lan0/lan1/lan2/lan3 Default account ID: admin  PW: No settings (set at first login)  Default host name amnimo  Server settings SSH server: Disabled  DHCP server: Disabled  DNS server: Enabled* ...

  • Page 46: Poe Settings

    Chap 1 Product Outline of the Edge Gateway PoE settings All ports are set as follows: Power supply: Enabled  Startup delay time: 0 seconds  Current limit: auto  Packet Filtering setting Index Port Protocol Description Transmission Setting Policy number Number source/destination...

  • Page 47: Verified Environment Compatible With The Gui Function

    Chap 1 Product Outline of the Edge Gateway Verified Environment Compatible with the GUI Function Browser Verified version Windows10 Pro2004（64bit) Google Chrome 94.0.4606.81 (64bit) Windows10 Pro20H2（64bit) Microsoft Edge Windows10 Pro21H1（64bit) Firefox mac OS big Sur 11.2.3 Safari 15.0(16612.1.29.41.4,16612) Google Chrome Firefox * Will be supported in future versions.

  • Page 48: Dustproof And Waterproof Performance

    Chap 1 Product Outline of the Edge Gateway Dustproof and Waterproof Performance The outdoor-type Edge Gateway has an IP65 dustproof and waterproof rating. To maintain dustproof and waterproof status, install equivalent waterproof cable glands and PF pipe connectors and confirm the performance.

  • Page 49: Chap 2 Installation And Operation Of Edge Gateway

    Chap 2 Installation and Operation of Edge Gateway Chap 2 Installation and Operation of Edge Gateway This chapter explains the basic operations such as startup, shut down, and restart of Edge Gateway. It also explains package and firmware updates that are important for Edge Gateway operation. Installing Edge Gateway Prepare Edge Gateway for installation.
  • Page 50 Chap 2 Installation and Operation of Edge Gateway Main unit and accessories (Outdoor-type Edge Gateway) The following items are included in the package of the outdoor-type Edge Gateway: Outdoor-type Edge Gateway main unit x 1  "Before You Use" (IM AMD05A01-11JA) x 1 (A4, folded in half) ...
  • Page 51 Chap 2 Installation and Operation of Edge Gateway Optional accessories (Indoor-type Edge Gateway) There are the following optional accessories for the indoor-type Edge Gateway: Product name Figure Part Specifications and notes number AC adapter (DC M7901YA DC 24 V/2 A, 24 V/2 A) load: 30 W, environment: 60℃...
  • Page 52 Chap 2 Installation and Operation of Edge Gateway Product name Figure Part Specifications and notes number Direct current M7901YK Power connector with one power cable end untreated cable * 1 DO NOT use for AG10-030GA-10. * 2 MY7901YC is only available in Japan. *３It can be connected to the main connector and sub connector.
  • Page 53 Chap 2 Installation and Operation of Edge Gateway Optional Accessories (Outdoor-type Edge Gateway) There are the following optional accessories for the outdoor-type Edge Gateway: Product Figure Part Specifications and name number notes Rain-proof M7901YV with round crimp terminals. cable Outer diameter 9.15 cable M7901YQ Compatible...
  • Page 54 Chap 2 Installation and Operation of Edge Gateway Optional accessories are not covered under Edge Gateway warranty.  BCPK203015S from TAKACHI ELECTRONICS ENCLOSURE CO., LTD is used as an enclosure for the outdoor-type Edge Gateway. You can use genuine options from TAKACHI ELECTRONICS ENCLOSURE CO., LTD compatible with the enclosure.

  • Page 55: Preparing For Setup

    Chap 2 Installation and Operation of Edge Gateway Preparing for setup Prepare the following items as needed: For indoor-type Edge Gateway RJ45 LAN cable (straight cable of one meter or less in length)  Serial console (PC or equivalent device that has a D-sub 9-pin connector) ...

  • Page 56: Connecting Edge Gateway

    Chap 2 Installation and Operation of Edge Gateway Connecting Edge Gateway The connection diagram for Edge Gateway is shown as follows. For indoor-type Edge Gateway Front RJ-45/D-sub 9-pin conversion adapter RS-232 Rear adapter Micro SIM Power card outlet...

  • Page 57: For Outdoor-Type Edge Gateway

    Chap 2 Installation and Operation of Edge Gateway For outdoor-type Edge Gateway Three-quarter view (with the lid open) USB cable Micro SIM card AC power cable...

  • Page 58: Starting Up Edge Gateway

    The status of Edge Gateway can be checked through the LEDs on the main unit and the console port. "1.2.1 LED"  "1.2.4 Console port"  About the initial password for the boot loader The initial password for starting up Edge Gateway in U-Boot mode is set to "amnimo". Be sure to change this password.

  • Page 59: Shutting Down

    Chap 2 Installation and Operation of Edge Gateway Shutting Down There are two ways to shut down: using the push button and using the CLI commands. Precautions regarding the autostart feature Since Edge Gateway is intended to operate 24 hours a day, it has the function to automatically recover from a shutdown when a failure occurs, etc.
  • Page 60 Chap 2 Installation and Operation of Edge Gateway...

  • Page 61: Shutting Down Using Commands

    To execute a shutdown, you must use the sudo command. Example An example of a command executing in bash is shown as follows: admin@amnimo:~$ sudo systemctl poweroff  ←Enter the password for the login account and press the [ Enter ] k [sudo] password for admin: Stopping Session 1 of user admin.

  • Page 62: Rebooting

    Example An example of a command executing in bash is shown as follows: admin@amnimo:~$ sudo amctrl reboot -t soft  ←Press the [ y ] key followed by the [ Enter ] key Are you sure you want to restart? (y/n): To reboot Edge Gateway, you must use the sudo command.

  • Page 63: Updating The Package

    Chap 2 Installation and Operation of Edge Gateway Updating the Package This section explains how to update applications installed on Edge Gateway. Updating the package using commands Since Edge Gateway is based on Ubuntu 18.04 LTS, you can update each application from the apt repository using a package management system.

  • Page 64: Updating The Firmware

    Serial console eth0 Mobile network amnimo G series Internet 3G/4G The default IP address on the eth0 side is fixed to the DHCP client. Set it according to the network of a device such as an optical network unit (ONU) on the Internet.
  • Page 65  Downloading... ######################################################################### 100.0% version: amnimo G series AG10 version 1.1.2 build 45261 contents: bootloader rootfs userfs sharefs For more information, refer to "2.4.2 Checking the firmware files" in the "CLI User's Manual"  Update the firmware file.

  • Page 66: Using Edge Gateway

    Document name Document number Edge Gateway Startup Guide IM AMD03A01-10JA https://amnimo.com/manual/edge_gw/sg/en/edge_gw_sg.pdf amnimo Gateway Series CLI User's Manual IM AMF03A01-01JA https://amnimo.com/manual/edge_gw/cli/en/cli_users_manual.pdf amnimo Gateway Series GUI User's Manual IM AMF03A02-01JA https://amnimo.com/manual/edge_gw/gui/en/gui_users_manual.pdf Installation Guide for the Outdoor Type (Edge Gateway / IoT Router) IM AMD05A01-12JA https://amnimo.com/manual/edge_gw/set/en/edge_gw_set.pdf...

  • Page 67: Revision History

    Safety and Modification Precautions Revision history First edition Issued in May 2021 Second edition Issued in September 2021 Third edition Issued in October 2021...
  • Page 68 Edge Gateway User's Manual for amnimo G series October 18, 2021 - Third edition IM AMD03A02-01EN All Rights Reserved. Copyright © 2020, amnimo Inc...
