Meri Energy ME-LVB-6.5 Quick Manual

ME-LVB-6.5
Read Manual carefully before installation to understand product features and safety precautions.
Installer must use insulating tools and wear safety equipment.
Battery Pack Quick Guidance

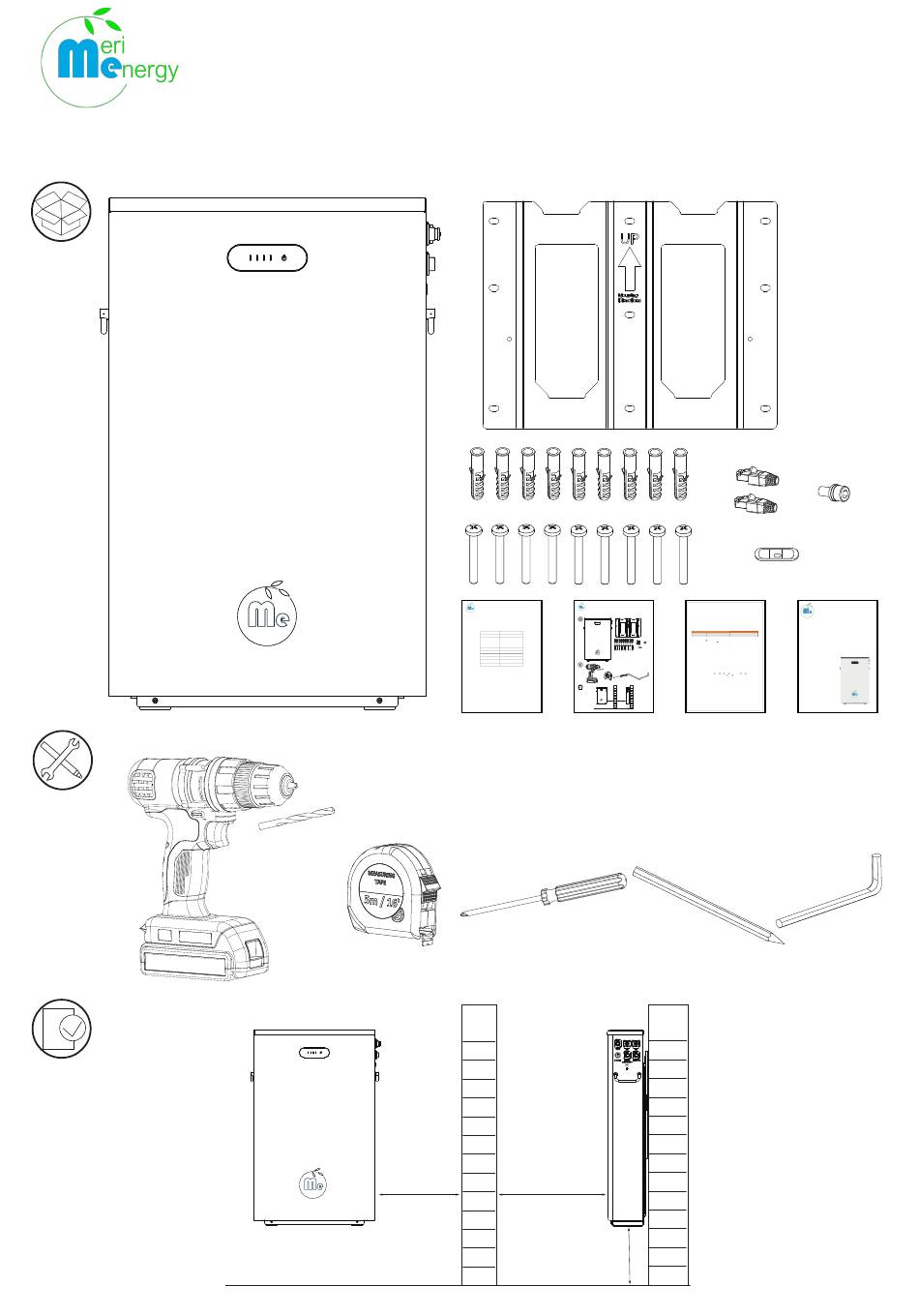

Accessory List
Item
ME-LVB-6.5 Battery
Fastening kit
Wall-mounted Bracket
Terminator
Manual
Quick Guidance
Warranty Card
Accessory List
2
Bit diameter: 12 mm
≥300mm
1
ME-LVB-6.5 Battery Pack Quick Guidance
Read Manual carefully before installation to understand product features and safety precautions.
Installer must use insulating tools and wear safety equipment.
Quantity
1pcs
M8 expansion screw 9pcs
M8*H60 anchor 9pcs
M6 screw 1pcs
Bubble level 1pcs
1pcs
2pcs
1pcs
1pcs
1pcs
1pcs
Bit diameter: 12 mm 2
Hex key #5
≥300mm ≥130mm
500mm>d≥0mm
1
≥130mm
500mm>d≥0mm
Warranty Card
1.Purpose
This limited warranty (herein after "Warranty") described below applies to the residential application with Dowell Battery Storage
System supplied by Shanghai Dowell Technology Co., Ltd (herein after "DOWELL") with the types iPack C3.3/iPack C6.5
(herein after "Products") to Original end user via the way authorized by DOWELL.

2. Warranty Condition

2.1. Warranty Period
Unless otherwise stated in this Warranty, the Performance Warranty period for the Products is Ten (10) years from the invoice date.
2.2 Performance warranty
DOWELL warrants that the Product retains either sixty percent (60%) of Usable Energy for Ten (10) years from the invoice date,
or for a Minimum Through Output Energy in table below which is calculated from invoice date, whichever comes first.
Product Type Usable Energy(kWh) Minimum Through Output Energy (MWh)
iPack C3.3 3 13.5 ME-LVB-6.5 Lithium Iron Phosphate Battery
iPack C6.5 6 27
Residential Energy Storage System
2.3 Capacity measurement condition
Ambient temperature: 25±2
Initial temperature detected by BMS/BMS: 25±2 User Manual
Charging/Discharging conditions:
Charge: 0.2C CC/CV (charges at a constant voltage of 56.8V till the current reaches 2A)
Discharge: discharge at 0.2C till the voltage reaches 44.8V, 0.2C current iPack C3.3(12.8A), iPack C6.5(25.6A)

3. Preconditions for Warranty

Date: 2021-03-25
3.1 Product shall be installed and serviced exclusively by recognized or partner authorized by DOWELL.
3.2 The installation of the Product for the end user shall be completed within maximum 1 month from the date title to the product
transferred from DOWELL to an original end user.
3.3 The battery installation location should meet the requirements of User Manual.

4. Exclusion of Warranty

This limited warranty does not cover following damage due to:
• Transport damage;
• Failure of, or damage caused by any third-party products.
• Failure to observe the user manual, the installation guide, and the maintenance regulations;
• Unauthorized Modifications, changes, or attempted repairs;
• Out of the storage temperature range : -30 to -20 , +45 to +60 (within 7 days); -20 to +45 (within 6 months);
• Out of the range of operating environmental requirements: -10 to +50 ; humidity range 5% to 90% no condensation,
installation altitude should be less than 2000 meters.
• Noncompliance with the applicable safety regulations;
• Defects or non-conformities which are caused by normal wear and tear
• Outside influence and force majeure including but not limited to power failure surges, lightning, flood, fire, storm, accidental
breakage;
This limited warranty shall be invalid if the obligations and exclusions described above are not complied or not observed.

5. Warranty Restriction

5.1 For any non-applicable warranty claim which indicates invalid, costs incurred by DOWELL or installer shall be covered by
end user only if this non-applicability was invisible to end user according to given circumstances.
5.2 This Warranty Letter and above remedies shall be exclusive and replace all other guarantees and remedies, oral or in writing,
expressed or implied. No distributor, agent or staff of DOWELL is authorized to make any revision, extension or addition to the
quality warranty. The legality and enforceability of remaining clauses herein shall not be affected or damaged if any of clauses
herein is adjudged to be illegal or unenforceable.
5.3 DOWELL is not responsible in any way for any claims, damages, losses, expenses, costs or liabilities whatsoever (including,
without limitation, any direct or indirect damages for loss of profits, business interruption) resulting or arising directly or
indirectly from your purchase or use of products and its system.
