Summary of Contents for MOTUL BIOCLEAN

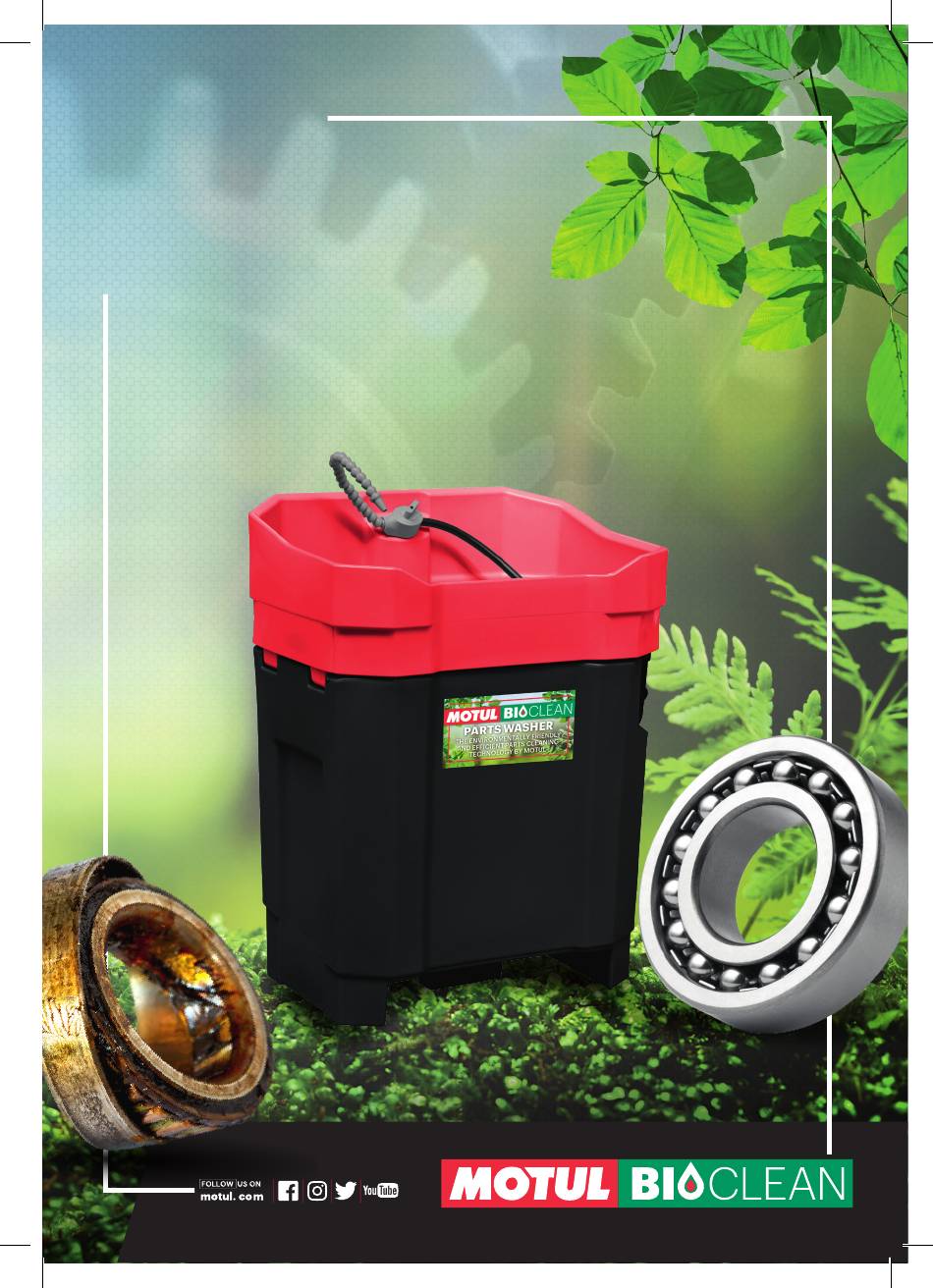

Page 1 MOTUL BIOCLEAN PARTS WASHER OPERATING INSTRUCTIONS...
Page 2 Operating Instructions Motul BioClean Parts Washer – English Operating Instructions Motul BioClean Parts Washer – English Subject to technical changes. No liability for printing errors. All texts and illustrations are protected by copyright.
Page 3 This operating instruction has been designed to give you all informa- tion on the Motul BioClean parts washer. To ensure perfect functioning of your Motul BioClean parts washer carefully read this operating instruction before using the machine. Familiarize yourself with this unit’s operation, its particular features, applications and limitations.
Page 4: Table Of Contents
Operating Instructions Motul BioClean Parts Washer – English TABLE OF CONTENTS 1. General Points 2. Fundamental Safety Instructions 3. Product Description 3.1 Assembly and Mode of Operation 3.2 Intended Use 4. Technical Data 5. Start Up 6. Operating Instructions 7. Maintenance 8.
Page 5: General Points
1. GENERAL POINTS These operating instructions are applicable to the Motul BioClean parts washer. It specifies the information necessary for its correct handling and usage and covers the initial set up, operation, maintenance, shut down and waste disposal. The warn- ings and advices mentioned in these instruction are to be observed and adhered to.
Page 6: Product Description
Operating Instructions Motul BioClean Parts Washer – English 3. PRODUCT DESCRIPTION 3.1 Assembly and Mode of Operation...
Page 7 Filter bag bracket Sink gasket G48201 Sink rod G484585 G48210 Allen screw, M6x8 Connecting bolt short G48D312 Connecting bolt long G48D311 G52030-02 Replacement control box Motul BioClean parts washer Tank G50250-01 Drain cock (clamp screw) G48214 G552024 Threaded nipple 1"...
Page 8 Operating Instructions Motul BioClean Parts Washer – English...
Page 9 Control box Order No. Housing G48001 Power cord G24326 G484529 Cable gland M16 Lock nut M16 G484530 G48002 Allen screw M5x10 G48100 Nitril hose inside diameter 4 mm G48D478 G29626-03 Y-hose connection Wooden air diffuser G24026-01 Air diffuser bracket G484525 G20126 Pump 40 W, 230 W Pump bracket G48003...
Page 10 The used cleaning liquid runs through the sinks centered filter back into the container. Microorganisms then break down the oil and fat impurities. Comparison between conventional Parts Cleaner with Cold Cleaner and Motul BioClean liquid Cold...
Page 11: Intended Use
3.2 Intended Use The Motul BioClean parts washer is used for the efficient and environmentally friendly cleaning of work pieces that are soiled with oil and grease using only the Motul BioClean liquid (Art. No. 110903, 20 liter jerry can).
Page 12: Start Up
Never turn off the Motul BioClean parts washer unit unless for servicing or longer peri- ods of non-use (more than two weeks, see chapter 6. Operation Instructions). Once the...
Page 13 6. Operation Instruction Turn the cleaning pump on pressing pump switch. Wet the sink, parts to be cleaned and any brushes prior to cleaning; this will prevent grease and dirt from sticking to the surfaces. The maximum load of 100 kg must not be exceeded! Depending on the positioning of the 3-way control valve, cleaning can occur via: „...
Page 14: Maintenance
Operating Instructions Motul BioClean Parts Washer – English 7. Maintenance Warning! Before beginning to work on fixtures, make sure that there is no electrical current. Pull the plug from the mains! Check that the unit has no current! For maintenance purposes the table can be opened sideways.
Page 15 Filters The Motul BioClean parts washer is equipped with three-part filtration system: a coarse filter on the surface of the sink, underneath a mesh filter for finer material or other impurities and then a magnet. It is recommended to clean these filters and the magnet outside the parts washer daily.
Page 16: Notes For Waste Disposal
Cleaning of the parts takes place with an alkalescent, biodegradable, non-toxic cleaning agent in a warm aqueous solution. Used Motul BioClean liquid can usually be added to your other oil-water waste (such as water soluble cutting fluids) for disposal. Taking into account local regulations, residual liquid can be supplied to a purification plant.
Page 17 In case of doubt better change the complete liquid. Solution Odour It is normal that the Motul BioClean liquid may emit a apple odour at start-up. As oil and grease are introduced into the cleaning solution, this odour will diminish leaving only a...
Page 18: Wiring Diagram
Operating Instructions Motul BioClean Parts Washer – English 10. Wiring diagram Version : E-GT 1.1 Connections X1 Power supply Air pump Heater Liquid pump Signal light Pump push button Sensor plug Error Red LED blinking: Level low, top up device...
Page 19: Regulations
11. Regulations The units are subject to strict safety regulations. Therefore, faulty parts must be replaced by original spare parts only. Motul BioClean parts washer complies with the CE criteria.
Page 20 MOTUL Deutschland GmbH Butzweilerhofallee 3 | D-50829 Köln | motul.de T + 49.(0)221.67003 0 | F + 49.(0)221.67003 199 E info@de.motul.com | facebook.com/motul.de...
