MYCANOE DUO

OWNER'S MANUAL

WARNING!

Before you assemble or use MyCanoe,

Please carefully read entire manual and

follow all instructions. Failure to follow

the instructions may result in serious

injury or death. Keep this manual for

future reference and provide it to anyone

using MyCanoe.

Table of Contents

Need help?

Do you have a question about the DUO and is the answer not in the manual?

Questions and answers

Summary of Contents for MYCANOE DUO

Page 1 United States Patent MYCANOE DUO OWNER’S MANUAL WARNING! Before you assemble or use MyCanoe, Please carefully read entire manual and follow all instructions. Failure to follow the instructions may result in serious injury or death. Keep this manual for future reference and provide it to anyone...
Page 2: Table Of Contents
Welcome to the world of Canoeing! Anytime Anywhere, MYCANOE !! •MYCANOE is working passionately to make water sports such as canoeing more accessible to everyone. •MYCANOE works with the Canoe Research Center to improve quality and develop new products. •We may make improvements and changes to products at any time without announcement .
Page 3: What Is Mycanoe Duo

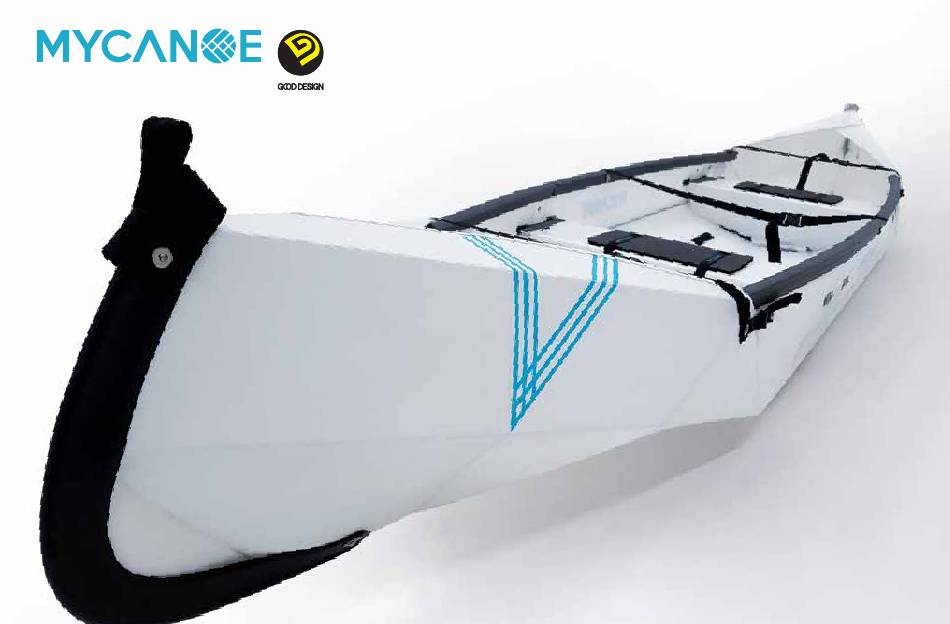

1.What is MYCANOE DUO? MYCANOE DUO is a patented high performance origami folding canoe. MYCANOE DUO is a rugged and safe canoe made with one sheet of corrugated plastic that fits in a small sedan when it is folded. When it is unfolded and assembled, it transforms into a 14-ft canoe.
Page 4 1.4 Parts name of MYCANOE DUO HIN Tag Gunwale Cap Deck Webbing Bow Webbing Floor Board Deck Webbing Bow Seat End Cap Stern Stern Webbing Stern Seat Yoke Webbing Deck Gunwale Spring Cam HIN Tag Bow Cap...
Page 5: Assembly
2. Assembly Please watch assembly video at www.oricanoe.com. For the first time assembly, allow 5 minutes. Once you understand the entire assembly steps, it should take 5~10 minutes. If you need any assistance, please contact us either by phone at 800.566.6965 or email at service@oricanoe.com PACKAGE BOX Seat Floor Board...
Page 6 2.1 Open and unfold the package ※Scan QR code on the floor board with your mobile phone and refer to the video clip on how to assemble it. Assembly Disassembly Unbuckle the covers and remove the main body. Assemble the seat using webbing. If the folded main sheet is opened, it unfolds automatically.
Page 7 2.2 Assembly Step1 Press one side of the hull from inside to Fasten the buckle of the central webbing. outside to spread. Pull the webbing of the spring cam. Connect the gunwale cap. (It’s easier to pull it while pressing the folding groove) ※...
Page 8 2.3 Assembly Step2 Assemble 2 seats first How to insert a seat 1. First, insert both pins of the seat into the hole of the holder as in ①. 2. Push the seat in the direction of ②(LOCK). ① ② ①...
Page 9 2.4 Assembly Step3 Place the floor boards and install the seats. ※ Please match MYCANOE logo puzzle to place the floor board in right position. Fasten the buckle on the bow first, then tighten deck webbing. Please do the same for Stern.
Page 10: Disassembly And Packaging
3. Disassembly and Packaging 3.1 Buckle release and the gunwale cap removal Remove a seat. Release all buckles on the canoe How to remove a seat. ① ② 1. First, pull the stopper as in ①. Remove the gunwale cap. 2.
Page 11 3.2 Disassembly As shown in the figure, it is convenient to bend by pressing the vertex on the side of hull Do the same way to the opposite side...
Page 13 3.3 Making a package Place one seat on the floor board, then place the body and the other seat in turn and buckle it. Completed package box...
Page 14: How To Use Oar Lock (Optional)
4. How to use Oar Lock (optional) ※ Oar lock is not included in the standard goods and must be purchased separately. 4.1 Oar Lock set Components 4.3 How to use Oar Lock2 + Oar2 + Pauch Unscrew the knob as far Push the left arm up and open it.
Page 15: How To Use Stabilizer (Optional)
5. How to use Stabilizer (optional) ※ Stabilizer is not a standard product and must be purchased separately. 5.1 Stabilize Components 5.3 How to use ※ Before assembling the stabilizer, please refer to "5.4 How to injection to Stabilizer" to inject air first. Place the stabilizer Put the canoe in the middle of side by side on the floor.
Page 16 5.4 How to injetion to Stabilizer (optional) Before Inflation Turn the core while pressing it down to make the core rise up. Open the valve cap. Inflation Deflation With the core raised, Open the valve cap, Connect the pump inlet turn the core while pressing it down, and inject air.
Page 17: Safety Guides
6. Safety guides Necessary equipment •Safety equipment : lifejacket •As canoeing is an active sport, it may lead to dangerous situations •Paddle : Single edge paddle for use with canoes if safety rules are not followed. •Communication device : cell phone, walkie talkie, •Please acquaint yourself with detailed safety instructions and emergency contact device (whistle, lantern, etc.).
Page 18 Please refer to the guidelines below for maintenance and care. temperatures. The main material plastic may crack. As MyCanoe is made of a corrugated plastic sheet, it may Use a special dock or wharf when getting in/out of the canoe.
Page 19: Troubleshooting
