Summary of Contents for CHEEMHOM DSK140B

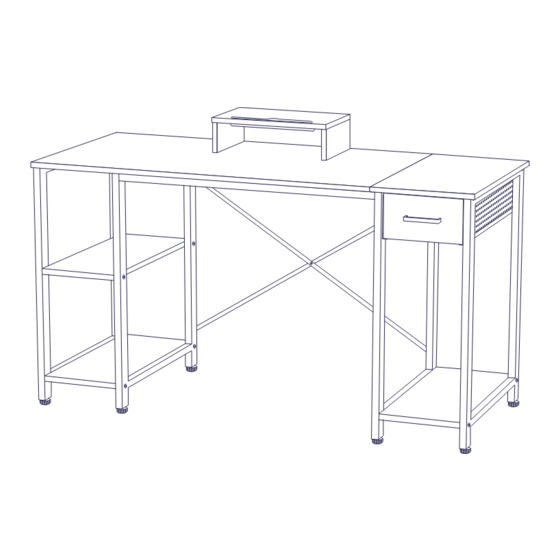

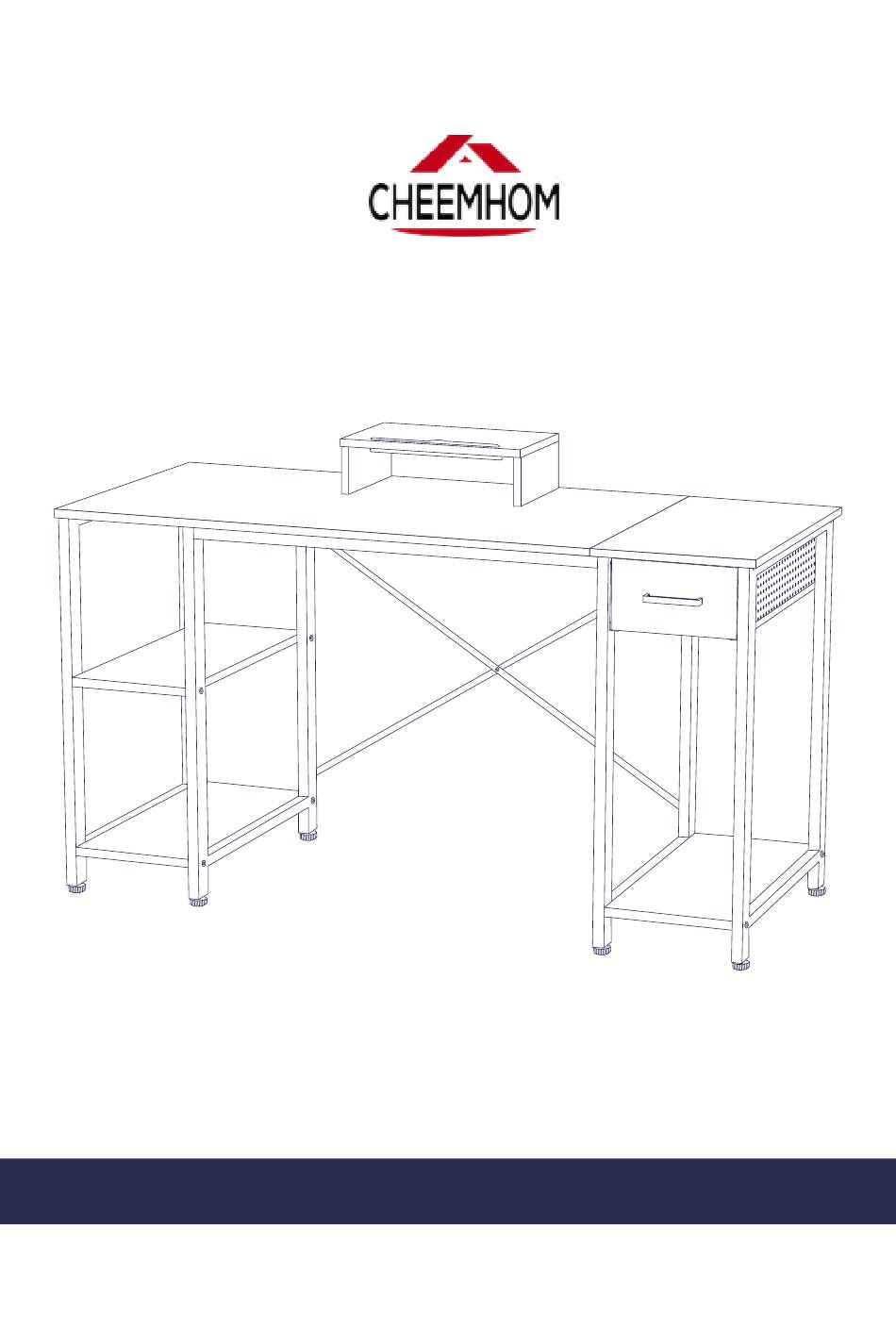

- Page 1 SKU:DSK140B User Manual 55" Computer Desk with Drawer and Monitor Stand qimingjiajukeji@163.com...
- Page 2 Accessories 2PCS (0.39in / 1cm) 5PCS 8PCS (0.79in / 2cm) 10PCS 4PCS (1.18in / 3cm) 4PCS 4PCS (1.38in / 3.5cm) 12PCS 2PCS 2PCS (1.96in / 5cm) 2PCS 2PCS 3PCS...
- Page 3 Installation Steps Step : Install the shelf and the adjustable feet Fix the board on the frame with the pointed screw Screw the adjustable feet into the shelf leg ×4 ×8 (1.96in / 5cm) ×2 ×1 ×1...
- Page 4 Step : Install drawer side shelf and the adjustable feet Fix the wood board between the frame with the pointed screw Screw the adjustable feet into the shelf leg ×4 ×4 (1.96in / 5cm) ×1 ×1 ×1...
- Page 5 Step : Install the desk frame Fix the metal tube between the frame with screws ×4 (1.38in / 3.5cm) ×2 If you plan to install the shelf with drawer on the left of desk, please refer to the installation instructions on page...
- Page 6 Step : Fix "X" Shaped Crossbar Use screws to fix the metal bar on the metal tube Fix the 2 metal bars with screws and nut ×1 ×5 (0.75in / 2cm) ×2...
- Page 7 Step : Assemble the desktop Put two wood boards on the desk, con- nect them tightly with the wood pin ×2 ×1 ×1...
- Page 8 Step : Fix the desktop Adjust the position of the desktop; Fix it on the desk with screws ×10 (1.18in / 3cm)
- Page 9 Step : Assemble the drawer Hold up the foldable drawer and put in the bottom board Use screws to install handle on the drawer ×2 (0.39in / 1cm) ×1 ×1 ×1...
- Page 10 Step : Put the drawer into the desk Put the drawer into the desk; you can storage head- phones, notebooks and other office supplies or daily necessities...
- Page 11 Step : Prepare the monitor stand accessories Clip the accessory into the board Screw the accessory into the wood board ×4 ×4 ×2 ×1...
- Page 12 Step : Assemble the monitor stand Fix the wood board to the board through the accessory ; use the screwdriver to tighten clockwise; (rotate counterclockwise to remove 2 wooden boards) ×1...
- Page 13 Step : Place the monitor stand on the desk Snap the plastic card slot into the stand, and place the stand on the desk ×1...
- Page 14 The installation method of the drawer on the left side of the desk:...
- Page 15 Please refer to the following installation method for the first three steps, and refer to the above steps for the remaining steps...
- Page 16 SKU:DSK140B Thank you for choosing our 55" Computer Desk. If you are satisfied with our products, we sincerely hope that you can share your using experience with others. We always strive to provide customers with the best qual- ity products and satisfactory service.
