Admiral Craft ACIB75016 Operating Manual

Heavy duty immersion blender
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

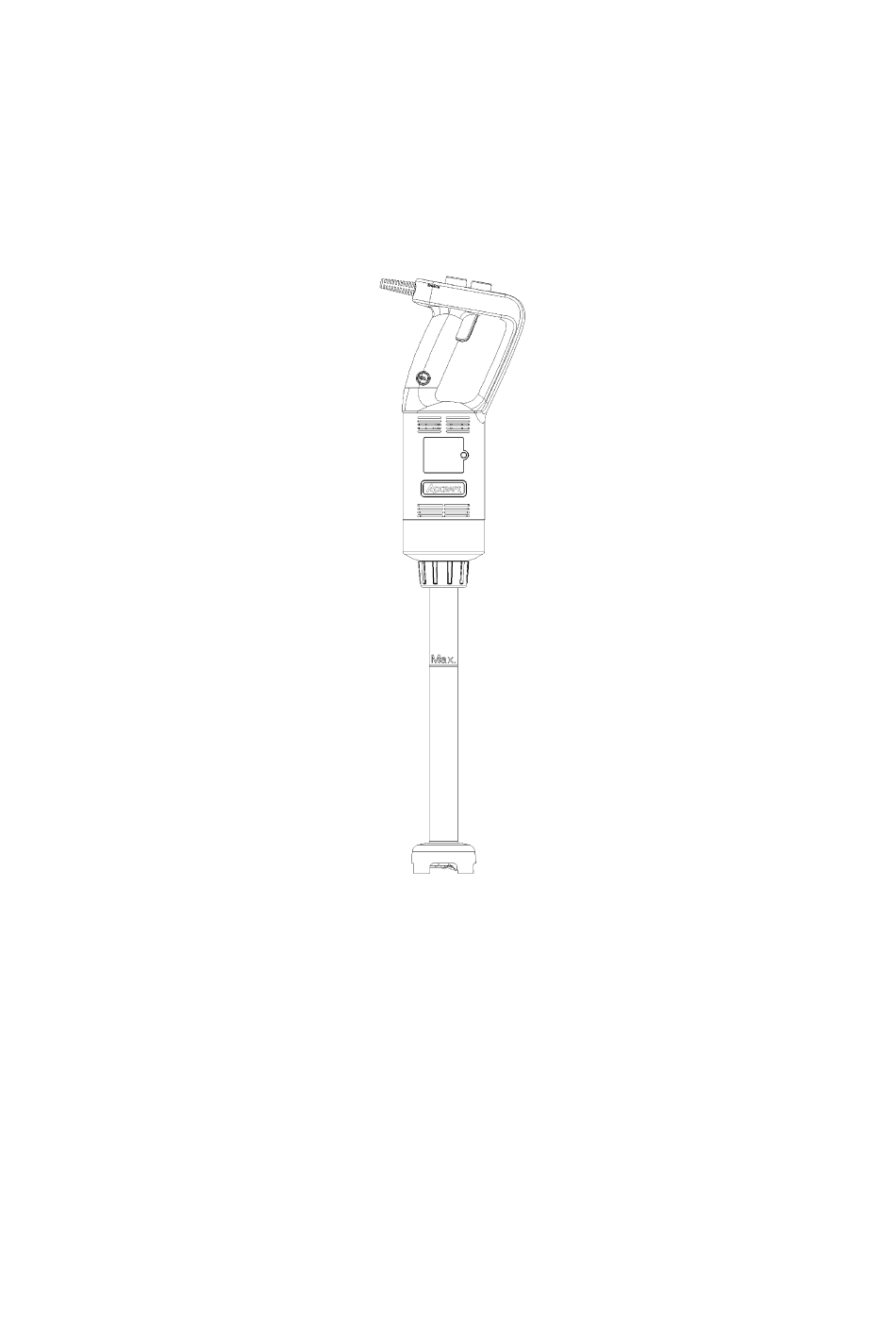

OPERATING MANUAL
HEAVY DUTY IMMERSION BLENDER
Models: ACIB75016, 750W (1HP), 16" (406mm) SHAFT
ACIB35010, 350W (1/2HP), 10" (254mm) SHAFT
Read this manual thoroughly before using and save it for future reference.
Admiral Craft Equipment Corps.
3355 Enterprise Drive – Suite 160
Ft. Lauderdale, FL 33331
Phone: 800.223.7751 Fax: 800.447.7751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACIB75016 and is the answer not in the manual?

Questions and answers

Related Manuals for Admiral Craft ACIB75016

Summary of Contents for Admiral Craft ACIB75016

  • Page 1 OPERATING MANUAL HEAVY DUTY IMMERSION BLENDER Models: ACIB75016, 750W (1HP), 16” (406mm) SHAFT ACIB35010, 350W (1/2HP), 10” (254mm) SHAFT Read this manual thoroughly before using and save it for future reference. Admiral Craft Equipment Corps. 3355 Enterprise Drive – Suite 160 Ft.
  • Page 2 IMPORTANT SAFEGUARDS Before using the electrical appliance, the following basic precautions should always be followed including the following: 1) Read all instructions. 2) Before using check that the voltage of wall outlet corresponds to the one shown on the rating plate. 3) Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner.
  • Page 3 SAFETY BUTTON SPEED KNOB POWER BUTTON HANDLE POSITION 1 LOCK BUTTON HANDLE POSITION 2 HOUSING CARBON BRUSH COVER LOCK NUT BLENDING ROD Shaft SPEED Working Power Voltage Frequency Length (RPM) WEIGHT noise level 16" 750W 8.1 lb 18,000 120V 60Hz ≤85dB 406mm 1 hp...
  • Page 4 IMPORTANT: Blades are very sharp, handle with care. Ensure that the blender is unplugged from the power outlet before installing or removing attachments. How to attach blending rod: 1) Insert the blending rod into the threaded inner hole of the unit body. When inserting, align the slot of the connector with the ribs of the square aluminum cover to ensure that the connector is inserted in place.
  • Page 5 CONTINUOUS OPERATION INSTRUCTIONS After completing steps 1-5 above, proceed to the following steps: 1) Hold the lock button (4) while the power button (3) is pressed down, and the red indicator of the lock button lights up. 2) Release the power button (3) first and then release the lock button (4), the hand blender will work continuously, and the red indicator becomes solid...
  • Page 6 REMOVAL/INSTALLATION OF BLADE ASSEMBLY: 1) Align the blade assembly with wrench 1 and insert into it 2) Align the blending head slot with wrench 2 and insert into it 3) Unscrew clockwise to remove the blending rod WALL MOUNT BRACKET INSTALLATION 1) Drill three holes with a diameter of 6mm on the wall according to the dimensions below figure;...

This manual is also suitable for:

Acib35010
