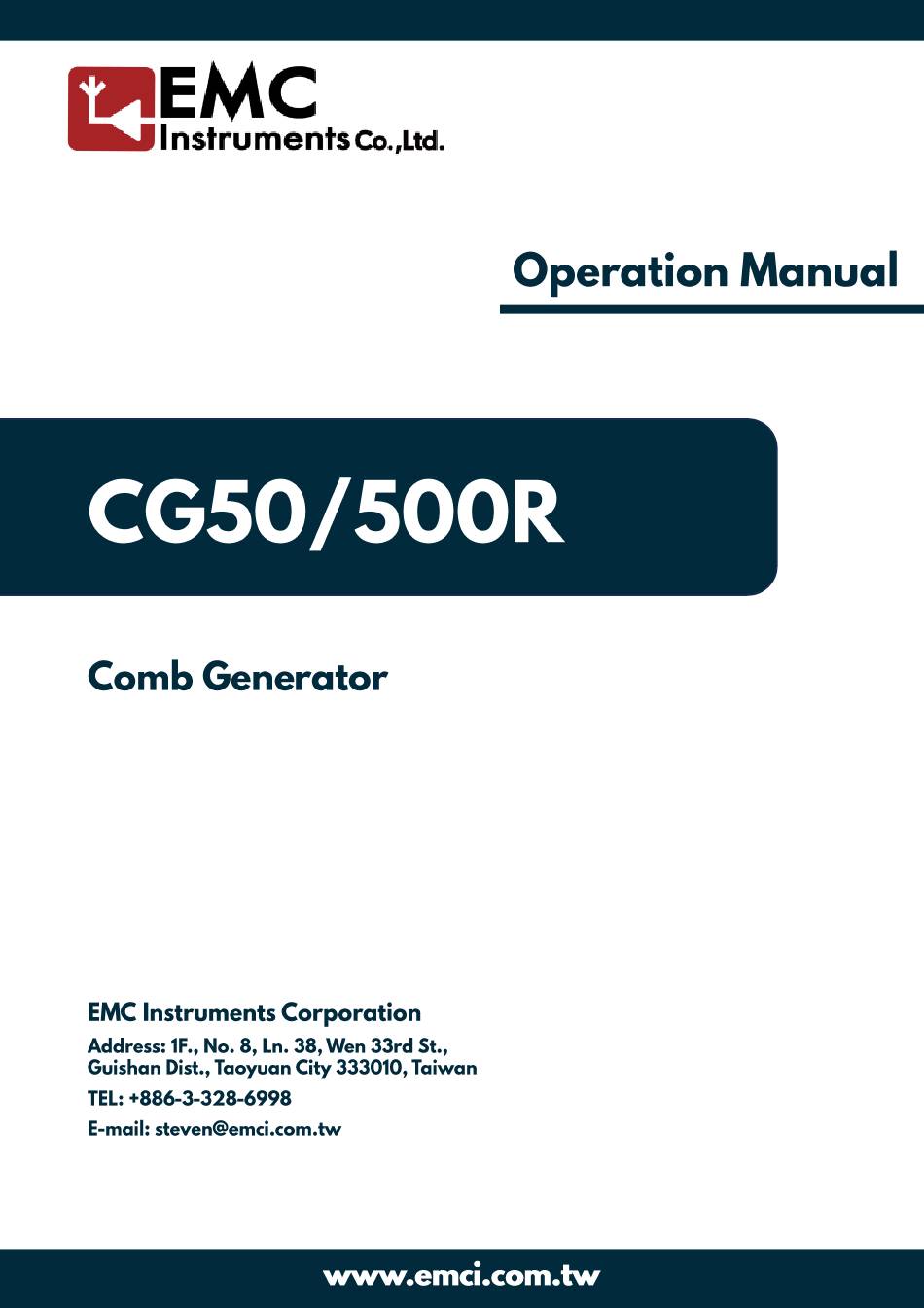

Summary of Contents for EMC CG50/500R
Page 2
General Information The CG50/500R is a standard signal source paired with a monopole antenna, featuring two switchable steps at 50kHz/step and 500kHz/step respectively, with a frequency range up to 30MHz. It is adept at verifying the accuracy of radiated sites.
Page 4
A recommended minimum charge time of 8 hours is advised. CAUTION: Ensure that the Power switch is in the OFF position during charging. CAUTION: The charger input for the CG50/500R must not exceed 5.2V DC. General Operation Power ON/OFF Switch...
Page 5
If only one LED is lit upon powering on, the battery level is within the range of 20~40%. In this case, please recharge the CG50/500R unit. If all LEDs are not illuminated at power-on, indicating a critically low battery, immediate recharging of the CG50/500R unit is required.
Page 6
The CG50/500R Comb generator is suitable for validating test sites and conducting daily checks. To minimize measurement deviations, it is essential to maintain consistent test setups and installations, taking into account the following considerations: The antenna for should be installed at the same position and orientation ...
Page 7
Output Connection The CG50/500R is equipped with a female BNC connector on the top panel, where achieving a matching impedance to a 50Ω system is crucial. It is recommended to use an BNC pad or attenuator to minimize impedance mismatches across the frequency range.
